Spare parts

07 – Body Panel Assembly

Loading…

Loading parts…

• Pos. 1 – Panel Internal Left Side GS3 (Part no. C.1.044.SX)
• Pos. 2 – Panel Left Side GS3 (Part no. F.1.009.SX)
• Pos. 3 – La Marzocco Mutter M8 H5 WR13 (I.1.025) (Part no. I.1.025)
• Pos. 4 – La Marzocco Kappe GS3 Seitenteil (A.2.013) (Part no. A.2.013)
• Pos. 5 – Oval Logo LA Marzocco GS3 (Part no. D.3.001.01)
• Pos. 7 – Grid Cupwarmer GS3 (Part no. C.1.047)
• Pos. 8 – Tray Cup Warmer GS3 (Part no. C.1.048.02)
• Pos. 9 – Nut M3 H3 WR5,5 (Part no. DADO3M)
• Pos. 10 – Logo Back Panel GS3 (Part no. D.2.001)
• Pos. 11 – Panel Back GS3 (Part no. C.1.045)
• Pos. 12 – Panel Right Side GS3 (Part no. F.1.009.DX)
• Pos. 13 – Panel Internal Right Side GS3 (Part no. C.1.044.DX)
• Item 14 – La Marzocco Anti-Slip Foot M6 (CL41.R) (Part no. CL41.R)
• Pos. 15 – Spacer 8X11,3X10 Brass (Part no. C.4.003)
• Pos. 16 – Cap Nut M8 Chromed Glass Panel (Part no. A.2.025.01)
• Pos. 17 – Black Plastic Washer 8.4x25x2.5 (Part no. F.2.025)
• Pos. 18 – Protection Cupwarmer Hole 116MM (Part no. C.1.030.02)
• Pos. 19 – Cap Nut M3 H6,5 CH5,5 (Part no. I.1.108)
• Pos. 20 – Panel Right Side GS3 Glass W/Logo New (Part no. C.5.003.01.R)
• Pos. 21 – Panel Left Side GS3 Glass W/Logo New (Part no. C.5.004.01.R)
• Pos. 22 – Glass Panels GS/3 New (Left+Right) (Part no. C.5.008.01.R)
• Pos. 22 – GS3 Black glass panels (Left+Right) (Part no. Y.1.009.BK)
• Pos. 22 – GS3 Blue glass panels (Left+Right) (Part no. Y.1.009.BL)
• Pos. 22 – GS3 Red glass panels (Left+Right) (Part no. Y.1.009.RD)
• Pos. 22 – GS3 White glass panels (Left+Right) (Part no. Y.1.009.WH)

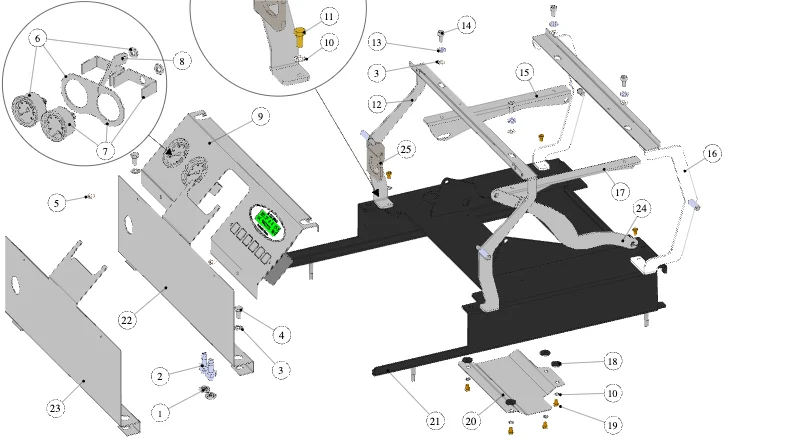

09 – Body Panel Assembly

Loading…

Loading parts…

• Pos. 1 – Nut G1/8 H4,5 WR14 Nickel Plated (Part no. L292/R)
• Pos. 2 – GS/3 Tube Fitting (Part no. L292)
• Pos. 3 – Tooth Lock Washer 4X8X1 (Part no. RONDELLA6X12)
• Pos. 4 – Screw M6X10 Socket Cap A2 (Part no. L120/2)
• Pos. 5 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)
• Pos. 6 – Press.gauge 0-3 White W/Capillary GS3 (Part no. E.3.023)
• Pos. 7 – Press.gauge 0-18 White W/Capillary GS3 (Part no. E.3.022)
• Pos. 8 – Bracket Pressure Gauge GS3 (Part no. C.1.039)
• Pos. 9 – Panel Front GS3 (Part no. C.1.046)
• Pos. 10 – Tooth Lock Washer 8X14,7X2 A2 (Part no. ROND_DENT_4)
• Pos. 11 – Screw M4X10 Hex Head Brass (Part no. I.4.011)
• Pos. 12 – Body Frame Front GS3 (Part no. C.1.063)
• Pos. 13 – Washer 5,4X10X1 A2 (Part no. I.1.039)
• Pos. 14 – Screw M5X10 Socket Cap A2 (Part no. I.1.005)
• Pos. 15 – Bracket Body Frame Upper Left GS3 (Part no. C.1.040.SX)
• Pos. 16 – Body Frame Back GS3 (Part no. C.1.062)
• Pos. 17 – Bracket Body Frame Upper Right GS3 (Part no. C.1.040.DX)
• Pos. 18 – Dumper Washer (Part no. F.2.005.01)
• Pos. 19 – Screw M4X8 Cheese (Part no. VITE4X8)
• Pos. 20 – Motor Protection (Part no. C.1.060)
• Pos. 21 – Frame Base with Boilers Brackets GS3 (Part no. C.1.038)
• Pos. 22 – Panel Front Central GS3 (Part no. C.1.043)
• Pos. 23 – Panel Front Central GS3 MP (Part no. C.1.137)
• Pos. 24 – Stiffener Frame GS3 (Part no. C.1.061)
• Pos. 25 – Bracket Steam Valve GS3 (Part no. C.1.065)

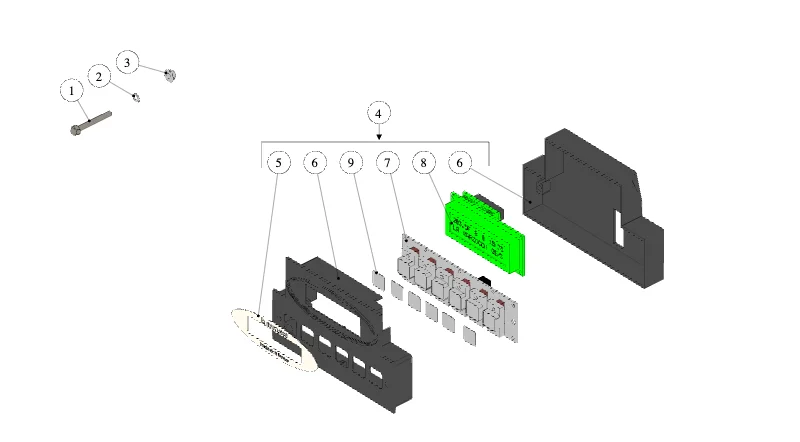

11 – Electrical System Assembly

Loading…

Loading parts…

• Pos. 1 – Keypad Screw (Part no. I.2.001.01)
• Pos. 2 – Tooth Lock Washer 8X14,7X2 A2 (Part no. ROND_DENT_4)
• Pos. 3 – Nut M4 H3 WR7 (Part no. DADO4M)
• Pos. 4 – Display Lcd GS3 AV W/ New Buttons (Part no. E.1.015.01)
• Pos. 4 – Display Lcd Blue GS3 MP W/Button (Part no. E.1.015.P)
• Pos. 4 – Display Lcd GS3 MP W/ New Buttons (Part no. E.1.015.P.01)
• Pos. 5 – La Marzocco Display Decal GS3 (E.1.015/3.01) (Part no. E.1.015/3.01)
• Pos. 6 – Cover and Bottom for E.1.015 (Part no. E.1.015/6)
• Pos. 7 – La Marzocco Tasten Board GS3 (E.1.015/5) (Part no. E.1.015/5)
• Pos. 8 – La Marzocco LCD Display GS3 (E.1.015/4) (Part no. E.1.015/4)
• Pos. 9 – La Marzocco Aufkleber Tasten Board GS3 AV (E.1.015/1.01) (Part no. E.1.015/1.01)
• Pos. 9 – Switches Decals Cover MP (Part no. E.1.015/2)
• Pos. 9 – Switches Decals Cover MP (Part no. E.1.015/2.01)

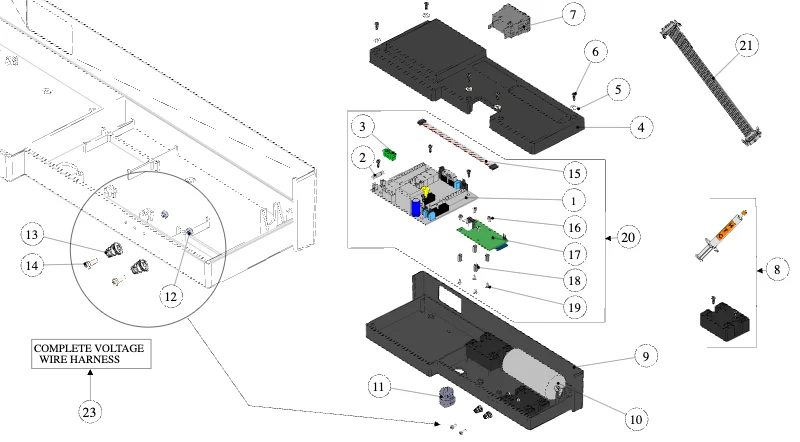

13 – Electrical System Assembly

Loading…

Loading parts…

• Pos. 1 – Electronic Board GS3 AV (Part no. E.1.053.01)
• Pos. 1 – Electronic Board GS3 MP (Part no. E.1.054.01)
• Pos. 2 – GS3 Board Fuse (Part no. E.2.016)
• Pos. 3 – Connector 110V GS3 (Part no. E.2.015/1)
• Pos. 3 – Connector 220V GS3 (Part no. E.2.015/2)
• Pos. 4 – Electronic Box Cover GS3 (Part no. F.1.011)
• Pos. 5 – Tooth Lock Washer 6X10,5X1,5 (Part no. RONDINOXGS/3)
• Pos. 6 – Self Tap. Screw 2,2X9,5 Phil.round-Pan (Part no. VITEAUT2.2X9.5)
• Pos. 7 – La Marzocco Ein-/Ausschalter 20 A (E.2.010.01) (Part no. E.2.010.01)
• Pos. 8 – La Marzocco SSR 25A 240V Relais (E.4.010.01.R) (Part no. E.4.010.01.R)
• Pos. 9 – Electronic Box GS3 (Part no. F.1.010.02)
• Pos. 10 – Capacitor 25uF 110V (Part no. E.7.001.C)
• Pos. 10 – Capacitor 30uF 100V (Part no. E.7.008.C)
• Pos. 10 – Capacitor 220V (Part no. E.7.022)
• Pos. 11 – 90° Strain Relief for GS3 (Part no. E.2.009)
• Pos. 12 – Nut M3 H3 WR5,5 (Part no. DADO3M)
• Pos. 13 – Spring 0,7X10,6X10,6 Nickel P. Conical (Part no. F.3.021.01)
• Pos. 14 – Screw M3X8 Phillips Round-Pan A2 (Part no. VITE3X8)
• Pos. 15 – Cable Gateway Home Machine 25CM (Part no. E.1.055)
• Pos. 16 – Screw M3X5 Phillips Round Pan A2 (Part no. I.1.054)
• Pos. 17 – Wifi Board (Part no. E.4.359.01)
• Pos. 18 – Standoff Hex Threaded (Part no. I.6.012)
• Pos. 19 – Screw M3X6 Phillips Countersunk A2 (Part no. I.1.060)
• Pos. 20 – La Marzocco Retrofit IoT Kit GS3 (Part no. 971)
• Pos. 20 – La Marzocco Retrofit IoT Kit GS3 (Part no. 972)
• Pos. 20 – Retrofit Kit Connected GS3 AV 110V (Part no. 974)
• Pos. 20 – Retrofit Kit Connected GS3 MP 110V (Part no. 976)
• Pos. 21 – 3D5 Keypad Cable CM.80 (Part no. LAD3D5/C04)
• Pos. 22 – Power Cord 15A 125V Usa (Part no. E.4.019)
• Pos. 23 – GS3 Wiring Harness (Part no. E.4.014)
• Pos. 23 – SSR Cable GS3 (Part no. E.4.015)
• Pos. 24 – Self Tap. Screw 2,9X4,5 Phil.round-Pan (Part no. VITEAUT2.9X4.5)

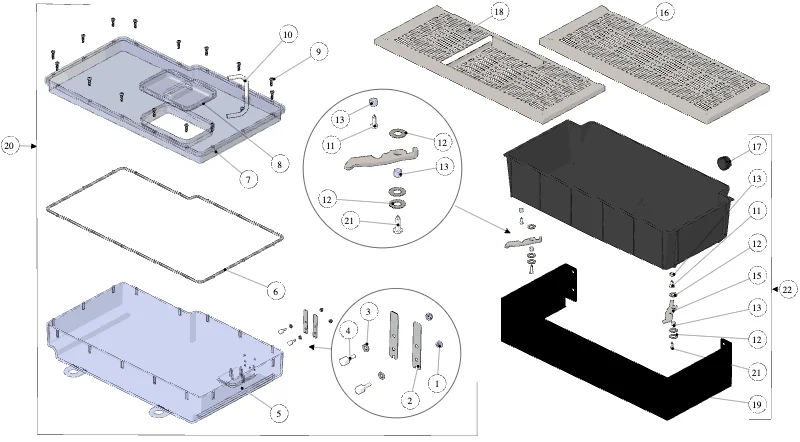

15 – Drain Box / Water Reservoir Assem.

Loading…

Loading parts…

• Pos. 1 – Nut M3 H3 WR5,5 (Part no. DADO3M)
• Pos. 2 – Contact for Level Probe Linea Mini (Part no. C.1.051.1.01)
• Pos. 3 – Nylon Washer 3.2x7x1 (Part no. I.6.003)
• Pos. 4 – Water Reservoir Level Sensor (Part no. A.5.001)
• Pos. 5 – Water Reservoir GS3 (Part no. F.1.013)
• Pos. 6 – GS/3 Gasket - Water Reservoir (Part no. F.2.012)
• Pos. 7 – Cover Water Reservoir GS3 (Part no. F.1.014)
• Pos. 8 – GS3 Water Reservoir Lid (Part no. F.1.017.01)
• Pos. 9 – Self Tap. SCREW2,2X13 Phil.count. A2 (Part no. VITE2.2X13)
• Pos. 10 – Tube Water Resevoir Suction GS3 (Part no. T.2.115)
• Pos. 12 – Washer 6X13X0,5 Brass (Part no. RONDELLA6X13)
• Pos. 13 – Spacer 4X6X4,2 (Part no. A.5.009)
• Pos. 14 – Lever Left Lock Drain Box (Part no. C.1.069SX)
• Pos. 15 – Lever Right Lock Drain Box (Part no. C.1.069DX)
• Pos. 16 – Grid Drain Tray GS3 (Part no. C.1.042.01)
• Pos. 17 – La Marzocco Verschlusskappe Tropfschale (F.2.018.R) (Part no. F.2.018.R)
• Pos. 18 – Grid Drain GS3 for Scale (Part no. C.1.403)
• Pos. 19 – Cover Drain Tray GS3 (Part no. C.1.041.01)
• Pos. 19 – Cover Drain Tray GS3 White (Part no. C.1.041.50)
• Pos. 19 – Cover Drain Tray GS3 Black (Part no. C.1.041.60)
• Pos. 20 – La Marzocco Wassertank GS3 (SA308.R) (Part no. SA308.R)
• Pos. 21 – Selftap. Screw 3,5X13 Phil.round-Pan S/S (Part no. I.1.062)
• Pos. 22 – La Marzocco Tropfschale GS3 (F.1.008.01.R) (Part no. F.1.008.01.R)

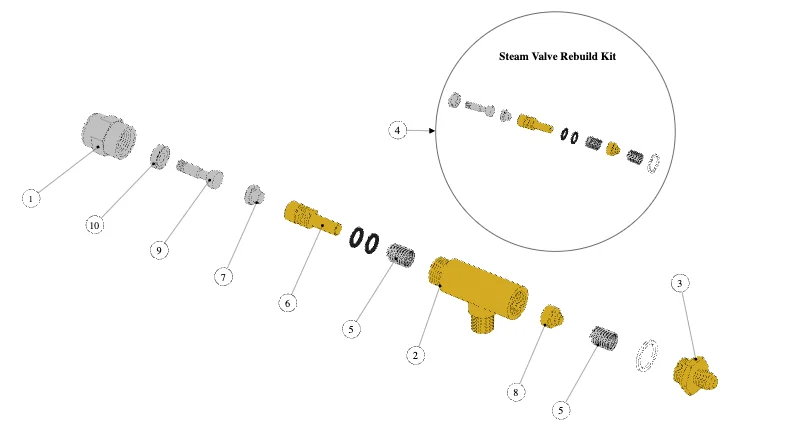

16 – Steam Valve Assembly

Loading…

Loading parts…

• Pos. 1 – La Marzocco Kappe GS3 Dampfhebel (B.1.004/1) (Part no. B.1.004/1)
• Pos. 2 – Body Steam Valve GS3 Treated (Part no. B.1.004/8.01)
• Pos. 3 – Inlet Fitting GS3 Steam Valve RP (Part no. B.1.004/11.01)
• Pos. 4 – Wartungskit / rebuild kit GS3 Dampfhebel (B.1.004.K) (Part no. B.1.004.K)
• Pos. 5 – Spring Compression 1,5X13,7X24 S/S (Part no. B.1.004/7)
• Pos. 6 – Shaft Steam Valve GS3 Treated (Part no. B.1.004/5.01)
• Pos. 7 – Pad Steam Valve GS3 (Part no. B.1.004/4)
• Pos. 8 – Stuffing Box Steam Valve GS3 Treated (Part no. B.1.004/9.01)
• Pos. 9 – GS3 Steam Valve S/S Lever (Part no. B.1.004/3)
• Pos. 10 – Bushing Steam Valve S/S GS3 (Part no. B.1.004/2)

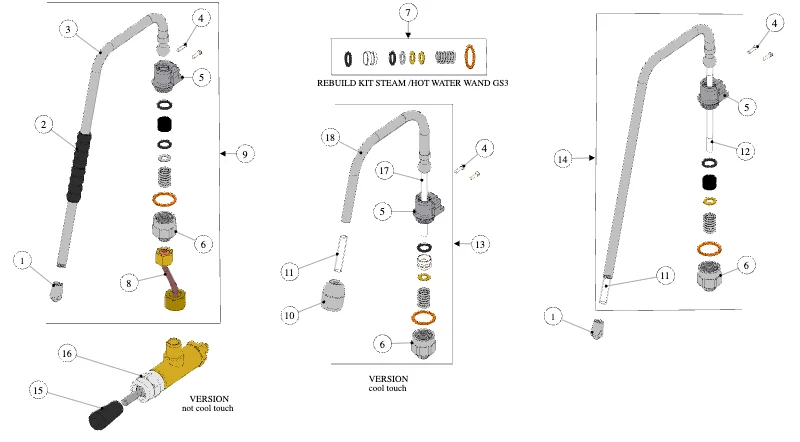

17 – Steam and Hot Water Assembly

Loading…

Loading parts…

• Pos. 1 – Steam Tip D1,5 (Part no. L173)
• Pos. 1 – Steam Tip D1,2 (Part no. L178.01)
• Pos. 2 – La Marzocco Gummierung GS3 Dampflanze (F.2.017) (Part no. F.2.017)
• Pos. 3 – Steam Wand GS3 (Part no. T.2.101)
• Pos. 4 – Screw M3X12 Phillips Countersunk A2 (Part no. I.1.045)
• Pos. 6 – Fitting G1/4M-M20F WR24 H31 Treated (Part no. F.4.007.02)
• Item 7 – La Marzocco wear kit steam / hot water wand (SA309.R) (Part no. SA309.R)
• Pos. 8 – Tube Steam Valve - Steam Wand GS3 (Part no. T.2.118.01)
• Pos. 9 – Kit New Steam Wand Assembly GS/3 (Part no. SA309/2_KIT)
• Item 10 – La Marzocco hot water spout (L160/3.02) (Part no. L160/3.02)
• Pos. 11 – PTFE Tube 1/4-5/16 (Part no. T.3.002)
• Pos. 12 – PTFE Tube 1/8-1/4 (Part no. T.3.001)
• Pos. 13 – SA Tubo the GS/3 (Part no. SA309THE.01.R)
• Pos. 14 – GS3 Steam Wand Assembly (Part no. SA309/3)
• Pos. 15 – Steam Valve Knob GS3 (Part no. B.1.005)
• Pos. 16 – Steam Valve GS3 RP (Part no. B.1.004.02)
• Pos. 17 – Pfa Tube 6mm - 4mm (Part no. T.3.007)
• Pos. 18 – Hot Water Wand S/S GS3 (Part no. T.2.102.01)
• Pos. 1000 – O-Ring 1,9X7,2 EPDM 70 ShA (Part no. H.1.013)
• Pos. 1000 – PTFE Gasket 26X12X2 (Part no. H.2.004)

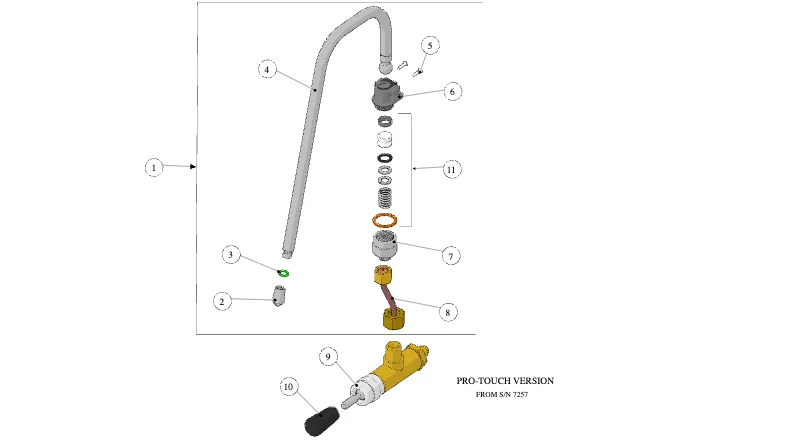

19 – Steam and Hot Water Assembly

Loading…

Loading parts…

• Pos. 1 – Retrofit Kit Pro Touch GS3 (Part no. 938)
• Item 2 – La Marzocco steam nozzle Pro Touch 1.5 mm (A.5.050) (Part no. A.5.050)
• Pos. 2 – Steam Tip Pro Touch D1,2 (Part no. A.5.054.01)
• Pos. 3 – O-RING 1,78 x 7,65 VITON 70 ShA (H.1.027) (Part no. H.1.027)
• Pos. 4 – Steam Wand Pro Touch GS3 Treated (Part no. T.2.129)
• Pos. 5 – Screw M3X12 Phillips Countersunk A2 (Part no. I.1.045)
• Pos. 6 – Dampflanzen Halterung Strada & GS3 (A.5.006.01) (Part no. A.5.006.01)
• Pos. 7 – Fitting G1/4M-M20F WR24 H31 Treated (Part no. F.4.007.02)
• Pos. 8 – Tube Steam Valve - Steam Wand GS3 (Part no. T.2.118.01)
• Pos. 9 – Steam Valve GS3 RP (Part no. B.1.004.02)
• Pos. 10 – Steam Valve Knob GS3 (Part no. B.1.005)
• Item 11 – La Marzocco Wear Kit Steam Wand (SA210.K) (Part no. SA210.K)

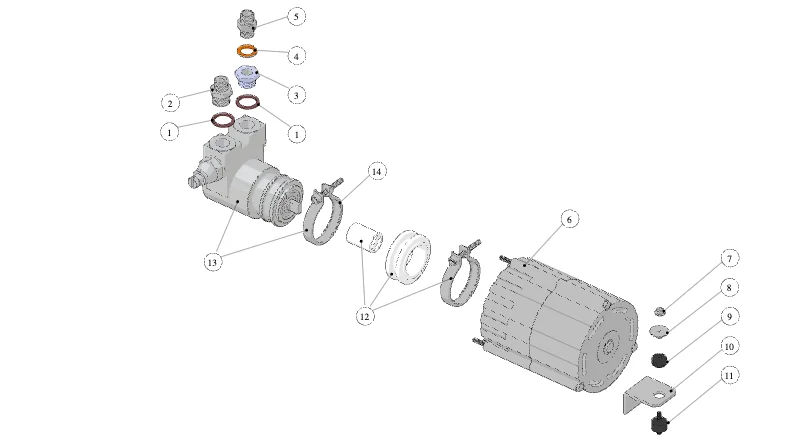

21 – Water Motor Pump Assembly

Loading…

Loading parts…

• Item 1 – La Marzocco copper washer 3/8 inch (L180/1) (Part no. L180/1)
• Pos. 2 – Nipple G3/8M-G1/4M WR20 (Part no. A.5.188)
• Pos. 3 – Fitting G3/8M-G1/4F WR19 (Part no. A.5.107)
• Pos. 4 – La Marzocco copper washer 1/4 inch (L100/1A) (Part no. L100/1A)
• Item 5 – La Marzocco check valve H27.5 1/4″ (B.2.027) (Part no. B.2.027)
• Pos. 6 – La Marzocco Pumpen Motor (E.7.001 / E.7.012) (Part no. E.7.001)
• Pos. 6 – La Marzocco Pumpen Motor (E.7.001 / E.7.012) (Part no. E.7.012)
• Pos. 7 – Nut M4 H3 WR7 (Part no. DADO4M)
• Pos. 8 – Ring for Pump Motor (Part no. E.2.013)
• Pos. 9 – Grommet for Pump Motor GS3 (Part no. E.2.014)
• Pos. 10 – Motor Pump Bracket (Part no. C.1.053)
• Pos. 11 – Damper for Pump Motor (Part no. E.2.012)
• Pos. 12 – Anti-Vibration Adapter Kit for Pump (Part no. F.2.020)
• Pos. 13 – Pump GS3 70 l/h (Part no. E.3.003.01)
• Pos. 14 – Pump Clamp (Part no. L290/C)

23 – Hydraulic Assembly

Loading…

Loading parts…

• Pos. 1 – PTFE Tube 1/8-1/4 (Part no. T.3.001)
• Pos. 2 – Tube Steam B. - Steam Valve Treated (Part no. T.2.109.01)
• Pos. 3 – Pvc Hose Safety Valv GS/3 (Part no. T.3.004)
• Pos. 4 – Tube Steam Valve - Steam Wand GS3 (Part no. T.2.118.01)

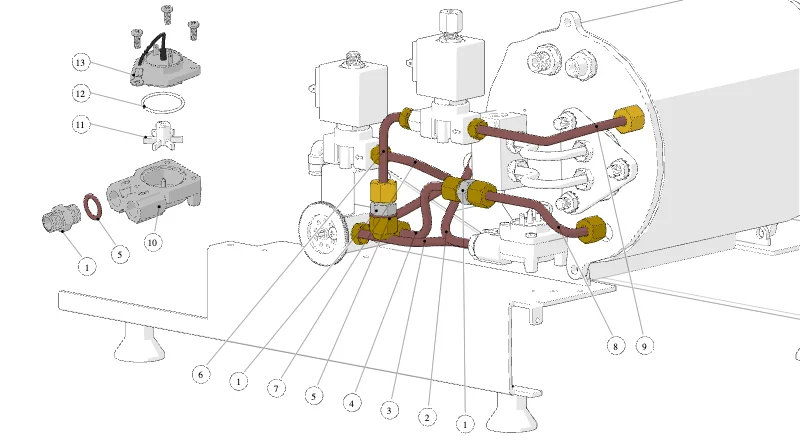

25 – Hydraulic Assembly – AV

Loading…

Loading parts…

• Item 1 – La Marzocco check valve H27,5 1/4″ (B.2.027) (Part no. B.2.027)
• Pos. 2 – Tube Flowmeter - Mixing Valve (Part no. T.2.107)
• Pos. 3 – Tube Coffee B. Mix V. - Flowmeter GS3 (Part no. T.2.111.01)
• Pos. 4 – Tube Check Valve - Mixing Valve GS3 (Part no. T.2.105.01/B)
• Pos. 5 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 6 – Tube Check Valve -Auofill Solenoid V.GS3 (Part no. T.2.113)
• Pos. 7 – Tube Mix Valve-Hot Water Solenoid V. GS3 (Part no. T.2.106)
• Pos. 8 – Tube Steam Boiler - Check Valve GS3 (Part no. T.2.105.01/A)
• Pos. 9 – Tube Autofill Solenoid V.-Steam B. GS3 (Part no. T.2.108)
• Pos. 10 – Flow Meter (Part no. LAD070.01)
• Pos. 11 – La Marzocco Impeller Flowmeter (LAD070/V) (Part no. LAD070/V)
• Pos. 12 – La Marzocco Dichtung / O-Ring Flowmeter (LAD070/S1) (Part no. LAD070/S1)
• Pos. 13 – Lid W/Cable Field Sensor Flowmeter (Part no. LAD070/S.01)

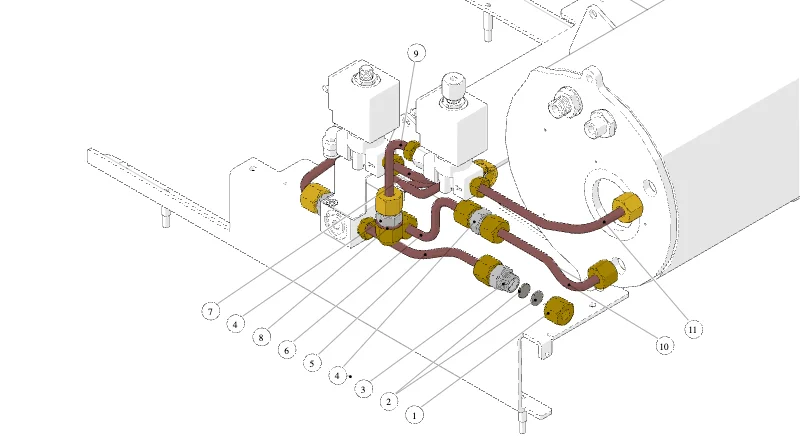

27 – Hydraulic Assembly – MP

Loading…

Loading parts…

• Pos. 1 – Fitting G1/4F H13 WR17 (Part no. L130/4)
• Pos. 2 – Ferrule Blind 11X3 Treated (Part no. L137/4)
• Pos. 3 – Nipple G1/4M-G1/4M WR19 H25.5 TR. (Part no. L037/3.01)
• Item 4 – La Marzocco check valve H27,5 1/4″ (B.2.027) (Part no. B.2.027)
• Pos. 5 – Tube Coffee B. Mix V. - Flowmeter GS3 (Part no. T.2.111.01)
• Pos. 6 – Tube Check Valve - Mixing Valve GS3 (Part no. T.2.105.01/B)
• Pos. 7 – Tube Mix Valve-Hot Water Solenoid V. GS3 (Part no. T.2.106)
• Pos. 8 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 9 – Tube Check Valve -Auofill Solenoid V.GS3 (Part no. T.2.113)
• Pos. 10 – Tube Steam Boiler - Check Valve GS3 (Part no. T.2.105.01/A)
• Pos. 11 – Tube Autofill Solenoid V.-Steam B. GS3 (Part no. T.2.108)

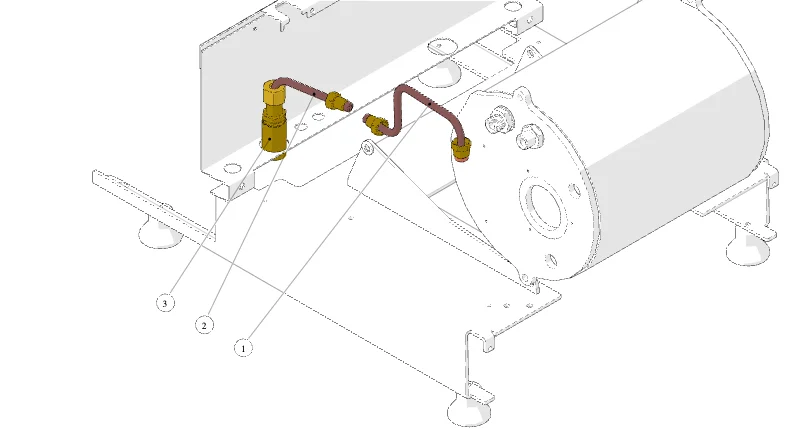

29 – Hydraulic Assembly

Loading…

Loading parts…

• Pos. 1 – Tube Mixing Valve - Coffee Boiler (Part no. T.2.104)
• Pos. 2 – Tube Coffee Boiler - Exp. Valve (Part no. T.2.103)
• Pos. 3 – La Marzocco Expansionsventil (L140_C) (Part no. L140_C)

31 – Hydraulic Assembly – AV

Loading…

Loading parts…

• Item 1 – La Marzocco connection piece pump GS3 (T.2.116) (Part no. T.2.116)
• Pos. 2 – Braided Hose G1/4F 90° 55CM (Part no. L307)
• Pos. 3 – Kupferrohr 3-Wege Ventil GS3 (T.2.114) (Part no. T.2.114)
• Pos. 4 – Pvc Hose for Water Inlet (Part no. T.3.003)
• Pos. 5 – Nipple G1/8M-G1/4M WR17 (Part no. A.5.156)
• Pos. 6 – La Marzocco Heißwasserauslauf (L160/3.02) (Part no. L160/3.02)
• Item 7 – La Marzocco retaining clip for PVC hose (F.3.009) (Part no. F.3.009)

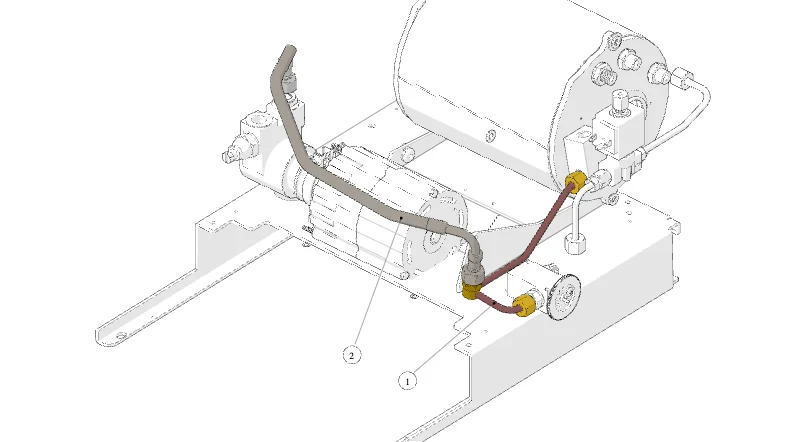

33 – Hydraulic Assembly – MP

Loading…

Loading parts…

• Pos. 1 – Paddle Inlet Water Tube Treat. (Part no. T.2.119.01)
• Pos. 2 – Braided Hose G1/4F 90° 55CM (Part no. L307)

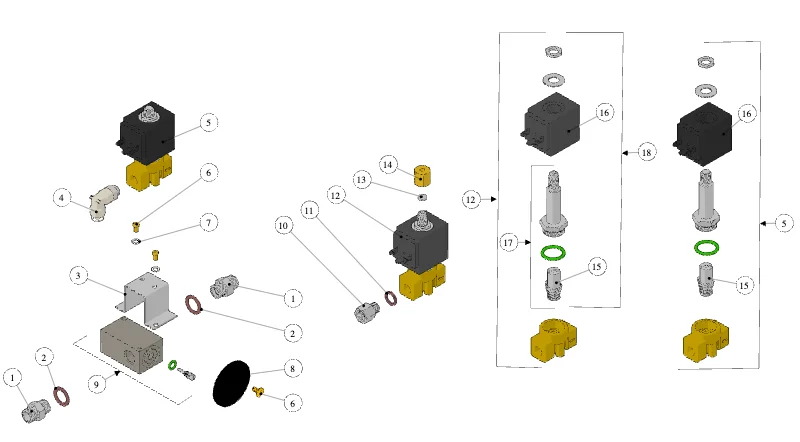

35 – Fitting and Valves

Loading…

Loading parts…

• Item 1 – La Marzocco check valve H27,5 1/4″ (B.2.027) (Part no. B.2.027)
• Pos. 2 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 3 – Bracket Solenoid Valve GS3 (Part no. C.1.050)
• Pos. 4 – Fitting Push-In 90° 6-G1/8M Ppsu (Part no. A.7.013)
• Pos. 5 – Solenoid Valve 2 Way 220/240V (Part no. L053.02)
• Pos. 5 – Solenoid Valve 2 Way 110V (Part no. L053/110.01)
• Pos. 5 – Solenoid Valve 2 Way 200V (Part no. L053/200.01)
• Pos. 6 – Screw M4X6 Cheese Brass (Part no. VITE4X6)
• Pos. 7 – Tooth Lock Washer 8X14,7X2 A2 (Part no. ROND_DENT_4)
• Pos. 8 – Thermostatic Valve Adjustment Knob (Part no. F.1.016)
• Pos. 9 – Mixing Valve Kit (Part no. 1058)
• Pos. 10 – Fitting G1/8F-G1/8M WR14 (Part no. A.5.177)
• Pos. 11 – La Marzocco Kupferscheibe 1/8 Zoll (L100/D) (Part no. L100/D)
• Pos. 12 – La Marzocco 3-Wege Magnet Ventil 220 / 240V (L100/E.02) (Part no. L100/E.02)
• Pos. 12 – Solenoid Valve 3 Way 110V (Part no. L100/E110.01)
• Pos. 12 – Solenoid Valve 3 Way 200V (Part no. L100/E200.01)
• Pos. 13 – La Marzocco Blind Ferrule 8X4 (L134/4) (Part no. L134/4)
• Pos. 14 – La Marzocco Fitting G1/8F H14 WR14 D4 (L134) (Part no. L134)
• Pos. 15 – La Marzocco Anker / Plunger Magnetventil (L100/H) (Part no. L100/H)
• Pos. 16 – SV Coil 220-240V 8W UL Csa Vde (Part no. L100/G.01)
• Pos. 16 – Solenoid Coil 110V (Part no. L100/G110)
• Pos. 16 – Solenoid Coil 200V (Part no. L100/G200)
• Pos. 17 – La Marzocco 3-Wege Ventil (ohne Spule) (B.2.006.02) (Part no. B.2.006.02)
• Pos. 18 – Solenoid Valve 3 Way 110V No Manifold (Part no. B.2.005.02)

37 – Fitting and Valves

Loading…

Loading parts…

• Pos. 1 – Tube Steam Boiler - Safety Valve GS3 (Part no. T.2.117.01)
• Item 2 – La Marzocco retaining spring 2.5X32 safety valve housing (I.8.003) (Part no. I.8.003)
• Item 3 – La Marzocco safety valve housing (F.2.062) (Part no. F.2.062)
• Pos. 4 – Safety Valve G3/8 2,5 Bar (Part no. B.2.025.01)
• Pos. 5 – La Marzocco Schlauchanschluss D10 auf D6 (F.8.021) (Part no. F.8.021)
• Pos. 6 – Antisuction Valve Silicone Tube (Part no. T.4.001)
• Pos. 7 – GS/3 Tube Fitting (Part no. L292)
• Pos. 8 – Nut G1/8 H4,5 WR14 Nickel Plated (Part no. L292/R)
• Pos. 9 – Bushing Flanged 5X9X6,5 PTFE (Part no. B.3.001)
• Pos. 10 – O-Ring 1,78X3,69 FKM 70 SH (Part no. H.1.001)
• Pos. 11 – Anti-Suction Valve Shaft Treated (Part no. B.2.013.01)
• Pos. 12 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 13 – La Marzocco Anschlussstück für Unterdruckventil 1/8″ (A.2.017) (Part no. A.2.017)
• Pos. 15 – Elbow Fitting G1/4F-G1/4M WR24 (Part no. A.2.010)
• Pos. 16 – Vacuum Breaker Valve (Part no. L190)
• Item 17 – La Marzocco wear set vacuum valve SMA (1037) (Part no. 1037)
• Pos. 17 – La Marzocco Unterdruckventil SMA (neue Version) (B.2.029.01) (Part no. B.2.029.01)
• Item 18 – La Marzocco safety valve housing set (F.2.062.R) (Part no. F.2.062.R)

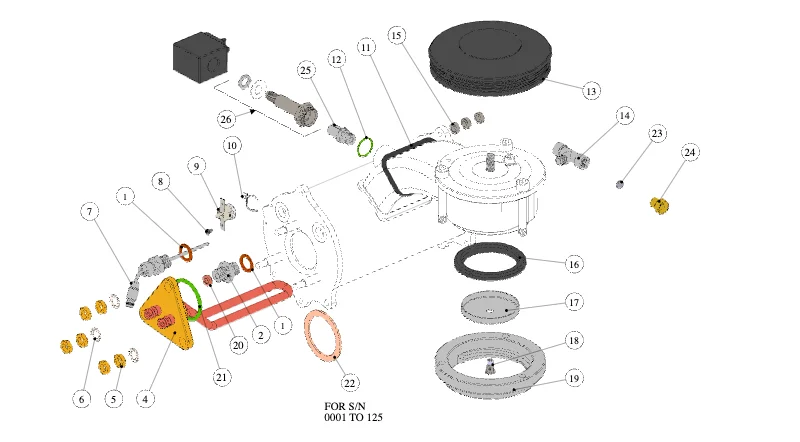

41 – Coffee Boiler Assembly – AV

Loading…

Loading parts…

• Pos. 1 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 2 – Nipple G1/4M-G1/4M WR19 H25.5 TR. (Part no. L037/3.01)
• Pos. 4 – Heating Element W500 V110 Triang.fl. RP (Part no. E.6.002.03)
• Pos. 4 – La Marzocco Heizung 800W, 220V (E.6.004.03) (Part no. E.6.004.03)
• Pos. 4 – Heating Element W500 V200 Triang. Flange (Part no. E.6.006.03)
• Pos. 4 – Heating Element W800 V240 Triang.fl. RP (Part no. E.6.016)
• Pos. 5 – La Marzocco Mutter M8 H5 WR13 (I.1.025) (Part no. I.1.025)
• Pos. 6 – Washer 3X6X0,5 A2 (Part no. ROND_DENT_8)
• Item 7 – La Marzocco PT1000 temperature sensor 100mm (E.1.005) (Part no. E.1.005)
• Pos. 8 – Screw M3X4 Phillips Round-Pan A2 (Part no. I.1.151)
• Pos. 10 – L276.01 Bracket (Part no. L276.01S)
• Pos. 11 – GS3 Schwanenhals Dichtung (F.2.013) (Part no. F.2.013)
• Pos. 12 – O-RING 1,78 X 15,6 Viton 70 SHA (H.1.022) (Part no. H.1.022)
• Item 13 – La Marzocco brew group cover GS3 AV (F.1.012) (Part no. F.1.012)
• Pos. 14 – Tee Fitting R1/8M-G1/8F-G1/8F WR10 TR (Part no. A.2.012.01)
• Pos. 16 – Group Gasket NBR 72/63x55x9 (Part no. H.3.002)
• Item 16 – La Marzocco portafilter seal (H.3.004) (Part no. H.3.004)
• Item 16 – La Marzocco silicone portafilter seal (H.3.007) (Part no. H.3.007)
• Pos. 17 – La Marzocco Duschsieb (F.3.040.01) (Part no. F.3.040.01)
• Pos. 18 – La Marzocco Verteilerschraube / Diffusor (A.5.110) (Part no. A.5.110)
• Pos. 19 – Bayonet Ring Bar Machine (Part no. L109.02)
• Pos. 20 – Ferrule 3,5X11X5 T5 (Part no. L137/3)
• Item 21 – La Marzocco O-ring heating steam / brewing boiler (F.2.014.01) (Part no. F.2.014.01)
• Pos. 22 – Gasket Cylindrical Flat D53XD40X2 (Part no. LR360/1)
• Pos. 23 – La Marzocco Blind Ferrule 8X4 (L134/4) (Part no. L134/4)
• Pos. 24 – Fitting G1/8M H16 WR13 (Part no. L133)
• Pos. 25 – La Marzocco Anker / Plunger Magnetventil (L100/H) (Part no. L100/H)
• Pos. 26 – La Marzocco 3-Wege Ventil (ohne Spule) (B.2.006.02) (Part no. B.2.006.02)

43 – Coffee Boiler Assembly – AV

Loading…

Loading parts…

• Pos. 1 – Solenoid Coil 110V (Part no. L100/G110)
• Pos. 1 – Solenoid Coil 200V (Part no. L100/G200)
• Pos. 2 – SV Coil 220-240V 8W UL Csa Vde (Part no. L100/G.01)
• Pos. 2 – Solenoid Valve 3 Way 110V No Manifold (Part no. B.2.005.02)
• Pos. 3 – Coffee Boiler Flat Side 1GR (Part no. L.1.001.01.R)
• Pos. 4 – O-RING 1,78 X 15,6 FKM 70 SHA (H.1.009) (Part no. H.1.009)
• Pos. 5 – La Marzocco Gicleur 0,6 mm (F.3.052.R) (Part no. F.3.052.R)
• Pos. 5 – Gicleur Removable 0,7 W/ Oring (Part no. F.3.060.R)
• Pos. 5 – Gicleur Removable 0,8 W/ Oring (Part no. F.3.061.R)
• Pos. 6 – Internal Tube for Removalbe Gicler W/Or (Part no. T.1.186.R)
• Pos. 7 – Group Cap S/S GS3 AV (Part no. A.5.028)
• Pos. 8 – Screw M6X10 Socket Cap A2 (Part no. L120/2)
• Pos. 9 – La Marzocco Kupferscheibe 6,3 X 12 X 1 (L120/2A) (Part no. L120/2A)
• Pos. 10 – Screw M8X52 Socket Cap A2 70 (Part no. L110.01)
• Pos. 11 – Socket Grub Screw M8X18 S/S A2 (Part no. L1001/A)
• Pos. 12 – Dichtung 87 X 81 X 0,5 (L103/B) (Part no. L103/B)
• Pos. 13 – O-RING 75,87 X 2,62 FKM 70 SHA (L103/A) (Part no. L103/A)
• Pos. 14 – La Marzocco O-Ring 1,78 x 2,9 FKM 70 ShA (H.1.007.01) (Part no. H.1.007.01)
• Pos. 15 – Retrofit Kit Gicleur 0.6 Remov. W/O-Ring (Part no. 933)

45 – Coffee Boiler Assembly – MP

Loading…

Loading parts…

• Pos. 1 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 2 – Nipple G1/4M-G1/4M WR19 H25.5 TR. (Part no. L037/3.01)
• Item 3 – La Marzocco O-ring heating steam / brewing boiler (F.2.014.01) (Part no. F.2.014.01)
• Pos. 4 – Heating Element W500 V110 Triang.fl. RP (Part no. E.6.002.03)
• Pos. 4 – La Marzocco Heizung 800W, 220V (E.6.004.03) (Part no. E.6.004.03)
• Pos. 4 – Heating Element W500 V200 Triang. Flange (Part no. E.6.006.03)
• Pos. 4 – Heating Element W800 V240 Triang.fl. RP (Part no. E.6.016)
• Pos. 5 – La Marzocco Mutter M8 H5 WR13 (I.1.025) (Part no. I.1.025)
• Pos. 6 – Washer 3X6X0,5 A2 (Part no. ROND_DENT_8)
• Item 7 – La Marzocco PT1000 temperature sensor 100mm (E.1.005) (Part no. E.1.005)
• Pos. 8 – Ferrule 3,5X11X5 T5 (Part no. L137/3)
• Pos. 9 – Screw M3X4 Phillips Round-Pan A2 (Part no. I.1.151)
• Pos. 10 – Bracket Safety Thermostat Campini TY60 (Part no. F.9.002)
• Pos. 11 – La Marzocco Thermosicherung 1P 130°C (L276) (Part no. L276)
• Pos. 12 – GS3 Schwanenhals Dichtung (F.2.013) (Part no. F.2.013)
• Pos. 13 – O-RING 1,78 X 15,6 Viton 70 SHA (H.1.022) (Part no. H.1.022)
• Pos. 14 – Drain Fitting GS3 MP Boiler (Part no. B.2.017)
• Pos. 15 – Ring W/Slot Exposed Group (Part no. C.1.068.02)
• Pos. 16 – Exposed Group Cover (Part no. F.1.020)
• Pos. 17 – Screw M5X20 Socket Cap (Part no. I.1.028)
• Pos. 18 – Cap D9 for Socket Head M5 ES4 Ldpe Black (Part no. F.1.022)
• Pos. 19 – Handle Paddle Linea (Part no. C.2.020)
• Pos. 20 – Spacer 4X6X4 (Part no. I.1.029)
• Pos. 21 – Screw M5X10 Socket Cap A2 (Part no. I.1.005)
• Pos. 22 – Tee Fitting R1/8M-G1/8F-G1/8F WR10 TR (Part no. A.2.012.01)
• Pos. 23 – Extension Lever Group EP (Part no. C.1.125.01)
• Pos. 24 – Exposed Group Cover Ring GS3 MP (Part no. F.1.021)
• Pos. 25 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)
• Pos. 26 – Exposed Group Cover W/Pressure Gauge GS3 (Part no. F.1.079)
• Pos. 27 – Extension Lever Paddle Conical GS3 (Part no. C.1.336)
• Pos. 28 – Gasket Cylindrical Flat D53XD40X2 (Part no. LR360/1)

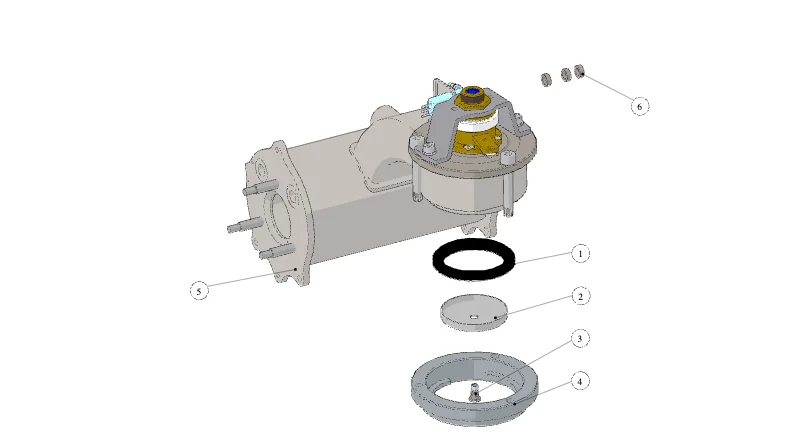

47 – Coffee Boiler Assembly – MP

Loading…

Loading parts…

• Pos. 1 – Group Gasket NBR 72/63x55x9 (Part no. H.3.002)
• Item 1 – La Marzocco portafilter seal (H.3.004) (Part no. H.3.004)
• Item 1 – La Marzocco silicone portafilter seal (H.3.007) (Part no. H.3.007)
• Pos. 2 – La Marzocco Duschsieb (F.3.040.01) (Part no. F.3.040.01)
• Pos. 3 – La Marzocco Verteilerschraube / Diffusor (A.5.110) (Part no. A.5.110)
• Pos. 4 – Bayonet Ring Bar Machine (Part no. L109.02)
• Pos. 5 – Coffee Boiler Flat Side 1GR (Part no. L.1.001.01.R)

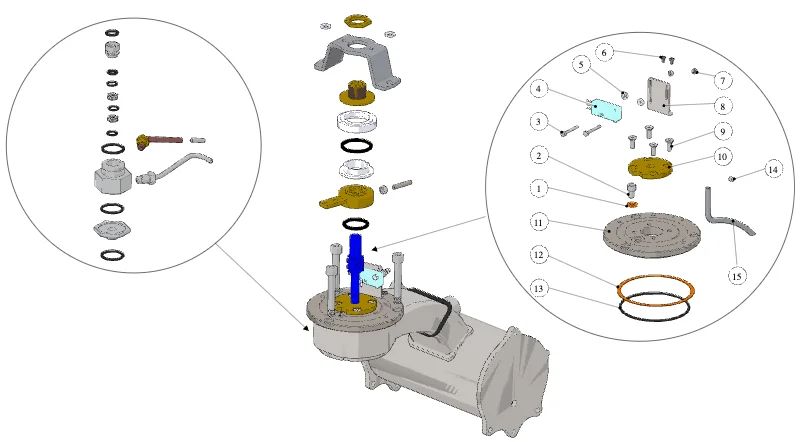

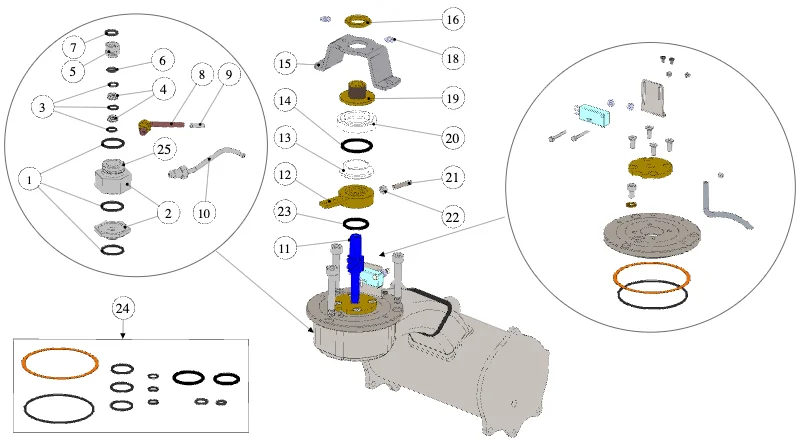

49 – Mechanical Paddle Assembly – Old MP

Loading…

Loading parts…

• Pos. 1 – O-Ring 2,62x21,89 EPDM 70 ShA (Part no. H.1.010.01)
• Pos. 2 – Paddle Valve Body + Adaptor (Part no. B.2.012.R)
• Pos. 3 – La Marzocco O-Ring 1,78 x 9,25 EPDM 70 ShA (H.1.011.01) (Part no. H.1.011.01)
• Pos. 4 – Spacer 9,3X12X4 (Part no. B.2.014.03)
• Pos. 5 – Paddle Gland AISI304L Elect.pol. (Part no. B.2.015.03)
• Pos. 6 – O-Ring 2,62X10,77 EPDM 70 SH (Part no. H.1.019)
• Pos. 7 – O-Ring 2,62x9,13 EPDM 70 ShA (Part no. H.1.018)
• Pos. 8 – Tube Water Inlet MP Valve (Part no. T.1.101.01)
• Pos. 9 – Gicleur 0,6 M5 Ruby (Part no. F.2.003)
• Pos. 9 – Gicleur 0,8 M5 Ruby And (Part no. F.2.003.08)
• Pos. 9 – Gicleur in Synthetic Ruby Ø 0.7 (Part no. F.2.029)
• Pos. 10 – Internal Tube GS3 MP Group Tea (Part no. TL30/P.01)
• Pos. 11 – Shaft for Paddle (Part no. A.5.003)
• Pos. 13 – Paddle Valve Teflon Ring D39 (Part no. F.4.009)
• Pos. 14 – O-Ring 3,53X29,74 NBR 70 SH (Part no. H.1.016)
• Pos. 15 – Bracket Group MP (Part no. F.3.020)
• Pos. 16 – Nut M20 H6,5 WR27 Brass (Part no. A.4.003)
• Pos. 17 – Screw M6X10 Socket Cap A2 (Part no. L120/2)
• Pos. 18 – Tooth Lock Washer 4X8X1 (Part no. RONDELLA6X12)
• Pos. 19 – Bronze Washer Hex Paddle (Part no. A.1.014)
• Pos. 20 – Paddle Valve Teflon Ring D45 (Part no. F.4.008)
• Pos. 21 – Pin D5X23 Thread M5X7,5 (Part no. A.5.005)
• Pos. 22 – Nut M5 H4 WR8 S/S A2 (Part no. DADO5M_INOX)
• Pos. 23 – O-Ring 3,53X23,42 PTFE (Part no. F.4.010)
• Pos. 24 – Wartungskit / rebuild kit Paddle (SA600.01.K) (Part no. SA600.01.K)
• Pos. 25 – Paddle Valve Body AISI304L Elect.pol (Part no. B.2.012.03)

51 – Mechanical Paddle Assembly – Old MP

Loading…

Loading parts…

• Pos. 1 – La Marzocco Kupferscheibe 6,3 X 12 X 1 (L120/2A) (Part no. L120/2A)
• Pos. 2 – Screw M6X10 Socket Cap A2 (Part no. L120/2)
• Pos. 3 – Screw M3X20 Hex Head A2 (Part no. I.1.055)
• Pos. 4 – Microswitch Kit with Lugs (Part no. E.2.039)
• Pos. 5 – Spacer 3,5X8X2,5 AL (Part no. I.3.004)
• Pos. 6 – Screw M3X8 Phillips Round-Pan A2 (Part no. VITE3X8)
• Pos. 7 – Nut M3 H3 WR5,5 (Part no. DADO3M)
• Pos. 8 – Bracket Microswitch GS3 (Part no. C.1.067)
• Pos. 9 – Screw M5X10 Socket Countersunk A2 (Part no. VITE5X10)
• Pos. 11 – Group Cap MP (Part no. A.5.026)
• Pos. 12 – Dichtung 87 X 81 X 0,5 (L103/B) (Part no. L103/B)
• Pos. 13 – O-RING 75,87 X 2,62 FKM 70 SHA (L103/A) (Part no. L103/A)
• Pos. 14 – Socket Grub Screw M5X5 A2 (Part no. I.1.016)
• Pos. 15 – S/S Tube GS3 MP Group Cables (Part no. T.2.120)

53 – Mechanical Paddle Assembly – MP

Loading…

Loading parts…

• Pos. 1 – Microswitch Kit with Lugs (Part no. E.2.039)
• Pos. 4 – Nut M3 H3 WR5,5 (Part no. DADO3M)
• Pos. 5 – Screw M3X10 Phillips Round-Pan A2 (Part no. VITE3X10)
• Pos. 6 – Bracket Microswitch GS3 (Part no. C.1.067)
• Pos. 7 – Spacer 3,5X8X2,5 AL (Part no. I.3.004)
• Pos. 8 – Screw M3X20 Hex Head A2 (Part no. I.1.055)
• Pos. 9 – La Marzocco O-Ring 1,78×6,07 VITON (H.1.006) (Part no. H.1.006)
• Pos. 10 – O-Ring 2,62x9,13 EPDM 70 ShA (Part no. H.1.018)
• Pos. 11 – Shaft Conical Paddle Valve GS3 (Part no. A.5.055)
• Pos. 12 – Pin D5X23 Thread M5X7,5 (Part no. A.5.005)
• Pos. 13 – Nut M5 H4 WR8 S/S A2 (Part no. DADO5M_INOX)
• Pos. 14 – Socket Grub Screw M5X5 A2 (Part no. I.1.016)
• Pos. 15 – Lever Conical Paddle Valve (Part no. F.8.005)
• Pos. 16 – Washer 14,1X30X2 PTFE (Part no. I.6.005)
• Pos. 17 – Washer 14,2X30X2 S/S (Part no. I.1.091)
• Pos. 18 – Belleville Spring 28X14,2X1,5 H2,15 (Part no. I.5.004)
• Pos. 19 – Bushing Flanged 14,4X23X7,8 PTFE (Part no. F.4.013)
• Pos. 20 – Screw M6X10 Socket Cap A2 (Part no. L120/2)
• Pos. 21 – Tooth Lock Washer 4X8X1 (Part no. RONDELLA6X12)
• Pos. 22 – Bracket Group MP (Part no. F.3.020)
• Pos. 23 – Screw M5X10 Socket Cap A2 (Part no. I.1.005)
• Pos. 24 – Washer 5,4X10X1 A2 (Part no. I.1.039)
• Pos. 25 – Extension Lever Paddle Conical GS3 (Part no. C.1.336)
• Pos. 26 – Spacer 4X6X4 (Part no. I.1.029)
• Pos. 27 – Exposed Group Cover W/Pressure Gauge GS3 (Part no. F.1.079)
• Pos. 28 – Handle Paddle Linea (Part no. C.2.020)
• Pos. 29 – Screw M5X25 Socket Cap S/S (Part no. I.1.186)
• Pos. 30 – Cap D9 for Socket Head M5 ES4 Ldpe Black (Part no. F.1.022)
• Pos. 31 – Nut G1/8 H4,5 WR14 Nickel Plated (Part no. L292/R)
• Pos. 32 – Pressure Gauge 0-18 Vertical White (Part no. E.3.009.01)
• Pos. 33 – Cap D8 Sheet Metal 1,6 Nylon Black (Part no. F.1.080)
• Pos. 34 – O-Ring 1,78x4,47 EPDM 70 ShA (Part no. H.1.021)

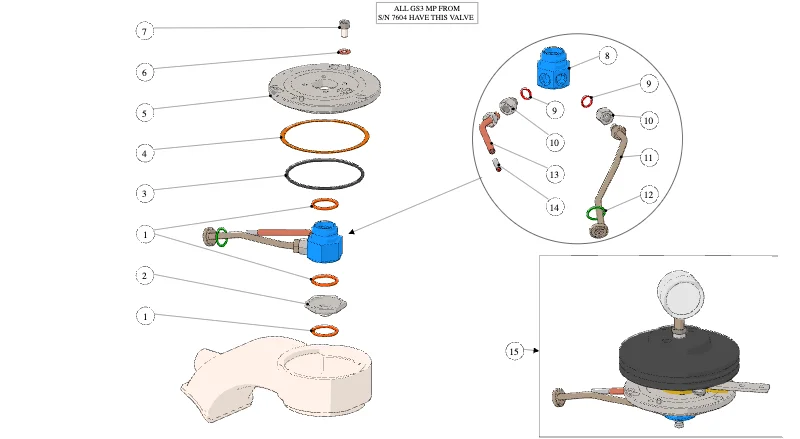

55 – Mechanical Paddle Assembly – MP

Loading…

Loading parts…

• Pos. 1 – O-Ring 2,62x21,89 EPDM 70 ShA (Part no. H.1.010.01)
• Pos. 2 – Adaptor Group Conical V. (Part no. A.5.047)
• Pos. 3 – O-RING 75,87 X 2,62 FKM 70 SHA (L103/A) (Part no. L103/A)
• Pos. 4 – Dichtung 87 X 81 X 0,5 (L103/B) (Part no. L103/B)
• Pos. 5 – Group Cap MP (Part no. A.5.026)
• Pos. 6 – La Marzocco Kupferscheibe 6,3 X 12 X 1 (L120/2A) (Part no. L120/2A)
• Pos. 7 – Screw M6X10 Socket Cap A2 (Part no. L120/2)
• Pos. 8 – Body Conical Paddle Valve (Part no. A.6.003)
• Pos. 9 – La Marzocco O-Ring 1,78 x 9,25 EPDM 70 ShA (H.1.011.01) (Part no. H.1.011.01)
• Pos. 10 – Fitting G1/8M-G1/8F WR14 S/S (Part no. A.5.049)
• Pos. 11 – Drain Tube MP Valve GS3 (Part no. T.1.196.02)
• Pos. 12 – O-RING 1,78 X 15,6 FKM 70 SHA (H.1.009) (Part no. H.1.009)
• Pos. 13 – Tube Water Inlet MP Valve (Part no. T.1.187)
• Pos. 14 – Gicleur 0,6 M5 Ruby (Part no. F.2.003)
• Pos. 14 – Gicleur 0,8 M5 Ruby And (Part no. F.2.003.08)
• Pos. 15 – Retrofit Kit Conical Paddle GS3/Strada (Part no. 954)

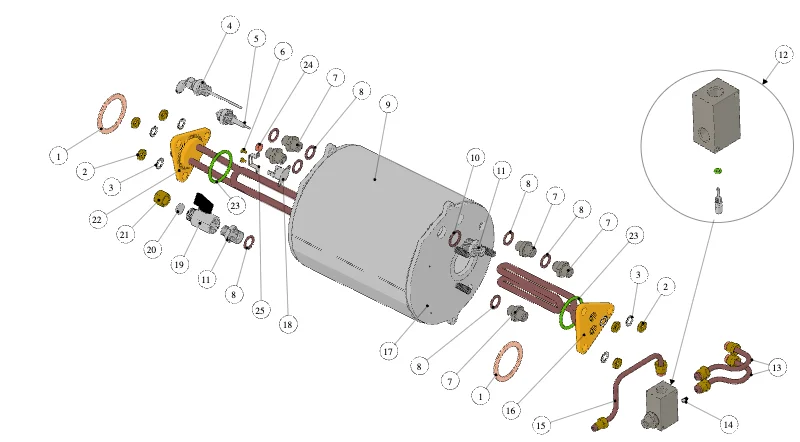

57 – Steam Boiler Assembly

Loading…

Loading parts…

• Pos. 1 – Gasket Cylindrical Flat D53XD40X2 (Part no. LR360/1)
• Pos. 2 – La Marzocco Mutter M8 H5 WR13 (I.1.025) (Part no. I.1.025)
• Pos. 3 – Washer 3X6X0,5 A2 (Part no. ROND_DENT_8)
• Pos. 4 – La Marzocco PT1000 Temperaturfühler 100mm (E.1.005) (Part no. E.1.005)
• Item 5 – La Marzocco GS3 steam boiler level probe (LA052GS3.R) (Part no. LA052GS3.R)
• Pos. 6 – Screw M3X4 Phillips Round-Pan A2 (Part no. I.1.151)
• Pos. 7 – Nipple G1/4M-G1/4M WR19 H25.5 TR. (Part no. L037/3.01)
• Pos. 8 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 9 – Insulation Panel Steam Boiler GS3 (Part no. F.7.024.01)
• Pos. 10 – La Marzocco Kupferscheibe 3/8 Zoll (L180/1) (Part no. L180/1)
• Pos. 11 – Nipple G3/8M-G1/4M WR20 (Part no. A.5.188)
• Pos. 12 – Mixing Valve Kit (Part no. 1058)
• Pos. 13 – Tube Pre-Heater - Mixing Valve GS3 (Part no. T.2.110)
• Pos. 14 – Gicleur 1,5 M5 CH5 Treated (Part no. B.2.011.01)
• Pos. 15 – Tube Mixing Valve - Coffee Boiler (Part no. T.2.104)
• Pos. 16 – Preheater 1GR L149 MM (Part no. T.1.046.01)
• Pos. 17 – Steam Boiler Flat Side GS3 (Part no. L.1.002.R)
• Pos. 18 – Unipolar Thermostat 135C 250V (Part no. E.5.009)
• Pos. 19 – La Marzocco Kugelhahn G3/8M auf G3/8F (L164.02) (Part no. L164.02)
• Pos. 20 – O-Ring 2,62X10,77 EPDM 70 ShA (Part no. H.1.004)
• Pos. 21 – Cap Nut G3/8 H11 WR19 (Part no. L030)
• Pos. 22 – La Marzocco Heizung 1200W, 220V (E.6.003.03) (Part no. E.6.003.03)
• Pos. 22 – Heating Element W1200 V240 Triang. Flang (Part no. E.6.015.01)
• Item 23 – La Marzocco O-ring heating steam / brewing boiler (F.2.014.01) (Part no. F.2.014.01)
• Pos. 24 – Ferrule 3,5X11X5 T5 (Part no. L137/3)
• Pos. 25 – Bracket Safety Thermostat Campini TY60 (Part no. F.9.002)

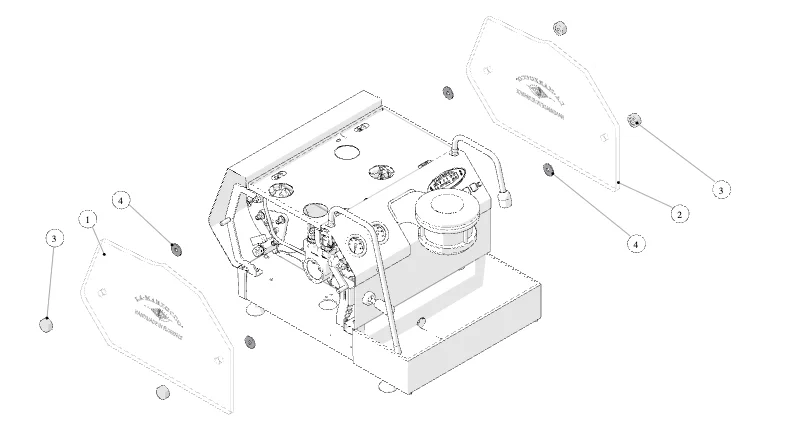

59 – GS3 – Custom Color

Loading…

Loading parts…

• Pos. 1 – Panel Left Side Black Glass GS3 (Part no. F.1.009.SX.BK)
• Pos. 1 – Panel Left Side Blue Glass GS3 (Part no. F.1.009.SX.BL)
• Pos. 1 – Panel Left Side Red Glass GS3 (Part no. F.1.009.SX.RD)
• Pos. 1 – Panel Left Side White Glass GS3 (Part no. F.1.009.SX.WH)
• Pos. 2 – Panel Right Side Black Glass GS3 (Part no. F.1.009.DX.BK)
• Pos. 2 – Panel Right Side Blue Glass GS3 (Part no. F.1.009.DX.BL)
• Pos. 2 – Panel Right Side Red Glass GS3 (Part no. F.1.009.DX.RD)
• Pos. 2 – Panel Right Side White Glass GS3 (Part no. F.1.009.DX.WH)
• Pos. 4 – Black Plastic Washer 8.4x25x2.5 (Part no. F.2.025)

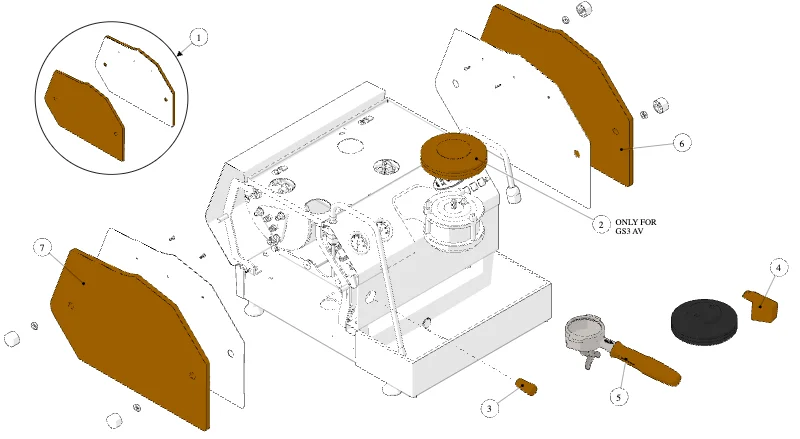

61 – GS3 – Custom Color

Loading…

Loading parts…

• Pos. 1 – Maple Wood Side Panels GS/3 (Left+Right) (Part no. Y.1.009.MW)
• Pos. 1 – Walnut Wood Side Panels GS/3 (Left+Right (Part no. Y.1.009.WW)
• Pos. 2 – Group Protective Cover GS/3 Maple Wood (Part no. F.1.012.MW)
• Pos. 2 – Group Protective Cover GS/3 Walnut Wood (Part no. F.1.012.WW)
• Pos. 3 – Steam Knob Maple (Part no. F.5.002)
• Pos. 3 – Steam Knob Walnut (Part no. F.5.004)
• Pos. 4 – Maple Paddle Handle (Part no. C.2.020.MW)
• Pos. 4 – Walnut Paddle Handle (Part no. C.2.020.WW)
• Pos. 5 – Portafilter Single Spout Maple (Part no. L111/1MW.R)
• Pos. 5 – Portafilter Single Spout Walnut (Part no. L111/1WW.R)
• Pos. 5 – Portafilter Double Spout Maple (Part no. L111/2MW.R)
• Pos. 5 – Portafilter Double Spout Walnut (Part no. L111/2WW.R)
• Pos. 6 – Panel Side DX GS3 Maple Wood (Part no. F.5.014.DX.MW)
• Pos. 6 – Panel Side DX GS3 Maple Wood Complete (Part no. F.5.014.DX.MW.R)
• Pos. 6 – Panel Side DX GS3 Walnut Wood Complete (Part no. F.5.014.DX.WW.R)
• Pos. 6 – Panel Side SX GS3 Maple Wood (Part no. F.5.014.SX.MW)
• Pos. 7 – Panel Side SX GS3 Maple Wood Complete (Part no. F.5.014.SX.MW.R)
• Pos. 7 – Panel Side SX GS3 Walnut Wood Complete (Part no. F.5.014.SX.WW.R)

63 – GS3 – Flat White

Loading…

Loading parts…

• Pos. 1 – Panel Back GS3 White (Part no. C.1.045.50)
• Pos. 2 – Panel Front GS3 White (Part no. C.1.046.50)
• Pos. 3 – Drain Box GS3 White Complete (Part no. SA325.50.R)
• Pos. 4 – Panel Front Central GS3 White (Part no. C.1.043.50)
• Pos. 5 – Panel Front Central GS3 MP White (Part no. C.1.137.50)

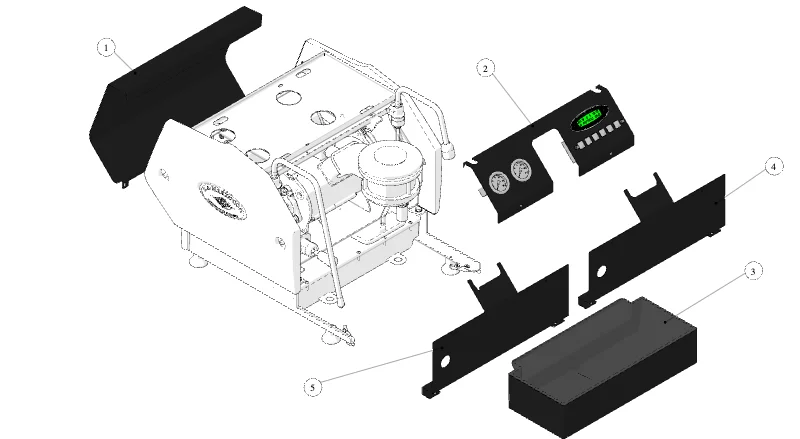

65 – GS3 – Flat Black

Loading…

Loading parts…

• Pos. 1 – Panel Back GS3 Black (Part no. C.1.045.60)
• Pos. 2 – Panel Front GS3 Black (Part no. C.1.046.60)
• Pos. 3 – Drain Box GS3 Black Complete (Part no. SA325.60.R)
• Pos. 4 – Panel Front Central GS3 Black (Part no. C.1.043.60)
• Pos. 5 – Panel Front Central GS3 MP Black (Part no. C.1.137.60)

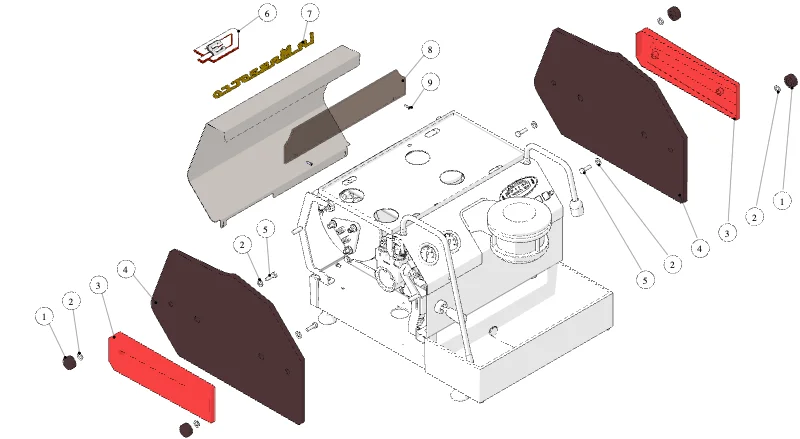

67 – GS – GS Style

Loading…

Loading parts…

• Pos. 1 – Threaded Cap M8 Painted (Part no. A.2.025.60)
• Pos. 2 – Washer 8,5X14X1,5 A2 (Part no. L1003)
• Pos. 3 – Panel Side Trim GS Style GS3 (Part no. C.1.303)
• Pos. 4 – Side Panel Right GS3 - GS Style (Part no. C.3.009.DX)
• Pos. 4 – Side Panel Left GS3 - GS Style (Part no. C.3.009.SX)
• Pos. 5 – Screw M6X20 Hex Head (Part no. I.1.058)
• Pos. 6 – Back Logo GS Style GS3 (Part no. D.2.008)
• Pos. 7 – GS Style LA Marzocco Logo (Part no. D.3.015)
• Pos. 8 – Railing GS Style GS3 (Part no. C.2.037)
• Pos. 9 – Screw M3X12 Phillips Countersunk A2 (Part no. I.1.045)

69 – Water Supply Connection

Loading…

Loading parts…

• Pos. 1 – La Marzocco GS3 Festwasser Kit (913) (Part no. 913)
• Pos. 1 – Plumbing Connection Kit GS3 Etl (Part no. 914)
• Pos. 2 – Clear Armoured Drain Hose (Part no. L308)
• Pos. 3 – Hose Clamp 16/25 H9 W2 AISI430 (Part no. L312)
• Pos. 4 – Hose Connector D20 Di16 (Part no. F.8.003)
• Pos. 5 – O-Ring 2,62x21,89 EPDM 70 ShA (Part no. H.1.010.01)
• Pos. 6 – Discharge Fitting Quick Connection (Part no. F.8.002)
• Item 7 – La Marzocco Flexschlauch G1/4F auf G3/8F – 1,5 m (L325) (Part no. L325)
• Pos. 7 – Braided Hose G1/4F-3/8COMPR. 150CM (Part no. L326)

71 – Portafilters

Loading…

Loading parts…

• Pos. 1 – Portafilter Single Spout Brass (Part no. L111/1)
• Pos. 2 – Spout 1 Cup W/Treatment for Sanitation (Part no. L115.01)
• Pos. 3 – Cup Portafilter Brass with Handle (Part no. L111/LM12.01)
• Pos. 4 – Portafilter Double Spout Brass (Part no. L111/2N)
• Pos. 5 – Spout 2 Cups W/Treatment for Sanitation (Part no. L119.01)
• Pos. 6 – Screw for Double Spout (Part no. L119/V)
• Item 7 – La Marzocco stainless steel portafilter with double spout and rubberised handle (L111/2NAC) (Part no. L111/2NAC)
• Pos. 8 – La Marzocco Edelstahl Doppelauslauf (A.5.014.01) (Part no. A.5.014.01)
• Pos. 9 – La Marzocco O-RING für Siebträger Auslauf (H.1.017) (Part no. H.1.017)
• Pos. 9 – O-Ring 3,37X9,21 EPDM (Part no. H.1.017.02)
• Pos. 10 – Cup Portafilter with Handle (Part no. L111/SS.R)
• Item 11 – La Marzocco stainless steel portafilter with single spout and rubberised handle (L111/1AC) (Part no. L111/1AC)
• Pos. 12 – La Marzocco Edelstahl 1er Auslauf (A.5.013.01) (Part no. A.5.013.01)
• Pos. 13 – Portafilter Fixed Double Spout (Part no. A.5.079)
• Pos. 14 – Portafilter Fixed Double Spout Maple (Part no. A.5.127)
• Pos. 14 – Portafilter Fixed Double Spout Walnut (Part no. A.5.129)
• Item 15 – La Marzocco bottomless portafilter with rubberised handle (L111/X.01) (Part no. L111/X.01)
• Pos. 16 – Portafilter Naked Walnut (Part no. A.5.060)
• Pos. 16 – Portafilter Naked Maple (Part no. A.5.061)
• Pos. 17 – Portafilter Fixed Single Spout (Part no. A.5.078)
• Pos. 18 – Portafilter Fixed Single Spout Maple (Part no. A.5.126)
• Pos. 18 – Portafilter Fixed Single Spout Walnut (Part no. A.5.128)
• Pos. 19 – Portafilter Double Spout Maple (Part no. L111/2MW.R)
• Pos. 19 – Portafilter Double Spout Walnut (Part no. L111/2WW.R)
• Pos. 20 – Portafilter Single Spout Maple (Part no. L111/1MW.R)
• Pos. 20 – Portafilter Single Spout Walnut (Part no. L111/1WW.R)
• Item 21 – La Marzocco bottomless portafilter without handle (A.5.040) (Part no. A.5.040)
• Pos. 22 – Portafilter Handle Walnut (Part no. F.5.001)
• Pos. 22 – Portafilter Handle Maple (Part no. F.5.003)
• Pos. 23 – La Marzocco Edelstahl Siebträger ohne Griff (L111/SS.03) (Part no. L111/SS.03)
• Pos. 24 – Base Portafilter W/Double Sput Mach. (Part no. A.5.112)
• Pos. 25 – Base Portafilter W/Sinlge Spout Mach (Part no. A.5.111)
• Item 26 – La Marzocco portafilter handle, rubberised (F.2.042) (Part no. F.2.042)
• Pos. 27 – Cup Portafilter Brass (Part no. L111/M12.01)

73 – Filter

Loading…

Loading parts…

• Pos. 1 – Filter 1 Cup (Part no. L115/A)
• Pos. 2 – Single Filter (Part no. L115/A/S)
• Pos. 3 – 19mm Swift Filter Basket (Part no. 5.128)
• Pos. 4 – 22mm Swift Filter Basket (Part no. 5.127)
• Pos. 5 – Triple Swift Filter Basket (Part no. 5.133)
• Pos. 6 – Filter 7 GR Standard (Part no. F.3.029.GR)
• Pos. 7 – Filter 7 GR Standard Italy (Part no. F.3.053)
• Pos. 8 – Filter 8 GR Standard (Part no. F.3.150)
• Pos. 9 – Filter 9 GR Standard (Part no. F.3.134)
• Pos. 10 – Filter 14 GR Standard (Part no. F.3.028.01)
• Pos. 11 – Filter 17 GR Standard (Part no. F.3.027.01)
• Pos. 12 – Filter 19 GR Standard (Part no. F.3.135)
• Pos. 13 – Filter 21 GR Standard (Part no. F.3.026.01)
• Pos. 14 – La Marzocco randloses Sieb 14 Gramm (F.3.080) (Part no. F.3.080)
• Pos. 15 – La Marzocco randloses Sieb 17 Gramm (F.3.079) (Part no. F.3.079)
• Pos. 16 – La Marzocco randloses Sieb 21 Gramm (F.3.081) (Part no. F.3.081)
• Pos. 17 – Filter 7 GR X Italia (Part no. F.3.054.X)
• Pos. 18 – La Marzocco “X Filter” getestetes & zertifiziertes Sieb 7 Gramm (F.3.029.X) (Part no. F.3.029.X)
• Pos. 19 – La Marzocco “X Filter” getestetes & zertifiziertes Sieb 14 Gramm (F.3.028.X) (Part no. F.3.028.X)
• Pos. 20 – La Marzocco “X Filter” getestetes & zertifiziertes Sieb 17 Gramm (F.3.027.X) (Part no. F.3.027.X)
• Pos. 21 – La Marzocco “X Filter” getestetes & zertifiziertes Sieb 21 Gramm (F.3.026.X) (Part no. F.3.026.X)
• Pos. 22 – La Marzocco Haltefeder Siebträger (L113) (Part no. L113)
• Pos. 23 – La Marzocco Blindsieb (L115/C) (Part no. L115/C)
• Pos. 24 – Aluminum Single-Double Tamper (Part no. F.3.045)
• Pos. 25 – Anodized Double Tamper US Version (Part no. F.3.031.01)
• Pos. 26 – Filter 14/16 GR LA Marzocco by Ims (Part no. F.3.162)
• Pos. 26 – Filter 16/18 GR LA Marzocco by Ims (Part no. F.3.163)
• Pos. 26 – Filter 2 Cups (Part no. L116/A)

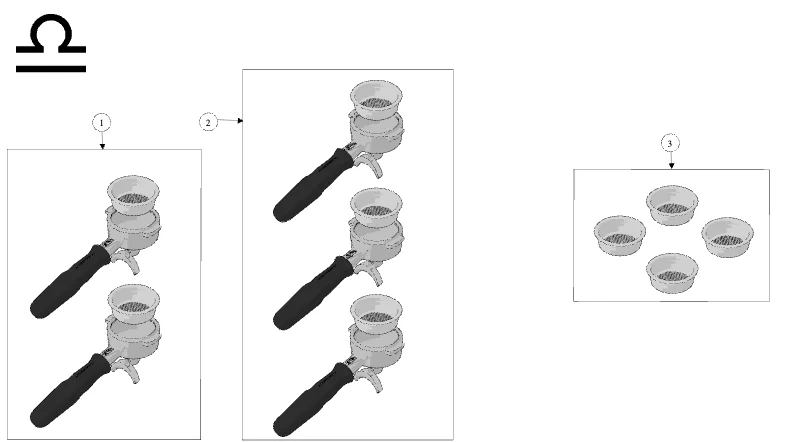

75 – Scales Version – Portafilter Assem.

Loading…

Loading parts…

• Pos. 1 – 2 Precision Portafilter Kit (Part no. 931-2)
• Pos. 2 – 3 Precision Portafilter Kit (Part no. 931-3)
• Pos. 2 – 4 Precision Portafilter Kit (Part no. 931-4)
• Pos. 3 – 4x 17g Precision Filter Basket Kit (Part no. 932)
• Pos. 3 – 4x 14g S/S Precision Filter Basket Kit (Part no. 947)
• Pos. 3 – 4x 21g Precision Filter Basket Kit (Part no. 948)

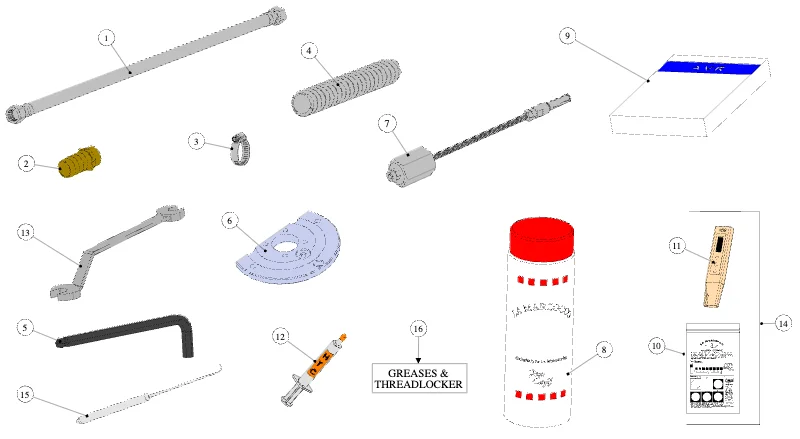

77 – Hose and Accessories

Loading…

Loading parts…

• Item 1 – La Marzocco Flexschlauch G1/4F auf G3/8F – 1,5 m (L325) (Part no. L325)
• Pos. 1 – Braided Hose G1/4F-3/8COMPR. 150CM (Part no. L326)
• Pos. 2 – Hose Fitting G1/2 WR22 D20 Di16 (Part no. L037/2PGR)
• Pos. 3 – Hose Clamp 16/25 H9 W2 AISI430 (Part no. L312)
• Pos. 4 – Clear Armoured Drain Hose (Part no. L308)
• Pos. 5 – Chiave Brugola 5mm AD L Per GS/3 (Part no. UT003)
• Pos. 6 – Paddle Cap Section (Part no. UT103)
• Pos. 7 – MP O-Ring Extractor (Part no. UT004)
• Item 8 – La Marzocco Coffee Oil Remover / Puly Caff (F.9.021) (Part no. F.9.021)
• Pos. 9 – Kit Avr Programmer - USB Complete (Part no. E.4.025.02)
• Pos. 10 – La Marzocco Wassertest Kit (F.9.000.02) (Part no. F.9.000.02)
• Pos. 11 – Digital Tds Meter (Part no. F.9.003)
• Pos. 12 – Htc Thermal Compound Syringe 2ML (Part no. F.1.065)
• Pos. 13 – Bent Wrench WR13 for Group Tube (Part no. UT108)
• Pos. 14 – Water Test Kit (Part no. 941)
• Pos. 15 – La Marzocco Dichtungswerkzeug (UT008) (Part no. UT008)
• Pos. 16 – Food Grade Slicone Grease 111 KG 1 (Part no. V073)
• Pos. 16 – Grasso Parker Super Lube 55gr (Part no. V076)
• Pos. 16 – Vaseline Grease Lubritex 0.900KG (Part no. V078)
• Item 16 – Loxeal 58-11 liquid sealant (Part no. V099)
