07 – Body Panel Assembly

Loading…
Loading parts…La Marzocco Leva – 07 – Body Panel Assembly (exploded view)
  • Pos. 1 – Label Front Red with Rivet (Part no. D.4.018.R)
  • Pos. 1 – Label Front Black with Rivet (Part no. D.4.026.R)
  • Pos. 2 – Tray Drain Leva 2GR (Part no. C.1.026.2.01)
  • Pos. 2 – Tray Drain Leva 3GR (Part no. C.1.026.3.01)
  • Pos. 3 – Grid Drain Leva 2GR (Part no. C.1.347.2.02)
  • Pos. 3 – Grid Drain Leva 3GR (Part no. C.1.347.3.02)
  • Pos. 4 – Screw M4X10 Mushroom Slotted Head (Part no. I.1.099)
  • Pos. 5 – Panel Upper Side Leva (Part no. C.2.047)
  • Pos. 6 – Label Side Lion Black (Part no. D.4.024)
  • Pos. 6 – Label Side Lion Red (Part no. D.4.025)
  • Pos. 7 – Nut M2 H1,6 WR4 (Part no. I.1.111)
  • Pos. 8 – Logo Leva Red (Part no. D.4.017)
  • Pos. 8 – Logo Leva Black (Part no. D.4.023)
  • Pos. 9 – Label Leva Progressive (Part no. D.4.016.90)
  • Pos. 10 – Logo 90 Leva (Part no. D.4.015.90)
  • Pos. 11 – Label Lion Red (Part no. D.4.020)
  • Pos. 11 – Label Lion Black (Part no. D.4.021)
  • Pos. 12 – Logo LA Marzocco Red (Part no. D.4.019)
  • Pos. 12 – Logo LA Marzocco Black (Part no. D.4.022)
  • Pos. 13 – Cap Nut M3 H6,5 CH5,5 (Part no. I.1.108)
  • Pos. 14 – Logo 90 Side (Part no. D.4.014.90)
  • Pos. 15 – Wire Grid Leva 2GR (Part no. C.1.530.2)
  • Pos. 15 – Wire Grid Leva 3GR (Part no. C.1.530.3)

09 – Body Panel Assembly

Loading…

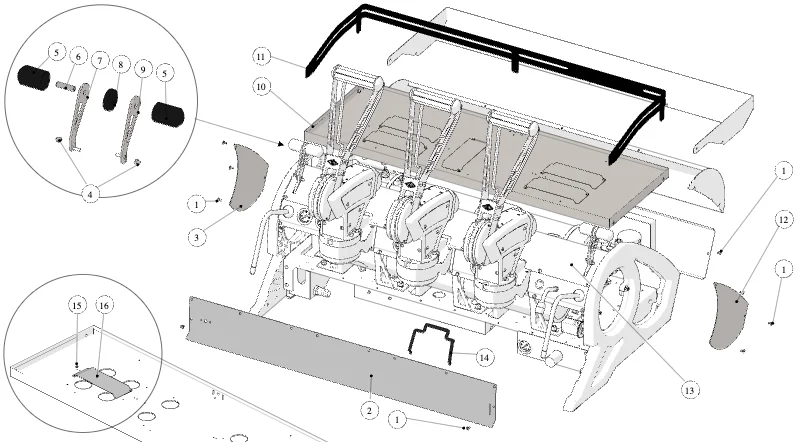

Loading parts…La Marzocco Leva – 09 – Body Panel Assembly (exploded view)
  • Pos. 1 – Screw M4X10 Mushroom Slotted Head (Part no. I.1.099)
  • Pos. 2 – Panel Main Switch Leva 2GR (Part no. C.1.296.2)
  • Pos. 2 – Panel Main Switch Leva 3GR (Part no. C.1.296.3)
  • Pos. 3 – Panel Left Side Lever 90° (Part no. C.1.177.SX.90)
  • Pos. 4 – Cap Nut M4 H8,5 WR7 Inox (Part no. I.1.109)
  • Pos. 5 – Grip Steam Leva 90° Treated (Part no. C.1.354.90)
  • Pos. 5 – Grip Steam Leva (Part no. C.2.040)
  • Pos. 6 – Socket Grub Screw M8X30 A2 (Part no. I.1.032)
  • Pos. 7 – Extension Steam Left Leva (Part no. C.1.344.SX)
  • Pos. 7 – Extension Steam Left Leva 90° (Part no. C.1.344.SX.90)
  • Pos. 8 – Spacer 8X30X6 Act. Steam Leva 90° TR. (Part no. C.1.356.90)
  • Pos. 8 – Spacer 8X30X6 Activation Steam Leva (Part no. C.2.041)
  • Pos. 9 – Extension Steam Right Leva (Part no. C.1.344.DX)
  • Pos. 9 – Extension Steam Right Leva 90° (Part no. C.1.344.DX.90)
  • Pos. 10 – Tray Cupwarmer Leva 2GR (Part no. C.1.348.2)
  • Pos. 10 – Tray Cupwarmer Leva 3GR (Part no. C.1.348.3)
  • Pos. 11 – Railing Back Leva 2GR (Part no. C.1.027.2)
  • Pos. 11 – Railing Back Leva 3GR (Part no. C.1.027.3)
  • Pos. 11 – Railing Back Leva 3GR 90° Treated (Part no. C.1.027.3.90)
  • Pos. 12 – Panel Side Leva (Part no. C.1.177)
  • Pos. 12 – Panel Right Side Lever 90° (Part no. C.1.177.DX.90)
  • Pos. 13 – Panel Upper Front Leva 2GR (Part no. C.1.284.2)
  • Pos. 13 – Panel Upper Front Leva 3GR (Part no. C.1.284.3)
  • Pos. 14 – Gasket Neck Lever Group (Part no. F.1.099)
  • Pos. 15 – Cap Nut M3 H6,5 CH5,5 (Part no. I.1.108)
  • Pos. 16 – Protection Cupwarmer Hole 170 MM (Part no. C.1.100.01)

11 – Body Panel Assembly

Loading…

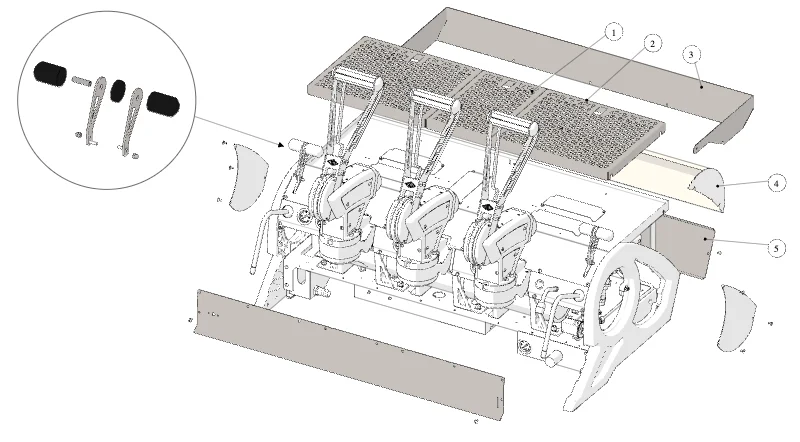

Loading parts…La Marzocco Leva – 11 – Body Panel Assembly (exploded view)
  • Pos. 1 – Grid Cupwarmer 197MM Leva (Part no. C.1.341)
  • Pos. 2 – Grid Cupwarmer 365MM Leva (Part no. C.1.340)
  • Pos. 3 – Panel Back Upper Leva 2GR (Part no. C.1.338.2)
  • Pos. 3 – Panel Back Upper Leva 3GR (Part no. C.1.338.3)
  • Pos. 3 – Panel Back Upper Leva 3GR 90° (Part no. C.1.338.3.90)
  • Pos. 4 – Panel Back Leva 2GR (Part no. C.1.337.2)
  • Pos. 4 – Panel Back Leva 3GR (Part no. C.1.337.3)
  • Pos. 4 – Panel Back Leva 3GR 90° (Part no. C.1.337.3.90)
  • Pos. 5 – Panel Back Lower Leva 2GR (Part no. C.1.298.2)
  • Pos. 5 – Panel Back Lower Leva 3GR (Part no. C.1.298.3)
  • Pos. 5 – Panel Back Lower Leva 3GR 90° (Part no. C.1.298.3.90)

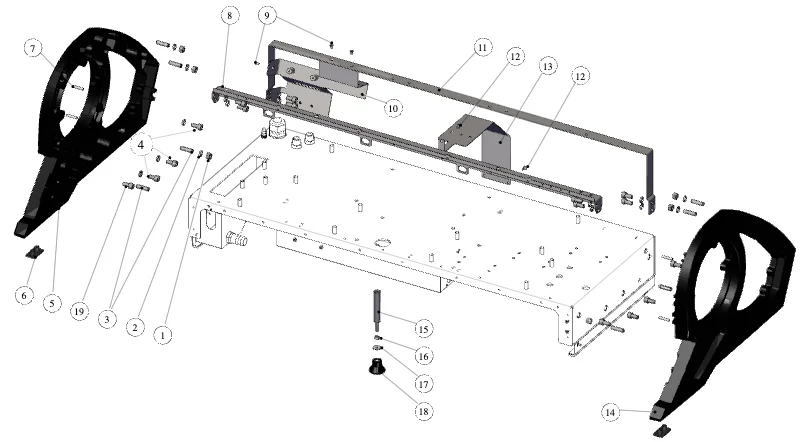

13 – Body Panel Assembly

Loading…
Loading parts…La Marzocco Leva – 13 – Body Panel Assembly (exploded view)
  • Pos. 1 – Nut M8 H8 WR13 S/S A2 (Part no. L1002)
  • Pos. 2 – Washer 8,5X14X1,5 A2 (Part no. L1003)
  • Pos. 3 – Socket Grub Screw M8X30 A2 (Part no. I.1.032)
  • Pos. 4 – Screw M8X16 Socket Cap A2 (Part no. VITE8X16INOX)
  • Pos. 5 – Frame Panel Left Leva (Part no. C.3.022.SX)
  • Pos. 5 – Panel Left Side Leva 90° (Part no. C.3.022.SX.90)
  • Pos. 6 – Rubber Foot (Part no. F.2.026)
  • Pos. 7 – Socket Grub Screw M5X25 S/S A2 (Part no. I.1.052)
  • Pos. 8 – Tie Rod Front 3GR (Part no. C.1.077.01)
  • Pos. 8 – Tie Rod Front 2GR (Part no. C.1.106.01)
  • Pos. 9 – Screw M4X8 Phillips Countersunk A2 (Part no. I.1.057)
  • Pos. 10 – Bracket Teminal Block Leva (Part no. C.1.074)
  • Pos. 11 – Tie Rod Back Leva 2GR (Part no. C.1.037.2)
  • Pos. 11 – Tie Rod Back Leva 3GR (Part no. C.1.037.3)
  • Pos. 12 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)
  • Pos. 13 – Bracket Back Grommets Leva (Part no. C.1.099)
  • Pos. 14 – Frame Panel Right Leva (Part no. C.3.022.DX)
  • Pos. 14 – Fiancata Destra Leva 90° (Part no. C.3.022.DX.90)
  • Pos. 15 – Beam Middle Foot Leva (Part no. F.6.012)
  • Pos. 16 – Nut M6 H5 WR10 A2 (Part no. I.1.049)
  • Pos. 17 – Washer 6,5X18X1,5 (Part no. L165/9)
  • Item 18 – La Marzocco Anti-Slip Foot M6 (CL41.R) (Part no. CL41.R)
  • Pos. 19 – Screw M8X8 Socket Cap A2 (Part no. I.1.019.01)

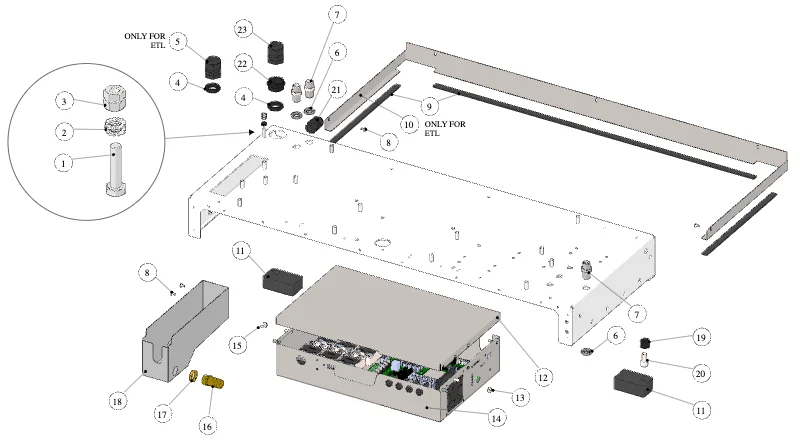

15 – Body Panel Assembly

Loading…
Loading parts…La Marzocco Leva – 15 – Body Panel Assembly (exploded view)
  • Pos. 1 – Screw M6X25 Hex Head A2 (Part no. I.1.067)
  • Pos. 2 – Washer 6,4X12X1,5 A2 (Part no. ROND_DENT_6)
  • Pos. 4 – Nut Cord Grips PG29 (Part no. I.6.008)
  • Pos. 5 – Cord Grips PG29 W/Nut (Part no. E.4.130)
  • Pos. 6 – Nut G3/8 H6 WR21 Treated (Part no. L183/1.01)
  • Pos. 8 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)
  • Pos. 10 – Closure Lower Leva 2GR (Part no. C.1.343.2)
  • Pos. 10 – Closure Lower Leva 3GR (Part no. C.1.343.3)
  • Pos. 11 – Rubber Foot Left/Right (Part no. CL001.01)
  • Pos. 12 – Cover Electronic Box 3GR (Part no. C.1.339)
  • Pos. 12 – Cover Electronic Box 2GR (Part no. C.1.359)
  • Pos. 13 – Nut M6 H5 WR10 A2 (Part no. I.1.049)
  • Pos. 14 – Closure Lower Leva 2GR (Part no. C.1.357)
  • Pos. 14 – Closure Lower Leva 3GR (Part no. C.1.358)
  • Pos. 15 – Wing Nut M6 H5 S/S A2 (Part no. I.1.003)
  • Pos. 16 – Hose Fitting G1/2 WR22 D20 Di16 (Part no. L037/2PGR)
  • Pos. 17 – Nut G1/2 H6 WR24 (Part no. A.1.006)
  • Pos. 17 – Nut G1/2 H6 WR24 (Part no. L037/D)
  • Pos. 18 – Drain Box Leva (Part no. C.1.299)
  • Pos. 19 – Pvc Foot Supports DM.21 GB5 (Part no. F.1.005)
  • Pos. 20 – La Marzocco Schraube M10 X 20 S/S A2 (I.1.090) (Part no. I.1.090)
  • Pos. 21 – Cord Grips PG13,5 (Part no. L322/P)
  • Pos. 22 – Reducer Cord Grips PG29 (Part no. F.1.097)
  • Pos. 23 – Cord Grips PG21 (Part no. L322/G)

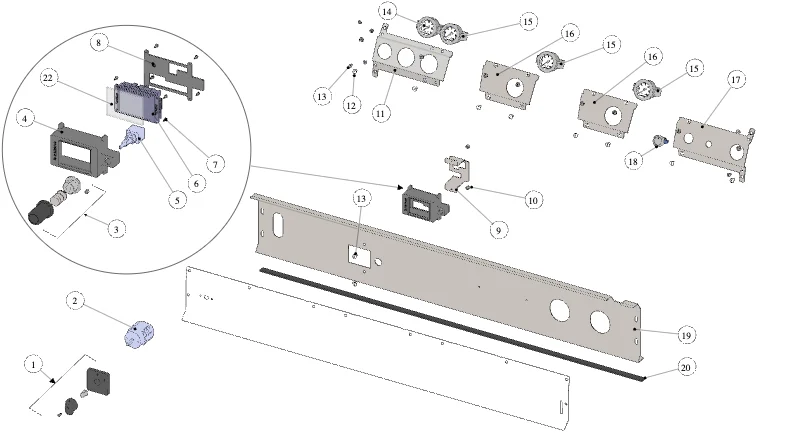

17 – Control Panel Assembly – S Version

Loading…
Loading parts…La Marzocco Leva – 17 – Control Panel Assembly – S Version (exploded view)
  • Pos. 1 – Kit Handle Label 01 Main Switch Bremas (Part no. F.1.184)
  • Pos. 2 – Switch Double-Pole 42A W/Wires Iec/UL (Part no. E.2.001.04)
  • Pos. 2 – Switch Triple-Pole 20A W/Wires Iec/UL (Part no. E.2.002.04)
  • Pos. 2 – Switch Triple-Pole 42A W/Wires Iec/UL (Part no. E.2.069.01)
  • Pos. 3 – Kit Button Encoder (Part no. 1011)
  • Pos. 4 – Box Display Leva (Part no. F.1.092)
  • Pos. 5 – Encoder Leva (Part no. E.2.062)
  • Pos. 6 – Display Graphic W/ 2 Boards (Part no. E.1.042.01)
  • Pos. 7 – Selftap.screw 2,2X6,5 Phil.round-Pan (Part no. I.1.086)
  • Pos. 8 – Cover Box Display Leva (Part no. F.1.093)
  • Pos. 9 – Bracket Fixing Display Leva S (Part no. C.1.262.01)
  • Pos. 10 – Nut M4 H3 WR7 A2 (Part no. DADOINOXM4)
  • Pos. 11 – Panel Left Control Leva 2GR W/Pres.gauge (Part no. C.1.345.2.SX)
  • Pos. 11 – Panel Left Control Leva 3GR W/Pres.gauge (Part no. C.1.345.3.SX)
  • Pos. 12 – Screw M4X10 Mushroom Slotted Head (Part no. I.1.099)
  • Pos. 13 – Screw M4X8 Phillips Countersunk A2 (Part no. I.1.057)
  • Pos. 14 – Press.gauge 0-3 White W/Capillary Leva (Part no. E.3.019)
  • Pos. 15 – Press.gauge 0-24 White W/Capillary Leva (Part no. E.3.017)
  • Pos. 16 – Panel Mid Control Leva W/Press.gauge (Part no. C.1.346)
  • Pos. 17 – Panel Right Control Leva 2GR (Part no. C.1.345.2.DX)
  • Pos. 17 – Panel Right Control Leva 3GR (Part no. C.1.345.3.DX)
  • Pos. 18 – Switch Hot Water W/White LED with Riser (Part no. E.2.051.R)
  • Pos. 19 – Pannello Front. Inf. Leva 2GR C/Display (Part no. C.1.342.2)
  • Pos. 19 – Pannello Front. Inf. Leva 3GR C/Display (Part no. C.1.342.3)
  • Pos. 21 – Glass Display (Part no. F.1.098)
  • Pos. 22 – Tea Cable Leva (Part no. E.4.211)

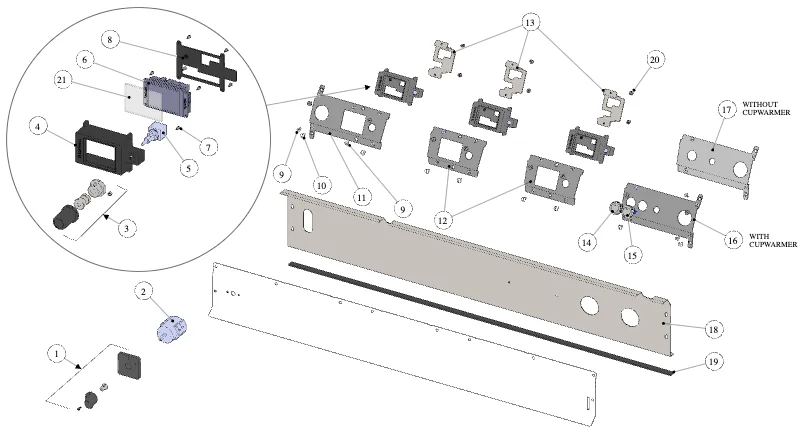

19 – Control Panel Assembly – X and 90 V

Loading…
Loading parts…La Marzocco Leva – 19 – Control Panel Assembly – X and 90 V (exploded view)
  • Pos. 1 – Kit Complete Main Switch Bremas (Part no. F.1.183)
  • Pos. 2 – Switch Double-Pole 42A W/Wires Iec/UL (Part no. E.2.001.04)
  • Pos. 2 – Switch Triple-Pole 20A W/Wires Iec/UL (Part no. E.2.002.04)
  • Pos. 2 – Switch Triple-Pole 42A W/Wires Iec/UL (Part no. E.2.069.01)
  • Pos. 3 – Kit Button Encoder (Part no. 1011)
  • Pos. 4 – Box Display Leva (Part no. F.1.092)
  • Pos. 5 – Encoder Leva (Part no. E.2.062)
  • Pos. 6 – Display Graphic W/ 2 Boards (Part no. E.1.042.01)
  • Pos. 7 – Selftap.screw 2,2X6,5 Phil.round-Pan (Part no. I.1.086)
  • Pos. 8 – Cover Box Display Leva (Part no. F.1.093)
  • Pos. 9 – Screw M4X8 Phillips Countersunk A2 (Part no. I.1.057)
  • Pos. 10 – Screw M4X10 Mushroom Slotted Head (Part no. I.1.099)
  • Pos. 11 – Panel Left Control Leva 2GR W/Display (Part no. C.1.351.2.SX)
  • Pos. 11 – Panel Left Control Leva 3GR W/Display (Part no. C.1.351.3.SX)
  • Pos. 11 – Panel Left Cont. Leva 3GR W/Display 90° (Part no. C.1.351.3.SX.90)
  • Pos. 12 – Panel Middle Control Leva W/Display (Part no. C.1.352)
  • Pos. 12 – Panel Middle Control Leva W/Display 90° (Part no. C.1.352.90)
  • Pos. 13 – Bracket Fixing Display Leva (Part no. C.1.075.01)
  • Pos. 14 – Switch Cupwarmer W/White LED with Riser (Part no. E.2.052.R)
  • Pos. 15 – Switch Hot Water W/White LED with Riser (Part no. E.2.051.R)
  • Pos. 16 – Panel Right Control Leva 2GR W/Cupwarmer (Part no. C.1.351.2.DX)
  • Pos. 16 – Panel Right Control Leva 3GR W/Cupwarmer (Part no. C.1.351.3.DX)
  • Pos. 16 – Panel Right Control 3GR W/Cupwarmer 90° (Part no. C.1.351.3.DX.90)
  • Pos. 17 – Panel Right Control Leva 2GR (Part no. C.1.345.2.DX)
  • Pos. 17 – Panel Right Control Leva 3GR (Part no. C.1.345.3.DX)
  • Pos. 18 – Panel Lower Front Leva 2GR (Part no. C.1.360.2.01)
  • Pos. 18 – Panel Lower Front Leva 3GR (Part no. C.1.360.3)
  • Pos. 20 – Nut M4 H3 WR7 A2 (Part no. DADOINOXM4)
  • Pos. 21 – Glass Display (Part no. F.1.098)
  • Pos. 22 – Tea Cable Leva (Part no. E.4.211)

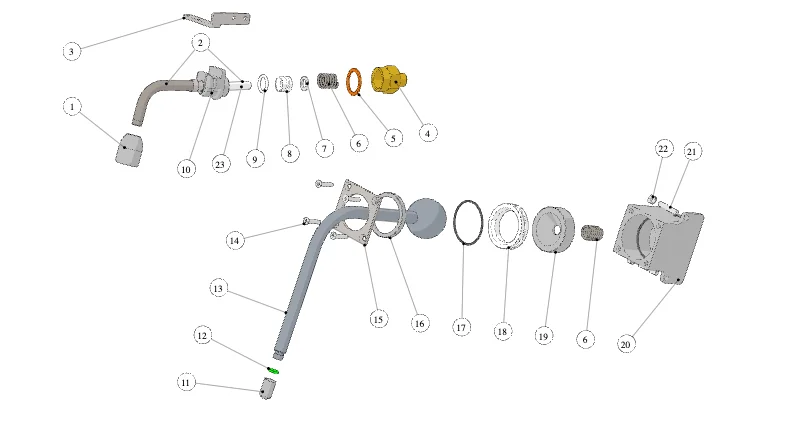

21 – Steam and Hot Water Assembly

Loading…
Loading parts…La Marzocco Leva – 21 – Steam and Hot Water Assembly (exploded view)
  • Pos. 1 – La Marzocco Heißwasserauslauf (L160/3.02) (Part no. L160/3.02)
  • Pos. 2 – Wand Hot Water S/S Leva W/PTFE (Part no. T.2.130.R)
  • Pos. 3 – Bracket Support Tea Wand Leva (Part no. C.1.297)
  • Pos. 4 – Fitting G1/4M-M20F WR24 H31 Treated (Part no. F.4.007.02)
  • Pos. 5 – Washer 21X27X1,5 (Part no. L260/1A)
  • Pos. 6 – Spring Compres. WD 2,5 OD 15,5 L 18 S/S (Part no. F.3.156)
  • Pos. 7 – Washer 8,5X14X1,5 A2 (Part no. L1003)
  • Pos. 8 – Gasket Ball Joint Wand D14,5MM Pom (Part no. H.2.003.01)
  • Pos. 9 – O-Ring 2,62x12,37 PTFE (Part no. H.1.044)
  • Item 11 – La Marzocco steam nozzle Pro Touch 1.5 mm (A.5.050) (Part no. A.5.050)
  • Pos. 12 – O-RING 1,78 x 7,65 VITON 70 ShA (H.1.027) (Part no. H.1.027)
  • Pos. 13 – Steam Wand Pro Touch Leva Polished (Part no. T.2.011)
  • Pos. 14 – Screw M4X20 Phillips Countersunk A2 (Part no. I.1.076)
  • Pos. 15 – Cover Slot Steam Wand Leva (Part no. F.3.064)
  • Pos. 16 – Bushing Steam Wand 37X45X5 (Part no. F.1.090)
  • Pos. 17 – O-Ring 1,78x41 EPDM 70 ShA (Part no. H.1.029)
  • Pos. 18 – Gasket D43 H10 Junction Steam Wand Leva (Part no. H.2.009)
  • Pos. 19 – Spacer Special 33X45X14 S/S (Part no. I.1.010)
  • Pos. 20 – Housing Steam Wand Leva (Part no. A.2.107)
  • Pos. 21 – Socket Grub Screw M5X25 S/S A2 (Part no. I.1.052)
  • Pos. 22 – Nut M5 H4 WR8 S/S A2 (Part no. DADO5M_INOX)
  • Pos. 23 – PTFE Tube 1/8-1/4 (Part no. T.3.001)

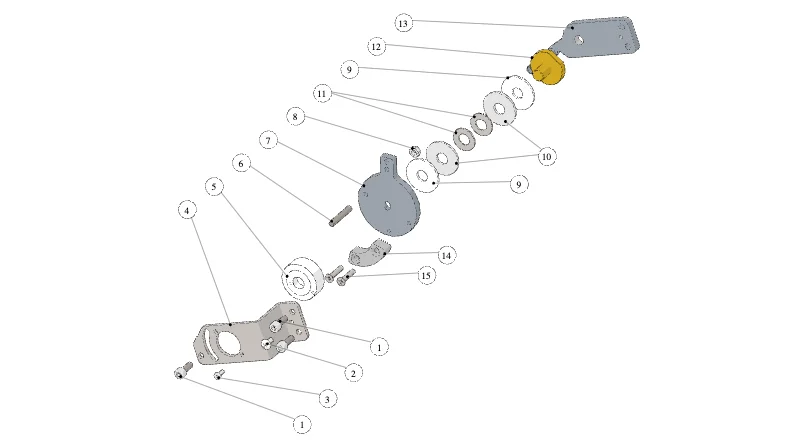

23 – Steam Valve Assembly – S Version

Loading…
Loading parts…La Marzocco Leva – 23 – Steam Valve Assembly – S Version (exploded view)
  • Pos. 1 – Screw M5X14 Socket Cap A2 (Part no. I.1.011)
  • Pos. 2 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)
  • Pos. 3 – Screw M3X8 Phillips Round-Pan A2 (Part no. VITE3X8)
  • Pos. 4 – Bracket Steam Right Leva (Part no. C.1.057.DX)
  • Pos. 4 – Bracket Steam Left Leva (Part no. C.1.057.SX)
  • Pos. 5 – Slot Mechanical Potentiometer (Part no. F.4.006)
  • Pos. 6 – Stud for Steam Valve Cam (Part no. I.1.037)
  • Pos. 7 – Lever Lower Right Steam Wand Leva (Part no. C.1.349.DX.01)
  • Pos. 7 – Lever Lower Right Steam Wand Leva 90° (Part no. C.1.349.DX.90)
  • Pos. 7 – Lever Lower Left Steam Wand Leva (Part no. C.1.349.SX.01)
  • Pos. 7 – Lever Low. Left Steam Wand Leva Polished (Part no. C.1.349.SX.90.01)
  • Pos. 8 – Nut M5 H4 WR8 S/S A2 (Part no. DADO5M_INOX)
  • Pos. 9 – Washer 10X30X2 PTFE (Part no. F.1.032)
  • Pos. 10 – Washer 10.7X30X1.8 A2 (Part no. I.1.033)
  • Pos. 11 – Belleville Spring 10X20X1,3 (Part no. I.5.003)
  • Pos. 13 – Fixing Activation Group Steam DX (Part no. F.3.018.DX)
  • Pos. 13 – Fixing Activation Group Steam SX (Part no. F.3.018.SX)
  • Pos. 14 – Cam Steam Valve Leva (Part no. F.1.095)
  • Pos. 15 – Screw M4X20 Phillips Countersunk A2 (Part no. I.1.076)

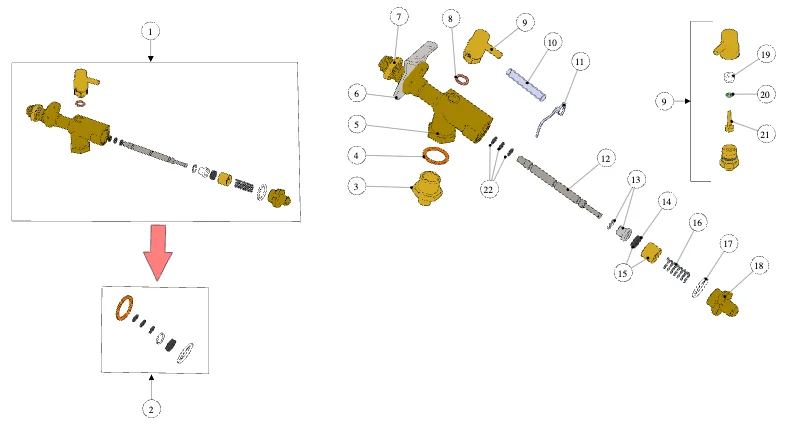

25 – Steam Valve Assembly – S Version

Loading…
Loading parts…La Marzocco Leva – 25 – Steam Valve Assembly – S Version (exploded view)
  • Pos. 1 – Strada MP Steam Valve Treated (Part no. B.1.007.01)
  • Pos. 2 – Rebuild Kit Steam Valve Strada MP / Leva (Part no. B.1.007.K)
  • Pos. 3 – Fitting G1/2M-1/4M WR27 Treated (Part no. A.1.018.01)
  • Pos. 4 – Washer 21X27X1,5 (Part no. L260/1A)
  • Pos. 5 – Complete Steam Valve Body (Part no. A.1.001.01.R)
  • Pos. 6 – Bracket Mechanical Valve Leva (Part no. C.1.049)
  • Pos. 7 – Nut G1/2 H6 WR24 (Part no. A.1.006)
  • Pos. 8 – Special Washer 10X14X1,6 (Part no. B.1.001.TR)
  • Pos. 9 – La Marzocco Unterdruckventil 1/8″ (L192.03) (Part no. L192.03)
  • Pos. 10 – Antisuction Valve Silicone Tube (Part no. T.4.001)
  • Pos. 11 – Cable Tie 120x2,5MM High Temperature (Part no. L338/L100.01)
  • Pos. 12 – GB5-Strada MP Steam Valve Shaft (Part no. A.1.002)
  • Pos. 13 – Steam Valve Seat W/ Gasket (Part no. F.3.007.R)
  • Pos. 14 – Steam Valve Seal Gasket (Part no. H.2.001)
  • Pos. 15 – Steam Valve Seal Assembly (Part no. B.2.010)
  • Pos. 16 – Spring Compression 1,2X11,7X29,5 (Part no. F.3.005.01)
  • Pos. 17 – Gasket Flat D24X19X2 PTFE (Part no. H.2.002)
  • Pos. 18 – GB5 Steam Valve Inlet Fitting Treated (Part no. A.1.003.01)
  • Pos. 19 – Bushing Flanged 5X9X6,5 PTFE (Part no. B.3.001)
  • Pos. 20 – O-Ring 1,78X3,69 FKM 70 SH (Part no. H.1.001)
  • Pos. 21 – Anti-Suction Valve Shaft Treated (Part no. B.2.013.01)
  • Pos. 22 – O-Ring 1,90x4,90 FKM 70 ShA (Part no. H.1.005)

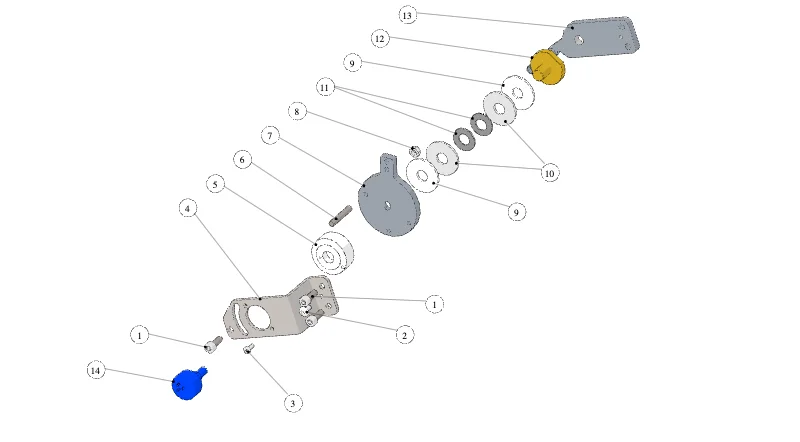

27 – Steam Valve Electronic Assembly – X

Loading…
Loading parts…La Marzocco Leva – 27 – Steam Valve Electronic Assembly – X (exploded view)
  • Pos. 1 – Screw M5X14 Socket Cap A2 (Part no. I.1.011)
  • Pos. 2 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)
  • Pos. 3 – Screw M3X8 Phillips Round-Pan A2 (Part no. VITE3X8)
  • Pos. 4 – Bracket Steam Right Leva (Part no. C.1.057.DX)
  • Pos. 4 – Bracket Steam Left Leva (Part no. C.1.057.SX)
  • Pos. 5 – Slot Mechanical Potentiometer (Part no. F.4.006)
  • Pos. 6 – Stud for Steam Valve Cam (Part no. I.1.037)
  • Pos. 7 – Lever Lower Right Steam Wand Leva (Part no. C.1.349.DX.01)
  • Pos. 7 – Lever Lower Left Steam Wand Leva (Part no. C.1.349.SX.01)
  • Pos. 8 – Nut M5 H4 WR8 S/S A2 (Part no. DADO5M_INOX)
  • Pos. 9 – Washer 10X30X2 PTFE (Part no. F.1.032)
  • Pos. 10 – Washer 10.7X30X1.8 A2 (Part no. I.1.033)
  • Pos. 11 – Belleville Spring 10X20X1,3 (Part no. I.5.003)
  • Pos. 13 – Fixing Activation Group Steam DX (Part no. F.3.018.DX)
  • Pos. 13 – Fixing Activation Group Steam SX (Part no. F.3.018.SX)
  • Pos. 14 – Potentiometer 10KOHM 340° IP65 (Part no. E.2.048)

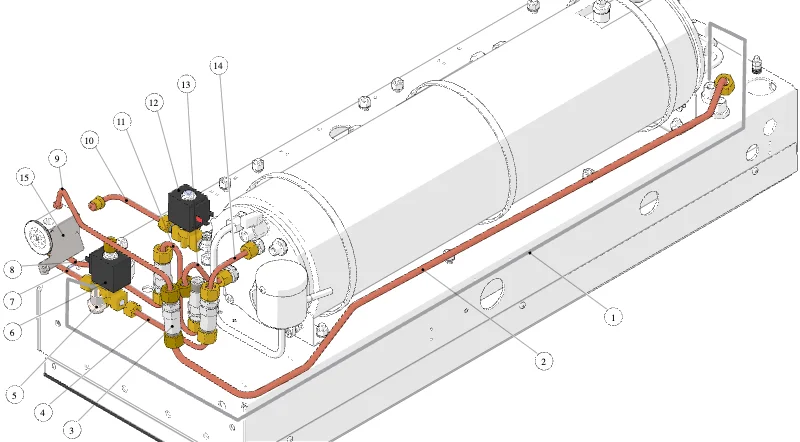

29 – Hydraulic Assembly

Loading…
Loading parts…La Marzocco Leva – 29 – Hydraulic Assembly (exploded view)
  • Pos. 1 – Braided Hose G3/8F 120CM (Part no. L305/120.01)
  • Pos. 2 – Tube Inlet Manifold - Check V. Steam 3GR (Part no. T.1.105)
  • Pos. 2 – Tube Inlet Manifold - Check V. Steam 2GR (Part no. T.1.141)
  • Pos. 3 – Check Valve G3/8M Treated (Part no. L032/P.02)
  • Pos. 4 – Tube Inlet S.v. - Check Valve Leva (Part no. T.1.207)
  • Pos. 6 – La Marzocco 3-Wege Magnet Ventil 220 / 240V (L100/E.02) (Part no. L100/E.02)
  • Pos. 6 – Solenoid Valve 3 Way 200V (Part no. L100/E200.01)
  • Pos. 7 – Tube Mix V. - S.v. Steam B. Inlet Leva (Part no. T.1.197)
  • Pos. 8 – Tube Mix V. - Check Valve Leva (Part no. T.1.199)
  • Pos. 9 – Tube Check V. - Tea Mix V. Strada (Part no. T.1.115)
  • Pos. 10 – Tube Mix V. - Hot Water S.v. Leva (Part no. T.1.200)
  • Pos. 11 – Tube Check V. - Steam B. Check V. Leva (Part no. T.1.198)
  • Pos. 12 – Solenoid Valve 2 Way 220/240V (Part no. L053.02)
  • Pos. 12 – Solenoid Valve 2 Way 200V (Part no. L053/200.01)
  • Pos. 13 – Tube Steam B. Exit-Check Valve Strada (Part no. T.1.119)
  • Pos. 14 – Tube Water Sensor - Inlet Fitting (Part no. T.1.283)
  • Pos. 15 – Bracket Mix Hot Water Leva (Part no. C.1.052)

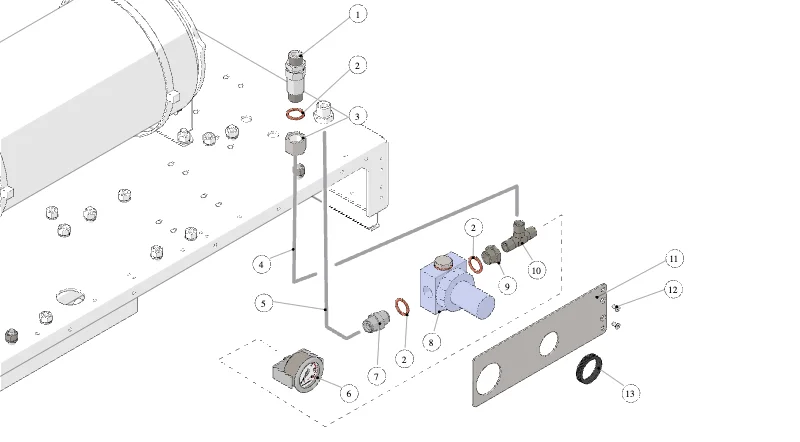

31 – Hydraulic Assembly

Loading…
Loading parts…La Marzocco Leva – 31 – Hydraulic Assembly (exploded view)
  • Pos. 1 – Check Valve G3/8M Treated (Part no. L032/P.02)
  • Pos. 2 – La Marzocco Kupferscheibe 3/8 Zoll (L180/1) (Part no. L180/1)
  • Pos. 3 – Fitting G1/4M-G3/8F WR22 S/S (Part no. A.5.021)
  • Pos. 4 – Braided Hose G1/4 28CM (Part no. T.5.004)
  • Pos. 5 – Braided Hose G3/8F 50CM (Part no. L305/050.01)
  • Pos. 6 – Press.gauge 0-9 White W/Capillary Leva (Part no. E.3.018)
  • Pos. 7 – Nipple G3/8M-G3/8M WR20 H31 TR. (Part no. L305/N.01)
  • Pos. 8 – Pressure Reducer Lever Group (Part no. A.7.008)
  • Pos. 9 – Fitting G3/8M-G1/4F WR19 (Part no. A.5.107)
  • Pos. 10 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
  • Pos. 11 – Bracket Pressure Reducer W/Press. Gauge (Part no. C.1.056)
  • Pos. 12 – Screw M4X8 Phillips Countersunk A2 (Part no. I.1.057)
  • Pos. 13 – Ferrule Fixing Pressure Reducer (Part no. I.6.006)

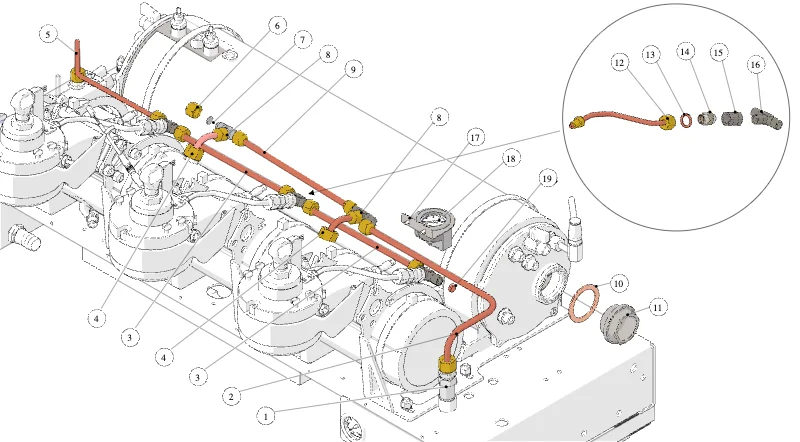

33 – Hydraulic Assembly – S Version

Loading…
Loading parts…La Marzocco Leva – 33 – Hydraulic Assembly – S Version (exploded view)
  • Pos. 1 – Check Valve G3/8M Treated (Part no. L032/P.02)
  • Pos. 2 – Tube Check V. - Tee Fitting C.b. Leva (Part no. T.1.211)
  • Pos. 3 – Tube Coffee B. Connection Strada MP (Part no. T.1.113)
  • Pos. 4 – Tube Cross Fitting - Coffee Boiler Leva (Part no. T.1.202)
  • Pos. 5 – Tube Coffee B. 1 T - Expansion V. Leva (Part no. T.1.206)
  • Pos. 6 – Fitting G1/4F H13 WR17 (Part no. L130/4)
  • Pos. 7 – Ferrule Blind 11X3 Treated (Part no. L137/4)
  • Pos. 8 – Tee Fitting G1/4M WR13 Treated (Part no. L128.01)
  • Pos. 9 – Tube Cross Fitting Connection 3GR (Part no. TL05/3)
  • Pos. 10 – Gasket Cylindrical Flat D55XD42X2 (Part no. LR360)
  • Pos. 11 – Cap G1-1/4 H30 WR42 Treated (Part no. A.2.108)
  • Pos. 12 – Tube Coffee B. - Check Valve Lever Group (Part no. T.1.212)
  • Pos. 13 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
  • Pos. 14 – La Marzocco Rückschlagventil H27,5 1/4″ (B.2.027) (Part no. B.2.027)
  • Pos. 15 – Fitting G1/4F-G1/4F WR17 (Part no. A.5.185)
  • Pos. 16 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
  • Pos. 17 – Bracket Pressure Gauges Internal Leva (Part no. C.1.361)
  • Pos. 18 – Pressure Gauge 0-18 Beige W/Capillary (Part no. E.3.001.02)
  • Pos. 19 – Ferrule 3,5X11X5 T5 (Part no. L137/3)

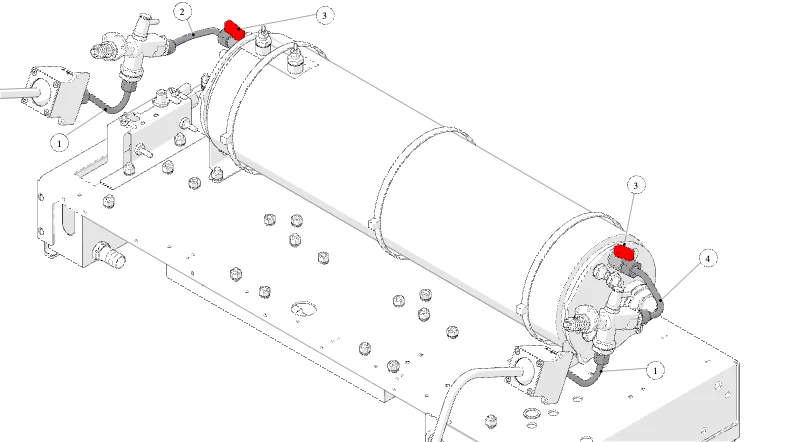

35 – Hydraulic Assembly – S Version

Loading…
Loading parts…La Marzocco Leva – 35 – Hydraulic Assembly – S Version (exploded view)
  • Pos. 1 – Tube Steam Valve - Slot Steam Wand (Part no. T.1.204)
  • Pos. 2 – Tube S.b. Left - Steam Valve Leva TR. (Part no. T.1.210.SX)
  • Pos. 3 – Ball Valve G3/8M-G3/8M Treated (Part no. L164/MM.02)
  • Pos. 4 – Tube S.b. Right - Steam Valve Leva TR. (Part no. T.1.210.DX)

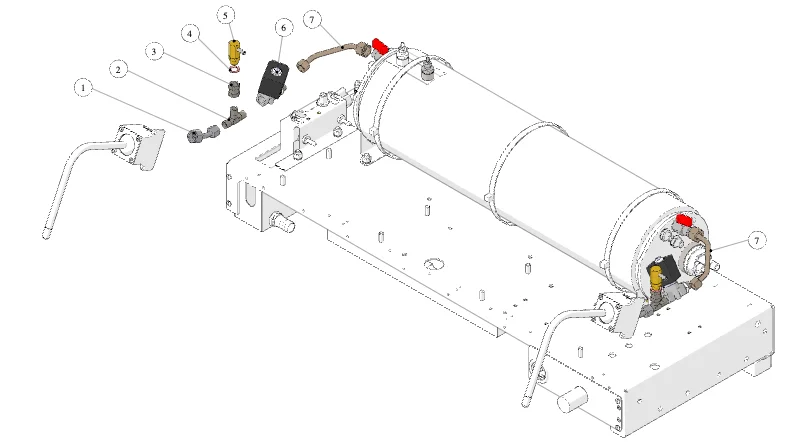

37 – Hydraulic Assembly – X and 90 Vers

Loading…
Loading parts…La Marzocco Leva – 37 – Hydraulic Assembly – X and 90 Vers (exploded view)
  • Pos. 1 – Tube Proportional S.v. - Steam Wand (Part no. T.1.208)
  • Pos. 2 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
  • Pos. 3 – Fitting G1/4F-G1/8F WR17 H21,6 Treated (Part no. A.5.154)
  • Pos. 4 – La Marzocco copper washer 1/4 inch (L100/1A) (Part no. L100/1A)
  • Pos. 6 – Solenoid Valve Prop. 2 Way D5,5 24V (Part no. B.2.020.01)
  • Pos. 7 – Tube S.b. – Prop. S.v. Leva TR. (Part no. T.1.225)

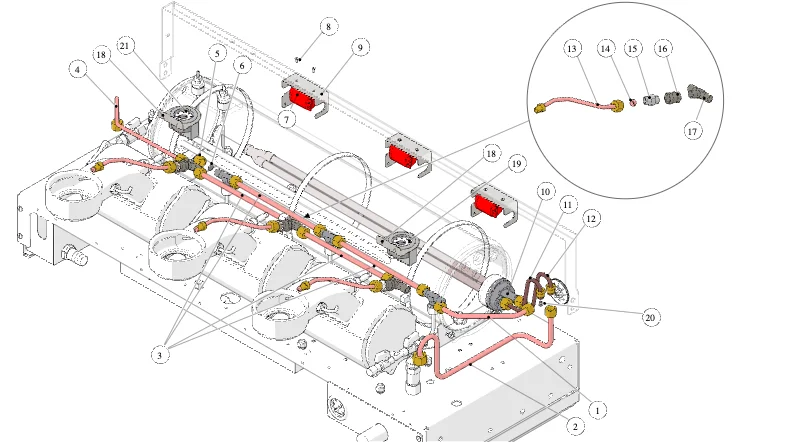

39 – Hydraulic Assembly – X and 90 Vers

Loading…
Loading parts…La Marzocco Leva – 39 – Hydraulic Assembly – X and 90 Vers (exploded view)
  • Pos. 1 – Tube Mix V. - Coffee Boiler T Leva (Part no. T.1.205)
  • Pos. 2 – Tube Inlet Manifold-Mix V. Pre-Heater 3G (Part no. T.1.201)
  • Pos. 2 – Tube Inlet Manifold-Mix V. Pre-Heater 2G (Part no. T.1.224)
  • Pos. 3 – Tube Coffee B. Connection Strada MP (Part no. T.1.113)
  • Pos. 4 – Tube Coffee B. 1 T - Expansion V. Leva (Part no. T.1.206)
  • Pos. 5 – Fitting G1/4F H13 WR17 (Part no. L130/4)
  • Pos. 6 – Ferrule Blind 11X3 Treated (Part no. L137/4)
  • Pos. 7 – Pressure Transducer Leva 2-3GR W/Con. (Part no. E.1.070.R)
  • Pos. 8 – Screw M3X6 Phillips Countersunk A2 (Part no. I.1.060)
  • Pos. 9 – Pressure Trasducer Bracket (Part no. C.1.117.01)
  • Pos. 10 – Preheater 2GR L384 MM W/Y Junction (Part no. T.1.015.02)
  • Pos. 10 – Preheater 3/4GR L584 MM W/Y Junction (Part no. T.1.019.02)
  • Pos. 11 – Tube Pre-Heater - Mixing Valve Strada (Part no. T.1.107)
  • Pos. 12 – Tube Mixing Valve - Pre-Heater Strada (Part no. T.1.106)
  • Pos. 13 – Tube Coffee B. - Check Valve Lever Group (Part no. T.1.212)
  • Pos. 14 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
  • Pos. 15 – La Marzocco Rückschlagventil H27,5 1/4″ (B.2.027) (Part no. B.2.027)
  • Pos. 16 – Fitting G1/4F-G1/4F WR17 (Part no. A.5.185)
  • Pos. 17 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
  • Pos. 18 – Bracket Pressure Gauges Internal Leva (Part no. C.1.361)
  • Pos. 19 – Pressure Gauge 0-18 Beige W/Capillary (Part no. E.3.001.02)
  • Pos. 20 – Gicleur 1,5 M5 CH5 Treated (Part no. B.2.011.01)
  • Pos. 21 – Press.gauge 0-3 White W/Capillary Leva (Part no. E.3.019)

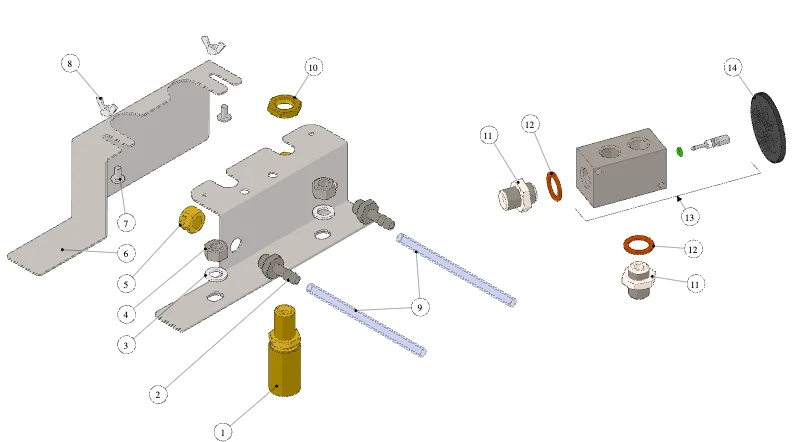

41 – Fitting and Valves

Loading…
Loading parts…La Marzocco Leva – 41 – Fitting and Valves (exploded view)
  • Pos. 1 – La Marzocco Expansionsventil (L140_C) (Part no. L140_C)
  • Pos. 2 – GS/3 Tube Fitting (Part no. L292)
  • Pos. 3 – Washer 8,5X14X1,5 A2 (Part no. L1003)
  • Pos. 4 – Nut M8 H8 WR13 S/S A2 (Part no. L1002)
  • Pos. 6 – Cover Drain Box Leva (Part no. C.1.376)
  • Pos. 7 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)
  • Pos. 8 – Wing Nut M4 H3 A2 (Part no. I.1.035)
  • Pos. 9 – Antisuction Valve Silicone Tube (Part no. T.4.001)
  • Pos. 10 – Nut G1/4 H4,5 WR19 (Part no. L146)
  • Pos. 11 – Nipple G1/4M-G1/4M WR19 H21,5 (Part no. A.5.019)
  • Pos. 12 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
  • Pos. 13 – Mixing Valve Kit (Part no. 1058)
  • Pos. 14 – Thermostatic Valve Adjustment Knob (Part no. F.1.016)

43 – Fitting and Valves

Loading…
Loading parts…La Marzocco Leva – 43 – Fitting and Valves (exploded view)

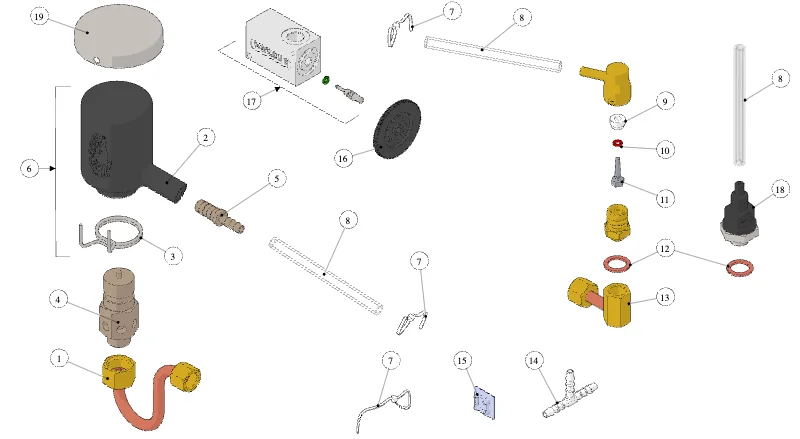

45 – Fitting and Valves

Loading…
Loading parts…La Marzocco Leva – 45 – Fitting and Valves (exploded view)

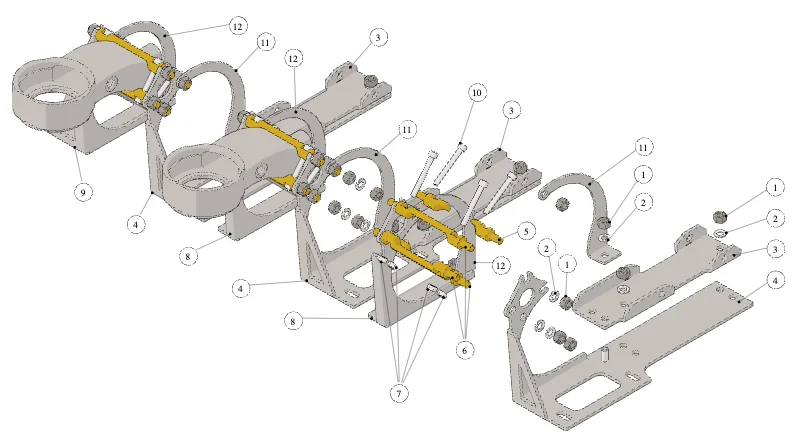

47 – Coffee Boiler

Loading…
Loading parts…La Marzocco Leva – 47 – Coffee Boiler (exploded view)
  • Pos. 1 – Nut M8 H8 WR13 S/S A2 (Part no. L1002)
  • Pos. 2 – Washer 8,5X14X1,5 A2 (Part no. L1003)
  • Pos. 3 – Braket Steam Boiler Leva (Part no. C.1.290)
  • Pos. 4 – Bracket Right Boiler Lever Group (Part no. C.1.121.DX)
  • Pos. 5 – Single Clamp Boiler Lever Group (Part no. F.8.007)
  • Pos. 6 – Double Clamp Boiler Lever Group (Part no. F.8.006)
  • Pos. 7 – Nut M6 H5 WR10 A2 (Part no. I.1.049)
  • Pos. 8 – Bracket Middle Boiler Lever Group (Part no. C.1.275)
  • Pos. 9 – Bracket Left Boiler Lever Group (Part no. C.1.121.SX)
  • Pos. 10 – Screw M6X50 Socket Cup S/S (Part no. I.1.100)
  • Pos. 11 – Plate Tie Rod Right Boiler Lever Group (Part no. C.1.136)
  • Pos. 12 – Plate Tie Rod Left Boiler Lever Group (Part no. C.1.287)

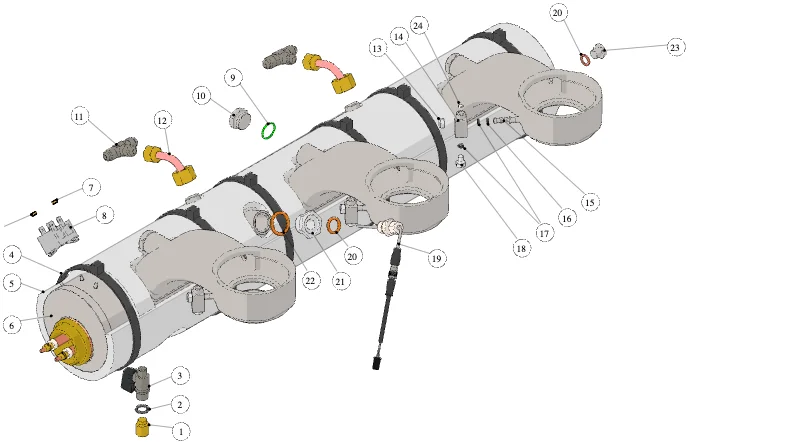

49 – Coffee Boiler – S Version

Loading…
Loading parts…La Marzocco Leva – 49 – Coffee Boiler – S Version (exploded view)

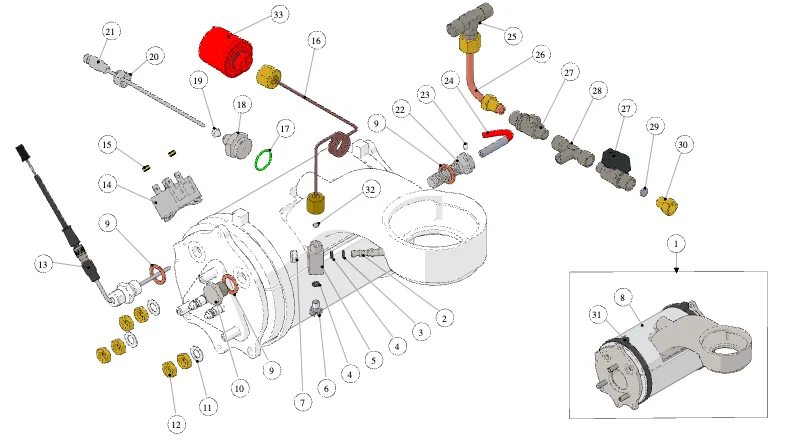

51 – Coffee Boiler – X and 90 Version

Loading…
Loading parts…La Marzocco Leva – 51 – Coffee Boiler – X and 90 Version (exploded view)

53 – Coffee Boiler

Loading…
Loading parts…La Marzocco Leva – 53 – Coffee Boiler (exploded view)

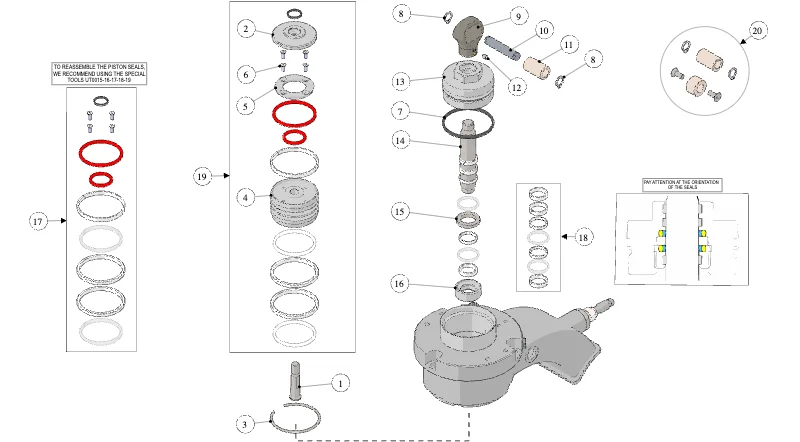

55 – Coffee Boiler

Loading…
Loading parts…La Marzocco Leva – 55 – Coffee Boiler (exploded view)
  • Pos. 1 – Stud Piston Lever Group (Part no. A.5.068)
  • Pos. 2 – Disk Piston Rod Lever Group (Part no. A.5.072)
  • Pos. 3 – Spring Dwire 2,5 Piston Block Leva (Part no. I.1.012)
  • Pos. 4 – Piston Lever Group (Part no. A.5.067)
  • Pos. 5 – Ring Oring Block Piston (Part no. A.5.069)
  • Pos. 6 – Screw M3X8 Socket Countersunk A2 (Part no. I.1.004)
  • Pos. 7 – O-Ring 2,62X48,9 EPDM 70 SH (Part no. H.1.012)
  • Pos. 8 – Seeger Shaft Uni 7435 D9 (Part no. I.1.103)
  • Pos. 9 – Piston Rod Head (Part no. A.3.006)
  • Pos. 10 – Stud Rocker Arm Lever Group (Part no. F.3.083)
  • Pos. 11 – Bushing 9X15X25 Lever Group (Part no. F.1.088)
  • Pos. 12 – Socket Grub Screw M4X6 (Part no. I.1.101)
  • Pos. 13 – Cylinder Head Lever Group (Part no. A.5.071)
  • Pos. 14 – Piston Rod Lever Group (Part no. A.5.062)
  • Pos. 15 – Spacer Gaskets Piston Rod S/S (Part no. A.5.073)
  • Pos. 16 – Closing Cylinder Head (Part no. A.5.074)
  • Pos. 17 – Rebuild Kit Piston Leva (Part no. 1001)
  • Pos. 18 – Rod O-Ring Kit (Part no. 1002)
  • Pos. 19 – Piston Assembly Leva (Part no. 1003)
  • Pos. 20 – Roller Cam Kit (Part no. 1004)

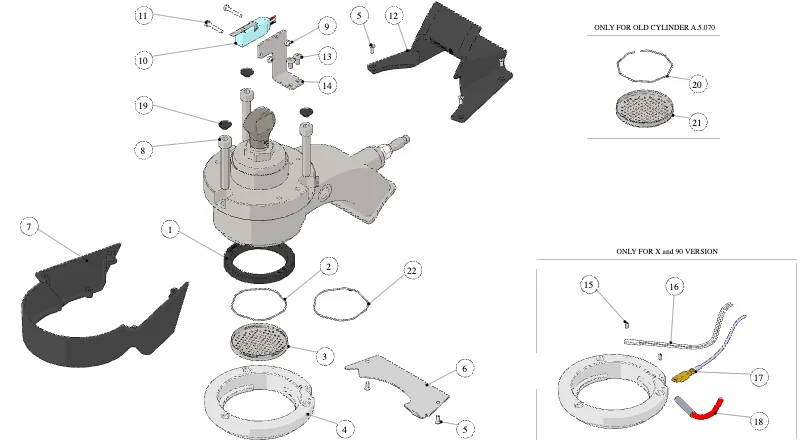

57 – Coffee Boiler

Loading…
Loading parts…La Marzocco Leva – 57 – Coffee Boiler (exploded view)
  • Pos. 1 – Group Gasket Lever Group (Part no. H.3.008)
  • Pos. 2 – Spring for Shower Screen W/Slots Leva (Part no. I.1.024.01)
  • Pos. 3 – Shower Screen W/Slots for Spring Leva (Part no. A.5.075.01)
  • Pos. 4 – Bayonet Ring Chrome Plated Lever Group (Part no. A.3.007.01)
  • Pos. 5 – Screw M3X6 Phillips Countersunk A2 (Part no. I.1.060)
  • Pos. 6 – Protection Lower Lever Group (Part no. C.1.176)
  • Pos. 7 – Protection Front Lever Group (Part no. C.2.045)
  • Pos. 8 – Screw M8X52 Socket Cap A2 70 (Part no. L110.01)
  • Pos. 9 – Self Lock Nut M3 H4 WR5,5 Galvanized (Part no. DADO3AUTOBL)
  • Pos. 10 – Microswitch Kit with Lugs (Part no. E.2.039)
  • Pos. 11 – Screw M3X20 Hex Head A2 (Part no. I.1.055)
  • Pos. 12 – Protection Back Lever Group (Part no. C.2.046)
  • Pos. 13 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)
  • Pos. 14 – Bracket Sensor Lever Group (Part no. C.1.138)
  • Pos. 15 – Socket Grub Screw M3X6 S/S (Part no. I.1.102)
  • Pos. 17 – Temperature Probe Ring PT1000 (Part no. E.1.045)
  • Pos. 18 – Cartridge Heater W70 V230 6,5X31 (Part no. E.6.022)
  • Pos. 19 – Cap D13 Socket Head M8 ES6 Ldpe Black (Part no. F.1.110)
  • Pos. 20 – Spring Dwire 1,2 Diffuser Screen Block (Part no. I.1.024)
  • Pos. 21 – Diffuser Screen Lever Group (Part no. A.5.075)
  • Pos. 22 – Spring Shower Screen Leva W/Pins (Part no. I.1.148)

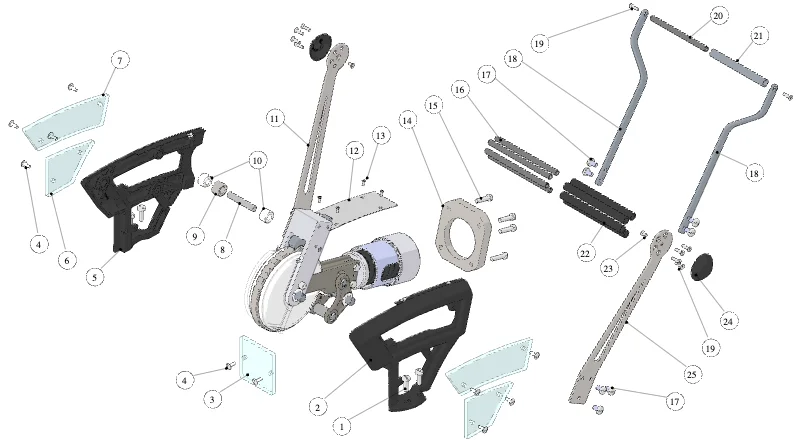

59 – Coffee Boiler

Loading…
Loading parts…La Marzocco Leva – 59 – Coffee Boiler (exploded view)
  • Pos. 1 – Screw M6X20 Pan (Part no. I.1.096)
  • Pos. 2 – Panel Right Side Lever Group (Part no. C.3.018.DX)
  • Pos. 2 – Panel Right Side Lever Group 90° (Part no. C.3.018.DX.90)
  • Pos. 3 – Panel Front Lever Group (Part no. C.5.013)
  • Pos. 4 – Screw M4X10 Mushroom Slotted Head (Part no. I.1.099)
  • Pos. 5 – Panel Left Side Lever Group (Part no. C.3.018.SX)
  • Pos. 5 – Panel Left Side Lever Group 90° (Part no. C.3.018.SX.90)
  • Pos. 6 – Panel Lower Lever Group (Part no. C.5.014)
  • Pos. 7 – Panel Upper Lever Group (Part no. C.5.015)
  • Pos. 8 – Stud Needle Bearing (Part no. F.3.084)
  • Pos. 9 – Needle Bearing 9X19X12 (Part no. F.3.085)
  • Pos. 10 – Spacer 9X18X11,5 Plastic (Part no. I.6.007)
  • Pos. 11 – Panel Side Primary Lever (Part no. C.1.293.SX)
  • Pos. 11 – Panel Side Primary Lever 90° (Part no. C.1.293.SX.90)
  • Pos. 12 – Panel Upper Lever Group (Part no. C.1.273)
  • Pos. 13 – Screw M3X6 Phillips Countersunk A2 (Part no. I.1.060)
  • Pos. 14 – Closing Back Side Panels Lever Group 90° (Part no. C.1.229.90)
  • Pos. 14 – Closing Back Side Panels Lever Group (Part no. C.1.532)
  • Pos. 15 – Screw M6X25 Cheese (Part no. I.1.098)
  • Pos. 16 – Tie Rod Primary Grip (Part no. F.6.007)
  • Pos. 17 – Screw M6X10 Pan (Part no. I.1.097)
  • Pos. 18 – Panel Side Secondary Lever (Part no. C.1.294)
  • Pos. 18 – Panel Side Secondary Lever 90° (Part no. C.1.294.90)
  • Pos. 19 – Screw M4X14 Phillips Countersunk A2 (Part no. I.1.093)
  • Pos. 20 – Tie Rod Secondary Grip (Part no. F.6.008)
  • Pos. 21 – Grip Secondary Lever 90° Treated (Part no. C.1.355.90)
  • Pos. 21 – Grip Secondary Lever (Part no. C.2.039)
  • Pos. 22 – Grip Primary Lever 90° Treated (Part no. C.1.353.90)
  • Pos. 22 – Grip Primary Lever (Part no. C.2.038)
  • Pos. 23 – Screw M4X8 Phillips Countersunk A2 (Part no. I.1.057)
  • Pos. 24 – Threaded Cap M4 Lever (Part no. F.1.096)
  • Pos. 24 – Threaded Cap M4 Lever 90° Treated (Part no. F.3.068.90)
  • Pos. 25 – Panel Side Primary Lever (Part no. C.1.293.DX)
  • Pos. 25 – Panel Side Primary Lever 90° (Part no. C.1.293.DX.90)

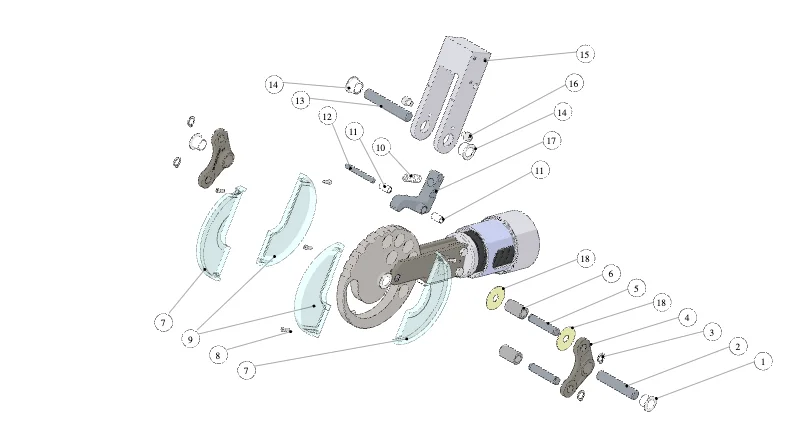

63 – Coffee Boiler

Loading…
Loading parts…La Marzocco Leva – 63 – Coffee Boiler (exploded view)
  • Pos. 1 – Bushing Flanged 12X14X12 (Part no. F.1.085)
  • Pos. 2 – Rocker Shaft (Part no. F.3.082)
  • Pos. 3 – Seeger Shaft Uni 7435 D9 (Part no. I.1.103)
  • Pos. 4 – Rocker Arm Lever Group (Part no. F.8.009)
  • Pos. 5 – Stud Rocker Arm Lever Group (Part no. F.3.083)
  • Pos. 6 – Bushing 9X15X25 Lever Group (Part no. F.1.088)
  • Pos. 7 – Protection Threaded Rotating Lever Group (Part no. C.2.044)
  • Pos. 8 – Screw M3X10 Phillips Round-Pan A2 (Part no. VITE3X10)
  • Pos. 9 – Protection Rotating Lever Group (Part no. C.2.042)
  • Pos. 10 – Spring Compression 1,7X9X26 Galvanized (Part no. I.3.014)
  • Pos. 11 – Bushing 6X8X13,8 (Part no. F.1.083)
  • Pos. 12 – Stud Trigger Lever Group (Part no. F.3.088)
  • Pos. 13 – Cam Shaft (Part no. F.3.087)
  • Pos. 14 – Bushing Flanged 12X16X11,5 (Part no. F.1.076)
  • Pos. 15 – Fork Lever Handle (Part no. C.3.014.01)
  • Pos. 16 – Screw M6X6 Socket Cap (Part no. I.1.105)
  • Pos. 17 – Trigger Lever Group (Part no. F.3.062)
  • Pos. 17 – Trigger Lever Group 90° (Part no. F.3.062.90)
  • Pos. 18 – Spacer 9X30X1 Plastic (Part no. F.1.101)

65 – Coffee Boiler

Loading…
Loading parts…La Marzocco Leva – 65 – Coffee Boiler (exploded view)
  • Pos. 1 – Screw M6X20 Hex Head (Part no. I.1.058)
  • Pos. 2 – Socket Grub Screw M4X6 (Part no. I.1.101)
  • Pos. 3 – Thickness Mechanical Fork Spring (Part no. F.1.087)
  • Pos. 4 – Screw M4X8 Phillips Countersunk A2 (Part no. I.1.057)
  • Pos. 5 – Protection Right Fix Lever Group (Part no. C.2.043.DX)
  • Pos. 6 – Bushing Flanged 12X16X11,5 (Part no. F.1.076)
  • Pos. 7 – Bushing Flanged 12X14X12 (Part no. F.1.085)
  • Pos. 8 – Screw M5X12 Socket Countersunk A2 (Part no. I.1.044)
  • Pos. 9 – Cam Lever Group W/Bushings and Position (Part no. F.3.093.R)
  • Pos. 10 – Cam Shaft (Part no. F.3.087)
  • Pos. 11 – Protection Left Fix Lever Group (Part no. C.2.043.SX)
  • Pos. 12 – Stud Roller Bushing Lever Group (Part no. F.3.086)
  • Pos. 13 – Roller Cam Lever Group (Part no. F.1.086)
  • Pos. 14 – Mechanical Fork Lever Group (Part no. F.8.008)
  • Pos. 15 – Slot Front Spring Lever Group (Part no. F.6.011)
  • Pos. 16 – Spring Rod Lever Group (Part no. C.1.272)
  • Pos. 17 – Rod Guide Ring (Part no. A.7.007)
  • Pos. 18 – Spring Compression 4,4X35,3X26,5 (Part no. I.1.031)
  • Pos. 19 – Spring Compression 6,5X49,8X128,3 (Part no. I.1.114)
  • Pos. 20 – Slot Adjustable Spring Lever Group (Part no. C.3.015)
  • Pos. 21 – Block Slot Adjustable Spring (Part no. C.3.016)

67 – Steam Boiler

Loading…
Loading parts…La Marzocco Leva – 67 – Steam Boiler (exploded view)

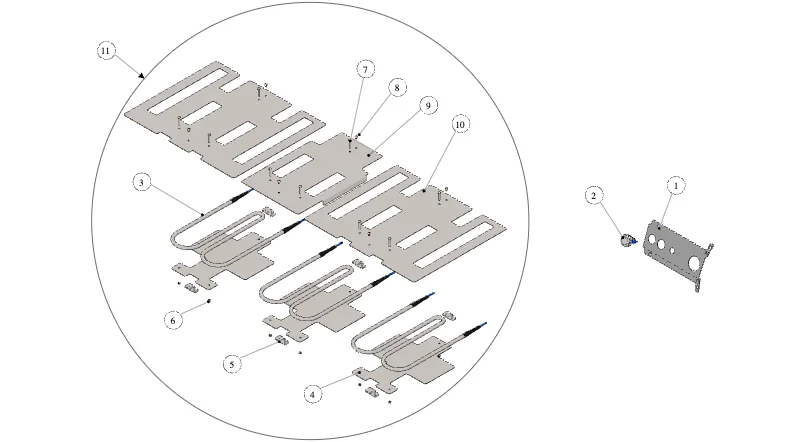

69 – Cupwarmer Heating Elements

Loading…
Loading parts…La Marzocco Leva – 69 – Cupwarmer Heating Elements (exploded view)
  • Pos. 1 – Panel Right Control Leva 2GR W/Cupwarmer (Part no. C.1.351.2.DX)
  • Pos. 1 – Panel Right Control Leva 3GR W/Cupwarmer (Part no. C.1.351.3.DX)
  • Pos. 1 – Panel Right Control 3GR W/Cupwarmer 90° (Part no. C.1.351.3.DX.90)
  • Pos. 2 – Switch Cupwarmer W/White LED with Riser (Part no. E.2.052.R)
  • Pos. 4 – Plate Slot Resistance (Part no. C.1.282)
  • Pos. 5 – Bracket Heat-Conducting Plate Cupwarmer (Part no. C.1.283)
  • Pos. 6 – Nut M3 H2 WR5,5 S/S A2 (Part no. DADOINOXM3)
  • Pos. 7 – Screw M3X20 Hex Head A2 (Part no. I.1.055)
  • Pos. 8 – Screw M3X5 Phillips Round Pan A2 (Part no. I.1.054)
  • Pos. 11 – Kit Cupwarmer Multi Plates Leva 2GR (Part no. SA946.2.R)
  • Pos. 11 – Kit Cupwarmer Multi Plates Leva 3GR (Part no. SA946.3.R)

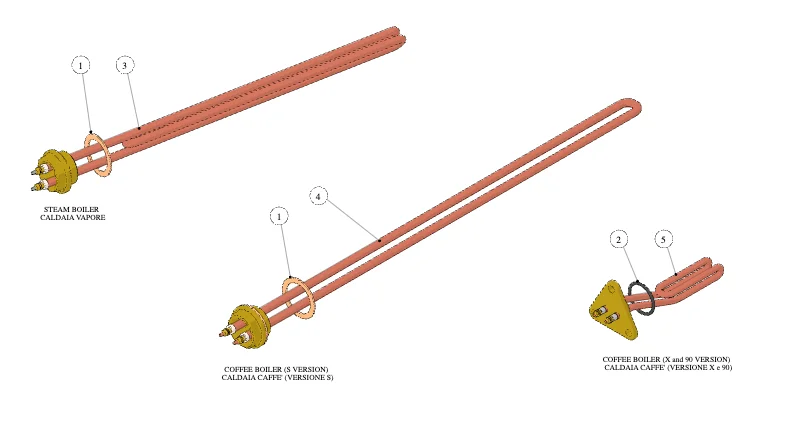

71 – Heating Elements

Loading…
Loading parts…La Marzocco Leva – 71 – Heating Elements (exploded view)
  • Pos. 1 – Gasket Cylindrical Flat D55XD42X2 (Part no. LR360)
  • Pos. 2 – La Marzocco O-Ring Heizung Dampf- / Brühboiler (F.2.014.01) (Part no. F.2.014.01)
  • Pos. 3 – Heat.elem W4000 V380 CM50 1-1/4 4POLE (Part no. E.6.008.03)
  • Pos. 3 – Heat.elem W4000 V220 CM50 1-1/4 4POLE (Part no. E.6.009.03)
  • Pos. 3 – Heat.elem W4000 V200 CM50 1-1/4 4POLE TR (Part no. E.6.023)
  • Pos. 3 – Heating Element W3000 V200 CM39 1-1/4 (Part no. LR357/200B.04)
  • Pos. 3 – Heating Element W3000 V220 CM39 1-1/4 (Part no. LR357/220B.04)
  • Pos. 3 – Heating Element W3000 V380 CM39 1-1/4 (Part no. LR357/380B.04)
  • Pos. 4 – Heating Element W1400 V220 CM43 1-1/4 (Part no. LR365/220.04)
  • Pos. 4 – Heating Element W1400 V380 CM43 1-1/4 (Part no. LR365/380.04)
  • Pos. 4 – Heating Element W1900 V220 CM66 1-1/4 (Part no. LR366/220.04)
  • Pos. 4 – Heating Element W1900 V380 CM66 1-1/4 (Part no. LR366/380.04)
  • Pos. 5 – La Marzocco Heizung 800W, 220V (E.6.004.03) (Part no. E.6.004.03)
  • Pos. 5 – Heating Element W500 V200 Triang. Flange (Part no. E.6.006.03)

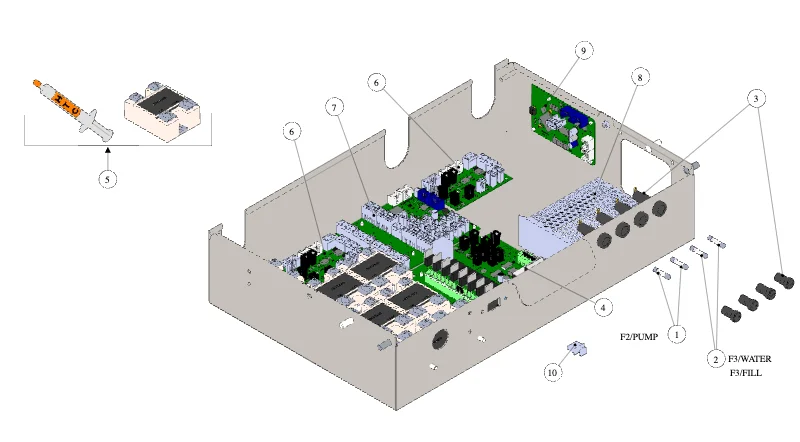

73 – Electrical System

Loading…
Loading parts…La Marzocco Leva – 73 – Electrical System (exploded view)

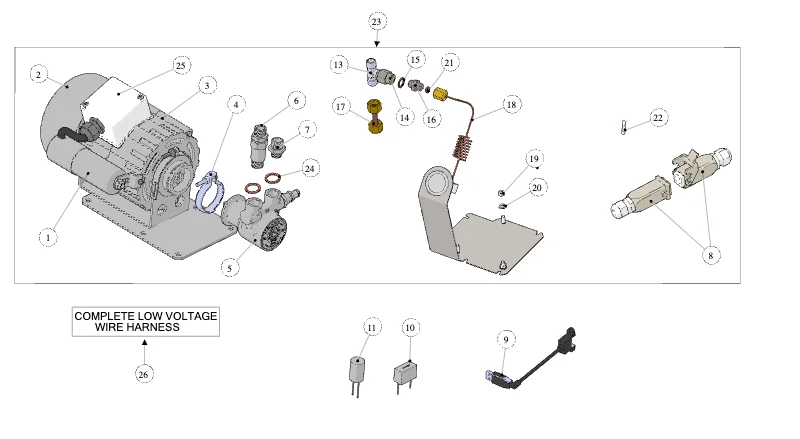

75 – Electrical System and Pump

Loading…
Loading parts…La Marzocco Leva – 75 – Electrical System and Pump (exploded view)
  • Pos. 1 – 10microF Capacitor (L290/8UL Motor) (Part no. L290/CUL)
  • Pos. 2 – Fan Cover - Pump Motor UL (Part no. F.6.004)
  • Pos. 3 – CE Motor V.220-230 Hz.50 (Part no. L290/5)
  • Pos. 3 – Motor Pump 200V 50/60HZ (Part no. L290/7)
  • Pos. 3 – UL Motor V.220-240 50/60 HZ (Part no. L290/8UL)
  • Pos. 4 – Pump Clamp (Part no. L290/C)
  • Pos. 5 – Pump 150 LT/H (Part no. L290/1.01)
  • Pos. 5 – Pump 200 LT/H (Part no. L290/2.01)
  • Pos. 6 – Check Valve G3/8M Treated (Part no. L032/P.02)
  • Pos. 7 – Nipple G3/8M-G3/8M WR20 H31 TR. (Part no. L305/N.01)
  • Pos. 7 – Nipple G3/8-3/8 Compression TR. (Part no. L306/G.01)
  • Pos. 8 – Rapid IP67 Connector for Pump Cable (Part no. E.4.044)
  • Pos. 9 – USB Cable Linea PB / Strada EP (Part no. E.2.040)
  • Pos. 10 – Filter Emc (Part no. L206.01)
  • Pos. 11 – 2x22nF+0,1microF Filter (Part no. E.2.030)
  • Pos. 12 – Pump Pressure Gauge Bracket Aisi 430 (Part no. C.1.329)
  • Pos. 13 – Tee Fitting R3/8M WR17 Treated (Part no. A.2.022.01)
  • Pos. 14 – Fitting G1/4F-G3/8F WR22 Treated (Part no. A.2.004.01)
  • Pos. 15 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
  • Pos. 16 – Nipple G1/4M-G1/4M WR19 H25.5 TR. (Part no. L037/3.01)
  • Pos. 17 – Tube Pump Double Check Valve Corea (Part no. T.1.056)
  • Pos. 18 – Pressure Gauge 0-18 Beige W/Capillary (Part no. E.3.001.02)
  • Pos. 19 – Nut M6 H5 WR10 A2 (Part no. I.1.049)
  • Pos. 20 – Tooth Lock Washer 4X8X1 (Part no. RONDELLA6X12)
  • Pos. 21 – Ferrule 3,5X11X5 T5 (Part no. L137/3)
  • Pos. 22 – La Marzocco Sicherung 3,15 A (E.2.073) (Part no. E.2.073)
  • Pos. 23 – Motor Pump Leva Kit CE / Etl (Part no. 1008)
  • Pos. 23 – Motor Pump Kit Leva 220V 50Hz AU/NZ (Part no. 1009)
  • Pos. 23 – Motor Pump Leva 200V 50-60Hz (Part no. 1010)
  • Pos. 24 – La Marzocco Kupferscheibe 3/8 Zoll (L180/1) (Part no. L180/1)
  • Pos. 25 – Electric Cover Box for L290/5 (Part no. F.1.202)
  • Pos. 25 – Electric Cover Box for L290/8UL (Part no. F.1.203)
  • Pos. 26 – Wiring Harness Single Phase Leva S 2GR (Part no. E.4.204)
  • Pos. 26 – Wiring Harness Single Phase Leva X 2GR (Part no. E.4.206)
  • Pos. 26 – Wiring Harness Single Phase Leva S 3GR (Part no. E.4.208)
  • Pos. 26 – Wiring Harness Single Phase Leva X 3GR (Part no. E.4.210)

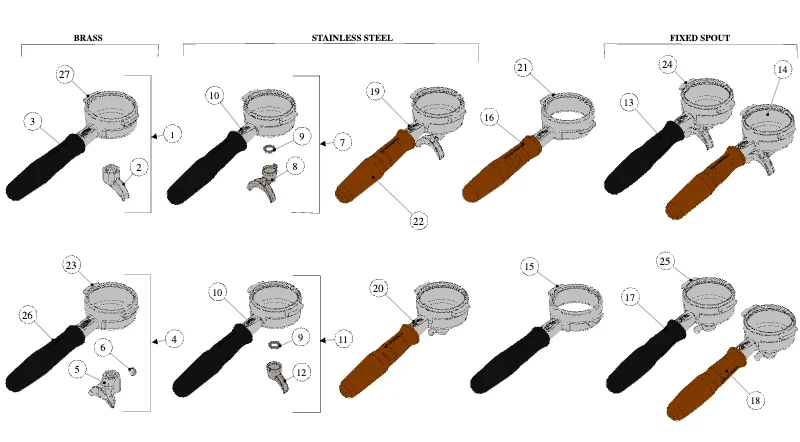

77 – Portafilters

Loading…
Loading parts…La Marzocco Leva – 77 – Portafilters (exploded view)

79 – Filter

Loading…
Loading parts…La Marzocco Leva – 79 – Filter (exploded view)

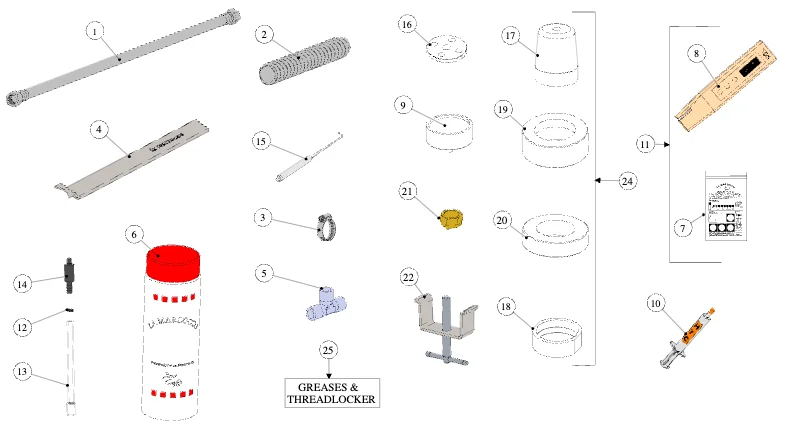

81 – Hose and Accessories

Loading…
Loading parts…La Marzocco Leva – 81 – Hose and Accessories (exploded view)
  • Pos. 1 – Braided Hose G3/8F 50CM (Part no. L305/050.01)
  • Pos. 1 – Braided Hose G3/8F 120CM (Part no. L305/120.01)
  • Pos. 1 – Braided Hose G3/8F 210CM (Part no. L305/210.01)
  • Pos. 1 – Braided Hose 3/8COMPR. 50CM Nsf (Part no. L306/050)
  • Pos. 1 – Braided Hose 3/8COMPR. 120CM Nsf (Part no. L306/120)
  • Pos. 1 – Braided Hose G3/8F 210CM Nsf (Part no. L306/210)
  • Pos. 1 – Braided Hose G3/8F 90° 210CM Nsf (Part no. L306/210/C)
  • Pos. 1 – Braided Hose 3/8COMPR. 210CM Nsf (Part no. T.5.003)
  • Pos. 2 – Clear Armoured Drain Hose (Part no. L308)
  • Pos. 3 – Hose Clamp 16/25 H9 W2 AISI430 (Part no. L312)
  • Pos. 4 – Tool Extractor Diffusion Screen Leva (Part no. UT011)
  • Pos. 5 – Tee Fitting R3/8M WR17 Treated (Part no. A.2.022.01)
  • Pos. 6 – La Marzocco Kaffeefettlöser / Puly Caff (F.9.021) (Part no. F.9.021)
  • Pos. 7 – La Marzocco Wassertest Kit (F.9.000.02) (Part no. F.9.000.02)
  • Pos. 8 – Digital Tds Meter (Part no. F.9.003)
  • Pos. 9 – Tool Inserting Diffusion Screen (Part no. UT014)
  • Pos. 10 – Htc Thermal Compound Syringe 2ML (Part no. F.1.065)
  • Pos. 11 – Water Test Kit (Part no. 941)
  • Pos. 12 – O-Ring 1,78x4,47 EPDM 70 ShA (Part no. H.1.021)
  • Pos. 13 – Antisuction Valve Silicone Tube (Part no. T.4.001)
  • Pos. 14 – Hose Connector M6 D7,2 Di3 (Part no. A.7.009)
  • Pos. 15 – La Marzocco Dichtungswerkzeug (UT008) (Part no. UT008)
  • Pos. 16 – Tool for Monting Piston Ring (Part no. UT015)
  • Pos. 17 – Tool Conic for Monting Piston Seals (Part no. UT016)
  • Pos. 18 – Tool for Inserting Piston (Part no. UT017)
  • Pos. 19 – Tool for Monting Piston Seals Type 2 (Part no. UT018)
  • Pos. 20 – Tool for Monting Piston Seals Type 1 (Part no. UT019)
  • Pos. 21 – Tool Conic for Monting Road Seals (Part no. UT021)
  • Pos. 22 – Tool for Extracting Piston (Part no. UT022)
  • Pos. 23 – Leva Complete Parts Kit (Part no. 1005)
  • Pos. 24 – Leva Tools Kit (Part no. 1007)
  • Pos. 25 – Food Grade Slicone Grease 111 KG 1 (Part no. V073)
  • Pos. 25 – Grasso Parker Super Lube 55gr (Part no. V076)
  • Pos. 25 – Vaseline Grease Lubritex 0.900KG (Part no. V078)
  • Pos. 25 – Loxeal 58-11 Flüssigdichtmittel (Part no. V099)

83 – Hose and Accessories

Loading…
Loading parts…La Marzocco Leva – 83 – Hose and Accessories (exploded view)
  • Pos. 1 – Leva Lifting Kit (Part no. 1006)
  • Pos. 2 – Bracket Right Lifting Leva (Part no. C.1.379.DX)
  • Pos. 3 – Bracket Left Lifting Leva (Part no. C.1.379.SX)
  • Pos. 4 – Rubber Right Lifting Braket Leva (Part no. C.2.048.DX)
  • Pos. 5 – Rubber Left Lifting Braket Leva (Part no. C.2.048.SX)
  • Pos. 6 – Screw M8X16 Socket Cap A2 (Part no. VITE8X16INOX)
  • Item 7 – La Marzocco portafilter handle, rubberised (F.2.042) (Part no. F.2.042)
  • Pos. 8 – Nut M12 H6 WR S/S A2 (Part no. I.1.115)
  • Shop categories
Menu
Back to Top
Product has been added to your cart
