Spare parts

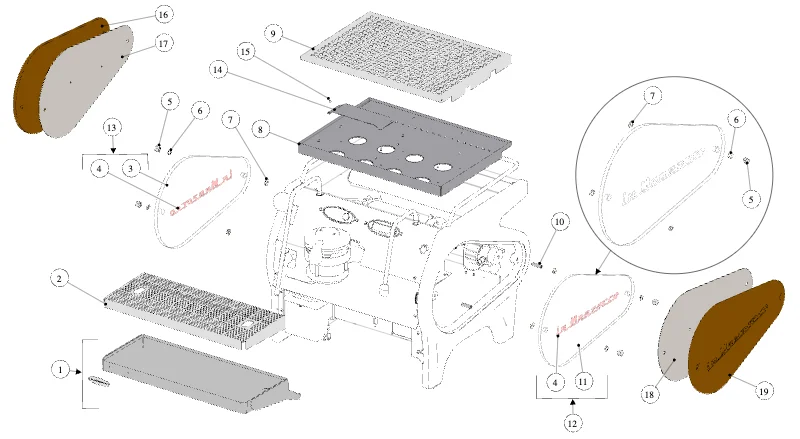

07 – Body Panel Assembly

Loading…

Loading parts…

• Pos. 1 – Tray Drain Strada 1GR W/Logo (Part no. C.1.250.R)
• Pos. 2 – Grid Drain Strada 1GR (Part no. C.1.249)
• Pos. 3 – Panel Left Clear Glass 4 Holes Strada (Part no. C.5.018.SX)
• Pos. 4 – Logo LA Marzocco Strada Red (Part no. D.4.002)
• Pos. 5 – Cap Nut M8 H12 WR 13 (Part no. I.1.036)
• Pos. 6 – Washer 8.1X14X1 PA Trasparent (Part no. I.6.002)
• Pos. 7 – Washer 8,5X14X1,5 A2 (Part no. L1003)
• Pos. 8 – Cupwarmer Tray Strada 1 GR (Part no. C.1.257.01)
• Pos. 9 – Tray Drain Strada 1GR 447MM (Part no. C.1.252)
• Pos. 10 – Socket Grub Screw M8X30 A2 (Part no. I.1.032)
• Pos. 11 – Panel Right Clear Glass 4 Holes Strada (Part no. C.5.018.DX)
• Pos. 12 – Panel Right Side Glass W/Label Strada (Part no. C.5.016.DX)
• Pos. 13 – Panel Left Side Glass W/Label Strada (Part no. C.5.016.SX)
• Pos. 14 – Protection Cupwarmer Hole 170 MM (Part no. C.1.100.01)
• Pos. 15 – Cap Nut M3 H6,5 CH5,5 (Part no. I.1.108)
• Pos. 16 – Panel Side SX Strada Maple Wood (Part no. F.5.007.SX.MW)
• Pos. 16 – Panel Side SX Strada Walnut Wood (Part no. F.5.007.SX.WW)
• Pos. 17 – Panel Left Side Strada MP (Part no. C.1.097)
• Pos. 18 – Panel Right Side Strada MP (Part no. C.1.098)
• Pos. 19 – Panel Side DX Strada Maple Wood (Part no. F.5.007.DX.MW)
• Pos. 19 – Panel Side DX Strada Walnut Wood (Part no. F.5.007.DX.WW)

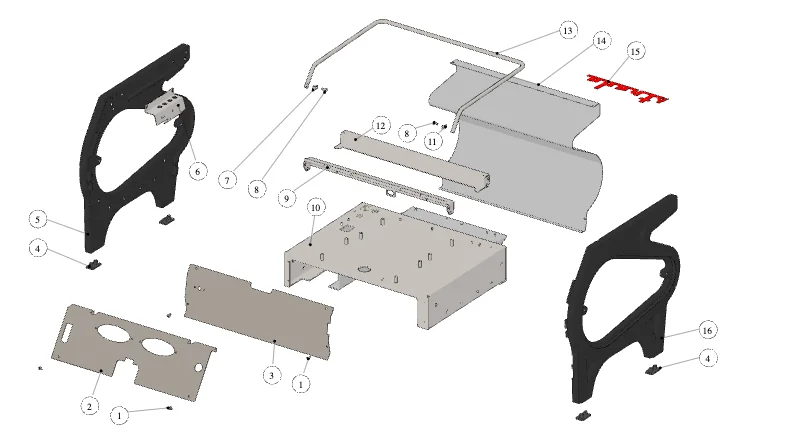

09 – Body Panel Assembly

Loading…

Loading parts…

• Pos. 1 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)
• Pos. 2 – Panel Upper Front Strada 1EP (Part no. C.1.247)
• Pos. 2 – Panel Upper Front Strada 1EP Custom Col. (Part no. C.1.247.55)
• Pos. 3 – Panel Lower Front Strada 1EP (Part no. C.1.248)
• Pos. 3 – Panel Lower Front Strada 1GR Custom Col. (Part no. C.1.248.55)
• Pos. 4 – Rubber Foot (Part no. F.2.026)
• Pos. 5 – Strada Black Left Frame Panel W/Holes (Part no. C.3.005.SX.03)
• Pos. 6 – Bracket Terminal Block Strada (Part no. C.1.086)
• Pos. 7 – Bracket Left Railing Lock Strada (Part no. C.1.088.SX)
• Pos. 8 – Screw M5X10 Phillips Countersunk S/S A2 (Part no. I.1.056)
• Pos. 9 – Tie Rod Front Strada 1GR (Part no. C.1.253)
• Pos. 10 – Frame Base Strada / Leva 1GR (Part no. C.1.259.01)
• Pos. 11 – Bracket Right Railing Lock Strada (Part no. C.1.088.DX)
• Pos. 12 – Tie Rod Back Strada 1GR (Part no. C.1.254)
• Pos. 13 – Upper Railing Strada 1GR (Part no. C.1.251)
• Pos. 14 – Panel Back Strada 1EP (Part no. C.1.258)
• Pos. 15 – Logo Strada Red for Panel Back (Part no. D.3.004)
• Pos. 16 – Strada Black Right Frame Panel W/Holes (Part no. C.3.005.DX.03)

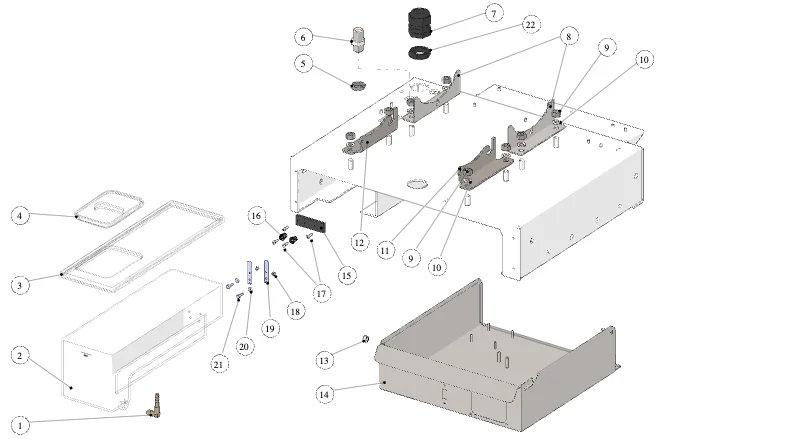

11 – Body Panel Assembly

Loading…

Loading parts…

• Pos. 1 – Hose Union R1/8M 90° Brass Treated (Part no. A.2.031.01)
• Pos. 2 – Water Reservoir Strada 1GR (Part no. A.7.004)
• Pos. 3 – Cover Water Reservoir Strada 1GR (Part no. A.7.005)
• Pos. 4 – GS3 Water Reservoir Lid (Part no. F.1.017.01)
• Pos. 5 – Nut G3/8 H6 WR21 Treated (Part no. L183/1.01)
• Pos. 7 – Cord Grips PG21 (Part no. L322/G)
• Pos. 8 – Bracket Steam Boiler Linea Mini (Part no. C.1.197)
• Pos. 9 – Nut M8 H8 WR13 S/S A2 (Part no. L1002)
• Pos. 10 – Washer 8,5X14X1,5 A2 (Part no. L1003)
• Pos. 11 – Bracket Right Coffee Boiler Strada (Part no. C.1.076)
• Pos. 12 – Bracket Left Coffee Boiler Strada (Part no. C.1.073)
• Pos. 13 – Nut M6 H5 WR10 A2 (Part no. I.1.049)
• Pos. 14 – Electronic Box Strada 1EP (Part no. C.1.256)
• Pos. 15 – Water Resevoir Contacts Bracket (Part no. F.1.057)
• Pos. 16 – Spring 0,7X10,6X10,6 Nickel P. Conical (Part no. F.3.021.01)
• Pos. 17 – Screw M3X8 Phillips Round-Pan A2 (Part no. VITE3X8)
• Pos. 18 – Nut M3 H2 WR5,5 S/S A2 (Part no. DADOINOXM3)
• Pos. 19 – Contact for Level Probe Linea Mini (Part no. C.1.051.1.01)
• Pos. 20 – Nylon Washer 3.2x7x1 (Part no. I.6.003)
• Pos. 21 – Water Reservoir Level Sensor (Part no. A.5.001)
• Pos. 22 – Nut Cord Grips PG21 Black (Part no. I.6.009)

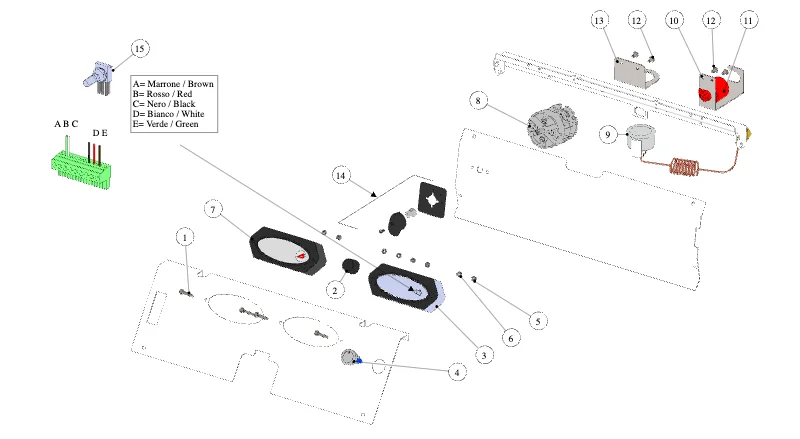

13 – Control Panel Assembly

Loading…

Loading parts…

• Pos. 1 – Keypad Screw (Part no. I.2.001.01)
• Pos. 2 – Encoder Knob (Part no. E.2.020)
• Pos. 3 – Display Lcd White Strada EP for Encoder (Part no. E.1.037)
• Pos. 4 – Switch Hot Water W/White LED with Riser (Part no. E.2.051.R)
• Pos. 5 – Nut M4 H3 WR7 (Part no. DADO4M)
• Pos. 6 – Tooth Lock Washer 8X14,7X2 A2 (Part no. ROND_DENT_4)
• Pos. 7 – Display Group Strada EP W/Box (Part no. E.1.018.01)
• Pos. 7 – Display Lcd Blue Strada EP W/Encoder (Part no. E.1.019.01)
• Pos. 7 – Display Lcd White Strada EP W/Button (Part no. E.1.036)
• Pos. 8 – Switch Double-Pole 42A W/Wires Iec/UL (Part no. E.2.001.04)
• Pos. 9 – Pressure Gauge 0-3 Beige W/Capillary (Part no. E.3.002.01)
• Pos. 10 – Pressure Trasducer Bracket (Part no. C.1.117.01)
• Pos. 11 – Pressure Transducer W/Connectors (Part no. E.1.016.R)
• Pos. 12 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)
• Pos. 13 – Bracket Pressure Gauges Internal Leva (Part no. C.1.361)
• Pos. 14 – Kit Handle Label 01 Main Switch Bremas (Part no. F.1.184)
• Pos. 15 – Encoder W/Connectors (Part no. E.2.021.01)
• Pos. 15 – Wiring Adapter for New Encoder (Part no. E.4.036)

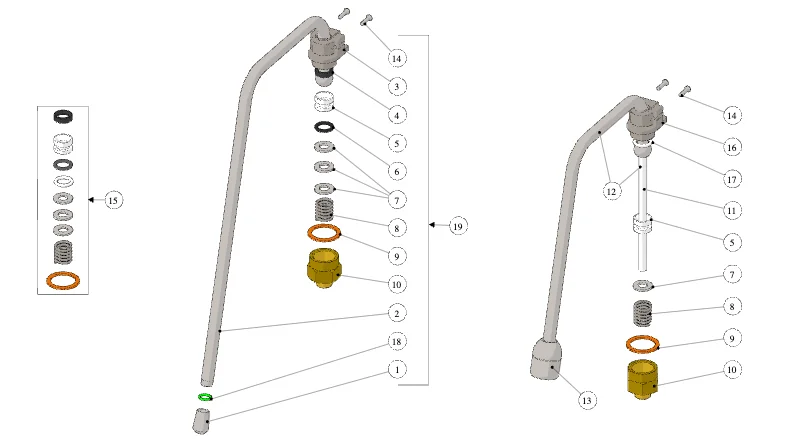

15 – Steam and Hot Water Assembly

Loading…

Loading parts…

• Pos. 1 – La Marzocco Dampfdüse Pro Touch 1,5 mm (A.5.050) (Part no. A.5.050)
• Pos. 2 – Steam Wand Pro Touch Treated (Part no. T.2.005)
• Pos. 3 – Dampflanzen Halterung Strada & GS3 (A.5.006.01) (Part no. A.5.006.01)
• Pos. 4 – Steam Wand Bushing (Part no. F.1.029)
• Pos. 5 – Gasket Ball Joint Wand D14,5MM Pom (Part no. H.2.003.01)
• Pos. 6 – O-Ring 2,62X10,77 EPDM 70 ShA (Part no. H.1.004)
• Pos. 7 – Washer 8,5X14X1,5 A2 (Part no. L1003)
• Pos. 8 – Spring Compres. WD 2,5 OD 15,5 L 18 S/S (Part no. F.3.156)
• Pos. 9 – Washer 21X27X1,5 (Part no. L260/1A)
• Pos. 10 – Fitting G1/4M-M20F WR24 H31 Treated (Part no. F.4.007.02)
• Pos. 11 – PTFE Tube 1/8-1/4 (Part no. T.3.001)
• Pos. 12 – Hot Water Wand Strada W/PTFE (Part no. T.2.121.R)
• Pos. 13 – La Marzocco Heißwasserauslauf (L160/3.02) (Part no. L160/3.02)
• Pos. 14 – Screw M3X12 Phillips Countersunk A2 (Part no. I.1.045)
• Pos. 15 – La Marzocco Verschleiß Kit Dampflanze (SA210.K) (Part no. SA210.K)
• Pos. 17 – O-Ring 2,62x12,37 PTFE (Part no. H.1.044)
• Pos. 18 – O-RING 1,78 x 7,65 VITON 70 ShA (H.1.027) (Part no. H.1.027)
• Pos. 19 – Retrofit Kit Pro Touch Strada (Part no. 918)

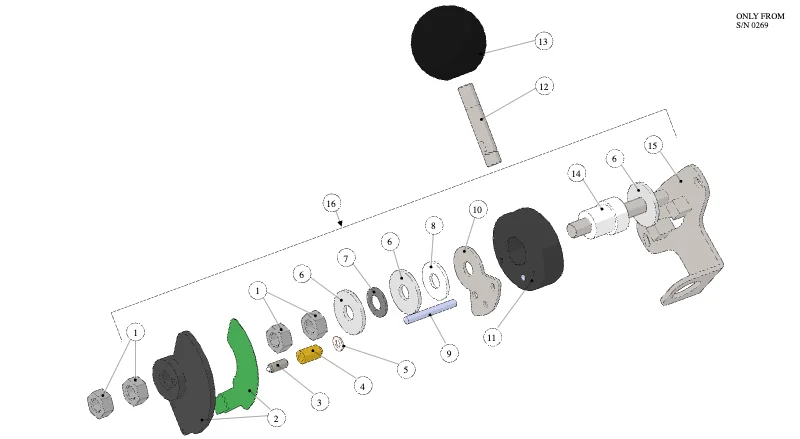

17 – Steam Valve Electronic Lever Assem.

Loading…

Loading parts…

• Pos. 1 – Nut M10 H7,8 WR17 S/S A2 (Part no. I.1.034)
• Pos. 2 – Potentiometer + Support Assembly (Part no. E.2.033.R)
• Pos. 3 – Wiper X Potenziometro 2 - 6 N (Part no. E.2.033.SC)
• Pos. 4 – Wiper Support (Part no. A.1.023)
• Pos. 5 – Washer 5,4X10X1 A2 (Part no. I.1.039)
• Pos. 6 – Washer 10.7X30X1.8 A2 (Part no. I.1.033)
• Pos. 7 – Belleville Spring 10X20X1,3 (Part no. I.5.003)
• Pos. 8 – Washer 10X30X2 PTFE (Part no. F.1.032)
• Pos. 9 – Stud for Steam Valve Cam (Part no. I.1.037)
• Pos. 10 – Shaped Washer. Wiper Strada EP (Part no. I.1.050)
• Pos. 11 – Cam Steam Lever Strada (Part no. F.1.027)
• Pos. 12 – Lever Steam Valve Strada (Part no. A.5.012)
• Pos. 13 – Steam Lever Knob Strada (Part no. F.1.023)
• Pos. 14 – Cam Bushing PTFE Strada Steam (Part no. F.4.011.01)
• Pos. 15 – Strada Steam Lever Bracket (Part no. C.1.085.02)
• Pos. 16 – Strada Steam Assembly Right Side (Part no. 990-VDX)
• Pos. 16 – Strada Steam Assembly Left Side (Part no. 990-VSX)

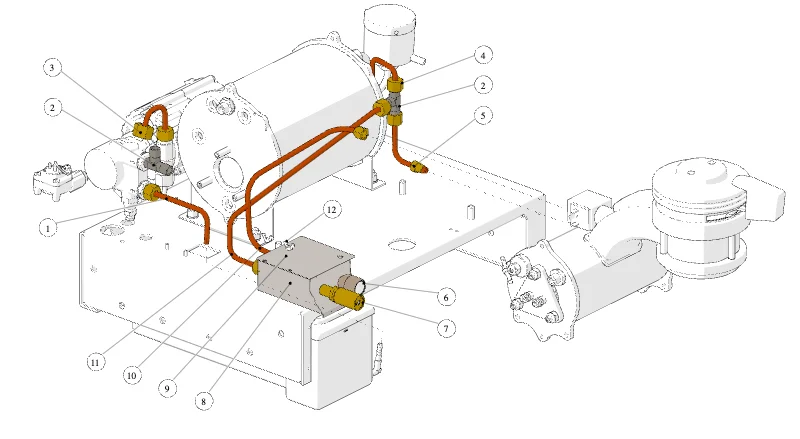

19 – Hydraulic Assembly

Loading…

Loading parts…

• Pos. 1 – Tank Pump Tube STRADA1GR (Part no. T.1.185)
• Pos. 2 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
• Pos. 3 – Tube Pump T -Check V. Coffee Strada 1GR (Part no. T.1.142)
• Pos. 4 – Tube Mix V.-T Fitting C.b. Strada 1GR (Part no. T.1.149)
• Pos. 5 – Tube T Fitting-Inlet C.b. Strada 1GR (Part no. T.1.178)
• Pos. 6 – La Marzocco Heißwasserauslauf (L160/3.02) (Part no. L160/3.02)
• Pos. 7 – La Marzocco Expansionsventil (L140_C) (Part no. L140_C)
• Pos. 8 – Discharge Strada 1GR (Part no. C.1.265)
• Pos. 9 – Discharge Cover Strada 1GR (Part no. C.1.266)
• Pos. 10 – Drain Tube S.v GR Strada 1GR (Part no. T.1.180)
• Pos. 11 – Tube C.b. T Fitting - Exp.v. Strada 1GR (Part no. T.1.179)
• Pos. 12 – Wing Nut M4 H3 A2 (Part no. I.1.035)

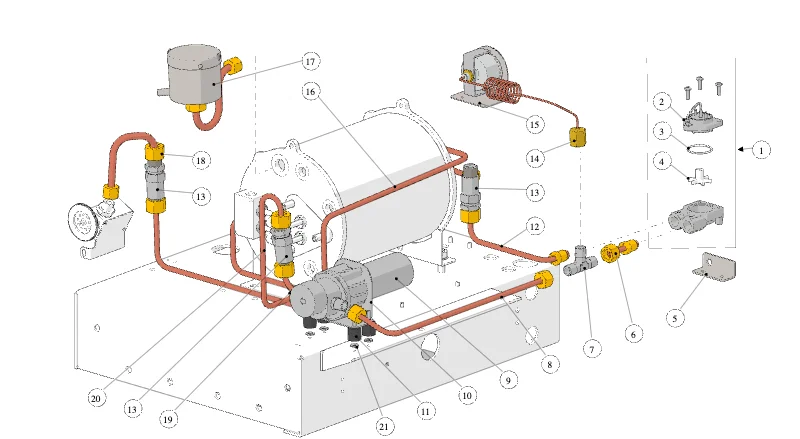

21 – Hydraulic Assembly

Loading…

Loading parts…

• Pos. 1 – Flow Meter (Part no. LAD070.01)
• Pos. 2 – Lid W/Cable Field Sensor Flowmeter (Part no. LAD070/S.01)
• Pos. 3 – La Marzocco Dichtung / O-Ring Flowmeter (LAD070/S1) (Part no. LAD070/S1)
• Pos. 4 – La Marzocco Impeller Flowmeter (LAD070/V) (Part no. LAD070/V)
• Pos. 5 – Flowmeter Bracket (Part no. C.1.264)
• Pos. 6 – Tube Flowmeter-Pump T Fitting Strada 1GR (Part no. T.1.146)
• Pos. 7 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
• Pos. 8 – Tube Pump - Gear Pump Strada 1GR (Part no. T.1.147)
• Pos. 9 – Gear Pump W/Motor 2AV W/Connectors (Part no. E.3.006.C)
• Pos. 10 – Bracket Pump Strada 1EP (Part no. C.1.255)
• Pos. 11 – Anti Vibration Rubber Bobbin M/F M4 (Part no. F.2.022)
• Pos. 12 – Tube Cont.vol. - Flowmeter Strada 1GR (Part no. T.1.143)
• Pos. 13 – Check Valve G3/8M Treated (Part no. L032/P.02)
• Pos. 14 – Pressure Gauge 0-18 Beige W/Capillary (Part no. E.3.001.02)
• Pos. 15 – Bracket Internal Press. Gauge Strada EP (Part no. C.1.120.01)
• Pos. 16 – Pump T Fitting-Check V. Steam Strada 1GR (Part no. T.1.181)
• Pos. 17 – La Marzocco Sicherheitsventil Gehäuse Set (F.2.062.R) (Part no. F.2.062.R)
• Pos. 19 – Tube Autofill Solenoid V. - Check Valve (Part no. T.1.117)
• Pos. 20 – Tube Check V.- Mix Valve Strada 1GR (Part no. T.1.148)
• Pos. 21 – Washer 5,4X10X1 A2 (Part no. I.1.039)

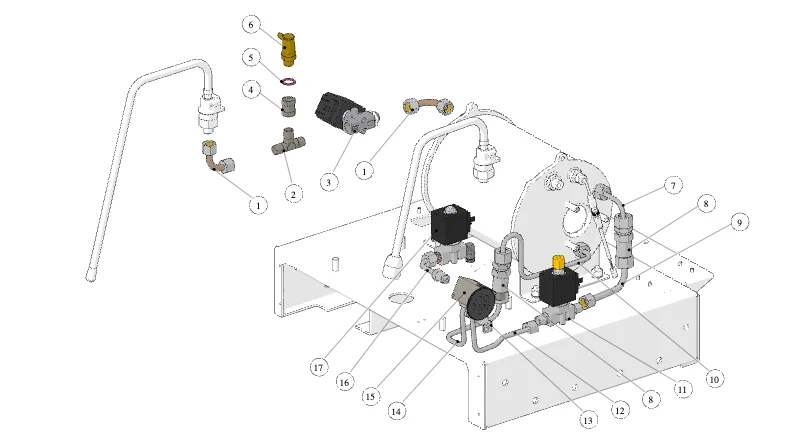

23 – Hydraulic Assembly

Loading…

Loading parts…

• Pos. 1 – Tube Prop.solenoid V.-Steam Wand TR. (Part no. T.1.128.01)
• Pos. 2 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
• Pos. 3 – Solenoid Valve Prop. 2 Way D5,5 24V (Part no. B.2.020.01)
• Pos. 4 – Fitting G1/4F-G1/8F WR17 H21,6 Treated (Part no. A.5.154)
• Pos. 5 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 7 – Tube Autofill Solenoid V. - Check Valve (Part no. T.1.117)
• Pos. 8 – Check Valve G3/8M Treated (Part no. L032/P.02)
• Pos. 9 – Drain Tube Steam Boiler Strada (Part no. T.1.123)
• Pos. 10 – Tube Steam B. - Check V. Strada 1GR (Part no. T.1.183)
• Pos. 11 – La Marzocco 3-Wege Magnet Ventil 220 / 240V (L100/E.02) (Part no. L100/E.02)
• Pos. 11 – Solenoid Valve 3 Way 200V (Part no. L100/E200.01)
• Pos. 12 – Tube Mix V.-Autofill Solenoid V. Strada (Part no. T.1.116)
• Pos. 13 – Bracket Mixing Valve Hot Water Strada (Part no. C.1.087)
• Pos. 14 – Tube Check V.- Mix V. Tea Strada 1GR (Part no. T.1.182)
• Pos. 16 – Tube Mixing Valve-Tea Solenoid V.strada (Part no. T.1.121)
• Pos. 17 – Solenoid Valve 2 Way 220/240V (Part no. L053.02)
• Pos. 17 – Solenoid Valve 2 Way 200V (Part no. L053/200.01)

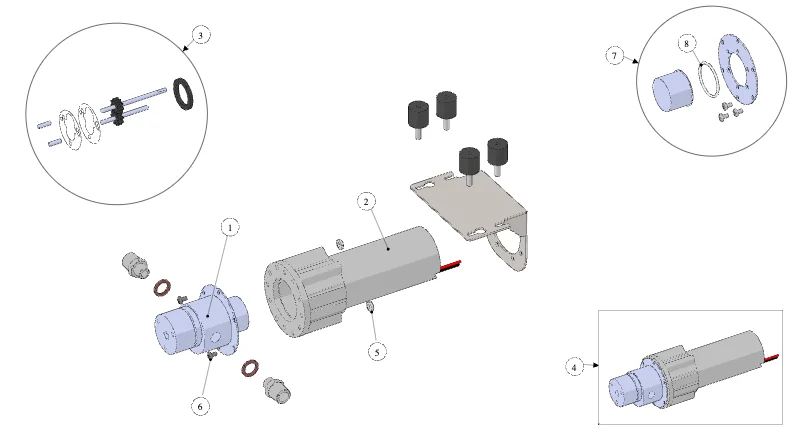

25 – Gear Pump

Loading…

Loading parts…

• Pos. 1 – Gear Pump Without Motor (Part no. E.3.006.R.01)
• Pos. 2 – MGCS11S Motore KAGM42X30I 24V (Part no. E.7.006)
• Pos. 3 – Gear Mechanism Kit for Gear Pump (Part no. E.3.006.K.01)
• Pos. 4 – Gear Pump W/Motor 2AV W/Connectors (Part no. E.3.006.C)
• Pos. 5 – Nut M3 H2 WR5,5 S/S A2 (Part no. DADOINOXM3)
• Pos. 6 – Screw M3X8 Phillips Round-Pan A2 (Part no. VITE3X8)
• Pos. 7 – Flange and Cap Kit for Gear Pump (Part no. E.3.006.KIT.01)
• Pos. 8 – O-Ring 1,78X25,12 Silicone 70 SH (Part no. H.1.026)
• Pos. 9 – Bracket Pump Strada 1EP (Part no. C.1.255)

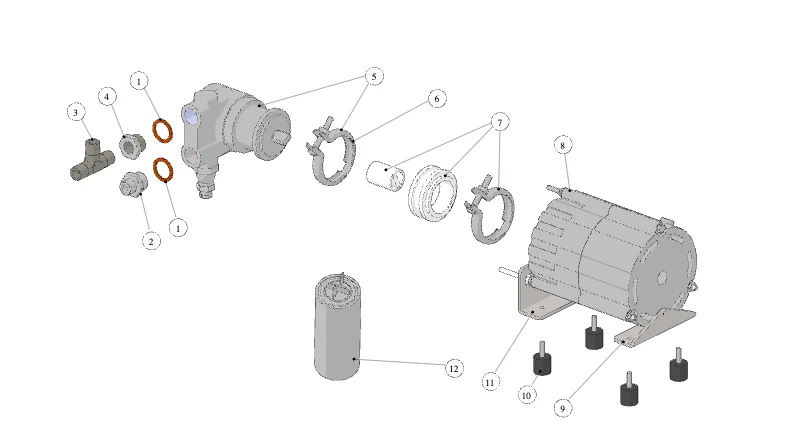

27 – Water Motor Pump Assembly

Loading…

Loading parts…

• Item 1 – La Marzocco copper washer 3/8 inch (L180/1) (Part no. L180/1)
• Pos. 2 – Nipple G3/8M-G1/4M WR20 (Part no. A.5.188)
• Pos. 3 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
• Pos. 4 – Fitting G3/8M-G1/4F WR19 (Part no. A.5.107)
• Pos. 5 – Pump GS3 70 l/h (Part no. E.3.003.01)
• Pos. 6 – Pump Clamp (Part no. L290/C)
• Pos. 7 – Anti-Vibration Adapter Kit for Pump (Part no. F.2.020)
• Pos. 8 – La Marzocco Pumpen Motor (E.7.001 / E.7.012) (Part no. E.7.001)
• Pos. 8 – Motor 200V 50/60HZ for Pump 70L/H (Part no. E.7.003)
• Pos. 8 – La Marzocco Pumpen Motor (E.7.001 / E.7.012) (Part no. E.7.012)
• Pos. 9 – Bracket Anterior Pump  (Part no. C.1.261)
• Pos. 10 – Anti Vibration Rubber Bobbin M/F M4 (Part no. F.2.022)
• Pos. 11 – Bracket Pump Leva 1GR (Part no. C.1.456)

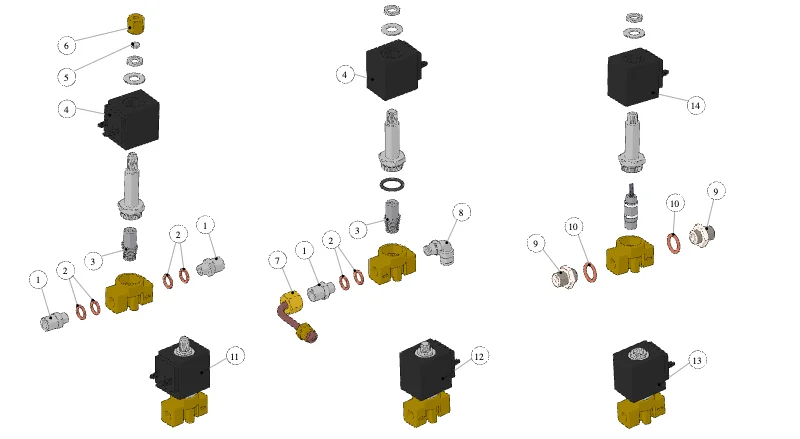

29 – Fittings and Valves

Loading…

Loading parts…

• Pos. 1 – Nipple G1/8M-G1/4M WR17 (Part no. A.5.156)
• Pos. 2 – La Marzocco Kupferscheibe 1/8 Zoll (L100/D) (Part no. L100/D)
• Pos. 3 – La Marzocco Anker / Plunger Magnetventil (L100/H) (Part no. L100/H)
• Pos. 4 – SV Coil 220-240V 8W UL Csa Vde (Part no. L100/G.01)
• Pos. 4 – Solenoid Coil 200V (Part no. L100/G200)
• Pos. 5 – La Marzocco Blind Ferrule 8X4 (L134/4) (Part no. L134/4)
• Pos. 6 – La Marzocco Fitting G1/8F H14 WR14 D4 (L134) (Part no. L134)
• Pos. 7 – Tube Mixing Valve-Tea Solenoid V.strada (Part no. T.1.121)
• Pos. 8 – Fitting Push-In 90° 1/4”-G1/8M Ppsu (Part no. A.2.101.02)
• Pos. 9 – Nipple G1/4M-G1/4M WR19 H21,5 (Part no. A.5.019)
• Pos. 10 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 11 – La Marzocco 3-Wege Magnet Ventil 220 / 240V (L100/E.02) (Part no. L100/E.02)
• Pos. 11 – Solenoid Valve 3 Way 200V (Part no. L100/E200.01)
• Pos. 12 – Solenoid Valve 2 Way 220/240V (Part no. L053.02)
• Pos. 12 – Solenoid Valve 2 Way 200V (Part no. L053/200.01)
• Pos. 13 – Solenoid Valve Prop. 2 Way D5,5 24V (Part no. B.2.020.01)
• Pos. 14 – Solenoid Valve Coil for B.2.020 (Part no. B.2.018)

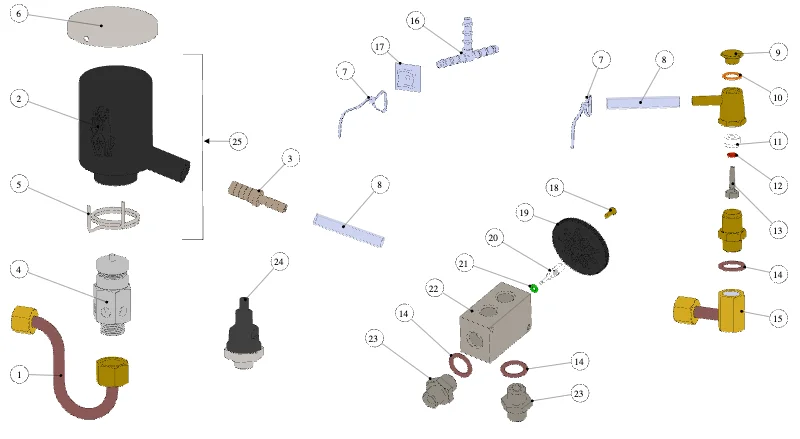

31 – Fittings and Valves

Loading…

Loading parts…

• Pos. 2 – La Marzocco Sicherheitsventil Gehäuse (F.2.062) (Part no. F.2.062)
• Pos. 3 – La Marzocco Kupferscheibe 3/8 Zoll (L180/1) (Part no. L180/1)
• Pos. 4 – Safety Valve G3/8 2,5 Bar (Part no. B.2.025.01)
• Pos. 5 – La Marzocco Haltefeder 2,5X32 Sicherheitsventil Gehäuse (I.8.003) (Part no. I.8.003)
• Pos. 7 – Cable Tie 120x2,5MM High Temperature (Part no. L338/L100.01)
• Pos. 8 – Antisuction Valve Silicone Tube (Part no. T.4.001)
• Pos. 9 – G1/8 Anti-Suction Valve Cap Treated (Part no. B.1.001.T.01)
• Pos. 10 – Special Washer 10X14X1,6 (Part no. B.1.001.TR)
• Pos. 11 – Bushing Flanged 5X9X6,5 PTFE (Part no. B.3.001)
• Pos. 12 – O-Ring 1,78X3,69 FKM 70 SH (Part no. H.1.001)
• Pos. 13 – Anti-Suction Valve Shaft Treated (Part no. B.2.013.01)
• Pos. 14 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 15 – La Marzocco Anschlussstück für Unterdruckventil 1/8″ (A.2.017) (Part no. A.2.017)
• Pos. 16 – Hose Connector Tee-Shape D6,3 Di4 Pvdf (Part no. A.7.001.01)
• Pos. 17 – Fastener Adhesive Support (Part no. 5.V010)
• Pos. 18 – Screw M4X6 Cheese Brass (Part no. VITE4X6)
• Pos. 19 – Thermostatic Valve Adjustment Knob (Part no. F.1.016)
• Pos. 21 – La Marzocco O-Ring 1,78 x 2,9 FKM 70 ShA (H.1.007.01) (Part no. H.1.007.01)
• Pos. 23 – Nipple G1/4M-G1/4M WR19 H21,5 (Part no. A.5.019)
• Pos. 24 – La Marzocco Verschleißset Unterdruckventil SMA (1037) (Part no. 1037)
• Pos. 24 – La Marzocco Unterdruckventil SMA (neue Version) (B.2.029.01) (Part no. B.2.029.01)
• Pos. 25 – La Marzocco Sicherheitsventil Gehäuse Set (F.2.062.R) (Part no. F.2.062.R)

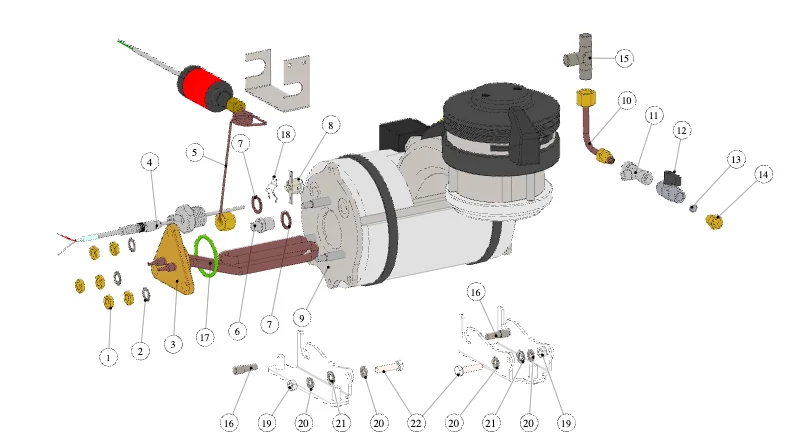

33 – Coffee Boiler

Loading…

Loading parts…

• Pos. 1 – La Marzocco Mutter M8 H5 WR13 (I.1.025) (Part no. I.1.025)
• Pos. 2 – Washer 3X6X0,5 A2 (Part no. ROND_DENT_8)
• Pos. 3 – La Marzocco Heizung 800W, 220V (E.6.004.03) (Part no. E.6.004.03)
• Pos. 3 – Heating Element W800 V240 Triang.fl. RP (Part no. E.6.016)
• Pos. 4 – La Marzocco PT1000 Temperaturfühler 100mm (E.1.005) (Part no. E.1.005)
• Pos. 5 – Tube Pressure Gauge - Coffee B. 2-3-4GR (Part no. TL11/234)
• Pos. 6 – La Marzocco Nippel R1/8M-R1/4M WR14 TR. (L053/1.02) (Part no. L053/1.02)
• Pos. 7 – La Marzocco copper washer 1/4 inch (L100/1A) (Part no. L100/1A)
• Pos. 9 – Coffee Boiler Flat Side 1GR (Part no. L.1.001.01.R)
• Pos. 10 – Tube T Fitting-Inlet C.b. Strada 1GR (Part no. T.1.178)
• Pos. 11 – Tee Fitting R1/8M-G1/8F-G1/8F WR10 TR (Part no. A.2.012.01)
• Pos. 12 – La Marzocco Kugelhahn G1/8M auf G1/8F (B.2.016.01) (Part no. B.2.016.01)
• Pos. 13 – La Marzocco Blind Ferrule 8X4 (L134/4) (Part no. L134/4)
• Pos. 14 – Fitting G1/8M H16 WR13 (Part no. L133)
• Pos. 15 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
• Pos. 16 – Coffee Boiler Pin Strada S/S (Part no. A.5.011)
• Pos. 17 – La Marzocco O-Ring Heizung Dampf- / Brühboiler (F.2.014.01) (Part no. F.2.014.01)
• Pos. 18 – L276.01 Bracket (Part no. L276.01S)
• Pos. 19 – Nut M6 H5 WR10 A2 (Part no. I.1.049)
• Pos. 20 – Tooth Lock Washer 4X8X1 (Part no. RONDELLA6X12)
• Pos. 21 – Split Washer 6X11X1,5 S/S A2 (Part no. I.1.087)
• Pos. 22 – Screw M6X20 Hex Head (Part no. I.1.058)

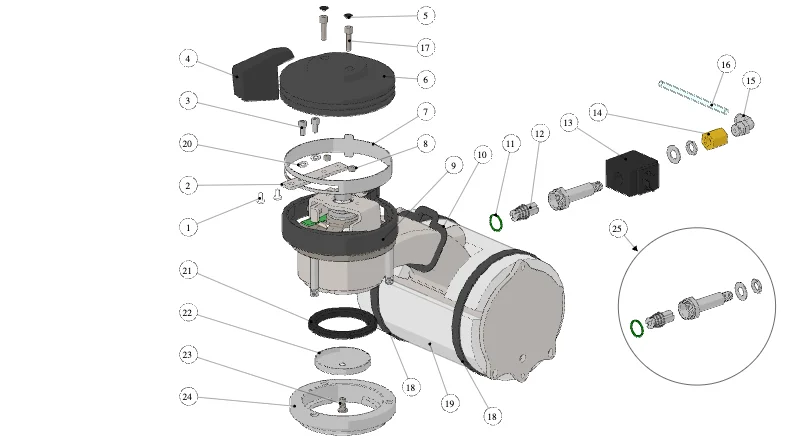

35 – Coffee Boiler

Loading…

Loading parts…

• Pos. 1 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)
• Pos. 2 – Extension Lever Group EP (Part no. C.1.125.01)
• Pos. 3 – Screw M5X10 Socket Cap A2 (Part no. I.1.005)
• Pos. 4 – Handle Paddle Linea (Part no. C.2.020)
• Pos. 5 – Cap D9 for Socket Head M5 ES4 Ldpe Black (Part no. F.1.022)
• Pos. 6 – Exposed Group Cover (Part no. F.1.020)
• Pos. 7 – Ring W/Slot Exposed Group (Part no. C.1.068.02)
• Pos. 8 – Spacer 4X6X4 (Part no. I.1.029)
• Pos. 9 – Exposed Group Cover Ring Strada (Part no. F.1.021.S)
• Pos. 10 – Strada Group Neck Silicone Gasket (Part no. F.1.025)
• Pos. 11 – O-RING 1,78 X 15,6 Viton 70 SHA (H.1.022) (Part no. H.1.022)
• Pos. 12 – La Marzocco Anker / Plunger Magnetventil (L100/H) (Part no. L100/H)
• Pos. 13 – SV Coil 220-240V 8W UL Csa Vde (Part no. L100/G.01)
• Pos. 13 – Solenoid Coil 200V (Part no. L100/G200)
• Pos. 14 – Fitting G1/4F-G1/8F WR17 (Part no. A.1.019)
• Pos. 15 – Fitting Push-In 90° 6-R1/4M TR. (Part no. A.2.103)
• Pos. 16 – PTFE Tube 6x4mm (Part no. T.3.006)
• Pos. 17 – Screw M5X25 Socket Cap S/S (Part no. I.1.186)
• Pos. 18 – Kabelbinder Dampfboiler (A.5.016.01) (Part no. A.5.016.01)
• Pos. 19 – Insulation Panel Strada Coffee Boiler (Part no. F.7.001)
• Pos. 20 – Washer 5,4X10X1 A2 (Part no. I.1.039)
• Pos. 21 – Group Gasket NBR 72/63x55x8 (Part no. H.3.001)
• Pos. 21 – Group Gasket NBR 72/63x55x9 (Part no. H.3.002)
• Pos. 21 – La Marzocco Silikon Siebträger Dichtung (H.3.007) (Part no. H.3.007)
• Pos. 21 – Portafilter Gasket 6MM (Part no. L105/B6)
• Pos. 21 – Portafilter Gasket 7MM (Part no. L105/B7)
• Pos. 22 – La Marzocco Duschsieb (F.3.040.01) (Part no. F.3.040.01)
• Pos. 23 – La Marzocco Verteilerschraube / Diffusor (A.5.110) (Part no. A.5.110)
• Pos. 24 – Bayonet Ring Bar Machine (Part no. L109.02)
• Pos. 25 – La Marzocco 3-Wege Ventil (ohne Spule) (B.2.006.02) (Part no. B.2.006.02)

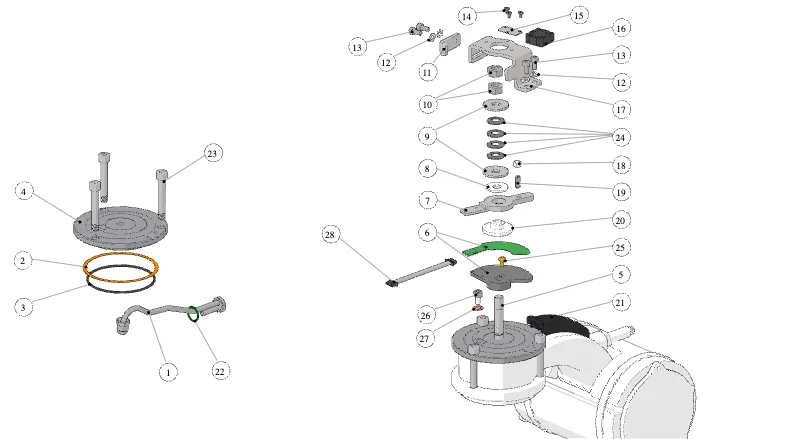

37 – Electronic Paddle and Group

Loading…

Loading parts…

• Pos. 1 – Internal Tube GS3 Group Assembly (Part no. TL30.R)
• Pos. 2 – Dichtung 87 X 81 X 0,5 (L103/B) (Part no. L103/B)
• Pos. 3 – O-RING 75,87 X 2,62 FKM 70 SHA (L103/A) (Part no. L103/A)
• Pos. 4 – Group Cap Strada EP in Aisi 316L Retrofi (Part no. A.5.025.R)
• Pos. 5 – M10 Pin for Paddle Strada EP (Part no. A.5.017)
• Pos. 6 – Potentiometer + Support Assembly (Part no. E.2.033.R)
• Pos. 7 – Lever Group EP (Part no. C.1.124.02)
• Pos. 8 – Washer 10X30X2 PTFE (Part no. F.1.032)
• Pos. 9 – Washer 10.7X30X1.8 A2 (Part no. I.1.033)
• Pos. 10 – Nut M10 H7,8 WR17 S/S A2 (Part no. I.1.034)
• Pos. 11 – Mechanical Stop Group EP (Part no. C.1.128)
• Pos. 12 – Washer 5,4X10X1 A2 (Part no. I.1.039)
• Pos. 13 – Screw M5X10 Socket Cap A2 (Part no. I.1.005)
• Pos. 14 – Screw M3X5 Phillips Round Pan A2 (Part no. I.1.054)
• Pos. 15 – Bracket Fan Potentiometer Strada EP (Part no. C.1.135)
• Pos. 16 – EP Group Fan 12V 25X25MM (Part no. E.2.034)
• Pos. 17 – Bracket Group EP (Part no. C.1.123.02)
• Pos. 18 – Nut M6 H5 WR10 A2 (Part no. I.1.049)
• Pos. 19 – Wiper X Potenziometro 2 - 6 N (Part no. E.2.033.SC)
• Pos. 20 – Teflon Group Bushing EP (Part no. F.1.031)
• Pos. 21 – Group Wire Protection Strada (Part no. F.1.026)
• Pos. 22 – O-RING 1,78 X 15,6 FKM 70 SHA (H.1.009) (Part no. H.1.009)
• Pos. 23 – Screw M8X52 Socket Cap A2 70 (Part no. L110.01)
• Pos. 24 – Belleville Spring 10X20X1,3 (Part no. I.5.003)
• Pos. 25 – Screw M4X10 Cheese (Part no. VITE4X10)
• Pos. 26 – Screw M6X10 Socket Cap A2 (Part no. L120/2)
• Pos. 27 – La Marzocco Kupferscheibe 6,3 X 12 X 1 (L120/2A) (Part no. L120/2A)
• Pos. 28 – group potentiometer to board (Part no. E.4.090)
• Pos. 28 – Extention Cable for Group Potentiometer (Part no. E.4.091)
• Pos. 28 – Brain to Encoder Cable Strada (Part no. E.4.094)

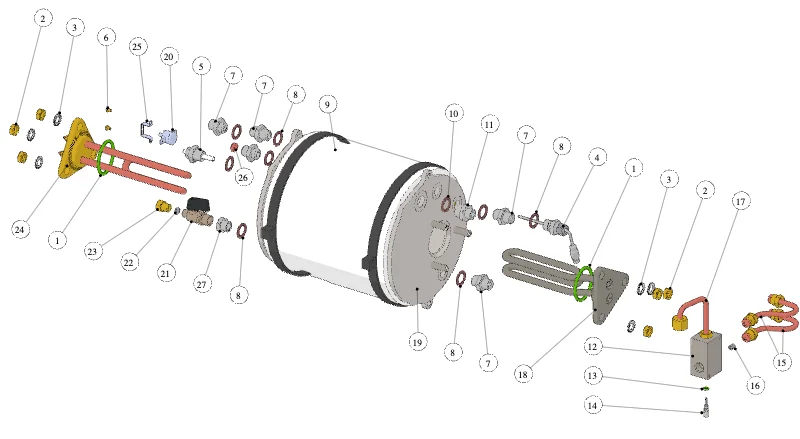

39 – Steam Boiler

Loading…

Loading parts…

• Pos. 1 – La Marzocco O-Ring Heizung Dampf- / Brühboiler (F.2.014.01) (Part no. F.2.014.01)
• Pos. 2 – La Marzocco Mutter M8 H5 WR13 (I.1.025) (Part no. I.1.025)
• Pos. 3 – Washer 3X6X0,5 A2 (Part no. ROND_DENT_8)
• Pos. 4 – La Marzocco PT1000 Temperaturfühler 100mm (E.1.005) (Part no. E.1.005)
• Pos. 5 – La Marzocco Füllstandssonde Dampfboiler (LA052) (Part no. LA052)
• Pos. 6 – Screw M3X4 Phillips Round-Pan A2 (Part no. I.1.151)
• Pos. 7 – Nipple G1/4M-G1/4M WR19 H25.5 TR. (Part no. L037/3.01)
• Pos. 8 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 9 – Insulation Panel Steam Boiler GS3 (Part no. F.7.024.01)
• Pos. 10 – La Marzocco Kupferscheibe 3/8 Zoll (L180/1) (Part no. L180/1)
• Pos. 11 – Nipple G3/8M-G1/4M WR20 (Part no. A.5.188)
• Pos. 13 – La Marzocco O-Ring 1,78 x 2,9 FKM 70 ShA (H.1.007.01) (Part no. H.1.007.01)
• Pos. 15 – Tube Pre-Heater - Mixing Valve GS3 (Part no. T.2.110)
• Pos. 16 – Gicleur 1,5 M5 CH5 Treated (Part no. B.2.011.01)
• Pos. 17 – Tube Mix V.-T Fitting C.b. Strada 1GR (Part no. T.1.149)
• Pos. 18 – Preheater 1GR L149 MM (Part no. T.1.046.01)
• Pos. 19 – Steam Boiler Flat Side GS3 (Part no. L.1.002.R)
• Pos. 20 – Safety Thermostat 1P 140C 250V (Part no. E.5.002)
• Pos. 21 – La Marzocco Kugelhahn G1/8M auf G1/8F (B.2.016.01) (Part no. B.2.016.01)
• Pos. 22 – La Marzocco Blind Ferrule 8X4 (L134/4) (Part no. L134/4)
• Pos. 23 – Fitting G1/8M H16 WR13 (Part no. L133)
• Pos. 24 – La Marzocco Heizung 1200W, 220V (E.6.003.03) (Part no. E.6.003.03)
• Pos. 24 – Heating Element W1200 V240 Triang. Flang (Part no. E.6.015.01)
• Pos. 25 – Bracket Safety Thermostat Campini TY60 (Part no. F.9.002)
• Pos. 26 – Ferrule 3,5X11X5 T5 (Part no. L137/3)
• Pos. 27 – La Marzocco Verschraubung G1/4M-G1/8F WR17 (A.5.178) (Part no. A.5.178)

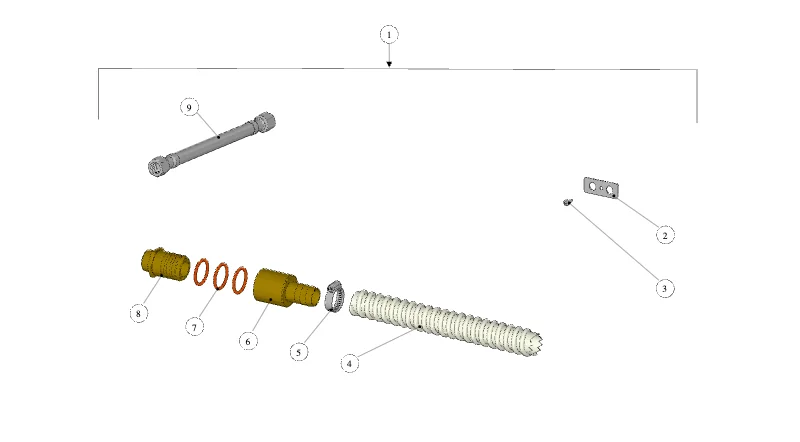

41 – Water Supply Connection

Loading…

Loading parts…

• Pos. 1 – La Marzocco Linea Mini Festwasser Kit (911) (Part no. 911)
• Pos. 2 – Contact Bypass Plate (Part no. C.1.223)
• Pos. 3 – Screw M3X8 Phillips Round-Pan A2 (Part no. VITE3X8)
• Pos. 4 – Clear Armoured Drain Hose (Part no. L308)
• Pos. 5 – Hose Clamp 16/25 H9 W2 AISI430 (Part no. L312)
• Pos. 6 – Hose Connector D20 Di16 (Part no. F.8.003)
• Pos. 7 – O-Ring 2,62x21,89 EPDM 70 ShA (Part no. H.1.010.01)
• Pos. 8 – Discharge Fitting Quick Connection (Part no. F.8.002)
• Pos. 9 – La Marzocco Flexschlauch G1/4F auf G3/8F – 1,5 m (L325) (Part no. L325)

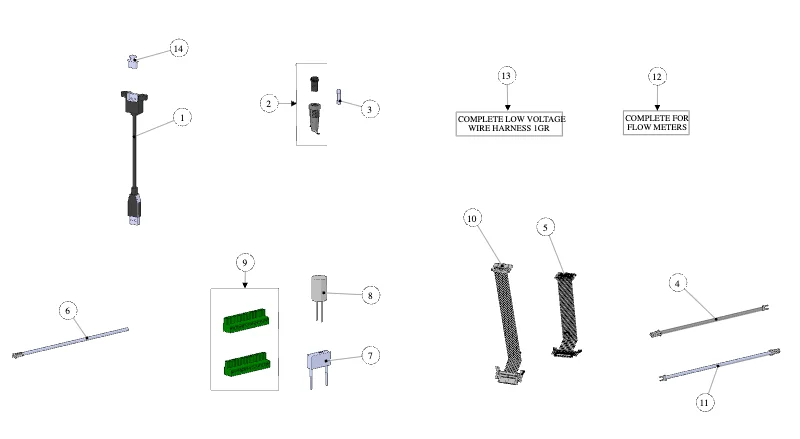

43 – Electrical System and Pump

Loading…

Loading parts…

• Pos. 1 – USB Cable Linea PB / Strada EP (Part no. E.2.040)
• Pos. 2 – UL Fuse Holder (Part no. E.2.004)
• Pos. 3 – La Marzocco Sicherung 3,15 A (E.2.073) (Part no. E.2.073)
• Pos. 4 – SSR - Brain Cable (Part no. E.4.004.01)
• Pos. 5 – Display Cable W/Clips (Part no. E.2.027.01)
• Pos. 6 – Tea Cable Strada (Part no. E.4.054)
• Pos. 7 – Filter Emc (Part no. L206.01)
• Pos. 8 – 2x22nF+0,1microF Filter (Part no. E.2.030)
• Pos. 9 – Lily Board Connectors (Part no. E.1.001.9/13)
• Pos. 10 – 3D5 Button Box Cable CM110 (Part no. LAD3D5/C05)
• Pos. 11 – Triac - Brain Cable (Part no. E.4.004)
• Pos. 12 – Wiring Harness Strada 1-2-3EP Low Volt. (Part no. E.4.079)
• Pos. 13 – Wiring Harness Strada 1EP Low Voltage (Part no. E.4.186)
• Pos. 14 – USB Connector Cover (Part no. F.1.219)

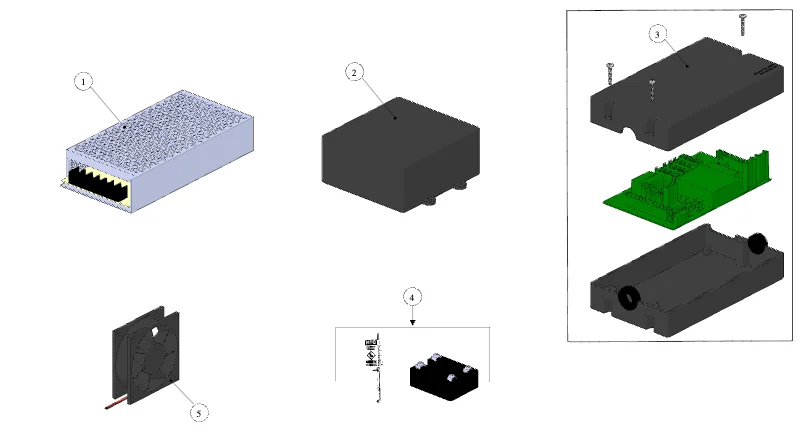

45 – Electrical System and Pump

Loading…

Loading parts…

• Pos. 1 – Strada EP 1GR Power Supply (Part no. E.2.056)
• Pos. 2 – Pumps Board Strada EP (Part no. E.1.020)
• Pos. 3 – Brain Strada EP W/ Flow Meter (Part no. E.1.001.EPFL)
• Pos. 4 – La Marzocco SSR 25A 240V Relais (E.4.010.01.R) (Part no. E.4.010.01.R)
• Pos. 5 – Fan 24V 80X80mm Pelko (Part no. E.2.025.01)

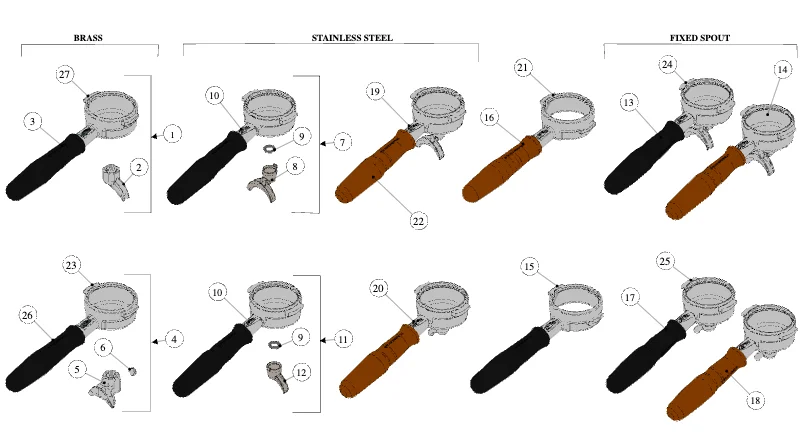

47 – Portafilters

Loading…

Loading parts…

• Pos. 1 – Portafilter Single Spout Brass (Part no. L111/1)
• Pos. 2 – Spout 1 Cup W/Treatment for Sanitation (Part no. L115.01)
• Pos. 3 – Cup Portafilter Brass with Handle (Part no. L111/LM12.01)
• Pos. 4 – Portafilter Double Spout Brass (Part no. L111/2N)
• Pos. 5 – Spout 2 Cups W/Treatment for Sanitation (Part no. L119.01)
• Pos. 6 – Screw for Double Spout (Part no. L119/V)
• Item 7 – La Marzocco stainless steel portafilter with double spout and rubberised handle (L111/2NAC) (Part no. L111/2NAC)
• Pos. 8 – La Marzocco Edelstahl Doppelauslauf (A.5.014.01) (Part no. A.5.014.01)
• Pos. 9 – La Marzocco O-RING für Siebträger Auslauf (H.1.017) (Part no. H.1.017)
• Pos. 9 – O-Ring 3,37X9,21 EPDM (Part no. H.1.017.02)
• Pos. 10 – Cup Portafilter with Handle (Part no. L111/SS.R)
• Item 11 – La Marzocco stainless steel portafilter with single spout and rubberised handle (L111/1AC) (Part no. L111/1AC)
• Pos. 12 – La Marzocco Edelstahl 1er Auslauf (A.5.013.01) (Part no. A.5.013.01)
• Pos. 13 – Portafilter Fixed Double Spout (Part no. A.5.079)
• Pos. 14 – Portafilter Fixed Double Spout Maple (Part no. A.5.127)
• Pos. 14 – Portafilter Fixed Double Spout Walnut (Part no. A.5.129)
• Item 15 – La Marzocco bottomless portafilter with rubberised handle (L111/X.01) (Part no. L111/X.01)
• Pos. 16 – Portafilter Naked Walnut (Part no. A.5.060)
• Pos. 16 – Portafilter Naked Maple (Part no. A.5.061)
• Pos. 17 – Portafilter Fixed Single Spout (Part no. A.5.078)
• Pos. 18 – Portafilter Fixed Single Spout Maple (Part no. A.5.126)
• Pos. 18 – Portafilter Fixed Single Spout Walnut (Part no. A.5.128)
• Pos. 19 – Portafilter Double Spout Maple (Part no. L111/2MW.R)
• Pos. 19 – Portafilter Double Spout Walnut (Part no. L111/2WW.R)
• Pos. 20 – Portafilter Single Spout Maple (Part no. L111/1MW.R)
• Pos. 20 – Portafilter Single Spout Walnut (Part no. L111/1WW.R)
• Item 21 – La Marzocco bottomless portafilter without handle (A.5.040) (Part no. A.5.040)
• Pos. 22 – Portafilter Handle Walnut (Part no. F.5.001)
• Pos. 22 – Portafilter Handle Maple (Part no. F.5.003)
• Pos. 23 – La Marzocco Edelstahl Siebträger ohne Griff (L111/SS.03) (Part no. L111/SS.03)
• Pos. 24 – Base Portafilter W/Double Sput Mach. (Part no. A.5.112)
• Pos. 25 – Base Portafilter W/Sinlge Spout Mach (Part no. A.5.111)
• Item 26 – La Marzocco portafilter handle, rubberised (F.2.042) (Part no. F.2.042)
• Pos. 27 – Cup Portafilter Brass (Part no. L111/M12.01)

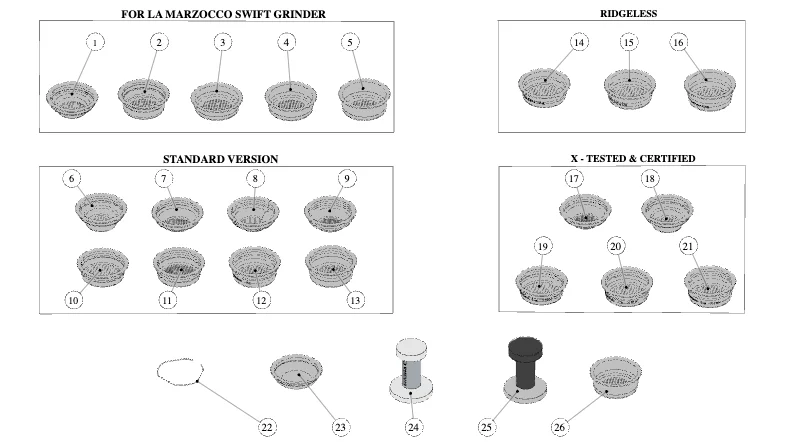

49 – Filter

Loading…

Loading parts…

• Pos. 1 – Filter 1 Cup (Part no. L115/A)
• Pos. 2 – Single Filter (Part no. L115/A/S)
• Pos. 3 – 19mm Swift Filter Basket (Part no. 5.128)
• Pos. 4 – 22mm Swift Filter Basket (Part no. 5.127)
• Pos. 5 – Triple Swift Filter Basket (Part no. 5.133)
• Pos. 6 – Filter 7 GR Standard (Part no. F.3.029.GR)
• Pos. 7 – Filter 7 GR Standard Italy (Part no. F.3.053)
• Pos. 8 – Filter 8 GR Standard (Part no. F.3.150)
• Pos. 9 – Filter 9 GR Standard (Part no. F.3.134)
• Pos. 10 – Filter 14 GR Standard (Part no. F.3.028.01)
• Pos. 11 – Filter 17 GR Standard (Part no. F.3.027.01)
• Pos. 12 – Filter 19 GR Standard (Part no. F.3.135)
• Pos. 13 – Filter 21 GR Standard (Part no. F.3.026.01)
• Pos. 14 – La Marzocco randloses Sieb 14 Gramm (F.3.080) (Part no. F.3.080)
• Pos. 15 – La Marzocco randloses Sieb 17 Gramm (F.3.079) (Part no. F.3.079)
• Pos. 16 – La Marzocco randloses Sieb 21 Gramm (F.3.081) (Part no. F.3.081)
• Pos. 17 – Filter 7 GR X Italia (Part no. F.3.054.X)
• Pos. 18 – La Marzocco “X Filter” getestetes & zertifiziertes Sieb 7 Gramm (F.3.029.X) (Part no. F.3.029.X)
• Pos. 19 – La Marzocco “X Filter” getestetes & zertifiziertes Sieb 14 Gramm (F.3.028.X) (Part no. F.3.028.X)
• Pos. 20 – La Marzocco “X Filter” getestetes & zertifiziertes Sieb 17 Gramm (F.3.027.X) (Part no. F.3.027.X)
• Pos. 21 – La Marzocco “X Filter” getestetes & zertifiziertes Sieb 21 Gramm (F.3.026.X) (Part no. F.3.026.X)
• Pos. 22 – La Marzocco Haltefeder Siebträger (L113) (Part no. L113)
• Pos. 23 – La Marzocco Blindsieb (L115/C) (Part no. L115/C)
• Pos. 24 – Aluminum Single-Double Tamper (Part no. F.3.045)
• Pos. 25 – Anodized Double Tamper US Version (Part no. F.3.031.01)
• Pos. 26 – Filter 14/16 GR LA Marzocco by Ims (Part no. F.3.162)
• Pos. 26 – Filter 16/18 GR LA Marzocco by Ims (Part no. F.3.163)
• Pos. 26 – Filter 2 Cups (Part no. L116/A)

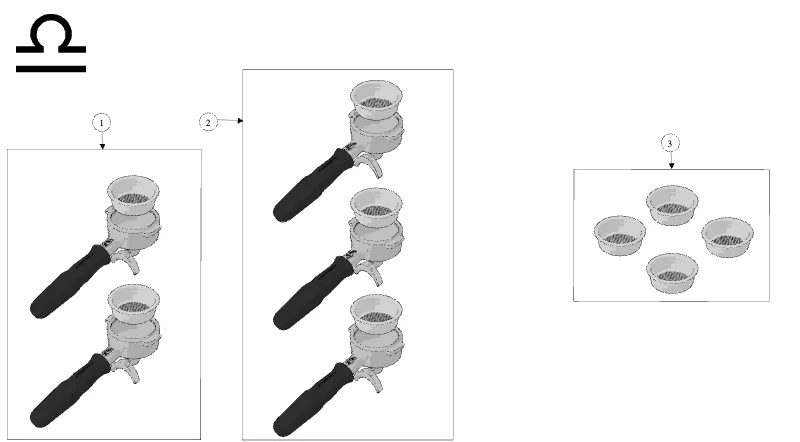

51 – Portafilter Assembly

Loading…

Loading parts…

• Pos. 1 – 2 Precision Portafilter Kit (Part no. 931-2)
• Pos. 2 – 3 Precision Portafilter Kit (Part no. 931-3)
• Pos. 2 – 4 Precision Portafilter Kit (Part no. 931-4)
• Pos. 3 – 4x 17g Precision Filter Basket Kit (Part no. 932)
• Pos. 3 – 4x 14g S/S Precision Filter Basket Kit (Part no. 947)
• Pos. 3 – 4x 21g Precision Filter Basket Kit (Part no. 948)

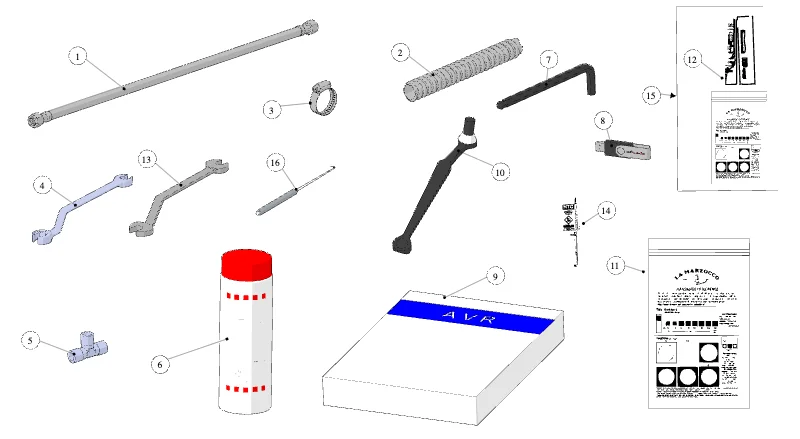

53 – Hose and Accessories

Loading…

Loading parts…

• Pos. 1 – Braided Hose G3/8F 50CM (Part no. L305/050.01)
• Pos. 1 – Braided Hose G3/8F 120CM (Part no. L305/120.01)
• Pos. 1 – Braided Hose G3/8F 210CM (Part no. L305/210.01)
• Pos. 1 – Braided Hose 3/8COMPR. 50CM Nsf (Part no. L306/050)
• Pos. 1 – Braided Hose 3/8COMPR. 120CM Nsf (Part no. L306/120)
• Pos. 1 – Braided Hose G3/8F 210CM Nsf (Part no. L306/210)
• Pos. 1 – Braided Hose G3/8F 90° 210CM Nsf (Part no. L306/210/C)
• Pos. 1 – Braided Hose 3/8COMPR. 210CM Nsf (Part no. T.5.003)
• Pos. 2 – Clear Armoured Drain Hose (Part no. L308)
• Pos. 3 – Hose Clamp 16/25 H9 W2 AISI430 (Part no. L312)
• Pos. 4 – Bent Wrench WR14 for Group Tube (Part no. UT107)
• Pos. 5 – Tee Fitting R3/8M WR17 Treated (Part no. A.2.022.01)
• Pos. 6 – La Marzocco Kaffeefettlöser / Puly Caff (F.9.021) (Part no. F.9.021)
• Pos. 7 – Allen Key 5 with Ball End (Part no. UT005)
• Pos. 8 – 4GB USB Key with Strada Logo (Part no. E.2.029)
• Pos. 9 – Kit Avr Programmer - USB Complete (Part no. E.4.025.02)
• Pos. 10 – Pallo Espresso Tool (Part no. V088)
• Pos. 10 – Replacement Brush for Pallo (3 Pieces) (Part no. V089)
• Pos. 11 – La Marzocco Wassertest Kit (F.9.000.02) (Part no. F.9.000.02)
• Pos. 12 – Digital Tds Meter (Part no. F.9.003)
• Pos. 13 – Bent Wrench WR13 for Group Tube (Part no. UT108)
• Pos. 14 – Htc Thermal Compound Syringe 2ML (Part no. F.1.065)
• Pos. 15 – Water Test Kit (Part no. 941)
• Pos. 16 – La Marzocco Dichtungswerkzeug (UT008) (Part no. UT008)
