07 – Swift Eps

Loading…

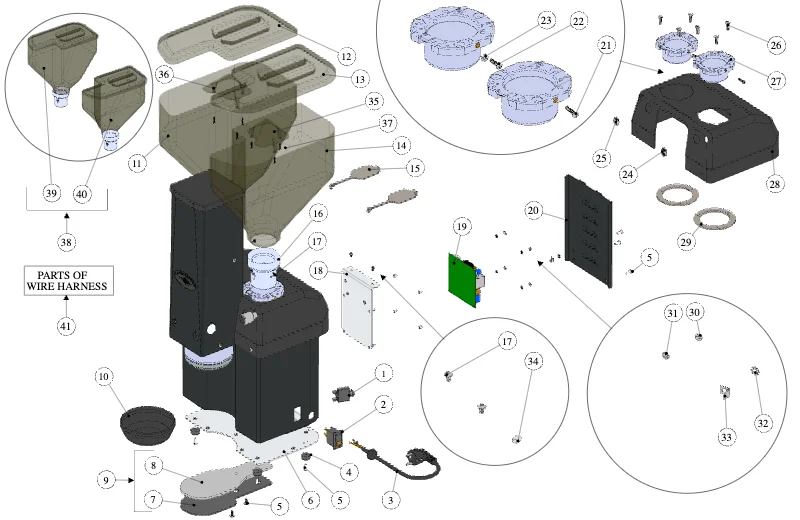

Loading parts…La Marzocco Swift – 07 – Swift Eps (exploded view)
  • Pos. 1 – Resettable Breaker 10A (Part no. 5.373)
  • Pos. 2 – On/Off Switch W/Light (Part no. 5.116)
  • Pos. 2 – Decal. 1 / 0 (Part no. 5.352.1)
  • Pos. 3 – Power Cord W/Strain Relief (Part no. 5.114)
  • Pos. 3 – Power Cord Euro 14/3 (Part no. 5.506)
  • Pos. 3 – Power Cord for Aus (Part no. E.4.050)
  • Pos. 3 – Power Cord 10A Aus Plug (Part no. E.4.067)
  • Pos. 4 – Foot. 3/4 Dia Rubber (Part no. 5.120)
  • Pos. 5 – 10-32 Unf X 1/2 Truss Head (Part no. 5.V001)
  • Pos. 6 – Bottom Plate (Part no. 5.306)
  • Pos. 7 – Swift Foot Rubber (Part no. 5.343)
  • Pos. 9 – Foot Plate Assy (5.342+5.343) (Part no. 5.341.1)
  • Pos. 10 – Drip Tray (Part no. 5.336)
  • Pos. 11 – Hopper Left (Part no. 5.333.02)
  • Pos. 12 – Hopper Lid Left Nsf Plastic (Part no. 5.369.01)
  • Pos. 13 – Hopper Lid Right Nsf Plastic (Part no. 5.367.01)
  • Pos. 14 – Hopper Right (Part no. 5.332.02)
  • Pos. 15 – Bean Gate (Part no. 5.315)
  • Pos. 16 – Hopper Mount (Part no. 5.319.01)
  • Pos. 17 – Screw 8-32 Unf X1/4'' Pan Head (Part no. 5.V013)
  • Pos. 18 – Transformer Mount SS (Part no. 5.310)
  • Pos. 19 – Transformer Board. Type G 110V (Part no. 5.305.1/11)
  • Pos. 19 – Transformer Board. Type G 220V (Part no. 5.305.1/22)
  • Pos. 20 – Back Cover Aluminum (Part no. 5.309)
  • Pos. 20 – Back Cover Std Silver (Part no. 5.309.51)
  • Pos. 20 – Back Cover Std Red FB70 (Part no. 5.309.52)
  • Pos. 20 – Back Cover Custom Color (Part no. 5.309.55)
  • Pos. 20 – Back Cover Std Black (Part no. 5.309.60)
  • Pos. 21 – 8-32 X 3/4 Pan Head Slotted (Part no. 5.V024)
  • Pos. 22 – 8-32 Unf X 5/8 Pan Head (Part no. 5.V023)
  • Pos. 23 – Split Washer 4.5X7,2X1 A2 (Part no. 5.V025)
  • Pos. 24 – Label Right Grind Adjustment Swift (Part no. 5.339.1)
  • Pos. 25 – Label Left Grind Adjustment Swift (Part no. 5.339.2)
  • Pos. 26 – 1/4''-20 Unc X 3/4 Flat Head (Part no. 5.V021)
  • Pos. 28 – Grinder Cover W/Front Knobs (Part no. 5.368)
  • Pos. 29 – Ring Hopper Support (Part no. 5.313)
  • Pos. 30 – S/S 6-32 Unf Hex Nuts (Part no. 5.V009)
  • Pos. 31 – 6 External Tooth Lock Washer (Part no. 5.V008)
  • Pos. 32 – 10 External Tooth Lock Washer (Part no. 5.V003)
  • Pos. 33 – Faston 1/4'' Non Insulated (Part no. 5.V004)
  • Pos. 34 – 6-32UNF X1/4 X 1/4 Round (Part no. 5.376)
  • Pos. 35 – Protection Hopper Right (Part no. 5.381)
  • Pos. 36 – Protection Hopper Left (Part no. 5.383)
  • Pos. 37 – Selftap.screw 2,9X16 Phil Round-Pan S/S (Part no. I.1.094)
  • Pos. 38 – Update Kit New Swift Hoppers (Part no. 937)
  • Pos. 39 – Hopper Left Complete (Part no. 5.333.R)
  • Pos. 40 – Hopper Right Complete (Part no. 5.332.R)
  • Pos. 41 – Roll Pin 5/64 X 3/8 92373A122 (Part no. 5.119)
  • Pos. 41 – Wire Jumper 1 (Part no. 5.126.1)
  • Pos. 41 – Wire Jumper 2 (Part no. 5.126.2)
  • Pos. 41 – Wire Jumper 3 (Part no. 5.126.3)
  • Pos. 41 – Wire Jumper. Voltage Selector. (Part no. 5.126.6)

09 – Tower

Loading…

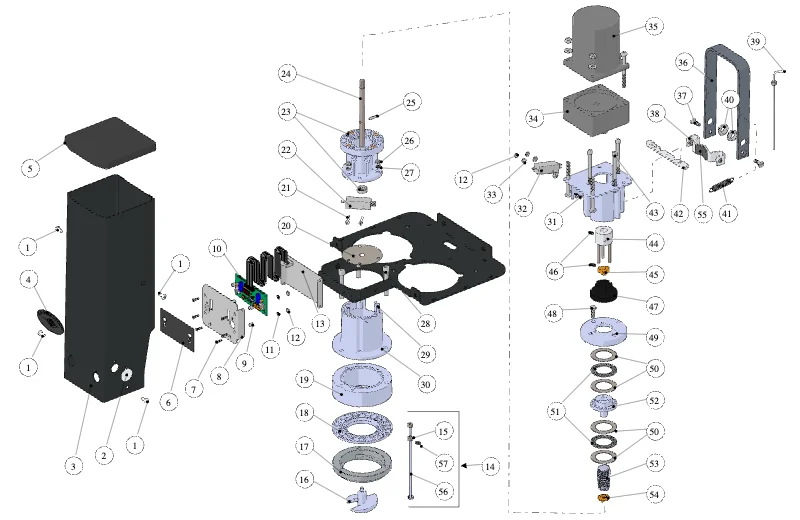

Loading parts…La Marzocco Swift – 09 – Tower (exploded view)
  • Pos. 1 – 10-32 Unf X 1/2 Truss Head (Part no. 5.V001)
  • Pos. 2 – Medal Swift Tower (Part no. 5.314)
  • Pos. 3 – Tamper Cover Aluminum (Part no. 5.311)
  • Pos. 3 – Tamper Cover Std Silver (Part no. 5.311.51)
  • Pos. 3 – Tamper Cover Std Red FB70 (Part no. 5.311.52)
  • Pos. 3 – Tamper Cover Std Black (Part no. 5.311.60)
  • Pos. 4 – Decal. Oval. LM Logo (Part no. 5.340)
  • Pos. 5 – Tamper Cover Lid (Part no. 5.337)
  • Pos. 6 – Swift Button Cover Overlay PE (Part no. D.5.031)
  • Pos. 7 – 6-32 Unf X 1/2 Flat Head (Part no. 5.V012)
  • Pos. 8 – Electronics Mount Plate (Part no. 5.312)
  • Pos. 9 – 6-32UNF X1/4 X 1/4 Round (Part no. 5.376)
  • Pos. 10 – Control. 2 Button. Type G (Part no. 5.304.1)
  • Pos. 10 – Control. 2 Button. Type G S/D Dose Swift (Part no. 5.304.2)
  • Pos. 11 – 6 External Tooth Lock Washer (Part no. 5.V008)
  • Pos. 12 – S/S 6-32 Unf Hex Nuts (Part no. 5.V009)
  • Pos. 13 – Electronic Mount Plate Cover (Part no. 5.316)
  • Pos. 14 – Assembly Rod Portafilter Presence Swift (Part no. 5.372.01)
  • Pos. 16 – Tamper Impeller (Part no. 5.331.01)
  • Pos. 17 – Bayonet Ring Universal Swift Grinder (Part no. A.3.010)
  • Pos. 18 – Portafilter Spacer Swift (Part no. 5.353)
  • Pos. 19 – Coffee Chute Spacer Swift (Part no. 5.354)
  • Pos. 20 – Swift Gasket (Part no. 5.371)
  • Pos. 21 – 6 X7/8 Pan Head Phillips (Part no. 5.V016)
  • Pos. 22 – Pin Switch Without Lever (Part no. 5.117.1)
  • Pos. 24 – Tamper Shaft (Assembled with 5.109) (Part no. 5.328.01)
  • Pos. 25 – Roll Pin 3/16 x 7/8 420SS (Part no. 5.109)
  • Pos. 26 – 10 External Tooth Lock Washer (Part no. 5.V003)
  • Pos. 27 – S/S 10-32 Unf Hex Nut (Part no. 5.V005)
  • Pos. 28 – Screw M8X52 Socket Cap A2 70 (Part no. L110.01)
  • Pos. 29 – 10-32 Unf X 1 Stud tfl (SS) (Part no. 5.V017)
  • Pos. 31 – Screw 6-32X1-1/4 Pan S/S (Part no. 5.V018)
  • Pos. 32 – Roller Switch W/Lever (Part no. 5.117)
  • Pos. 33 – S/S 6 Flat Washer (Part no. 5.V020)
  • Pos. 34 – Reduction Gear Motor 230V 50/60HZ S/D (Part no. 5.300.R)
  • Pos. 35 – 230V 50/60HZ Swift Tamper Motor (Part no. 5.300)
  • Pos. 35 – 115V 50/60HZ Swift Tamper Motor (Part no. 5.300/110)
  • Pos. 36 – Shaft Lock Lever (Part no. 5.347)
  • Pos. 37 – 1/4''-20 Unc X 3/4 Flat Head (Part no. 5.V021)
  • Pos. 38 – Shaft Lock Shoe Assembled (Part no. 5.348.C)
  • Pos. 40 – Bushing Flanged 13X16X6 (Part no. 5.345)
  • Pos. 41 – Spring FY (Part no. 5.122)
  • Pos. 42 – Axis Lock Lever Tamping Motor Shaft (Part no. 5.370)
  • Pos. 43 – 1/4-20 Unc X 3-1/4 Socket Head Allen (Part no. 5.V022)
  • Pos. 44 – Motor Shaft Coupling (Part no. 5.130)
  • Pos. 45 – Tamper Shaft Collar (Part no. 5.131)
  • Pos. 46 – S/S 10-32 x 3/8 Socket Set Screw (Part no. 5.V014)
  • Pos. 47 – Tamper Shaft Coupling (Part no. 5.132)
  • Pos. 48 – 1/4-20 Unc x 5/8 Hex Head Screw (Part no. 5.V015)
  • Pos. 49 – Thrust Bearing Retainer Top Swift (Part no. 5.355)
  • Pos. 50 – Thrust Bearing Washer (Part no. 5.106)
  • Pos. 51 – Thrust Bearing (Part no. 5.105)
  • Pos. 52 – Bearing Spindle Swift (Part no. 5.360)
  • Pos. 53 – Spring 1,3X25,4X86,5 Variable Diameter (Part no. 5.111)
  • Pos. 54 – Spring Retainer Swift (Part no. 5.359)
  • Pos. 55 – Rubber for Shaft Lock Shoe (Part no. 5.343.2)
  • Pos. 57 – Grub Screw Unc 6-32X3 (Part no. 5.372.2)

11 – Grinder E Accessori

Loading…

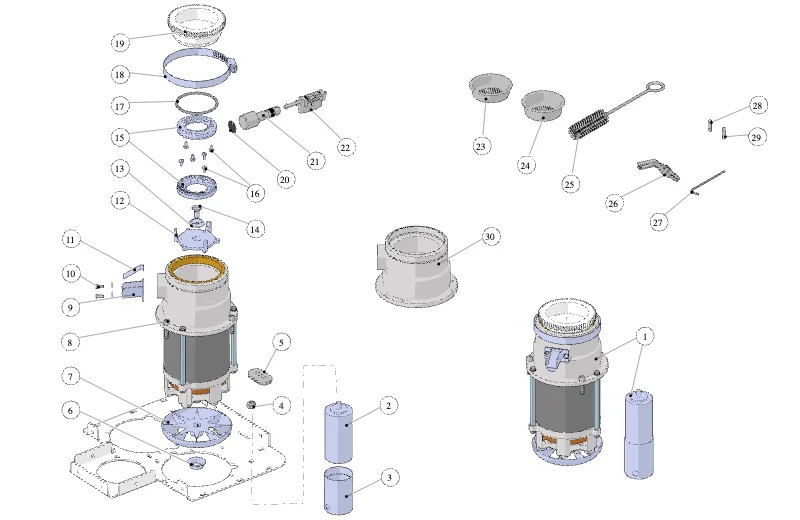

Loading parts…La Marzocco Swift – 11 – Grinder E Accessori (exploded view)
  • Pos. 1 – Grinder Motor Assy 110V (Part no. 5.200.01)
  • Pos. 1 – Grinder Motor Assy 220V (Part no. 5.201.01)
  • Pos. 2 – Capacitor-Emv-64LM 120/60/1 (Part no. 5.200.51)
  • Pos. 2 – Capacitor-Emv-64LM 230/30/1 (Part no. 5.200.53)
  • Pos. 2 – 110V Capacitor (Part no. 5.301.C)
  • Pos. 3 – Capacitor Cap-Emv-64LM (Part no. 5.200.52)
  • Pos. 3 – Capacitor Cap-Emv-64LM (Part no. 5.200.54)
  • Pos. 4 – Self Lock Nut M8 H9,5 WR13 S/S A2 (Part no. 5.V007)
  • Pos. 5 – Grommet (Part no. 5.125)
  • Pos. 5 – Grommet for CE Power Cord (Part no. 5.125.1)
  • Pos. 5 – Grommet for UL Power Cord (Part no. 5.134)
  • Pos. 6 – Clamp Ring for Fan (Part no. 5.200.27)
  • Pos. 7 – Fan Blade (Part no. 5.200.28)
  • Pos. 8 – 1/4-20 Unc X 1'' Socket Head (Part no. 5.V006)
  • Pos. 9 – Discharge (Part no. 5.200.10)
  • Pos. 10 – Screw M4X10 Din 84 (Part no. 5.200.15)
  • Pos. 11 – Discharge Cover (Laminated Spring) (Part no. 5.200.11)
  • Pos. 12 – Rotating Grinding Burr Mount (Part no. 5.200.8)
  • Pos. 13 – Conical Washer (Part no. 5.200.19)
  • Pos. 15 – Ceramic Burr. (Pair) Standard (Part no. 5.200.30.01)
  • Pos. 16 – Screw M4X8 A2 (Part no. 5.200.16)
  • Pos. 17 – O-Ring Burr Mount (Part no. 5.200.55)
  • Pos. 18 – Adjustor Clamp (Part no. 5.200.26)
  • Pos. 19 – Stationary Grinding Burr Mount (Part no. 5.200.7)
  • Pos. 20 – Label Knob Grind Adjustment Swift (Part no. 5.339.3)
  • Pos. 21 – Grind Adjustor Knob. 5.338.1 Included (Part no. 5.338.R)
  • Pos. 22 – Right Grind Adjusting Gear W/Roll Pins (Part no. 5.200.31.R)
  • Pos. 22 – Lft Grind Adjustor Gear W/Roll Pins (Part no. 5.200.36.R)
  • Pos. 23 – Filter 14 GR Standard (Part no. F.3.028.01)
  • Pos. 24 – Filter 17 GR Standard (Part no. F.3.027.01)
  • Item 25 – La Marzocco cleaning brush (5.380) (Part no. 5.380)
  • Pos. 26 – Fuse Puller (Part no. 5.123)
  • Pos. 27 – Long Arm L-Key. 3/32 Hex Size (Part no. 5.129)
  • Pos. 28 – Fuse. 1A-Slo (Part no. 5.364)
  • Pos. 29 – Fuse. 125MA (Part no. 5.363)
  • Pos. 30 – Housing Emv-64LM (Part no. 5.200.5)
