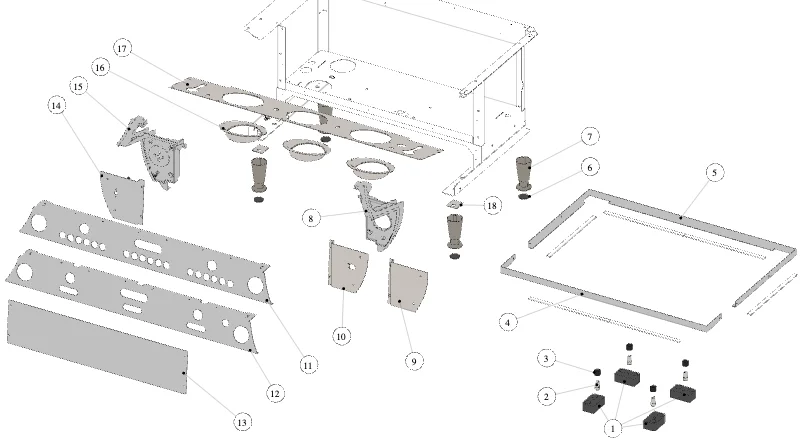

11 – Body Panel Assembly

Loading…
Loading parts…La Marzocco GB5 X-S – 11 – Body Panel Assembly (exploded view)
  • Pos. 1 – Rubber Foot Left/Right (Part no. CL001.01)
  • Pos. 2 – La Marzocco Schraube M10 X 20 S/S A2 (I.1.090) (Part no. I.1.090)
  • Pos. 3 – Pvc Foot Supports DM.21 GB5 (Part no. F.1.005)
  • Pos. 4 – Cover Front Nsf GB5 X-S 2GR (Part no. C.1.476.2)
  • Pos. 4 – Cover Front Nsf GB5 X-S 3GR (Part no. C.1.476.3)
  • Pos. 4 – Cover Front Nsf GB5 X-S 4GR (Part no. C.1.476.4)
  • Pos. 5 – Cover Back Nsf GB5 X-S 2GR (Part no. C.1.477.2)
  • Pos. 5 – Cover Back Nsf GB5 X-S 3GR (Part no. C.1.477.3)
  • Pos. 5 – Cover Back Nsf GB5 X-S 4GR (Part no. C.1.477.4)
  • Pos. 6 – High Leg Rubber Pad (Part no. CL001/1G)
  • Pos. 7 – High Leg + Rubber Pad (Part no. CL001/1G.R)
  • Pos. 8 – Chromed Support Right Panel GB5 X-S (Part no. C.2.050.DX)
  • Pos. 9 – Panel Lower Right GB5 S (Part no. C.1.498.DX)
  • Pos. 10 – Panel Lower Right GB5 X (Part no. C.1.494.DX)
  • Pos. 11 – Panel Front Control GB5 X-S 2GR AV (Part no. C.1.487.2)
  • Pos. 11 – Panel Front Control GB5 X-S 3GR AV (Part no. C.1.487.3)
  • Pos. 11 – Panel Front Control GB5 X-S 4GR AV (Part no. C.1.487.4)
  • Pos. 12 – Panel Front Control GB5 2GR EE (Part no. C.1.488.2)
  • Pos. 12 – Panel Front Control GB5 3GR EE (Part no. C.1.488.3)
  • Pos. 12 – Panel Front Control GB5 4GR EE (Part no. C.1.488.4)
  • Pos. 13 – Pannel Lower Front Gbr 2GR (Part no. C.1.485.2.01)
  • Pos. 13 – Pannel Lower Front GB5 X-S 3GR (Part no. C.1.485.3.01)
  • Pos. 13 – Pannel Lower Front GB5 X-S 4GR (Part no. C.1.485.4.01)
  • Pos. 14 – Panel Lower Left GB5 X-S (Part no. C.1.494.SX)
  • Pos. 15 – Chromed Support Left Panel GB5 X-S (Part no. C.2.050.SX)
  • Pos. 16 – Group Cover GB5 X-S (Part no. C.1.470)
  • Pos. 17 – Panel Cover Groups 2GR GB5 X-S (Part no. C.1.489.2)
  • Pos. 17 – Panel Cover Groups 3GR GB5 X-S (Part no. C.1.489.3)
  • Pos. 17 – Panel Cover Groups 4GR GB5 X-S (Part no. C.1.489.4)
  • Pos. 18 – Spacer High Legs GB5R (Part no. C.1.638)

13 – Body Panel Assembly

Loading…
Loading parts…La Marzocco GB5 X-S – 13 – Body Panel Assembly (exploded view)
  • Pos. 2 – Nut G3/8 H6 WR21 Treated (Part no. L183/1.01)
  • Pos. 3 – Hose Fitting G1/2 WR22 D20 Di16 (Part no. L037/2PGR)
  • Pos. 4 – Break-Drain for Solenoid Valve (Part no. L037/3R)
  • Pos. 5 – Drain Box GB5 X-S (Part no. F.1.153)
  • Pos. 7 – Nut G1/8 H4,5 WR14 Nickel Plated (Part no. L292/R)
  • Pos. 8 – GS/3 Tube Fitting (Part no. L292)
  • Pos. 9 – Nut Cord Grips PG29 (Part no. I.6.008)
  • Pos. 10 – Cord Grips PG29 W/Nut (Part no. E.4.130)
  • Pos. 11 – Cord Grips PG21 (Part no. L322/G)
  • Pos. 12 – Reducer Cord Grips PG29 (Part no. F.1.097)
  • Pos. 13 – Cord Grips PG13,5 (Part no. L322/P)
  • Pos. 14 – Grommet 32-42X2 (Part no. F.2.027)
  • Pos. 15 – Grommet 30-35X1,5 Neoprene (Part no. F.2.002)

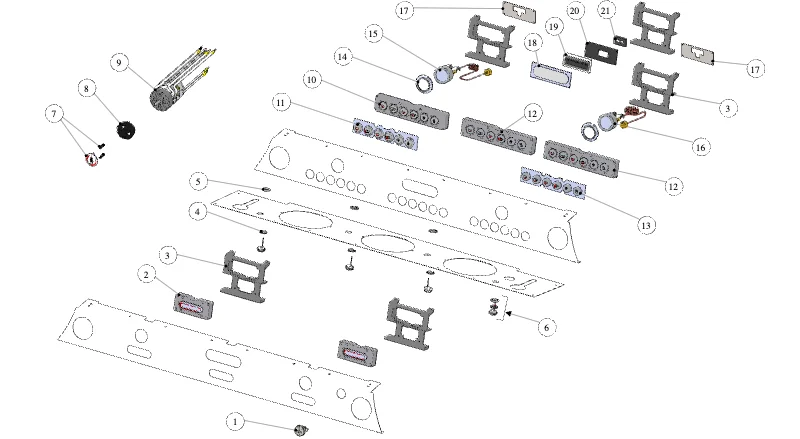

15 – Control Panel Assembly

Loading…
Loading parts…La Marzocco GB5 X-S – 15 – Control Panel Assembly (exploded view)
  • Pos. 1 – Switch Hot Water W/White LED with Riser (Part no. E.2.051.R)
  • Pos. 2 – Keypad GB5 EE (Part no. E.1.062)
  • Pos. 3 – Supporto Pulsantiera GB5 X-S (Part no. F.1.156)
  • Pos. 4 – Spacer LED Light (Part no. F.1.049)
  • Pos. 5 – Washer LED Light (Part no. F.1.050)
  • Pos. 6 – White LED 16MM W/Connector + Kit Washer (Part no. E.4.023.02.R)
  • Pos. 7 – Cover Switch KB90 W/Spacers (Part no. D.4.033.R)
  • Pos. 8 – Handle Switch KB90 (Part no. F.1.139)
  • Pos. 9 – Bipolar Switch 42A W/Faston Iec/UL (Part no. E.2.049.01)
  • Pos. 9 – Tripolar Switch 20A W/Faston Iec/UL (Part no. E.2.050.02)
  • Pos. 9 – Tripolar Switch 42A W/Faston Iec/UL (Part no. E.2.067.01)
  • Pos. 9 – Four-Pole Switch 20A W/Faston Iec/UL (Part no. E.2.096)
  • Pos. 10 – Keypad Program. GB5 S on Off (Part no. E.2.079)
  • Pos. 10 – Keypad Program. GB5 X on Off (Part no. E.2.088)
  • Pos. 11 – Membrane W/Buttons Keyp. E.2.088 E.2.079 (Part no. E.1.075)
  • Pos. 12 – Keypad Program. GB5 S Hot Water (Part no. E.2.080)
  • Pos. 12 – Keypad Program. GB5 X Hot Water (Part no. E.2.089)
  • Pos. 13 – Membrane W/Buttons Keyp. E.2.089 E.2.080 (Part no. E.1.074)
  • Pos. 14 – Glass Display W/ Crown Press. Gauge GB5 (Part no. F.1.185.R)
  • Pos. 15 – Press.gauge 0-3 Black W/Capillary (Part no. E.3.026)
  • Pos. 15 – Press.gauge 0-3 White W/Capillary (Part no. E.3.028)
  • Pos. 16 – Press.gauge 0-18 Black W/Capillary (Part no. E.3.025)
  • Pos. 16 – Press.gauge 0-18 White W/Capillary (Part no. E.3.027)
  • Pos. 17 – Omega Fixing Press. Gauge GB5 X-S (Part no. C.1.526)
  • Pos. 18 – Glass Display Oled Opaque GB5 S (Part no. F.1.125)
  • Pos. 18 – Glass Display Oled Transparent GB5 X (Part no. F.1.196)
  • Pos. 19 – Display Oled White Strada AV (Part no. E.1.035)
  • Pos. 19 – Red Oled Display (Part no. E.1.093.01)
  • Pos. 20 – Linea PB Display Back Cover (Part no. F.1.041)
  • Pos. 21 – Sealing Rear Cover Display (Part no. H.3.016)

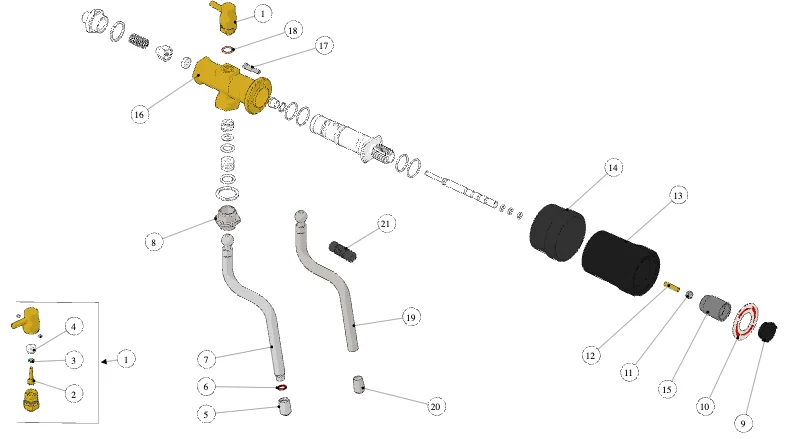

17 – Steam and Hot Water Assembly

Loading…
Loading parts…La Marzocco GB5 X-S – 17 – Steam and Hot Water Assembly (exploded view)

19 – Steam and Hot Water Assembly

Loading…
Loading parts…La Marzocco GB5 X-S – 19 – Steam and Hot Water Assembly (exploded view)
  • Pos. 1 – Rebuild Kit Steam Valve KB90-GB5XS (Part no. 1206)
  • Pos. 2 – Housing G1/8 D12 W/ Gasket (Part no. A.5.119.R)
  • Pos. 3 – Valve E16 H15 KB90 Steam Valve (Part no. A.2.117)
  • Pos. 4 – Gasket PTFE 25X21,2X2 (Part no. A.7.016)
  • Pos. 5 – Rear Tube Connector KB90 Valve (Part no. A.2.116)
  • Pos. 6 – Insert Connec. W/Steam Valve Knob GB5 XS (Part no. 1112)
  • Pos. 7 – Steam Valve Lever KB90 (Part no. A.5.120)
  • Pos. 8 – Fitting G3/8M-G1/8M H31,5 (Part no. A.5.179)
  • Pos. 9 – Nut G3/8 H6 WR21 Treated (Part no. L183/1.01)
  • Pos. 10 – PTFE Gasket 10x2,5 (Part no. L169/A1)
  • Pos. 11 – O-Ring 2,62x12,37 PTFE (Part no. H.1.044)
  • Pos. 12 – Hot Water Wand G3/8F W/Diffuser (Part no. L160.02)
  • Pos. 13 – Bracket Hot Water GB5 X-S (Part no. C.1.501)
  • Pos. 14 – Retrofit Kit Pro Touch GB5 X-S (Part no. 1022)

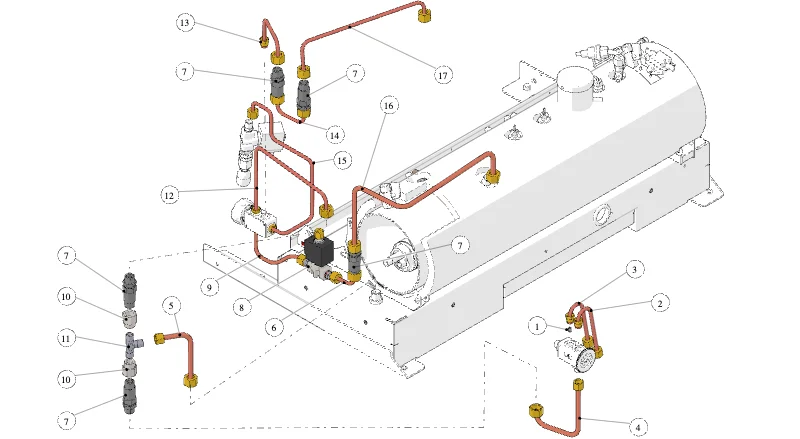

21 – Hydraulic Assembly – X Version

Loading…
Loading parts…La Marzocco GB5 X-S – 21 – Hydraulic Assembly – X Version (exploded view)
  • Pos. 1 – Gicleur 1,5 M5 CH5 Treated (Part no. B.2.011.01)
  • Pos. 2 – Tube Pre-Heater - Mixing Valve Strada (Part no. T.1.107)
  • Pos. 3 – Tube Mixing Valve - Pre-Heater Strada (Part no. T.1.106)
  • Pos. 4 – Tube Check V. - Coffee Mixing V. GB5 X-S (Part no. T.1.266)
  • Pos. 5 – Tube Water Inlet GB5 X (Part no. T.1.263)
  • Pos. 6 – Tube Autofill Solenoid V. - Check Valve (Part no. T.1.117)
  • Pos. 7 – Check Valve G3/8M Treated (Part no. L032/P.02)
  • Pos. 8 – Solenoid Valve 3 Way 24V (Part no. B.2.033)
  • Pos. 9 – Tube Autofill Solenoid V. - Mixing Valve (Part no. T.1.271)
  • Pos. 10 – Fitting G1/4F-G3/8F WR22 Treated (Part no. A.2.004.01)
  • Pos. 11 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
  • Pos. 12 – Tube Check V. - Mix V. Water GB5 X (Part no. T.1.268)
  • Pos. 13 – Tube Check V. - Mix V. Water GB5 X (Part no. T.1.270)
  • Pos. 14 – Tube S.b. Check V. - Tea Mix V. Check V. (Part no. T.1.086)
  • Pos. 15 – Tube Tea Mix V.-Solenoid V. Water GB5 X (Part no. T.1.269)
  • Pos. 16 – Tube Check Valve - Steam Boiler Inlet (Part no. T.1.084)
  • Pos. 17 – Tube Steam B. - Hot Water Check Valve (Part no. T.1.252)

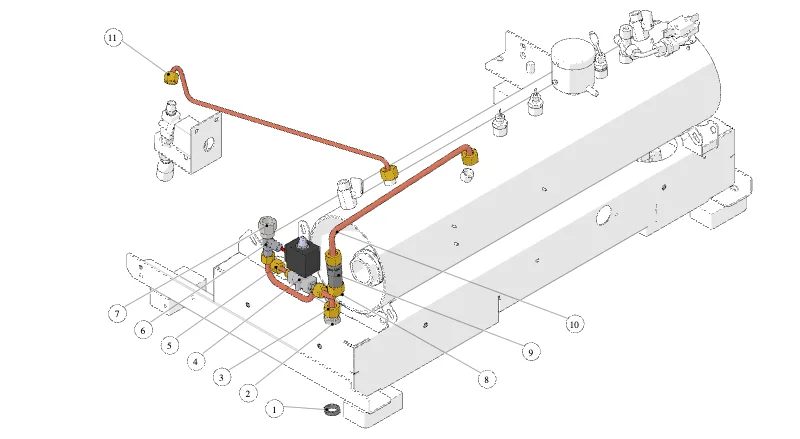

23 – Hydraulic Assembly – S Version

Loading…
Loading parts…La Marzocco GB5 X-S – 23 – Hydraulic Assembly – S Version (exploded view)
  • Pos. 1 – Nut G3/8 H6 WR21 Treated (Part no. L183/1.01)
  • Pos. 3 – Tube Water Inlet GB5 X-S (Part no. T.1.262)
  • Pos. 4 – Solenoid Valve 3 Way 24V (Part no. B.2.033)
  • Pos. 5 – Solenoid Valve T Tube (Part no. T.1.002)
  • Pos. 6 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
  • Pos. 7 – Fitting G1/4F-G3/8F WR22 Treated (Part no. A.2.004.01)
  • Pos. 8 – Tube Check V.-Autofill Solenoid V. (Part no. T.1.157)
  • Pos. 9 – Check Valve G3/8M Treated (Part no. L032/P.02)
  • Pos. 10 – Tube Check Valve - Steam Boiler 2-3-4 GR (Part no. TL05/234)
  • Pos. 11 – Tube Steam Boiler - Hot Water S.v. (Part no. TL08/234)

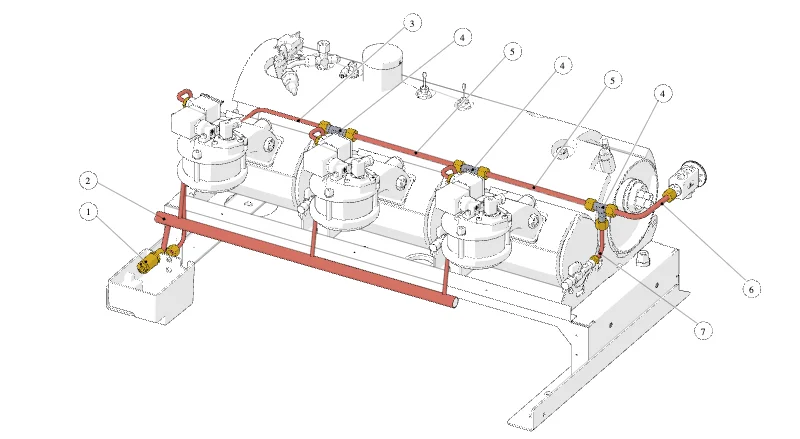

25 – Hydraulic Assembly – X Version

Loading…
Loading parts…La Marzocco GB5 X-S – 25 – Hydraulic Assembly – X Version (exploded view)
  • Pos. 1 – La Marzocco Expansionsventil (L140_C) (Part no. L140_C)
  • Pos. 2 – Drain Tube Solenoid V. GB5 2AV (Part no. T.1.021.2)
  • Pos. 2 – Drain Tube Solenoid V. GB5 3AV (Part no. T.1.021.3)
  • Pos. 2 – Drain Tube Solenoid V. GB5 4AV (Part no. T.1.021.4)
  • Pos. 3 – Tube C. Boiler - Expansion Valve GB5 X (Part no. T.1.267)
  • Pos. 4 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
  • Pos. 5 – Tube Coffee B. Connection Strada MP (Part no. T.1.113)
  • Pos. 6 – Tube Mix V. - Coffee B. Tee Linea PB (Part no. T.1.080)
  • Pos. 7 – Tube Check Valve -Auofill Solenoid V.GS3 (Part no. T.2.113)

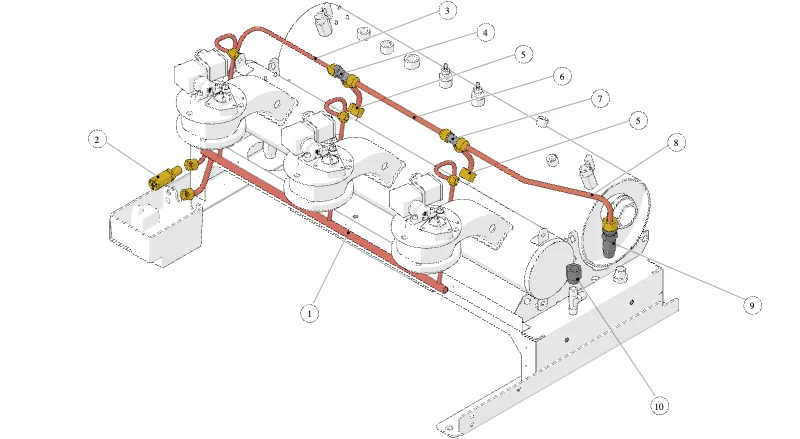

27 – Hydraulic Assembly – S Version

Loading…
Loading parts…La Marzocco GB5 X-S – 27 – Hydraulic Assembly – S Version (exploded view)
  • Pos. 1 – Drain Tube Solenoid V. GB5 2AV (Part no. T.1.021.2)
  • Pos. 1 – Drain Tube Solenoid V. GB5 3AV (Part no. T.1.021.3)
  • Pos. 1 – Drain Tube Solenoid V. GB5 4AV (Part no. T.1.021.4)
  • Pos. 2 – La Marzocco Expansionsventil (L140_C) (Part no. L140_C)
  • Pos. 3 – Tube Cross Fitting - Expansion Valve GB5 (Part no. T.1.009)
  • Pos. 4 – Cross Fitting G1/4M WR13 Treated (Part no. L129.01)
  • Pos. 5 – Tube Cross Fitting - Coffee Boiler (Part no. TL06)
  • Pos. 6 – Tube Cross Fitting Connection 3GR (Part no. TL05/3)
  • Pos. 7 – Tee Fitting G1/4M WR13 Treated (Part no. L128.01)
  • Pos. 8 – Tube Check Valve - Coffee B. Tee Fitting (Part no. T.1.153)
  • Pos. 9 – Check Valve G3/8M Treated (Part no. L032/P.02)
  • Pos. 10 – Fitting G1/4F-G3/8F WR22 Treated (Part no. A.2.004.01)

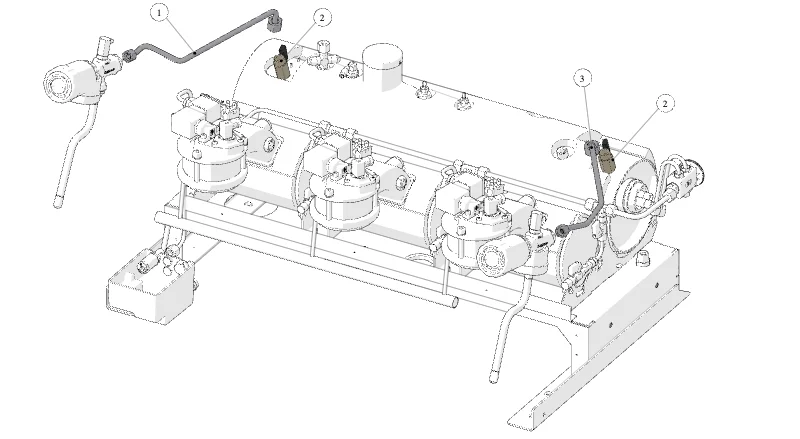

29 – Hydraulic Assembly

Loading…
Loading parts…La Marzocco GB5 X-S – 29 – Hydraulic Assembly (exploded view)

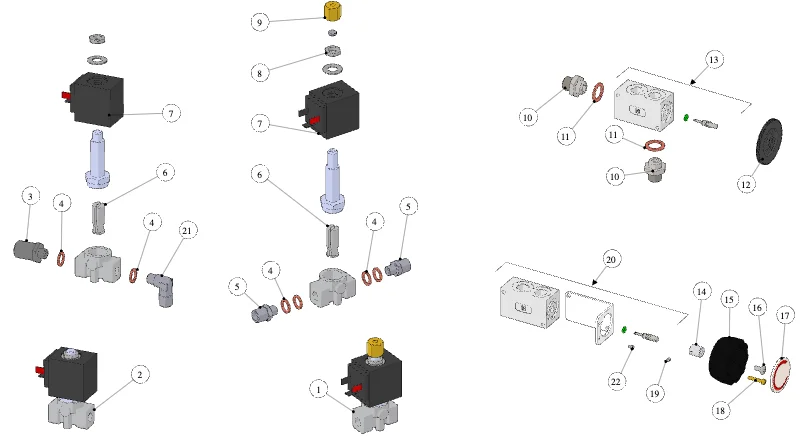

31 – Fittings and Valves

Loading…
Loading parts…La Marzocco GB5 X-S – 31 – Fittings and Valves (exploded view)

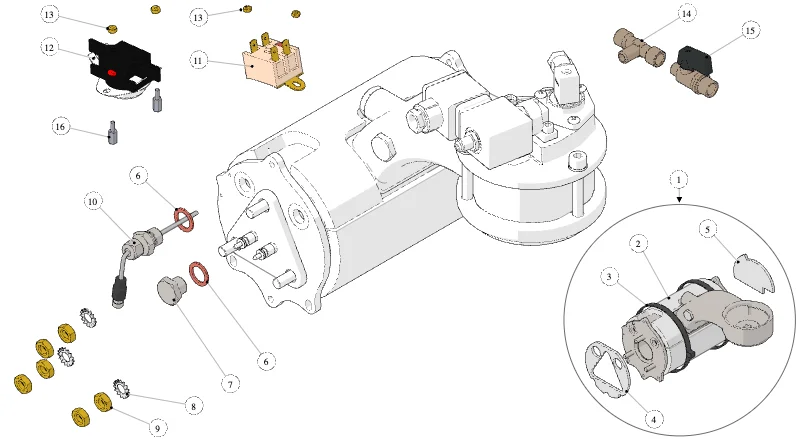

33 – Coffee Boiler Assembly – X Version

Loading…
Loading parts…La Marzocco GB5 X-S – 33 – Coffee Boiler Assembly – X Version (exploded view)

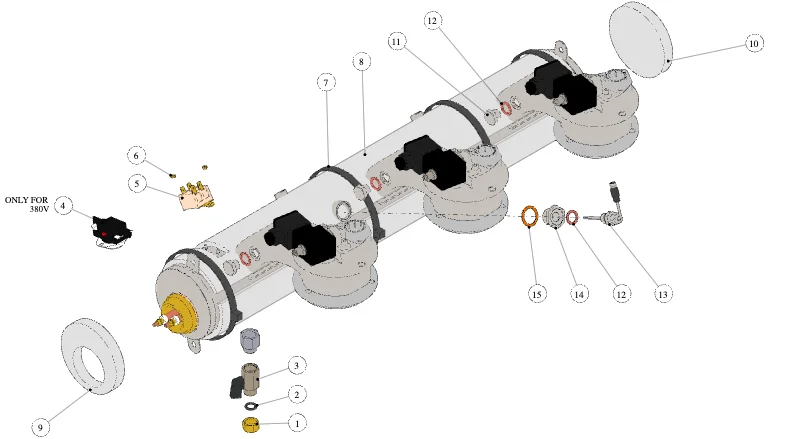

35 – Coffee Boiler Assembly – S Version

Loading…
Loading parts…La Marzocco GB5 X-S – 35 – Coffee Boiler Assembly – S Version (exploded view)

37 – Coffee Boiler Assembly – S Version

Loading…
Loading parts…La Marzocco GB5 X-S – 37 – Coffee Boiler Assembly – S Version (exploded view)

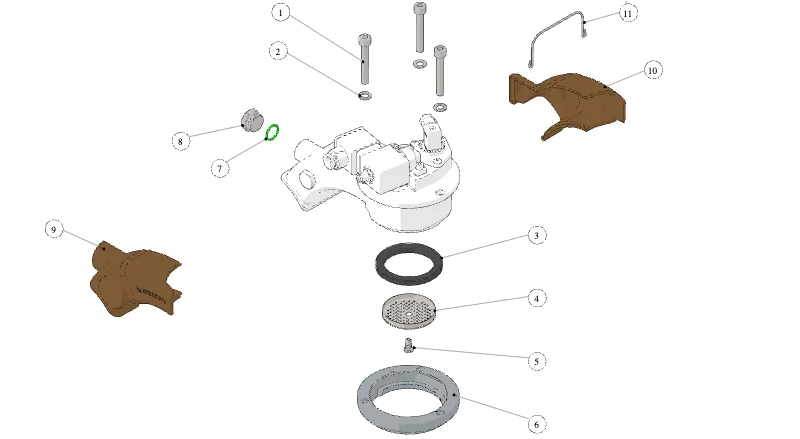

39 – Coffee Boiler Assembly

Loading…
Loading parts…La Marzocco GB5 X-S – 39 – Coffee Boiler Assembly (exploded view)

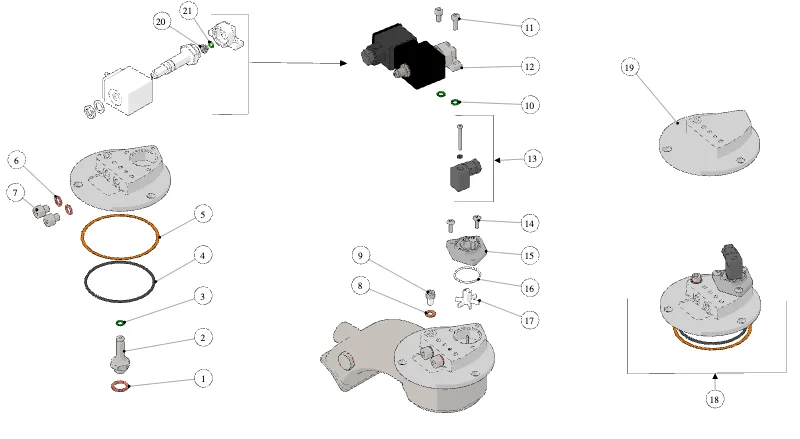

41 – Coffee Group Assembly- Group Cap

Loading…
Loading parts…La Marzocco GB5 X-S – 41 – Coffee Group Assembly- Group Cap (exploded view)

43 – Steam Boiler

Loading…
Loading parts…La Marzocco GB5 X-S – 43 – Steam Boiler (exploded view)

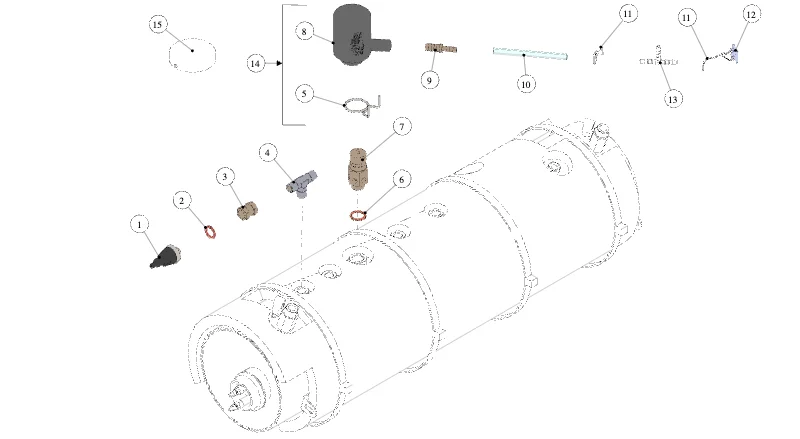

45 – Steam Boiler

Loading…
Loading parts…La Marzocco GB5 X-S – 45 – Steam Boiler (exploded view)

47 – Scales Assembly – Scales Version

Loading…
Loading parts…La Marzocco GB5 X-S – 47 – Scales Assembly – Scales Version (exploded view)
  • Pos. 1 – Tray Drain GB5 X-S Scales 2GR (Part no. C.1.484.2)
  • Pos. 1 – Tray Drain GB5 X-S Scales 3GR (Part no. C.1.484.3)
  • Pos. 1 – Tray Drain GB5 X-S Scales 4GR (Part no. C.1.484.4)
  • Pos. 2 – Drain Grid GB5 X-S 2GR W/ Scales (Part no. C.1.483.2)
  • Pos. 2 – Drain Grid GB5 X-S 3GR W/ Scales (Part no. C.1.483.3)
  • Pos. 2 – Drain Grid GB5 X-S 4GR W/ Scales (Part no. C.1.483.4)
  • Pos. 3 – Protect.water Tray Drain Strada W/Scales (Part no. F.1.089)
  • Pos. 4 – Assembled Support with Magnets (Part no. F.1.084.R)
  • Pos. 5 – Grid Scale Complete (Part no. C.1.278.R)
  • Pos. 6 – Retrofit Kit Scales GB5 X-S 2GR (Part no. 1021-2)
  • Pos. 6 – Retrofit Kit Scales GB5 X-S 3GR (Part no. 1021-3)
  • Pos. 6 – Retrofit Kit Scales GB5 X-S 4GR (Part no. 1021-4)

49 – Scales Assembly – Scales Version

Loading…
Loading parts…La Marzocco GB5 X-S – 49 – Scales Assembly – Scales Version (exploded view)
  • Pos. 1 – Screw M4X14 Phillips Countersunk A2 (Part no. I.1.093)
  • Pos. 2 – Scale Gasket 1 (Part no. F.2.038)
  • Pos. 3 – Self Lock Nut M4 H5,5 WR7 (Part no. DADO4AUTOBL)
  • Pos. 4 – Cable Low Tension C.a. (Part no. E.4.124)
  • Pos. 5 – Scale Gasket 2 (Part no. F.2.039)
  • Pos. 6 – Cable Low Tension C.a. W/Conn. IP67 Male (Part no. E.4.125)
  • Pos. 7 – Cable Low T. C.a. W/Conn. IP67 Female (Part no. E.4.123)
  • Pos. 8 – Fastener Adhesive Support (Part no. 5.V010)
  • Pos. 9 – Screw M4X10 Mushroom Slotted Head (Part no. I.1.099)

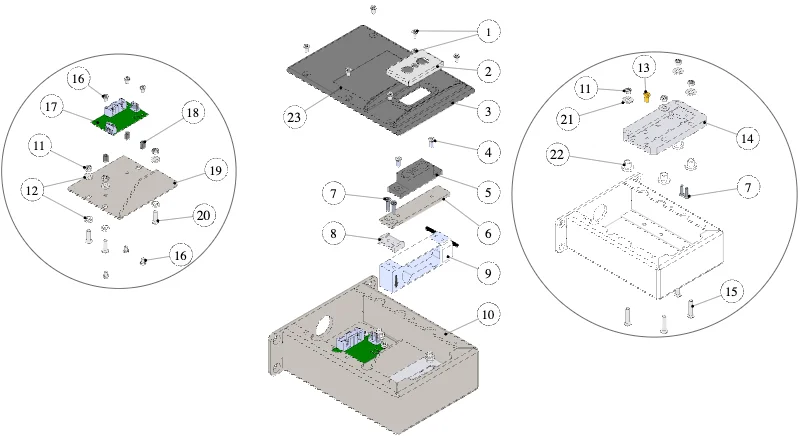

51 – Scales Assembly – Scales Version

Loading…
Loading parts…La Marzocco GB5 X-S – 51 – Scales Assembly – Scales Version (exploded view)
  • Pos. 1 – Screw M3X6 Phillips Countersunk A2 (Part no. I.1.060)
  • Pos. 2 – Protection Load Cell (Part no. F.3.057)
  • Pos. 3 – Cover Scale Strada (Part no. F.1.081)
  • Pos. 4 – Screw M3X8 Socket Countersunk A2 (Part no. I.1.004)
  • Pos. 5 – Load Cell Mounting Bracket Plastic (Part no. F.1.198)
  • Pos. 6 – Cantilever for Socket (Part no. F.3.055)
  • Pos. 7 – Screw M3X12 Phillips Countersunk A2 (Part no. I.1.045)
  • Pos. 8 – Spacer Square 20X12X5 (Part no. I.8.001)
  • Pos. 9 – Load Cell Kit (Part no. E.1.030.R)
  • Pos. 10 – Box Scale Modbar (Part no. C.1.396)
  • Pos. 11 – Nut M4 H3 WR7 A2 (Part no. DADOINOXM4)
  • Pos. 12 – Washer 4X9X0,8 Brass (Part no. RONDELLA4X9)
  • Pos. 13 – Screw M4X8 Cheese (Part no. VITE4X8)
  • Pos. 14 – Load Cell Support (Part no. F.6.005.01)
  • Pos. 15 – Screw M4X20 Phillips Countersunk A2 (Part no. I.1.076)
  • Pos. 16 – Screw M3X5 Phillips Round Pan A2 (Part no. I.1.054)
  • Pos. 17 – Load Cell Electronic Board (Part no. E.1.031.02)
  • Pos. 18 – Standoff Hex Threaded (Part no. I.6.012)
  • Pos. 19 – Base Scale Board Linea (Part no. F.3.108)
  • Pos. 20 – Screw M4X14 Phillips Countersunk A2 (Part no. I.1.093)
  • Pos. 21 – Washer M4 Plastic (Part no. I.6.013)
  • Pos. 22 – Bushing Flanged 4,2X6X7 PTFE (Part no. F.1.117)
  • Pos. 23 – Load Cell Electronic Board Box Cover (Part no. F.1.066)

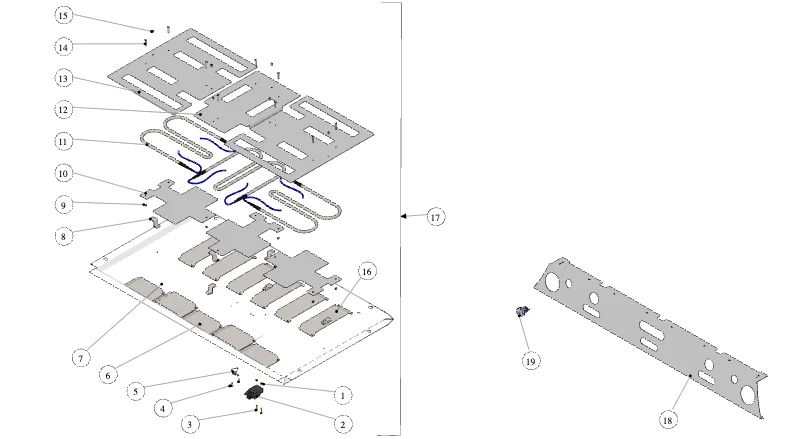

53 – Cupwarmer Heating Elements

Loading…
Loading parts…La Marzocco GB5 X-S – 53 – Cupwarmer Heating Elements (exploded view)
  • Pos. 1 – Nut M3 H3 WR5,5 (Part no. DADO3M)
  • Pos. 2 – UL Male Connector (Part no. L265/M_UL)
  • Pos. 3 – Screw M3X16 Cheese (Part no. VITE3X16)
  • Pos. 4 – Screw M3X8 Phillips Round-Pan A2 (Part no. VITE3X8)
  • Pos. 5 – Safety Thermostat 1P 90C 250V (Part no. L265)
  • Pos. 6 – Protection Cupwarmer Hole 116MM (Part no. C.1.030.02)
  • Pos. 7 – Cap Nut M3 H6,5 CH5,5 (Part no. I.1.108)
  • Pos. 8 – Bracket Heat-Conducting Plate Cupwarmer (Part no. C.1.283)
  • Pos. 9 – Nut M3 H2 WR5,5 S/S A2 (Part no. DADOINOXM3)
  • Pos. 10 – Plate Slot Resistance (Part no. C.1.282)
  • Pos. 14 – Screw M3X20 Hex Head A2 (Part no. I.1.055)
  • Pos. 15 – Screw M3X5 Phillips Round Pan A2 (Part no. I.1.054)
  • Pos. 16 – Protection Cupwarmer Hole 170 MM (Part no. C.1.100.01)
  • Pos. 17 – Kit Cupwarmer Multi Plates GB5 X-S 2GR (Part no. SA353.2.R)
  • Pos. 17 – Kit Cupwarmer Multi Plates GB5 X-S 3GR (Part no. SA353.3.R)
  • Pos. 17 – Kit Cupwarmer Multi Plates GB5 X-S 4GR (Part no. SA353.4.R)
  • Pos. 18 – Panel Control GB5 2GR EE W/Cupwarmer (Part no. C.1.490.2)
  • Pos. 18 – Panel Control GB5 3GR EE W/Cupwarmer (Part no. C.1.490.3)
  • Pos. 18 – Panel Front Control GB5 4EE W/Cupwarmer (Part no. C.1.490.4)
  • Pos. 19 – Switch Cupwarmer W/White LED with Riser (Part no. E.2.052.R)

55 – Heating Elements

Loading…
Loading parts…La Marzocco GB5 X-S – 55 – Heating Elements (exploded view)
  • Pos. 1 – Gasket Cylindrical Flat D55XD42X2 (Part no. LR360)
  • Pos. 2 – La Marzocco O-Ring Heizung Dampf- / Brühboiler (F.2.014.01) (Part no. F.2.014.01)
  • Pos. 3 – Heat.elem W4000 V380 CM50 1-1/4 4POLE (Part no. E.6.008.03)
  • Pos. 3 – Heat.elem W4000 V220 CM50 1-1/4 4POLE (Part no. E.6.009.03)
  • Pos. 3 – Heat.elem W3000 V220 CM50 1-1/4 4POLE (Part no. E.6.019.01)
  • Pos. 3 – Heat.elem W4000 V200 CM50 1-1/4 4POLE TR (Part no. E.6.023)
  • Pos. 3 – Heat.elem W3000 V200 CM50 1-1/4 4POLE TR (Part no. E.6.027)
  • Pos. 3 – Heat.elem W5000 V200 CM65 1-1/4 4POLE TR (Part no. E.6.028)
  • Pos. 3 – Heat.elem W5000 V220 CM65 1-1/4 4POLE TR (Part no. E.6.029)
  • Pos. 3 – Heating EL. W1400 V220 CM43 1-1/4TEA (Part no. E.6.044)
  • Pos. 3 – Heating Element W1900 V220 CM66 1-1/ Tea (Part no. E.6.052)
  • Pos. 3 – Heating Element W1600 V220 CM66 1-1/4 TE (Part no. E.6.059)
  • Pos. 3 – Heating Element W2000 V220 CM29 1-1/4 (Part no. LR342/220B.04)
  • Pos. 3 – Heating Element W3000 V200 CM39 1-1/4 (Part no. LR357/200B.04)
  • Pos. 3 – Heating Element W3000 V220 CM39 1-1/4 (Part no. LR357/220B.04)
  • Pos. 3 – Heating Element W3000 V380 CM39 1-1/4 (Part no. LR357/380B.04)
  • Pos. 4 – Heating EL. W3000 V220 CM39 1-1/4 RP Tea (Part no. E.6.043)
  • Pos. 4 – Heat.el. W4000 V220 CM50 1-1/4 4POLE Tea (Part no. E.6.051)
  • Pos. 4 – Heating Element W1600 V380 CM65 1-1/4 (Part no. LR364/380.04)
  • Pos. 4 – Heating Element W1400 V220 CM43 1-1/4 (Part no. LR365/220.04)
  • Pos. 4 – Heating Element W1400 V380 CM43 1-1/4 (Part no. LR365/380.04)
  • Pos. 4 – Heating Element W1900 V220 CM66 1-1/4 (Part no. LR366/220.04)
  • Pos. 4 – Heating Element W1900 V380 CM66 1-1/4 (Part no. LR366/380.04)
  • Pos. 5 – La Marzocco Heizung 800W, 220V (E.6.004.03) (Part no. E.6.004.03)
  • Pos. 5 – Heating Element W500 V200 Triang. Flange (Part no. E.6.006.03)

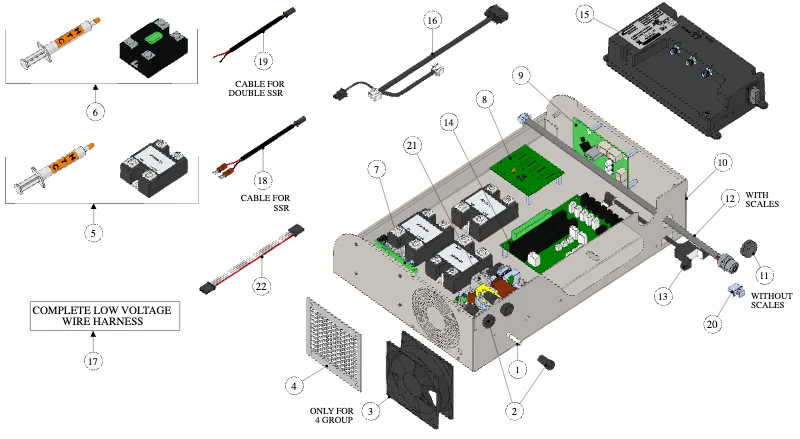

59 – Electrical System

Loading…
Loading parts…La Marzocco GB5 X-S – 59 – Electrical System (exploded view)
  • Pos. 1 – La Marzocco Sicherung 3,15 A (E.2.073) (Part no. E.2.073)
  • Pos. 2 – UL Fuse Holder (Part no. E.2.004)
  • Pos. 3 – Fan 24V 80X80mm Pelko (Part no. E.2.025.01)
  • Pos. 4 – Grid Protection Fan 80MM (Part no. F.3.132)
  • Pos. 5 – La Marzocco SSR 25A 240V Relais (E.4.010.01.R) (Part no. E.4.010.01.R)
  • Pos. 5 – SSR 50A 240V W/Thermal Compound (Part no. E.4.029.R)
  • Pos. 5 – SSR 25A 480V W/Thermal Compound (Part no. E.4.035.R)
  • Pos. 6 – SSR Dual 25A 240V W/Thermal Compound (Part no. E.4.177.R)
  • Pos. 6 – SSR Dual 50A 600V W/Thermal Compound (Part no. E.4.197.R)
  • Pos. 7 – Power Supply 24V 130W Acd (Part no. E.2.075)
  • Pos. 8 – Button Board 4.0 (Part no. E.1.090)
  • Pos. 9 – Cortex Board (Part no. E.1.041.02)
  • Pos. 10 – Electronic Box GB5 X-S (Part no. C.1.493)
  • Pos. 11 – Grommet Blind 11-16X1,5 Tpe (Part no. F.2.040)
  • Pos. 12 – Cable Low T. C.a. W/Conn. IP67 Female (Part no. E.4.123)
  • Pos. 13 – USB Cable Linea PB / Strada EP (Part no. E.2.040)
  • Pos. 14 – Universal Board 24V (Part no. E.1.061)
  • Pos. 16 – Gateway Connection Wiring 1250MM (Part no. E.4.298)
  • Pos. 17 – GB5 AV S-X 2GR Low Voltage Wiring (Part no. E.4.231.2.01)
  • Pos. 17 – GB5 AV S-X 3GR Low Voltage Wiring (Part no. E.4.231.3.01)
  • Pos. 17 – GB5 EE 2GR Low Voltage Wiring (Part no. E.4.233.2.01)
  • Pos. 17 – GB5 EE 3GR Low Voltage Wiring (Part no. E.4.233.3.01)
  • Pos. 17 – GB5 AV 4GR Low Voltage Wiring (Part no. E.4.236.01)
  • Pos. 17 – GB5 EE 4GR Low Voltage Wiring (Part no. E.4.237.01)
  • Pos. 18 – Cavo Comando Rele' Pompa (Part no. E.4.227)
  • Pos. 19 – Cavo Comando Rele' Scaldatazze E Pompa (Part no. E.4.226)
  • Pos. 20 – USB Connector Cover (Part no. F.1.219)
  • Pos. 21 – Power Supply 24V 130W Lauma (Part no. E.2.107.01)
  • Pos. 22 – Wirings Adapter GB5XS for E.2.075 (Part no. E.4.340)

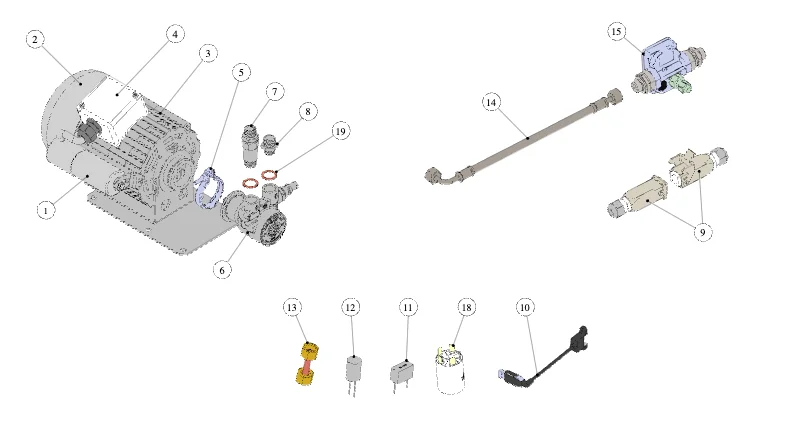

61 – Electrical System and Pump

Loading…
Loading parts…La Marzocco GB5 X-S – 61 – Electrical System and Pump (exploded view)
  • Pos. 1 – 10microF Capacitor (L290/8UL Motor) (Part no. L290/CUL)
  • Pos. 2 – Fan Cover - Pump Motor UL (Part no. F.6.004)
  • Pos. 3 – Motor Pump 150L/H 220V 50Hz (Part no. 900)
  • Pos. 3 – Motor Pump 150L/H 200V 50-60Hz (Part no. 900/200)
  • Pos. 3 – Motor Pump 150L/H 240V-415V 50-60HZ (Part no. 900/5UL)
  • Pos. 3 – Motor Pump 200L/H 240V-415V 50-60HZ (Part no. 900/P)
  • Pos. 3 – Motor Pump 200L/H 220V 50Hz (Part no. 900/P5)
  • Pos. 3 – Motor Pump 200L/H 240V 50-60HZ Etl (Part no. 900/PUL)
  • Pos. 3 – Motor Pump 150L/H 240V 50-60HZ Etl (Part no. 900/UL)
  • Pos. 3 – CE Motor V.220-230 Hz.50 (Part no. L290/5)
  • Pos. 3 – UL Motor V.220-240 50/60 HZ (Part no. L290/8UL)
  • Pos. 4 – Electric Cover Box for L290/5 (Part no. F.1.202)
  • Pos. 4 – Electric Cover Box for L290/8UL (Part no. F.1.203)
  • Pos. 5 – Pump Clamp (Part no. L290/C)
  • Pos. 6 – Pump 150 LT/H (Part no. L290/1.01)
  • Pos. 6 – Pump 200 LT/H (Part no. L290/2.01)
  • Pos. 7 – Check Valve G3/8M Treated (Part no. L032/P.02)
  • Pos. 8 – Nipple G3/8M-G3/8M WR20 H31 TR. (Part no. L305/N.01)
  • Pos. 8 – Nipple G3/8-3/8 Compression TR. (Part no. L306/G.01)
  • Pos. 9 – Rapid IP67 Connector for Pump Cable (Part no. E.4.044)
  • Pos. 9 – Cable for Pump 3XAWG16 300V (Part no. L319/CAVO)
  • Pos. 10 – USB Cable Linea PB / Strada EP (Part no. E.2.040)
  • Pos. 11 – Filter Kemet R46 1.5uF + Resistance 1MΩ (Part no. E.2.090.01)
  • Pos. 12 – 2x22nF+0,1microF Filter (Part no. E.2.030)
  • Pos. 13 – Tube Pump Double Check Valve Corea (Part no. T.1.056)
  • Pos. 15 – Water Sensor (Part no. SA583)
  • Pos. 16 – O-Ring 2,62X18,72 Silicone 70 SH (Part no. H.1.033)
  • Pos. 18 – Emirfi Filter 16A (Part no. E.2.092)
  • Pos. 19 – La Marzocco Kupferscheibe 3/8 Zoll (L180/1) (Part no. L180/1)

63 – Portafilters

Loading…
Loading parts…La Marzocco GB5 X-S – 63 – Portafilters (exploded view)

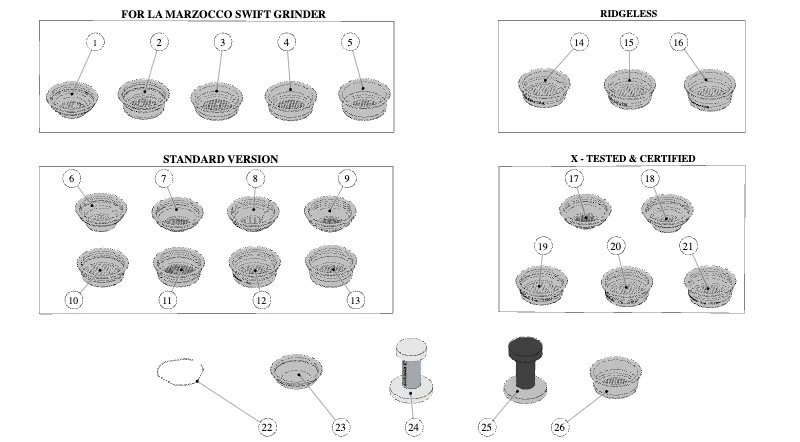

65 – Filter

Loading…
Loading parts…La Marzocco GB5 X-S – 65 – Filter (exploded view)

67 – Scales Version – Portafilter Assemb

Loading…
Loading parts…La Marzocco GB5 X-S – 67 – Scales Version – Portafilter Assemb (exploded view)
  • Pos. 1 – 2 Precision Portafilter Kit (Part no. 931-2)
  • Pos. 2 – 3 Precision Portafilter Kit (Part no. 931-3)
  • Pos. 2 – 4 Precision Portafilter Kit (Part no. 931-4)
  • Pos. 3 – 4x 17g Precision Filter Basket Kit (Part no. 932)
  • Pos. 3 – 4x 14g S/S Precision Filter Basket Kit (Part no. 947)
  • Pos. 3 – 4x 21g Precision Filter Basket Kit (Part no. 948)

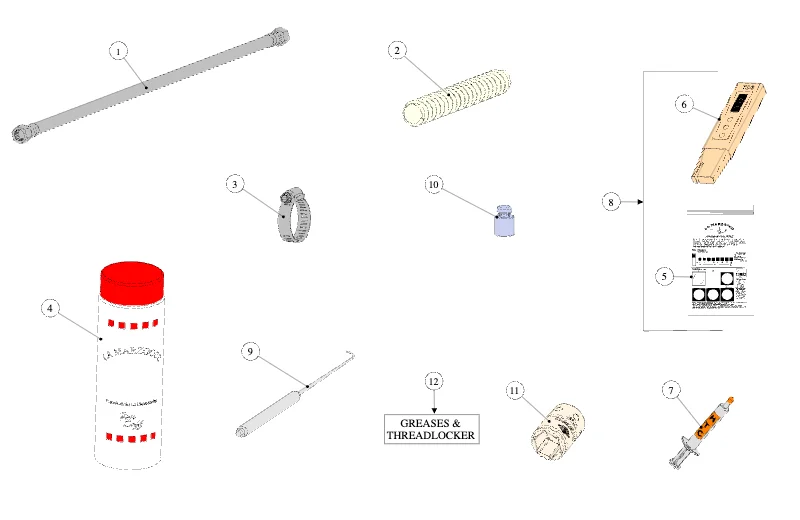

69 – Hose and Accessories

Loading…
Loading parts…La Marzocco GB5 X-S – 69 – Hose and Accessories (exploded view)
  • Pos. 1 – Braided Hose G3/8F 50CM (Part no. L305/050.01)
  • Pos. 1 – Braided Hose G3/8F 120CM (Part no. L305/120.01)
  • Pos. 1 – Braided Hose G3/8F 210CM (Part no. L305/210.01)
  • Pos. 1 – Braided Hose 3/8COMPR. 50CM Nsf (Part no. L306/050)
  • Pos. 1 – Braided Hose 3/8COMPR. 120CM Nsf (Part no. L306/120)
  • Pos. 1 – Braided Hose G3/8F 210CM Nsf (Part no. L306/210)
  • Pos. 1 – Braided Hose G3/8F 90° 210CM Nsf (Part no. L306/210/C)
  • Pos. 1 – Braided Hose 3/8COMPR. 210CM Nsf (Part no. T.5.003)
  • Pos. 2 – Clear Armoured Drain Hose (Part no. L308)
  • Pos. 3 – Hose Clamp 16/25 H9 W2 AISI430 (Part no. L312)
  • Pos. 4 – La Marzocco Kaffeefettlöser / Puly Caff (F.9.021) (Part no. F.9.021)
  • Pos. 5 – La Marzocco Wassertest Kit (F.9.000.02) (Part no. F.9.000.02)
  • Pos. 6 – Digital Tds Meter (Part no. F.9.003)
  • Pos. 7 – Htc Thermal Compound Syringe 2ML (Part no. F.1.065)
  • Pos. 8 – Water Test Kit (Part no. 941)
  • Pos. 9 – La Marzocco Dichtungswerkzeug (UT008) (Part no. UT008)
  • Pos. 10 – Load 100g to Calibrate Scales (Part no. F.3.050)
  • Pos. 11 – Tool for Tightening Steam Wand Fitting (Part no. UT367)
  • Pos. 12 – Food Grade Slicone Grease 111 KG 1 (Part no. V073)
  • Pos. 12 – Grasso Parker Super Lube 55gr (Part no. V076)
  • Pos. 12 – Vaseline Grease Lubritex 0.900KG (Part no. V078)
  • Pos. 12 – Loxeal 58-11 Flüssigdichtmittel (Part no. V099)
  • Pos. 1000 – Internal Box Gateway Iot W/Cloud (Part no. E.8.020)

7 – Body Panel Assembly

Loading…
Loading parts…La Marzocco GB5 X-S – 7 – Body Panel Assembly (exploded view)
  • Pos. 1 – Logo Front GB5 S (Part no. D.4.039)
  • Pos. 1 – Logo Front GB5 XS Special Color (Part no. D.4.039.55)
  • Pos. 1 – Logo Front GB5 X (Part no. D.4.040)
  • Pos. 2 – Cover Drain Tray GB5 X-S 2GR (Part no. C.1.481.2)
  • Pos. 2 – Cover Drain Tray GB5 X-S 3GR (Part no. C.1.481.3)
  • Pos. 2 – Cover Drain Tray GB5 X-S 4GR (Part no. C.1.481.4)
  • Pos. 3 – Drain Tray GB5 X-S 2GR (Part no. C.1.480.2)
  • Pos. 3 – Drain Tray GB5 X-S 3GR (Part no. C.1.480.3)
  • Pos. 3 – Drain Tray GB5 X-S 4GR (Part no. C.1.480.4)
  • Pos. 4 – Drain Grid GB5 X-S 2GR (Part no. C.1.482.2)
  • Pos. 4 – Drain Grate GB5 X-S 3GR (Part no. C.1.482.3)
  • Pos. 4 – Drain Grid GB5 X-S 4GR (Part no. C.1.482.4)
  • Pos. 5 – Wire Grid W/Stand 2GR GB5 X-S (Part no. C.1.509.2)
  • Pos. 5 – Wire Grid W/Stand 3GR GB5 X-S (Part no. C.1.509.3)
  • Pos. 5 – Wire Grid W/Stand 4GR GB5 X-S (Part no. C.1.509.4)
  • Pos. 6 – Wire Grid 2GR GB5 X-S (Part no. C.1.508.2)
  • Pos. 6 – Wire Grid 3GR GB5 X-S (Part no. C.1.508.3)
  • Pos. 6 – Wire Grid 4GR GB5 X-S (Part no. C.1.508.4)
  • Pos. 7 – Cover Frame Lower Left GB5 X-S (Part no. C.1.495.SX)
  • Pos. 7 – Cover Lower Left GB5 Custom Color (Part no. C.1.495.SX.55)
  • Pos. 7 – Cover Lower Left GB5 Black Nickel (Part no. C.1.495.SX.75)
  • Pos. 7 – Cover Lower Left GB5 Yellow Gold (Part no. C.1.495.SX.76)
  • Pos. 7 – Cover Lower Left GB5 Rose Gold (Part no. C.1.495.SX.77)
  • Pos. 7 – Cover Lower Left GB5 Brushed Bronze (Part no. C.1.495.SX.78)
  • Pos. 8 – Panel Left Side GB5 X-S (Part no. C.1.506.SX)
  • Pos. 9 – Tray Cupwarmer GB5 2GR W/Pem (Part no. C.1.478.2)
  • Pos. 9 – Tray Cupwarmer GB5 3GR W/Pem (Part no. C.1.478.3)
  • Pos. 9 – Tray Cupwarmer GB5 4GR W/Pem (Part no. C.1.478.4)
  • Pos. 10 – Grid Cupwarmer 290mm GB5 X-S (Part no. C.1.500)
  • Pos. 11 – Grid Cupwarmer 198mm GB5 X-S (Part no. C.1.499)
  • Pos. 12 – Panel Right Side GB5 X-S (Part no. C.1.506.DX)
  • Pos. 12 – Panel Right Side GB5 X-S Custom Color (Part no. C.1.506.DX.55)
  • Pos. 12 – Panel Right Side GB5 X-S Black Nickel (Part no. C.1.506.DX.75)
  • Pos. 12 – Panel Right Side GB5 X-S Yellow Gold (Part no. C.1.506.DX.76)
  • Pos. 12 – Panel Right Side GB5 X-S Rose Gold (Part no. C.1.506.DX.77)
  • Pos. 12 – Panel Right Side GB5 X-Sbrushed Bronze (Part no. C.1.506.DX.78)
  • Pos. 12 – Panel Left Side GB5 X-S Custom Color (Part no. C.1.506.SX.55)
  • Pos. 12 – Panel Left Side GB5 X-S Black Nickel (Part no. C.1.506.SX.75)
  • Pos. 12 – Panel Left Side GB5 X-S Yellow Gold (Part no. C.1.506.SX.76)
  • Pos. 12 – Panel Left Side GB5 X-S Rose Gold (Part no. C.1.506.SX.77)
  • Pos. 12 – Panel Left Side GB5 X-Sbrushed Bronze (Part no. C.1.506.SX.78)
  • Pos. 13 – Cover Frame Lower Right GB5 X-S (Part no. C.1.495.DX)
  • Pos. 13 – Cover Lower Right GB5 Custom Color (Part no. C.1.495.DX.55)
  • Pos. 13 – Cover Lower Right GB5 Black Nickel (Part no. C.1.495.DX.75)
  • Pos. 13 – Cover Lower Right GB5 Yellow Gold (Part no. C.1.495.DX.76)
  • Pos. 13 – Cover Lower Right GB5 Rose Gold (Part no. C.1.495.DX.77)
  • Pos. 13 – Cover Lower Right GB5 Brushed Bronze (Part no. C.1.495.DX.78)
  • Pos. 14 – Nut M3 H2 WR5,5 S/S A2 (Part no. DADOINOXM3)
  • Pos. 15 – Magnet Kit (Part no. F.9.004.R)
  • Pos. 16 – Screw M3X12 Phillips Countersunk A2 (Part no. I.1.045)

9 – Body Panel Assembly

Loading…

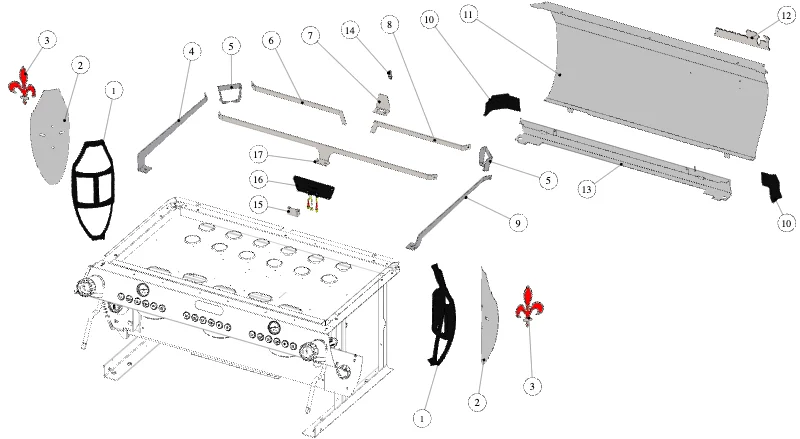

Loading parts…La Marzocco GB5 X-S – 9 – Body Panel Assembly (exploded view)
  • Pos. 1 – Chromed Support GB5 X-S Shield (Part no. C.2.051)
  • Pos. 2 – Shield GB5 X-S (Part no. C.1.504)
  • Pos. 2 – Shield GB5 X-S Custom Color (Part no. C.1.504.55)
  • Pos. 2 – Shield GB5 X-S Black Nickel (Part no. C.1.504.75)
  • Pos. 2 – Shield GB5 X-S Yellow Gold (Part no. C.1.504.76)
  • Pos. 2 – Shield GB5 X-S Rose Gold (Part no. C.1.504.77)
  • Pos. 2 – Shield GB5 X-S Brushed Bronze (Part no. C.1.504.78)
  • Pos. 3 – Lily GB5 S (Part no. D.4.035)
  • Pos. 3 – Lily GB5 XS Special Color (Part no. D.4.035.55)
  • Pos. 3 – Lily GB5 X (Part no. D.4.036)
  • Pos. 4 – Rail Left GB5 X-S (Part no. C.1.496.SX)
  • Pos. 5 – Corner Up GB5 X-S (Part no. C.1.497)
  • Pos. 6 – Railing Left Side GB5 X-S 2GR (Part no. C.1.538.2.SX)
  • Pos. 6 – Railing Left Side GB5 X-S 3GR (Part no. C.1.538.3.SX)
  • Pos. 6 – Railing Left Side GB5 X-S 4GR (Part no. C.1.538.4.SX)
  • Pos. 7 – Central Bracket Rail GB5 X-S (Part no. C.1.536)
  • Pos. 8 – Railing Right Side GB5 X-S 2GR (Part no. C.1.538.2.DX)
  • Pos. 8 – Railing Right Side GB5 X-S 3GR (Part no. C.1.538.3.DX)
  • Pos. 8 – Railing Right Side GB5 X-S 4GR (Part no. C.1.538.4.DX)
  • Pos. 9 – Rail Right GB5 X-S (Part no. C.1.496.DX)
  • Pos. 10 – Angolare Basso GB5 X-S (Part no. C.2.052)
  • Pos. 11 – Panel Back GB5 X-S 2GR (Part no. C.1.505.2)
  • Pos. 11 – Panel Back GB5 X-S 2GR Custom Color (Part no. C.1.505.2.55)
  • Pos. 11 – Panel Back GB5 X-S 2GR Black Nickel (Part no. C.1.505.2.75)
  • Pos. 11 – Panel Back GB5 X-S 2GR Yellow Gold (Part no. C.1.505.2.76)
  • Pos. 11 – Panel Back GB5 X-S 2GR Rose Gold (Part no. C.1.505.2.77)
  • Pos. 11 – Panel Back GB5 X-S 2GRBRUSHED Bronze (Part no. C.1.505.2.78)
  • Pos. 11 – Panel Back GB5 X-S 3GR (Part no. C.1.505.3)
  • Pos. 11 – Panel Back GB5 X-S 3GR Custom Color (Part no. C.1.505.3.55)
  • Pos. 11 – Panel Back GB5 X-S 3GR Black Nickel (Part no. C.1.505.3.75)
  • Pos. 11 – Panel Back GB5 X-S 3GR Yellow Gold (Part no. C.1.505.3.76)
  • Pos. 11 – Panel Back GB5 X-S 3GR Rose Gold (Part no. C.1.505.3.77)
  • Pos. 11 – Panel Back GB5 X-S 3GR Brushed Bronze (Part no. C.1.505.3.78)
  • Pos. 11 – Panel Back GB5 X-S 4GR (Part no. C.1.505.4)
  • Pos. 11 – Panel Back GB5 X-S 4GR Custom Color (Part no. C.1.505.4.55)
  • Pos. 11 – Panel Back GB5 X-S 4GR Black Nickel (Part no. C.1.505.4.75)
  • Pos. 11 – Panel Back GB5 X-S 4GR Yellow Gold (Part no. C.1.505.4.76)
  • Pos. 11 – Panel Back GB5 X-S 4GR Rose Gold (Part no. C.1.505.4.77)
  • Pos. 11 – Panel Back GB5 X-S 4GR Brushed Bronze (Part no. C.1.505.4.78)
  • Pos. 12 – Logo Rear GB5 S (Part no. D.4.037)
  • Pos. 12 – Logo Rear GB5 XS Special Color (Part no. D.4.037.55)
  • Pos. 12 – Logo Rear GB5 X (Part no. D.4.038)
  • Pos. 13 – Cover Frame Lower Rear GB5 X-S 2GR (Part no. C.1.479.2)
  • Pos. 13 – Cover Low.rear GB5 X-S 2GR Cust.c. (Part no. C.1.479.2.55)
  • Pos. 13 – Cover Low. Rear GB5 X-S 2GR Black Nicke (Part no. C.1.479.2.75)
  • Pos. 13 – Cover Low.rear GB5 X-S 2GR Yellow Gold (Part no. C.1.479.2.76)
  • Pos. 13 – Cover Low.rear GB5 X-S 2GR Rose Gold (Part no. C.1.479.2.77)
  • Pos. 13 – Cover Low.rear GB5 X-S 2GR Brushed Bronz (Part no. C.1.479.2.78)
  • Pos. 13 – Cover Frame Lower Rear GB5 X-S 3GR (Part no. C.1.479.3)
  • Pos. 13 – Cover Low.rear GB5 X-S 3GR Cust.c. (Part no. C.1.479.3.55)
  • Pos. 13 – Cover Low.rear GB5 X-S 3GR Black Nickel (Part no. C.1.479.3.75)
  • Pos. 13 – Cover Low.rear GB5 X-S 3GR Yellow Gold (Part no. C.1.479.3.76)
  • Pos. 13 – Cover Low.rear GB5 X-S 3GR Rose Gold (Part no. C.1.479.3.77)
  • Pos. 13 – Cover Low.rear GB5 X-S 3GR Brushed Bronz (Part no. C.1.479.3.78)
  • Pos. 13 – Cover Frame Lower Rear GB5 X-S 4GR (Part no. C.1.479.4)
  • Pos. 13 – Cover Low.rear GB5 X-S 4GR Cust.c. (Part no. C.1.479.4.55)
  • Pos. 13 – Cover Low. Rear GB5 X-S 4GR Black Nicke (Part no. C.1.479.4.75)
  • Pos. 13 – Cover Low.rear GB5 X-S 4GR Yellow Gold (Part no. C.1.479.4.76)
  • Pos. 13 – Cover Low.rear GB5 X-S 4GR Rose Gold (Part no. C.1.479.4.77)
  • Pos. 13 – Cover Low.rear GB5 X-S 4GR Brushed Bronz (Part no. C.1.479.4.78)
  • Pos. 14 – Logo Lion Adhesive (Part no. D.3.036)
  • Pos. 15 – Cover Aesthetic Antenna Cable (Part no. C.1.537)
  • Pos. 16 – WiFi / Bluetooth Antenna (Part no. 1024)
  • Shop categories
Menu
Back to Top
Product has been added to your cart
