Spare parts

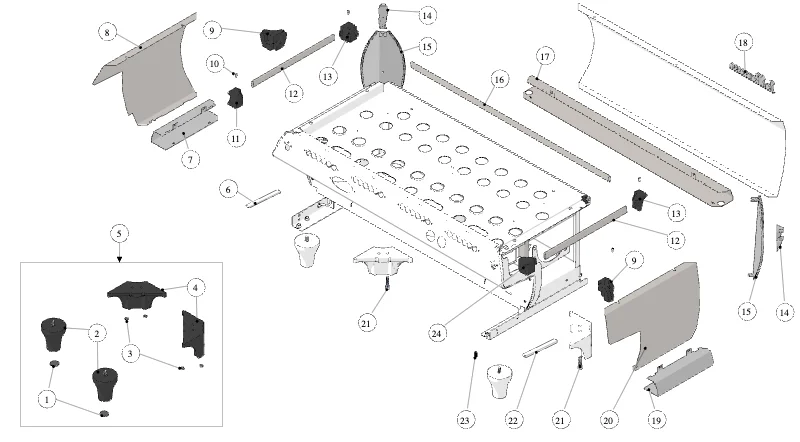

07 – Body Panel Assembly – GB5

Loading…

Loading parts…

• Pos. 1 – Front High Leg Rubber Pad GB5/FB80 (Part no. F.2.031)
• Pos. 2 – Front High Leg GB5 FB80 (Part no. C.2.060)
• Pos. 3 – Rear High Leg Rubber Pad GB5/FB80 (Part no. F.2.030)
• Pos. 4 – Back High Leg GB5 FB80 (Part no. C.2.061)
• Pos. 5 – High Legs Kit for GB5 + Rubber Feet (Part no. 908)
• Pos. 6 – Drain Tray Left Guide Block (Part no. F.1.001)
• Pos. 7 – Cover Frame Left Lower GB5 (Part no. C.1.003)
• Pos. 8 – Panel Left Side GB5 (Part no. C.1.013.01)
• Pos. 8 – Panel Left Side GB5 White (Part no. C.1.013.50)
• Pos. 8 – Panel Left Side GB5 Matte Black (Part no. C.1.013.60)
• Pos. 8 – Panel Left Side GB5 Brass (Part no. C.1.013.70)
• Pos. 9 – GB5 Lower Base Corner (Part no. C.2.059)
• Pos. 10 – Screw M5X40 Socket Cap A2 (Part no. I.1.007)
• Pos. 11 – GB5 Left Front Railing Corner (Part no. C.3.002.01)
• Pos. 12 – Railing Side GB5 (Part no. C.1.018)
• Pos. 13 – GB5 Upper Back Corner (Part no. C.3.001.01)
• Pos. 14 – Lion for GB5 (Part no. D.1.002)
• Pos. 15 – GB5 Polished Shield (Part no. C.1.016)
• Pos. 15 – GB5 White Shield (Part no. C.1.016.50)
• Pos. 15 – GB5 Shield Matte Black (Part no. C.1.016.60)
• Pos. 16 – Railing Back GB5 2GR (Part no. C.1.017.2)
• Pos. 16 – Railing Back GB5 3GR (Part no. C.1.017.3)
• Pos. 16 – Railing Back GB5 4GR (Part no. C.1.017.4)
• Pos. 17 – Cover Frame Lower GB5 2GR (Part no. C.1.002.2)
• Pos. 17 – Cover Frame Lower GB5 3GR (Part no. C.1.002.3)
• Pos. 17 – Cover Frame Lower GB5 4GR (Part no. C.1.002.4)
• Pos. 18 – LA Marzocco Logo for GB5 (Part no. D.1.001)
• Pos. 19 – Cover Frame Right Lower GB5 (Part no. C.1.004)
• Pos. 20 – Panel Right Side GB5 (Part no. C.1.014.01)
• Pos. 20 – Panel Right Side White GB5 (Part no. C.1.014.50)
• Pos. 20 – Panel Right Side GB5 Matte Black (Part no. C.1.014.60)
• Pos. 20 – Panel Right Side GB5 Brass (Part no. C.1.014.70)
• Pos. 21 – Screw M10X40 Socket Cap (Part no. I.3.002)
• Pos. 22 – Drain Tray Right Guide Block (Part no. F.1.003)
• Pos. 23 – M10 Steel Spring Plunger (Part no. I.1.079)
• Pos. 24 – GB5 Right Front Railing Corner (Part no. C.3.003.01)

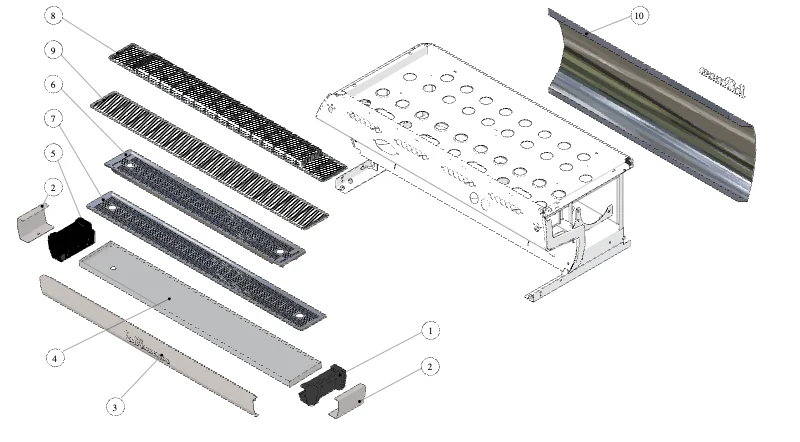

09 – Body Panel Assembly – GB5

Loading…

Loading parts…

• Pos. 1 – GB5 Right Drain Tray Corner (Part no. C.2.057.DX)
• Pos. 2 – Cover Lower Corner GB5 (Part no. C.1.021)
• Pos. 3 – Cover Drain Tray GB5 2GR (Part no. C.1.005.2)
• Pos. 3 – Cover Drain Tray GB5 3GR (Part no. C.1.005.3)
• Pos. 3 – Cover Drain Tray GB5 4GR (Part no. C.1.005.4)
• Pos. 4 – Tray Drain GB5 2GR (Part no. C.1.006.2)
• Pos. 4 – Tray Drain GB5 3GR (Part no. C.1.006.3)
• Pos. 4 – Tray Drain GB5 4GR (Part no. C.1.006.4)
• Pos. 5 – GB5 Left Drain Tray Corner (Part no. C.2.057.SX)
• Pos. 6 – Grid Drain GB5 2GR W/Stand (Part no. C.1.012.2R)
• Pos. 6 – Grid Drain GB5 3GR W/Stand (Part no. C.1.012.3R)
• Pos. 6 – Grid Drain GB5 4GR W/Stand (Part no. C.1.012.4R)
• Pos. 7 – Grid Drain GB5 2GR (Part no. C.1.012.2)
• Pos. 7 – Grid Drain GB5 3GR (Part no. C.1.012.3)
• Pos. 7 – Grid Drain GB5 4GR (Part no. C.1.012.4)
• Pos. 8 – Wire Grid Low Cups GB5 2GR (Part no. C.1.175.2)
• Pos. 8 – Wire Grid Low Cups GB5 3GR (Part no. C.1.175.3)
• Pos. 8 – Wire Grid Low Cups GB5 4GR (Part no. C.1.175.4)
• Pos. 9 – Wire Grid GB5 2GR (Part no. C.1.222.2)
• Pos. 9 – Wire Grid GB5 3GR (Part no. C.1.222.3)
• Pos. 9 – Wire Grid GB5 4GR (Part no. C.1.222.4)
• Pos. 10 – Panel Back GB5 2GR (Part no. C.1.015.2.01)
• Pos. 10 – Panel Back GB5 2GR White (Part no. C.1.015.2.50)
• Pos. 10 – Panel Back GB5 2GR Matte Black (Part no. C.1.015.2.60)
• Pos. 10 – Panel Back GB5 2GR Satin Finished W/Logo (Part no. C.1.015.2.R)
• Pos. 10 – Panel Back GB5 3GR (Part no. C.1.015.3.01)
• Pos. 10 – Panel Back GB5 3GR White (Part no. C.1.015.3.50)
• Pos. 10 – Panel Back GB5 3GR Matte Black (Part no. C.1.015.3.60)
• Pos. 10 – Panel Back GB5 3GR Satin Finished W/Logo (Part no. C.1.015.3.R)
• Pos. 10 – Panel Back GB5 4GR (Part no. C.1.015.4.01)
• Pos. 10 – Panel Back GB5 4GR White (Part no. C.1.015.4.50)
• Pos. 10 – Panel Back GB5 4GR Matte Black (Part no. C.1.015.4.60)

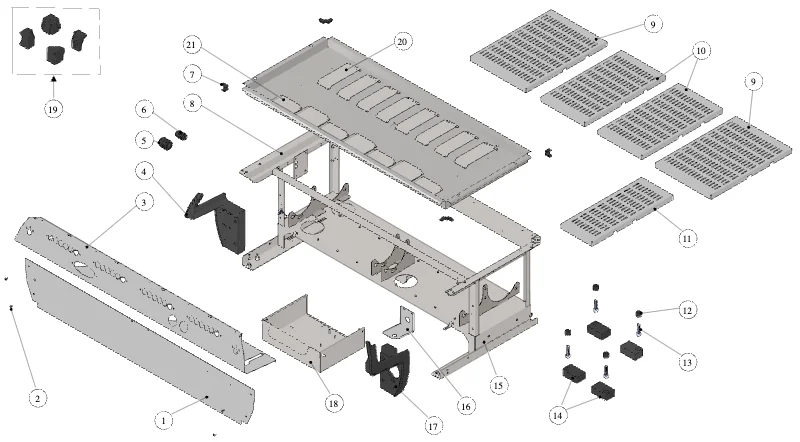

11 – Body Panel Assembly – GB5

Loading…

Loading parts…

• Pos. 1 – Panel Main Switch GB5 2GR (Part no. C.1.009.2)
• Pos. 1 – Panel Main Switch GB5 3GR (Part no. C.1.009.3)
• Pos. 1 – Panel Main SWITCHGB5 4GR (Part no. C.1.009.4)
• Pos. 2 – Screw M4X10 Mushroom Slotted Head (Part no. I.1.099)
• Pos. 3 – Panel Control GB5 2AV (Part no. C.1.008.2)
• Pos. 3 – Panel Control GB5 3AV (Part no. C.1.008.3)
• Pos. 3 – Panel Control GB5 4AV (Part no. C.1.008.4)
• Pos. 4 – GB5 Control Panel Left Support (Part no. C.2.058.SX)
• Pos. 5 – Cord Grips PG21 (Part no. L322/G)
• Pos. 6 – Cord Grips PG13,5 (Part no. L322/P)
• Pos. 7 – Cup-Warmer Tray Corner (Part no. F.2.001)
• Pos. 8 – Tray Cupwarmer GB5 2GR W/Protections (Part no. C.1.011.2.02)
• Pos. 8 – Tray Cupwarmer GB5 3GR W/Protections (Part no. C.1.011.3.02)
• Pos. 8 – Tray Cupwarmer GB5 4GR W/Protections (Part no. C.1.011.4.02)
• Pos. 9 – Grid Cupwarmer 286MM GB5 (Part no. C.1.028)
• Pos. 10 – Grid Cupwarmer 253MM GB5 (Part no. C.1.029)
• Pos. 11 – Grid Cupwarmer 199MM GB5 (Part no. C.1.010)
• Pos. 12 – Pvc Foot Supports DM.21 GB5 (Part no. F.1.005)
• Pos. 13 – La Marzocco Schraube M10 X 20 S/S A2 (I.1.090) (Part no. I.1.090)
• Pos. 14 – Rubber Foot Left/Right (Part no. CL001.01)
• Pos. 15 – Body Frame GB5 2GR (Part no. C.1.001.2)
• Pos. 15 – Body Frame GB5 3GR (Part no. C.1.001.3)
• Pos. 15 – Body Frame GB5 4GR (Part no. C.1.001.4)
• Pos. 16 – Bracket Hot Water GB5 (Part no. C.1.007)
• Pos. 17 – GB5 Control Panel Right Support (Part no. C.2.058.DX)
• Pos. 18 – Electronic Box GB5 (Part no. C.1.020.01)
• Pos. 19 – Railing Corner Kit GB5 (Part no. 903)
• Pos. 20 – Protection Cupwarmer Hole 170 MM (Part no. C.1.100.01)
• Pos. 21 – Protection Cupwarmer Hole 116MM (Part no. C.1.030.02)

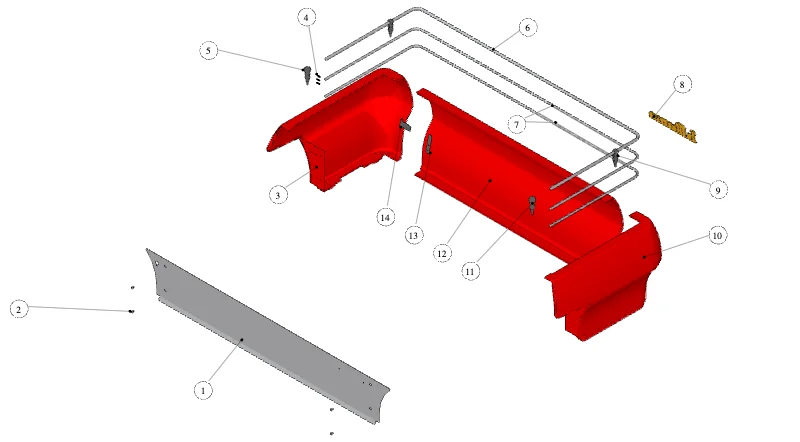

13 – Body Panel Assembly – FB80

Loading…

Loading parts…

• Pos. 1 – Panel Main Switch FB80 2GR (Part no. C.1.024.2.01)
• Pos. 1 – Panel Main Switch FB80 3GR (Part no. C.1.024.3.01)
• Pos. 1 – Panel Main Switch FB80 4GR (Part no. C.1.024.4.01)
• Pos. 2 – Screw M6X10 Mushroom Slotted Head A2 (Part no. I.1.020)
• Pos. 3 – Left Side Panel FB80 Raw (Part no. C.2.008)
• Pos. 3 – FB80 Left Side Panel Red (Part no. C.2.011)
• Pos. 3 – FB80 Left Side Panel Blue (Part no. C.2.011.57)
• Pos. 4 – Socket Grub Screw M5X5 A2 (Part no. I.1.016)
• Pos. 5 – FB80 Left Upper Front Corner (Part no. C.4.001.SX)
• Pos. 6 – Railing D10 FB80 2GR (Part no. C.1.023.2)
• Pos. 6 – Railing D10 FB80 3GR (Part no. C.1.023.3)
• Pos. 6 – Railing D10 FB80 4GR (Part no. C.1.023.4)
• Pos. 7 – Railing D8 FB80 2GR (Part no. C.1.022.2)
• Pos. 7 – Railing D8 FB80 3GR (Part no. C.1.022.3)
• Pos. 7 – Railing D8 FB80 4GR (Part no. C.1.022.4)
• Pos. 8 – LA Marzocco Logo for GB5 (Part no. D.1.001)
• Pos. 9 – FB80 Upper Back Corner (Part no. C.4.002)
• Pos. 10 – Right Side Panel FB80 Raw (Part no. C.2.009)
• Pos. 10 – Panel Right Side FB80 Red (Part no. C.2.012)
• Pos. 10 – Panel Right Side FB80 Blue (Part no. C.2.012.57)
• Pos. 11 – FB80 Right Upper Front Corner (Part no. C.4.001.DX)
• Pos. 12 – 2GR FB80 Back Panel Raw (Part no. C.2.010.2)
• Pos. 12 – 3GR FB80 Back Panel Raw (Part no. C.2.010.3)
• Pos. 12 – 4GR FB80 Back Panel Raw (Part no. C.2.010.4)
• Pos. 12 – Panel Back FB80 2GR Red (Part no. C.2.013.2)
• Pos. 12 – Panel Back FB80 2GR Blue (Part no. C.2.013.2.57)
• Pos. 12 – Panel Back FB80 3GR Red (Part no. C.2.013.3)
• Pos. 12 – Panel Back FB80 3GR Blue (Part no. C.2.013.3.57)
• Pos. 12 – Panel Back FB80 4GR Red (Part no. C.2.013.4)
• Pos. 12 – Panel Back FB80 4GR Blue (Part no. C.2.013.4.57)
• Pos. 13 – Plate for Panel FB80 (Part no. C.1.034)
• Pos. 14 – Plate for Corner FB80 (Part no. C.1.035)

15 – Control Panel Assembly – AV EE MP

Loading…

Loading parts…

• Pos. 1 – Panel Control GB5 2EE (Part no. C.1.019.2)
• Pos. 1 – Panel Control GB5 2EE W/Lights (Part no. C.1.019.2.L)
• Pos. 1 – Panel Control GB5 3EE (Part no. C.1.019.3)
• Pos. 1 – Panel Control GB5 3EE W/Lights (Part no. C.1.019.3.L)
• Pos. 1 – Panel Control GB5 4EE (Part no. C.1.019.4)
• Pos. 1 – Panel Control GB5 4EE W/Lights (Part no. C.1.019.4.L)
• Pos. 2 – Panel Control GB5 2MP (Part no. C.1.025.2.01)
• Pos. 2 – Panel Control GB5 3MP (Part no. C.1.025.3.01)
• Pos. 2 – Panel Control GB5 4MP (Part no. C.1.025.4.01)
• Pos. 3 – Panel Control GB5 2AV (Part no. C.1.008.2)
• Pos. 3 – Panel Control GB5 2AV W/Lights (Part no. C.1.008.2.L)
• Pos. 3 – Panel Control GB5 3AV (Part no. C.1.008.3)
• Pos. 3 – Panel Control GB5 3AV W/Lights (Part no. C.1.008.3.L)
• Pos. 3 – Panel Control GB5 4AV (Part no. C.1.008.4)
• Pos. 3 – Panel Control GB5 4AV W/Lights (Part no. C.1.008.4.L)

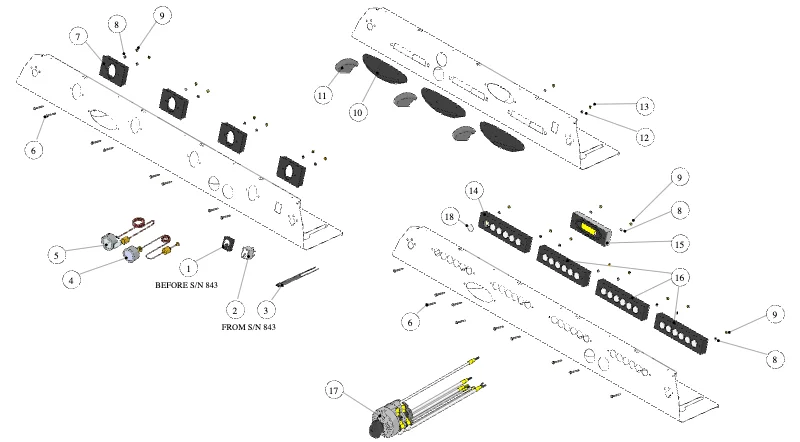

17 – Control Panel Assembly – AV EE MP

Loading…

Loading parts…

• Pos. 1 – GB/5 Hot Water Switch (Part no. E.1.008)
• Pos. 2 – Button White W/Steam Hot Water Label (Part no. L286/1)
• Pos. 3 – Tea Cable Extension (Part no. E.4.011.1)
• Pos. 4 – Pressure Gauge 0-18 Beige W/Capillary (Part no. E.3.001.02)
• Pos. 5 – Pressure Gauge 0-3 Beige W/Capillary (Part no. E.3.002.01)
• Pos. 6 – Keypad Screw (Part no. I.2.001.01)
• Pos. 7 – GB5 EE Button (Part no. E.1.007)
• Pos. 7 – Lion Sticker GB5 EE Button (Part no. E.1.021)
• Pos. 8 – Tooth Lock Washer 8X14,7X2 A2 (Part no. ROND_DENT_4)
• Pos. 9 – Nut M4 H3 WR7 (Part no. DADO4M)
• Pos. 10 – Bakelite Frame for GB/5 Paddle (Part no. C.2.031)
• Pos. 11 – GB/5 Bakelite Paddle Handle (Part no. C.2.030)
• Pos. 12 – Screw M3X8 Socket Countersunk A2 (Part no. I.1.004)
• Pos. 13 – Self Lock Nut M3 H4 WR5,5 Galvanized (Part no. DADO3AUTOBL)
• Pos. 14 – Prog Keypad GB/5 (Part no. E.1.002)
• Pos. 15 – Display Lcd Green GB5 W/Box (Part no. E.1.004)
• Pos. 16 – Standard Keypad GB/5 (Part no. E.1.003)
• Pos. 17 – Switch Double-Pole 42A W/Wires Iec/UL (Part no. E.2.001.04)
• Pos. 17 – Switch Triple-Pole 20A W/Wires Iec/UL (Part no. E.2.002.04)
• Pos. 17 – Switch Triple-Pole 42A W/Wires Iec/UL (Part no. E.2.069.01)
• Pos. 18 – GB5 Key Bottom Cover (Part no. F.1.045)

19 – Control Panel Assem.-Barista Light

Loading…

Loading parts…

• Pos. 1 – Panel Control GB5 2AV W/Lights (Part no. C.1.008.2.L)
• Pos. 1 – Panel Control GB5 3AV W/Lights (Part no. C.1.008.3.L)
• Pos. 1 – Panel Control GB5 4AV W/Lights (Part no. C.1.008.4.L)
• Pos. 1 – Panel Control GB5 2EE W/Lights (Part no. C.1.019.2.L)
• Pos. 1 – Panel Control GB5 3EE W/Lights (Part no. C.1.019.3.L)
• Pos. 1 – Panel Control GB5 4EE W/Lights (Part no. C.1.019.4.L)
• Pos. 2 – Switch Double-Pole 42A W/Wires Iec/UL (Part no. E.2.001.04)
• Pos. 2 – Switch Triple-Pole 20A W/Wires Iec/UL (Part no. E.2.002.04)
• Pos. 2 – Switch Triple-Pole 42A W/Wires Iec/UL (Part no. E.2.069.01)
• Pos. 3 – Kit Handle Label 01 Main Switch Bremas (Part no. F.1.184)
• Pos. 4 – Linea PB Switch Metal Plate (Part no. C.1.162)
• Pos. 5 – Kit Barista Lights Etl Power S. W/Wiring (Part no. E.4.024.01.R)
• Pos. 5 – Cavo Per Alimentatore Luci (Part no. E.4.216)
• Pos. 5 – Kit Barista Lights CE Power S. W/Wiring (Part no. E.4.254.R)
• Pos. 6 – White LED 16MM W/Connector + Kit Washer (Part no. E.4.023.02.R)
• Pos. 7 – 2 GR C/Faston/ Wiring for Barista Light (Part no. E.4.020.02)
• Pos. 7 – 3 GR C/Faston/ Wiring for Barista Light (Part no. E.4.021.02)
• Pos. 8 – White LED 16 MM Lxml-PWC2 Cabled (Part no. E.4.023.01.R)

21 – Control Panel Assembly – Logo Light

Loading…

Loading parts…

• Pos. 1 – Tray Drain GB5 2GR Lighted Logo (Part no. C.1.213.2)
• Pos. 1 – Tray Drain GB5 3GR Lighted Logo (Part no. C.1.213.3)
• Pos. 1 – Tray Drain GB5 4GR Lighted Logo (Part no. C.1.213.4)
• Pos. 2 – GB5 Right Drain Tray Corner Lit Logo (Part no. C.2.062)
• Pos. 3 – 2GR Drain Tray Front Cover W/Cut Logo (Part no. C.1.330.2)
• Pos. 3 – 3GR Drain Tray Front Cover W/Cut Logo (Part no. C.1.330.3)
• Pos. 3 – 4GR Drain Tray Front Cover W/Cut Logo (Part no. C.1.330.4)
• Pos. 4 – Lighted Logo Front GB5/FB80 (Part no. D.6.002)
• Pos. 5 – Screw M3X8 Socket Countersunk A2 (Part no. I.1.004)
• Pos. 6 – Supporto Contatti a Bottone (Part no. F.1.073)
• Pos. 7 – Nut M3 H2 WR5,5 S/S A2 (Part no. DADOINOXM3)
• Pos. 8 – Selftap. Screw 3,5X13 Phil.round-Pan S/S (Part no. I.1.062)
• Pos. 9 – Selftap.screw 2,2X6,5 Phil.round-Pan (Part no. I.1.086)
• Pos. 10 – Supporto Contatti Con Molla (Part no. F.1.074)
• Pos. 11 – Panel Back GB5 2GR (Part no. C.1.015.2.01)
• Pos. 11 – Panel Back GB5 3GR (Part no. C.1.015.3.01)
• Pos. 11 – Panel Back GB5 4GR (Part no. C.1.015.4.01)
• Pos. 12 – Lighted Logo Back GB5/FB80 (Part no. D.6.001)
• Pos. 13 – Power Supply 12VDC 1,3A Logo Leds (Part no. E.2.045)
• Pos. 14 – Fastener Adhesive Support (Part no. 5.V010)
• Pos. 15 – Cable Tie 120x2,5MM High Temperature (Part no. L338/L100.01)

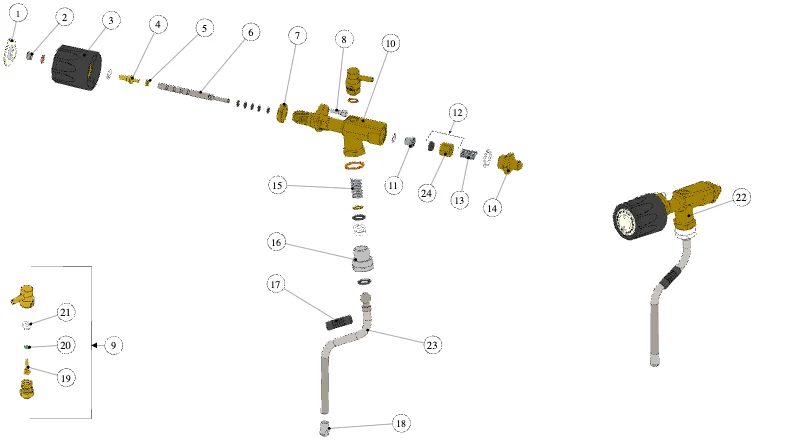

23 – Steam Wand Assembly

Loading…

Loading parts…

• Pos. 1 – Cap M20X1,5 Knob Steam Valve GB5 (Part no. F.1.007)
• Pos. 2 – Self Lock Nut M6 H5 WR10 A2 (Part no. I.1.046)
• Pos. 3 – Steam Valve Knob GB5 New Version (Part no. F.1.006.01)
• Pos. 4 – Steam Valve Shaft Extension (Part no. A.1.022)
• Pos. 5 – Nut M4 H3 WR7 (Part no. DADO4M)
• Pos. 6 – GB5 Steam Valve Shaft D8 W/M4 Hole (Part no. A.1.002.01)
• Pos. 7 – Nut G1/2 H6 WR24 (Part no. A.1.006)
• Pos. 8 – Screw M6X18 Hex Head A2 (Part no. I.1.015)
• Pos. 9 – La Marzocco Unterdruckventil 1/8″ (L192.03) (Part no. L192.03)
• Pos. 10 – Complete Steam Valve Body (Part no. A.1.001.01.R)
• Pos. 11 – Steam Valve Seat W/ Gasket (Part no. F.3.007.R)
• Pos. 12 – Steam Valve Seal Assembly (Part no. B.2.010)
• Pos. 13 – Spring Compression 1,2X11,7X29,5 (Part no. F.3.005.01)
• Pos. 14 – GB5 Steam Valve Inlet Fitting Treated (Part no. A.1.003.01)
• Pos. 15 – Spring Compression 2X14,6X26,5 (Part no. F.3.004)
• Pos. 16 – Steam Wand Adaptor (Part no. A.1.005)
• Pos. 17 – La Marzocco Gummierung Linea Mini Dampflanze (L171/G) (Part no. L171/G)
• Pos. 18 – Steam Tip D1,5 (Part no. L173)
• Pos. 19 – Anti-Suction Valve Shaft Treated (Part no. B.2.013.01)
• Pos. 20 – O-Ring 1,78X3,69 FKM 70 SH (Part no. H.1.001)
• Pos. 21 – Bushing Flanged 5X9X6,5 PTFE (Part no. B.3.001)
• Pos. 22 – GB5 Steam Valve VERS.02 Compl. with Wash (Part no. B.1.001.02.R)
• Pos. 23 – Steam Wand (Part no. T.2.001)
• Pos. 24 – Steam Valve Seal Holder Treated (Part no. A.1.004.01)

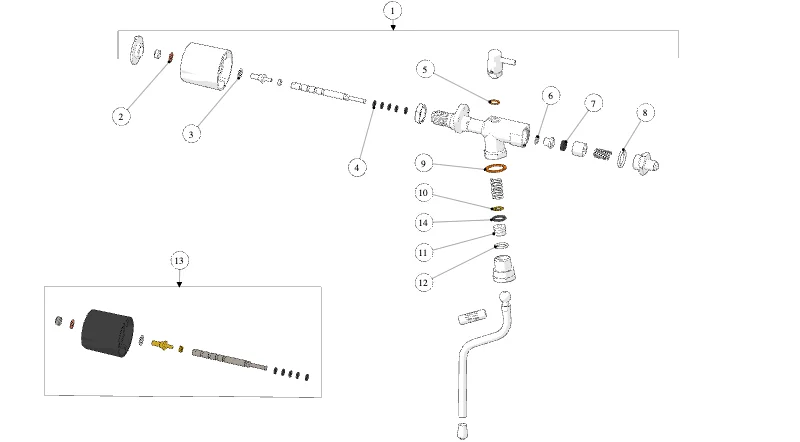

25 – Steam Wand Assembly

Loading…

Loading parts…

• Pos. 1 – Wartungskit / rebuild kit Dampf- / Heißwasserventil (B.1.001.02.K2) (Part no. B.1.001.02.K2)
• Pos. 2 – La Marzocco Kupferscheibe 6,3 X 12 X 1 (L120/2A) (Part no. L120/2A)
• Pos. 3 – PTFE Washer D13mm (Part no. F.1.033)
• Pos. 4 – O-Ring 1,90x4,90 FKM 70 ShA (Part no. H.1.005)
• Pos. 5 – La Marzocco Kupferscheibe 1/8 Zoll (L100/D) (Part no. L100/D)
• Pos. 6 – Teflon Gasket 12X9.8X1 (Part no. F.4.001)
• Pos. 7 – Steam Valve Seal Gasket (Part no. H.2.001)
• Pos. 8 – Gasket Flat D24X19X2 PTFE (Part no. H.2.002)
• Pos. 9 – Washer 21X27X1,5 (Part no. L260/1A)
• Pos. 10 – Washer 8X14X0,5 A2 (Part no. I.1.170)
• Pos. 11 – Gasket Ball Joint Wand D14,5MM Pom (Part no. H.2.003.01)
• Pos. 12 – O-Ring 2,62x12,37 PTFE (Part no. H.1.044)
• Pos. 13 – Retrofit Kit for GB5 Steam Valve .02 (Part no. B.1.001.02.K)
• Pos. 14 – O-Ring 2,62X10,77 EPDM 70 ShA (Part no. H.1.004)

27 – Anti Suction Steam Valve Kit

Loading…

Loading parts…

• Pos. 1 – Nut G1/8 H4,5 WR14 Nickel Plated (Part no. L292/R)
• Pos. 2 – GS/3 Tube Fitting (Part no. L292)
• Pos. 3 – GB5 Drain Box (Part no. F.1.002.03)
• Pos. 4 – Antisuction Valve Silicone Tube (Part no. T.4.001)
• Pos. 5 – Hose Connector Tee-Shape D6,3 Di4 Pvdf (Part no. A.7.001.01)
• Pos. 6 – Cable Tie 120x2,5MM High Temperature (Part no. L338/L100.01)
• Pos. 7 – Fastener Adhesive Support (Part no. 5.V010)

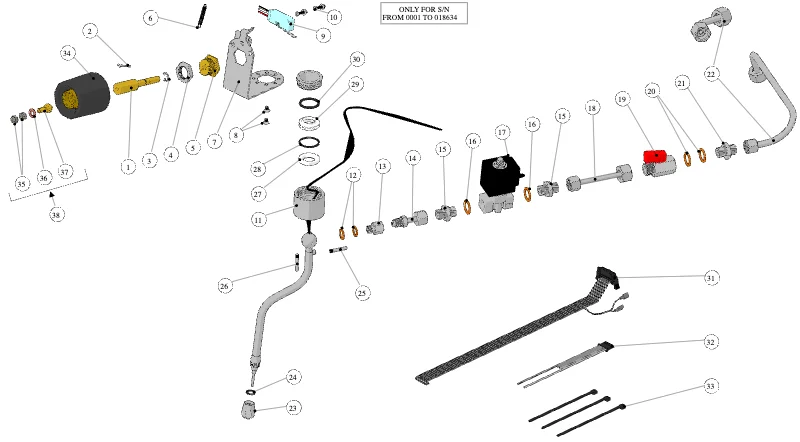

29 – Autosteam Assembly

Loading…

Loading parts…

• Pos. 1 – Cam Shaft Autosteam (Part no. A.1.007.01)
• Pos. 2 – Cotter Pin (Part no. L165/8)
• Pos. 3 – Seeger Ring (Part no. I.1.023)
• Pos. 4 – Nut G1/2 H6 WR24 (Part no. A.1.006)
• Pos. 5 – Autosteam Shaft Support (Part no. A.1.008)
• Pos. 6 – Spring Extension 0,65X4,6X12 S/S (Part no. I.5.001)
• Pos. 7 – Autosteam Wand Support W/Switch Bracket (Part no. C.1.058.DX)
• Pos. 7 – Autosteam Wand Support (SX) (Part no. C.1.058.SX)
• Pos. 8 – Screw M4X8 Phillips Countersunk A2 (Part no. I.1.057)
• Pos. 9 – Microswitch W/Wiring (Part no. E.2.011/GB5)
• Pos. 9 – Microswitch Kit with Lugs (Part no. E.2.039)
• Pos. 10 – Nut M3 H3 WR5,5 (Part no. DADO3M)
• Pos. 10 – Washer 4X9X0,8 Brass (Part no. RONDELLA4X9)
• Pos. 10 – Screw M3X16 Cheese (Part no. VITE3X16)
• Pos. 11 – Steam Wand S/S GB5 W/Probe (Part no. T.2.002.01)
• Pos. 12 – La Marzocco copper washer 1/8 inch (L100/D) (Part no. L100/D)
• Pos. 13 – Fitting G1/8F-G1/8M WR14 (Part no. A.5.177)
• Pos. 14 – Solenoid Valve T Tube (Part no. T.1.002)
• Pos. 15 – Nipple G1/4M-G1/4M WR19 H25.5 TR. (Part no. L037/3.01)
• Pos. 16 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 18 – Tube Right Ball V.-Autost.solenoid V.tr. (Part no. T.1.050.01)
• Pos. 18 – Tube Left Ball V.-Autosteam Solenoid V. (Part no. T.1.050.SX)
• Pos. 19 – La Marzocco Kugelhahn G3/8M auf G3/8F (L164.02) (Part no. L164.02)
• Pos. 20 – La Marzocco Kupferscheibe 3/8 Zoll (L180/1) (Part no. L180/1)
• Pos. 21 – Nipple G3/8M-G3/8M WR20 H31 TR. (Part no. L305/N.01)

30 – Autosteam Assembly

Loading…

Loading parts…

• Pos. 22 – Tube Steam B. - Left Ball Valve TR. GB5 (Part no. T.1.010.01)
• Pos. 22 – Tube Steam B. - Right Ball V. Treated (Part no. T.1.020.01)
• Pos. 23 – Autosteam Tip (Part no. L177)
• Pos. 24 – O Ring NBR Dia Int 8.73 X Autosteam (Part no. F.2.016)
• Pos. 25 – Pin Mechanical Stop M4X22 S/S (Part no. I.1.022.C)
• Pos. 26 – Pin Mechanical Stop M4X24 S/S (Part no. I.1.022)
• Pos. 27 – PTFE Gasket for Autosteam Teflon (Part no. F.4.004)
• Pos. 28 – Oring 2093 X Autosteam Viton (Part no. F.4.003)
• Pos. 29 – Upper Gasket Teflon Autosteam Wand (Part no. F.4.002)
• Pos. 30 – Oring NBR for Autosteam Int Diam 3/4 (Part no. F.2.015)
• Pos. 31 – Switch Cpu Flat Cable (Part no. LAD3D5/A)
• Pos. 32 – Solenoid Valve Wiring Cable (Part no. E.4.017)
• Pos. 33 – Cable Tie 120x2,5MM High Temperature (Part no. L338/L100.01)
• Pos. 34 – Steam Valve Knob GB5 New Version (Part no. F.1.006.01)
• Pos. 35 – Nut M6 H5 WR10 A2 (Part no. I.1.049)
• Pos. 36 – Washer 6,5X18X1,5 (Part no. L165/9)
• Pos. 37 – GB5 Autosteam Valve Shaft Extension (Part no. A.1.025)
• Pos. 38 – Autosteam Knob Retrofit Kit (Part no. A.1.025.KIT)

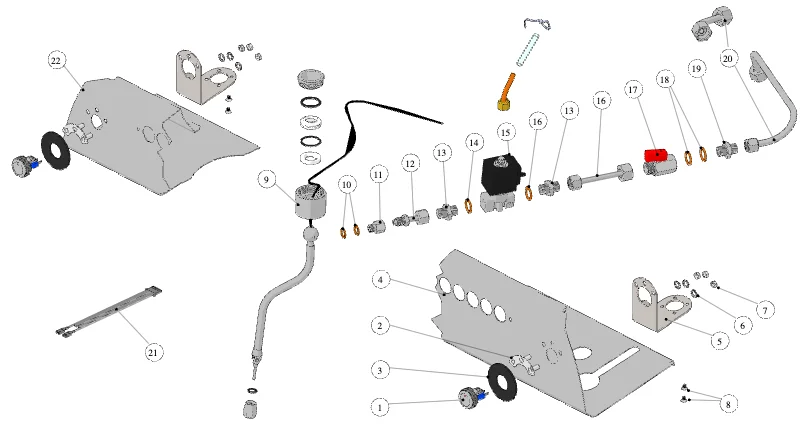

32 – Autosteam Assembly

Loading…

Loading parts…

• Pos. 2 – Button Plate Autosteam (Part no. C.1.362)
• Pos. 3 – Cover Button Plate Autosteam (Part no. C.1.364)
• Pos. 4 – Autosteam Panel Control GB5 2AV (Part no. C.1.365.2)
• Pos. 4 – Autosteam Panel Control GB5 2AV W/Lights (Part no. C.1.365.2.L)
• Pos. 4 – Autosteam Panel Control GB5 3AV (Part no. C.1.365.3)
• Pos. 4 – Autosteam Panel Control GB5 3AV W/Lights (Part no. C.1.365.3.L)
• Pos. 4 – Autosteam Panel Control GB5 4AV (Part no. C.1.365.4)
• Pos. 4 – Autosteam Panel Control GB5 4AV W/Lights (Part no. C.1.365.4.L)
• Pos. 5 – Bracket Autosteam Wand (Part no. C.1.363.DX)
• Pos. 6 – Tooth Lock Washer 6X10,5X1,5 S/S A2 (Part no. I.1.075)
• Pos. 7 – Nut M5 H4 WR8 S/S A2 (Part no. DADO5M_INOX)
• Pos. 8 – Screw M4X8 Phillips Countersunk A2 (Part no. I.1.057)
• Pos. 9 – Steam Wand S/S GB5 W/Probe (Part no. T.2.002.01)
• Pos. 10 – La Marzocco Kupferscheibe 1/8 Zoll (L100/D) (Part no. L100/D)
• Pos. 11 – Fitting G1/8F-G1/8M WR14 (Part no. A.5.177)
• Pos. 12 – Solenoid Valve T Tube (Part no. T.1.002)
• Pos. 13 – Nipple G1/4M-G1/4M WR19 H25.5 TR. (Part no. L037/3.01)
• Pos. 14 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 16 – Tube Right Ball V.-Autost.solenoid V.tr. (Part no. T.1.050.01)
• Pos. 16 – Tube Left Ball V.-Autosteam Solenoid V. (Part no. T.1.050.SX)
• Pos. 17 – La Marzocco Kugelhahn G3/8M auf G3/8F (L164.02) (Part no. L164.02)
• Pos. 18 – La Marzocco Kupferscheibe 3/8 Zoll (L180/1) (Part no. L180/1)
• Pos. 19 – Nipple G3/8M-G3/8M WR20 H31 TR. (Part no. L305/N.01)
• Pos. 20 – Tube Steam B. - Left Ball Valve TR. GB5 (Part no. T.1.010.01)
• Pos. 20 – Tube Steam B. - Right Ball V. Treated (Part no. T.1.020.01)
• Pos. 21 – Cable Electronic Board Button Autosteam (Part no. E.4.135)
• Pos. 22 – Left Autosteam Panel Control GB5 2AV (Part no. C.1.367.2)
• Pos. 22 – Left Autost.panel Control GB5 2AV Lights (Part no. C.1.367.2.L)
• Pos. 22 – Left Autosteam Panel Control GB5 3AV (Part no. C.1.367.3)
• Pos. 22 – Left Autost.panel Control GB5 3AV Lights (Part no. C.1.367.3.L)
• Pos. 22 – Left Autosteam Panel Control GB5 4AV (Part no. C.1.367.4)
• Pos. 22 – Left Autost.panel Control GB5 4AV Lights (Part no. C.1.367.4.L)

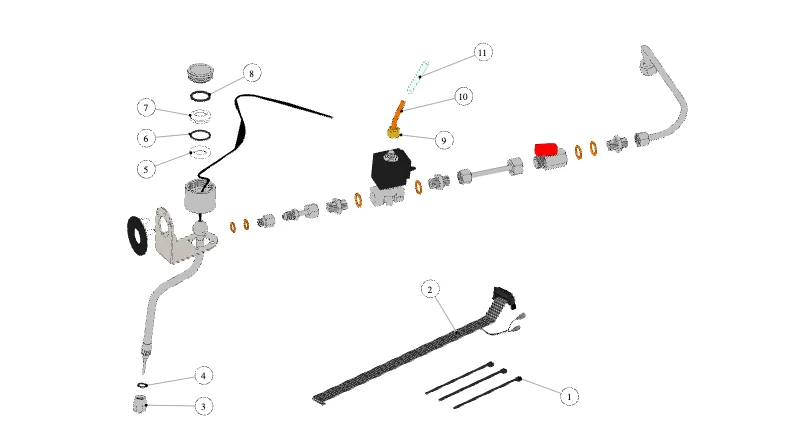

34 – Autosteam Assembly

Loading…

Loading parts…

• Pos. 1 – Cable Tie 120x2,5MM High Temperature (Part no. L338/L100.01)
• Pos. 2 – Cable Electronic Board Button Autosteam (Part no. E.4.135)
• Pos. 3 – Autosteam Tip (Part no. L177)
• Pos. 4 – O Ring NBR Dia Int 8.73 X Autosteam (Part no. F.2.016)
• Pos. 5 – PTFE Gasket for Autosteam Teflon (Part no. F.4.004)
• Pos. 6 – Oring 2093 X Autosteam Viton (Part no. F.4.003)
• Pos. 7 – Upper Gasket Teflon Autosteam Wand (Part no. F.4.002)
• Pos. 8 – Oring NBR for Autosteam Int Diam 3/4 (Part no. F.2.015)
• Pos. 9 – Fitting G1/8F H12 WR14 Brass (Part no. A.1.027)
• Pos. 10 – Tube Autosteam Anti-Suction (Part no. T.1.175)
• Pos. 11 – Antisuction Valve Silicone Tube (Part no. T.4.001)

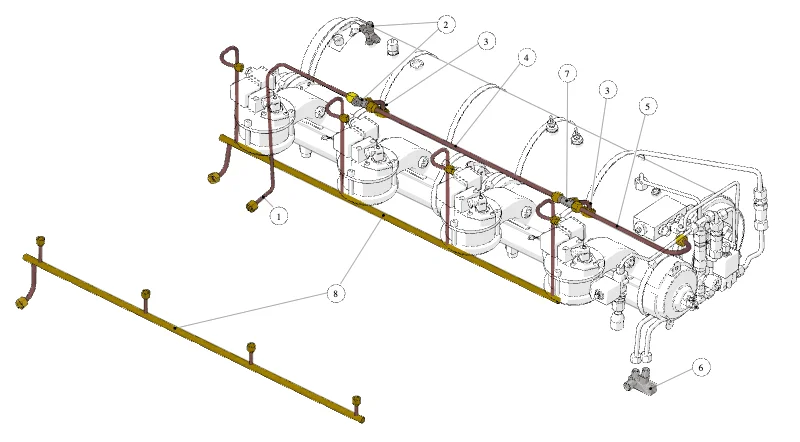

36 – Hydraulic Assembly

Loading…

Loading parts…

• Pos. 1 – Tube Cross Fitting - Expansion Valve GB5 (Part no. T.1.009)
• Pos. 2 – Cross Fitting G1/4M WR13 Treated (Part no. L129.01)
• Pos. 3 – Tube Cross Fitting - Coffee Boiler (Part no. TL06)
• Pos. 4 – Tube Cross Fitting Connection 3GR (Part no. TL05/3)
• Pos. 4 – Tube Cross Fitting Connection 4GR (Part no. TL05/4)
• Pos. 5 – Tube Thermostatic Valve - Coffee B. Tee (Part no. T.1.018)
• Pos. 6 – Inlet Water Manifold Treated (Part no. A.2.001.01)
• Pos. 7 – Tee Fitting G1/4M WR13 Treated (Part no. L128.01)
• Pos. 8 – Drain Tube GB5 2MP (Part no. T.1.012.2)
• Pos. 8 – Drain Tube GB5 3MP (Part no. T.1.012.3)
• Pos. 8 – Drain Tube GB5 4MP (Part no. T.1.012.4)
• Pos. 8 – Drain Tube Solenoid V. GB5 2AV (Part no. T.1.021.2)
• Pos. 8 – Drain Tube Solenoid V. GB5 3AV (Part no. T.1.021.3)
• Pos. 8 – Drain Tube Solenoid V. GB5 4AV (Part no. T.1.021.4)

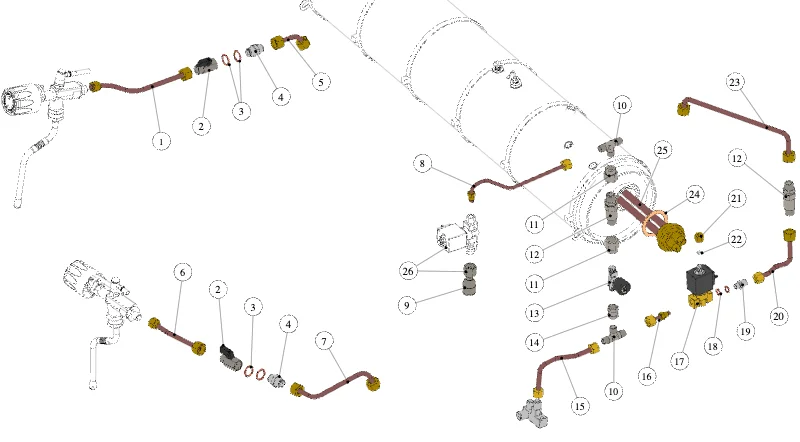

38 – Hydraulic Assembly

Loading…

Loading parts…

• Pos. 1 – Tube Ball Valve - Left Steam Valve TR. (Part no. T.1.011.01)
• Pos. 2 – La Marzocco Kugelhahn G3/8M auf G3/8F (L164.02) (Part no. L164.02)
• Pos. 3 – La Marzocco Kupferscheibe 3/8 Zoll (L180/1) (Part no. L180/1)
• Pos. 4 – Nipple G3/8M-G3/8M WR20 H31 TR. (Part no. L305/N.01)
• Pos. 5 – Tube Steam B. - Left Ball Valve TR. GB5 (Part no. T.1.010.01)
• Pos. 6 – Tube Ball V. - Right Steam Valve TR. (Part no. T.1.048.01)
• Pos. 7 – Tube Steam B. - Right Ball V. Treated (Part no. T.1.020.01)
• Pos. 8 – Tube Mixing Valve Tee - Tea Solenoid V. (Part no. T.1.007.01)
• Pos. 9 – Hot Water Wand G3/8F W/Diffuser (Part no. L160.02)
• Pos. 10 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
• Pos. 11 – Fitting G1/4F-G3/8F WR22 Treated (Part no. A.2.004.01)
• Pos. 12 – Check Valve G3/8M Treated (Part no. L032/P.02)
• Pos. 13 – Water Mixer Valve (Part no. B.2.001)
• Pos. 14 – Fitting G1/4F-G1/4F WR17 (Part no. A.5.185)
• Pos. 15 – Tube Water Inlet Manifold - Tee Fitting (Part no. T.1.001)
• Pos. 16 – Solenoid Valve T Tube (Part no. T.1.002)
• Pos. 17 – La Marzocco 3-Wege Magnet Ventil 220 / 240V (L100/E.02) (Part no. L100/E.02)
• Pos. 17 – Solenoid Valve 3 Way 200V (Part no. L100/E200.01)
• Pos. 17 – Solenoid Valve 3 Way Ruby Seal (Part no. L100/ER)
• Pos. 18 – La Marzocco Kupferscheibe 1/8 Zoll (L100/D) (Part no. L100/D)
• Pos. 19 – Nipple G1/8M-G1/4M WR17 (Part no. A.5.156)
• Pos. 20 – Tube Autofill Solenoid V.-Check Valve (Part no. T.1.003)
• Pos. 21 – La Marzocco Fitting G1/8F H14 WR14 D4 (L134) (Part no. L134)
• Pos. 22 – La Marzocco Blind Ferrule 8X4 (L134/4) (Part no. L134/4)
• Pos. 23 – Tube Check V. Autofill Solenoid V.-S.b. (Part no. T.1.004)
• Pos. 24 – Gasket Cylindrical Flat D55XD42X2 (Part no. LR360)
• Pos. 25 – Preheater 2GR L384 MM W/Y Junction (Part no. T.1.015.02)
• Pos. 25 – Preheater 3/4GR L584 MM W/Y Junction (Part no. T.1.019.02)
• Pos. 26 – Hot Water Valve Complete GB5-FB80 (Part no. L053/D)
• Pos. 26 – Hot Water Valve Complete GB5-FB80 200V (Part no. L053/D200)

40 – Hydraulic Assembly

Loading…

Loading parts…

• Pos. 1 – Tube Inlet Manifold - Check V. GB5 (Part no. T.1.013)
• Pos. 2 – Check Valve G3/8M Treated (Part no. L032/P.02)
• Pos. 3 – Fitting G1/4F-G3/8F WR22 Treated (Part no. A.2.004.01)
• Pos. 4 – Tube Steam Boiler - Check Valve GB5 (Part no. T.1.006)
• Pos. 5 – Tube Check Valve - Tee Fitting GB5 (Part no. T.1.005)
• Pos. 6 – Tube H20 Tee - Thermostatic Valve GB5 (Part no. T.1.017)
• Pos. 7 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
• Pos. 8 – Tube Pre-Heater - Thermostatic V. GB5 (Part no. T.1.016)
• Pos. 9 – Tube H20 Tee Fitting - Pre-Heater GB5 (Part no. T.1.014)

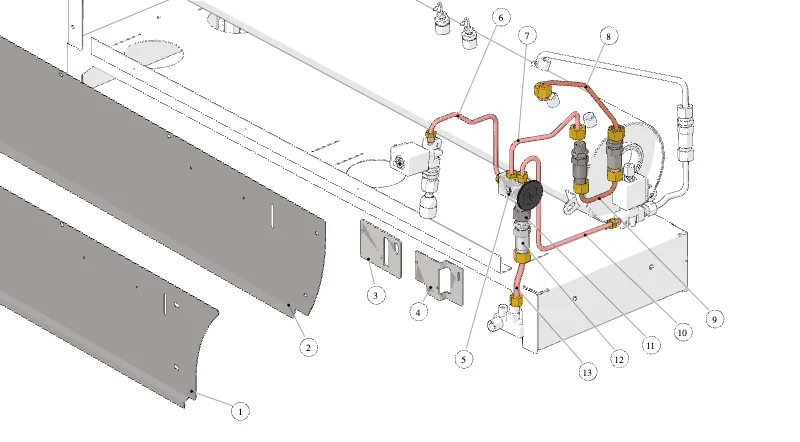

43 – Hydraulic Assembly – Hot Water Mixing Valve

Loading…

Loading parts…

• Pos. 1 – Panel Main Switch FB80 2GR Mixing Valve (Part no. C.1.332.2)
• Pos. 1 – Panel Main Switch FB80 3GR Mixing Valve (Part no. C.1.332.3)
• Pos. 1 – Panel Main Switch FB80 4GR Mixing Valve (Part no. C.1.332.4)
• Pos. 2 – GB/5 2GR Main Switch Panel Mixing Valve (Part no. C.1.334.2)
• Pos. 2 – GB/5 3GR Main Switch Panel Mixing Valve (Part no. C.1.334.3)
• Pos. 2 – GB/5 4GR Main Switch Panel Mixing Valve (Part no. C.1.334.4)
• Pos. 3 – Bracket Hot Water Mixing V. FB80 (Part no. C.1.333)
• Pos. 4 – Bracket Hot Water Mixing V. GB5 (Part no. C.1.335)
• Pos. 5 – Mixing Valve Kit (Part no. 1058)
• Pos. 6 – Tube Mixing Valve - Tea Solenoid V. GB5 (Part no. T.1.194)
• Pos. 7 – Tube Check V. - Mixing Valve GB5 (Part no. T.1.192)
• Pos. 8 – Tube Steam B. - Hot Water Check Valve (Part no. T.1.085)
• Pos. 9 – Tube S.b. Check V. - Tea Mix V. Check V. (Part no. T.1.086)
• Pos. 10 – Tube Autofill Solenoid V. -Mixing V. GB5 (Part no. T.1.195)
• Pos. 11 – Fitting G1/4F-G3/8F WR22 Treated (Part no. A.2.004.01)
• Pos. 12 – Check Valve G3/8M Treated (Part no. L032/P.02)
• Pos. 13 – Tube Inlet Manifold - Mixing Valve GB5 (Part no. T.1.193)

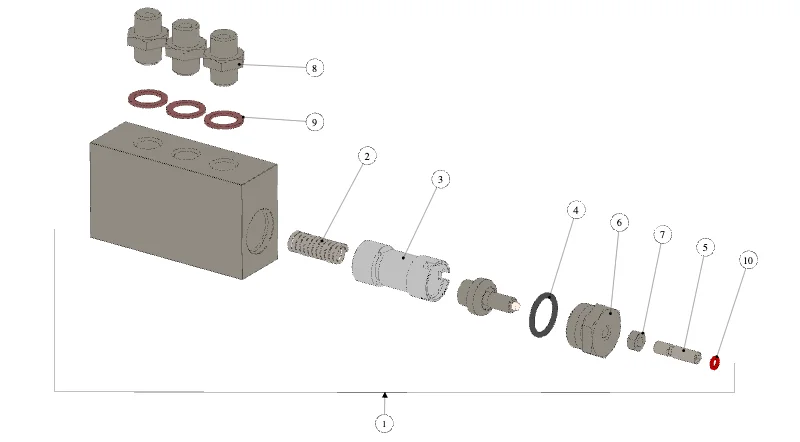

44 – Pre-Heating Mix Valve

Loading…

Loading parts…

• Pos. 1 – Thermostatic Valve Treated (Part no. B.2.003)
• Pos. 2 – Spring Compression 1,6X10,6X37,2 (Part no. F.3.002)
• Pos. 3 – Thermost. Valve Mixer Cylinder Treated (Part no. A.2.005.01)
• Pos. 4 – O-Ring 2,62X17,13 FKM 70 ShA (Part no. H.1.002)
• Pos. 5 – Socket Grub Screw M6X24,5 A2 (Part no. I.1.001)
• Pos. 6 – Thermostatic Valve Cap Treated (Part no. A.2.006.01)
• Pos. 7 – Nut M6 H5 WR10 A2 (Part no. I.1.049)
• Pos. 8 – Nipple G1/4M-G1/4M WR19 H25.5 TR. (Part no. L037/3.01)
• Pos. 9 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 10 – O-Ring 1,78X3,69 FKM 70 SH (Part no. H.1.001)

46 – Hydraulic Assembly – Single Boiler

Loading…

Loading parts…

• Pos. 1 – Tube Check V. Autofill Solenoid V.-S.b. (Part no. T.1.004)
• Pos. 2 – Check Valve G3/8M Treated (Part no. L032/P.02)
• Pos. 3 – Tube Autofill Solenoid V.-Check Valve (Part no. T.1.003)
• Pos. 4 – Tube Autofill Solenoid V. -Mixing V. GB5 (Part no. T.1.195)
• Pos. 5 – Tube Mixing Valve - Tea Solenoid V. GB5 (Part no. T.1.194)
• Pos. 6 – La Marzocco Kupferscheibe 3/8 Zoll (L180/1) (Part no. L180/1)
• Pos. 7 – Tube Inlet Manifold - Mixing Valve GB5 (Part no. T.1.193)
• Pos. 8 – Tube Rgt C.b.- Cross Fitt. Multi B. GB5 (Part no. T.1.220)
• Pos. 9 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
• Pos. 10 – Tube Cross Fitting Multi B. GB5 (Part no. T.1.221)
• Pos. 11 – Tube 3GRP Cross Fitting Multi B. GB5 (Part no. T.1.222)
• Pos. 12 – Tee Fitt. Tube 2GRP-Check V. Multi B.GB5 (Part no. T.1.216)
• Pos. 12 – Tee Fitt. Tube 3GRP-Check V. Multi B.GB5 (Part no. T.1.217)
• Pos. 13 – Solenoid Valve T Tube (Part no. T.1.002)
• Pos. 14 – Screw M4X6 Cheese Brass (Part no. VITE4X6)
• Pos. 15 – Fitting G1/4F-G3/8F WR22 Treated (Part no. A.2.004.01)
• Pos. 16 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 17 – Nipple G1/4M-G1/4M WR19 H21,5 (Part no. A.5.019)
• Pos. 18 – Screw M3X30 Slotted Countersunk Brass (Part no. VITE3X30)
• Pos. 19 – Bracket Hot Water Mixing V. GB5 (Part no. C.1.335)
• Pos. 20 – Nut M3 H3 WR5,5 (Part no. DADO3M)
• Pos. 21 – Mixing Valve Kit (Part no. 1058)

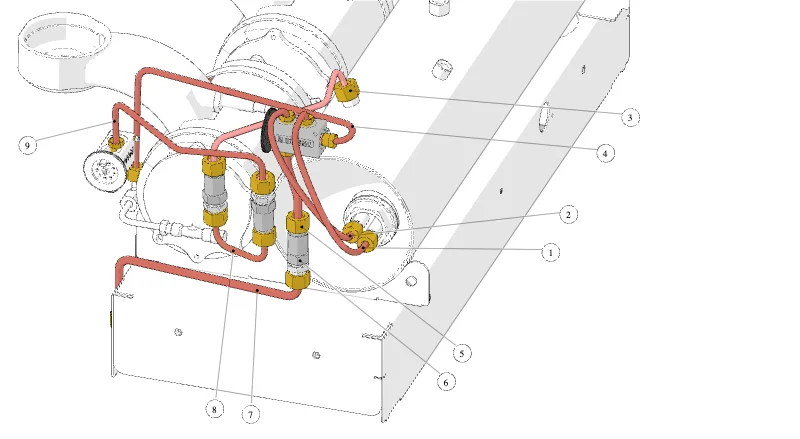

48 – Hydraulic Assembly – Single Boiler

Loading…

Loading parts…

• Pos. 1 – Tube Mix V.- Pre-Heater Multi B. GB5 (Part no. T.1.214)
• Pos. 2 – Tube Bis Mix V. -Pre Heater Multi B. GB5 (Part no. T.1.215)
• Pos. 3 – Tube Steam B. - Hot Water Check Valve (Part no. T.1.085)
• Pos. 4 – Tube Mix V. - Cross Fitt. Multi B. GB5 (Part no. T.1.218)
• Pos. 5 – Tube Inlet Check V. -Mix V. Multi B. GB5 (Part no. T.1.223)
• Pos. 6 – Check Valve G3/8M Treated (Part no. L032/P.02)
• Pos. 7 – Tube Inlet Manifold-Check V. Multi B.GB5 (Part no. T.1.219)
• Pos. 8 – Tube S.b. Check V. - Tea Mix V. Check V. (Part no. T.1.086)
• Pos. 9 – Tube Check V. - Mixing Valve GB5 (Part no. T.1.192)

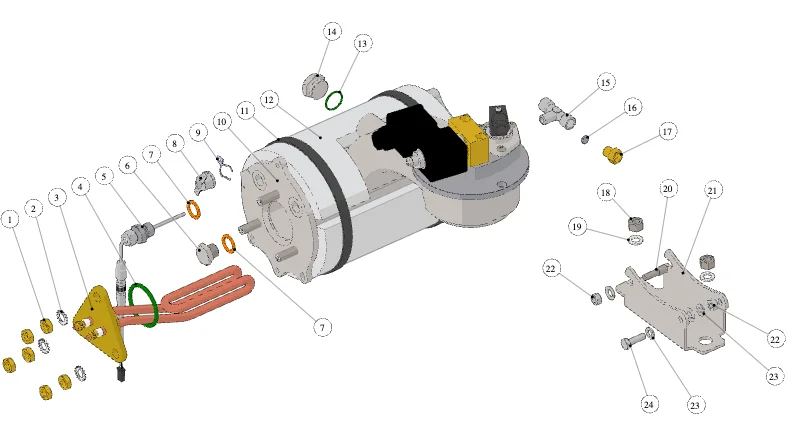

51 – Coffee Boiler Assem. – Sing. Boiler

Loading…

Loading parts…

• Pos. 1 – La Marzocco Mutter M8 H5 WR13 (I.1.025) (Part no. I.1.025)
• Pos. 2 – Washer 3X6X0,5 A2 (Part no. ROND_DENT_8)
• Pos. 3 – La Marzocco Heizung 800W, 220V (E.6.004.03) (Part no. E.6.004.03)
• Pos. 3 – Heating Element W500 V200 Triang. Flange (Part no. E.6.006.03)
• Pos. 4 – La Marzocco O-Ring Heizung Dampf- / Brühboiler (F.2.014.01) (Part no. F.2.014.01)
• Pos. 5 – La Marzocco PT1000 Temperaturfühler 100mm (E.1.005) (Part no. E.1.005)
• Pos. 6 – Cap G1/4 H15,5 WR19 (Part no. A.5.022)
• Pos. 7 – La Marzocco copper washer 1/4 inch (L100/1A) (Part no. L100/1A)
• Pos. 9 – L276.01 Bracket (Part no. L276.01S)
• Pos. 10 – Coffee Boiler Flat Side 1GR (Part no. L.1.001.01.R)
• Pos. 11 – Kabelbinder Dampfboiler (A.5.016.01) (Part no. A.5.016.01)
• Pos. 12 – Insulation Panel Strada Coffee Boiler (Part no. F.7.001)
• Pos. 13 – O-RING 1,78 X 15,6 FKM 70 SHA (H.1.009) (Part no. H.1.009)
• Pos. 14 – Cap M20X1 H13 WR22 (Part no. A.5.082)
• Pos. 15 – Tee Fitting R1/8M-G1/8F-G1/8F WR10 TR (Part no. A.2.012.01)
• Pos. 16 – La Marzocco Blind Ferrule 8X4 (L134/4) (Part no. L134/4)
• Pos. 17 – Fitting G1/8M H16 WR13 (Part no. L133)
• Pos. 18 – Nut M8 H8 WR13 S/S A2 (Part no. L1002)
• Pos. 19 – Washer 8,5X14X1,5 A2 (Part no. L1003)
• Pos. 20 – Coffee Boiler Pin Strada S/S (Part no. A.5.011)
• Pos. 22 – Nut M6 H5 WR10 A2 (Part no. I.1.049)
• Pos. 23 – Tooth Lock Washer 4X8X1 (Part no. RONDELLA6X12)
• Pos. 24 – Screw M6X20 Hex Head (Part no. I.1.058)

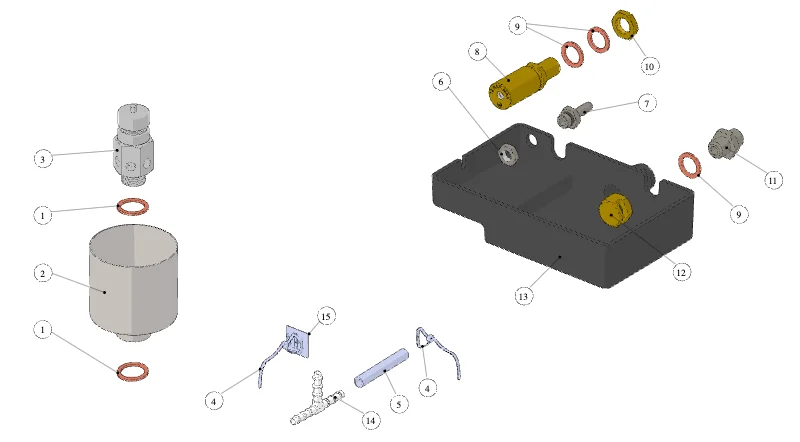

52 – Fittings and Valves

Loading…

Loading parts…

• Item 1 – La Marzocco copper washer 3/8 inch (L180/1) (Part no. L180/1)
• Pos. 2 – Cup Safety Valve (Part no. F.1.004)
• Pos. 3 – Safety Valve G3/8 1,8 Bar No Tea (Part no. B.2.024.01)
• Pos. 4 – Cable Tie 120x2,5MM High Temperature (Part no. L338/L100.01)
• Pos. 5 – Antisuction Valve Silicone Tube (Part no. T.4.001)
• Pos. 6 – Nut G1/8 H4,5 WR14 Nickel Plated (Part no. L292/R)
• Pos. 7 – GS/3 Tube Fitting (Part no. L292)
• Pos. 8 – La Marzocco Expansionsventil (L140_C) (Part no. L140_C)
• Pos. 9 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 10 – Nut G1/4 H4,5 WR19 (Part no. L146)
• Pos. 11 – Nipple G1/4M-G1/4M WR19 H25.5 TR. (Part no. L037/3.01)
• Pos. 12 – Break-Drain for Solenoid Valve (Part no. L037/3R)
• Pos. 13 – GB5 Drain Box (Part no. F.1.002.03)
• Pos. 14 – Hose Connector Tee-Shape D6,3 Di4 Pvdf (Part no. A.7.001.01)
• Pos. 15 – Fastener Adhesive Support (Part no. 5.V010)

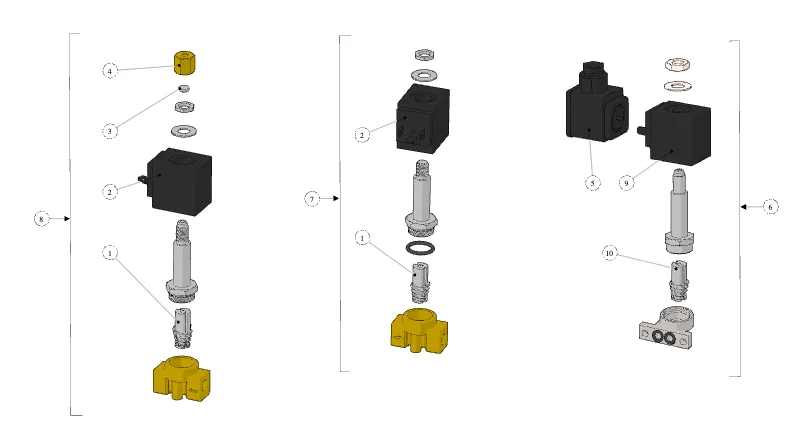

55 – Fittings and Valves

Loading…

Loading parts…

• Pos. 1 – La Marzocco Anker / Plunger Magnetventil (L100/H) (Part no. L100/H)
• Pos. 2 – Solenoid Coil 200V (Part no. L100/G200)
• Pos. 3 – La Marzocco Blind Ferrule 8X4 (L134/4) (Part no. L134/4)
• Pos. 4 – La Marzocco Fitting G1/8F H14 WR14 D4 (L134) (Part no. L134)
• Pos. 5 – Solenoid Valve Connector (Part no. L205)
• Pos. 6 – Solenoid Valve 3 Way 90° D0,6 220V 316L (Part no. B.3.002.01)
• Pos. 7 – Solenoid Valve 2 Way 220/240V (Part no. L053.02)
• Pos. 7 – Solenoid Valve 2 Way 200V (Part no. L053/200.01)
• Pos. 8 – La Marzocco 3-Wege Magnet Ventil 220 / 240V (L100/E.02) (Part no. L100/E.02)
• Pos. 8 – Solenoid Valve 3 Way 200V (Part no. L100/E200.01)
• Pos. 9 – SV Coil 220-240V 8W UL Csa Vde (Part no. L100/G.01)
• Pos. 10 – Plunger Solenoid Valve 3 Way Ruby (Part no. B.2.004.P)

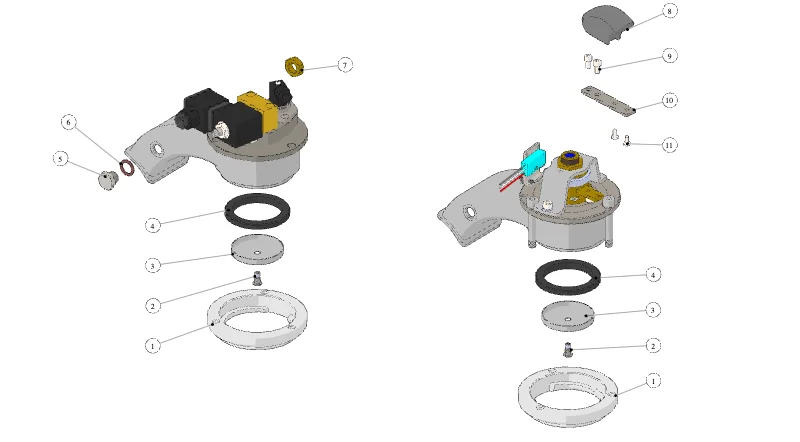

56 – Coffee Boiler – Group

Loading…

Loading parts…

• Pos. 1 – Bayonet Ring Bar Machine (Part no. L109.02)
• Pos. 2 – La Marzocco Verteilerschraube / Diffusor (A.5.110) (Part no. A.5.110)
• Pos. 3 – La Marzocco Duschsieb (F.3.040.01) (Part no. F.3.040.01)
• Pos. 4 – Group Gasket NBR 72/63x55x8 (Part no. H.3.001)
• Pos. 4 – Group Gasket NBR 72/63x55x9 (Part no. H.3.002)
• Pos. 4 – La Marzocco Silikon Siebträger Dichtung (H.3.007) (Part no. H.3.007)
• Pos. 4 – Portafilter Gasket 6MM (Part no. L105/B6)
• Pos. 4 – Portafilter Gasket 7MM (Part no. L105/B7)
• Pos. 5 – Cap G1/4 H15,5 WR19 (Part no. A.5.022)
• Pos. 6 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 7 – Nut G1/4 H8 WR20 (Part no. L100/5)
• Pos. 8 – GB/5 Bakelite Paddle Handle (Part no. C.2.030)
• Pos. 9 – Screw M5X10 Socket Cap A2 (Part no. I.1.005)
• Pos. 10 – S/S Paddle Lever GB/5 MM141 (Part no. F.3.025)
• Pos. 11 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)

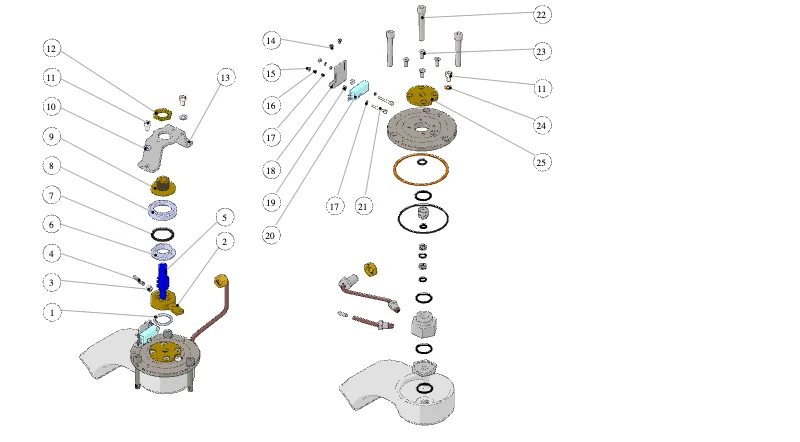

58 – Coffee Boiler – MP

Loading…

Loading parts…

• Pos. 1 – O-Ring 3,53X23,42 PTFE (Part no. F.4.010)
• Pos. 3 – Nut M5 H4 WR8 S/S A2 (Part no. DADO5M_INOX)
• Pos. 4 – Pin D5X23 Thread M5X7,5 (Part no. A.5.005)
• Pos. 5 – Shaft for Paddle (Part no. A.5.003)
• Pos. 6 – Paddle Valve Teflon Ring D39 (Part no. F.4.009)
• Pos. 7 – O-Ring 3,53X29,74 NBR 70 SH (Part no. H.1.016)
• Pos. 8 – Paddle Valve Teflon Ring D45 (Part no. F.4.008)
• Pos. 9 – Bronze Washer Hex Paddle (Part no. A.1.014)
• Pos. 10 – Tooth Lock Washer 4X8X1 (Part no. RONDELLA6X12)
• Pos. 11 – Screw M6X10 Socket Cap A2 (Part no. L120/2)
• Pos. 12 – Nut M20 H6,5 WR27 Brass (Part no. A.4.003)
• Pos. 13 – Bracket Group MP (Part no. F.3.020)
• Pos. 14 – Screw M3X10 Phillips Round-Pan A2 (Part no. VITE3X10)
• Pos. 15 – Nut M3 H3 WR5,5 (Part no. DADO3M)
• Pos. 17 – Tooth Lock Washer 6X10,5X1,5 (Part no. RONDINOXGS/3)
• Pos. 18 – Bracket Microswitch GS3 (Part no. C.1.067)
• Pos. 19 – Spacer 3,5X8X2,5 AL (Part no. I.3.004)
• Pos. 20 – Microswitch Kit with Lugs (Part no. E.2.039)
• Pos. 21 – Screw M3X20 Hex Head A2 (Part no. I.1.055)
• Pos. 22 – Screw M8X52 Socket Cap A2 70 (Part no. L110.01)
• Pos. 23 – Screw M5X10 Socket Countersunk A2 (Part no. VITE5X10)
• Pos. 24 – La Marzocco Kupferscheibe 6,3 X 12 X 1 (L120/2A) (Part no. L120/2A)

60 – Coffee Boiler – MP

Loading…

Loading parts…

• Pos. 26 – Group Cap MP (Part no. A.5.026)
• Pos. 27 – O-Ring 2,62x9,13 EPDM 70 ShA (Part no. H.1.018)
• Pos. 28 – O-Ring 2,62X10,77 EPDM 70 SH (Part no. H.1.019)
• Pos. 29 – Dichtung 87 X 81 X 0,5 (L103/B) (Part no. L103/B)
• Pos. 30 – O-RING 75,87 X 2,62 FKM 70 SHA (L103/A) (Part no. L103/A)
• Pos. 31 – Paddle Gland AISI304L Elect.pol. (Part no. B.2.015.03)
• Pos. 32 – Spacer 9,3X12X4 (Part no. B.2.014.03)
• Pos. 33 – La Marzocco O-Ring 1,78 x 9,25 EPDM 70 ShA (H.1.011.01) (Part no. H.1.011.01)
• Pos. 34 – O-Ring 2,62x21,89 EPDM 70 ShA (Part no. H.1.010.01)
• Pos. 35 – Nut G1/4 H8 WR20 (Part no. L100/5)
• Pos. 36 – Drain Tube MP Valve (Part no. T.1.100.01)
• Pos. 37 – Gicleur 0,6 M5 Ruby (Part no. F.2.003)
• Pos. 37 – Gicleur 0,8 M5 Ruby And (Part no. F.2.003.08)
• Pos. 38 – Tube Water Inlet MP Valve (Part no. T.1.101.01)
• Pos. 39 – Paddle Valve Body + Adaptor (Part no. B.2.012.R)
• Pos. 40 – Drain Tube MP Group (Part no. T.1.102)
• Pos. 41 – Wartungskit / rebuild kit Paddle (SA600.01.K) (Part no. SA600.01.K)

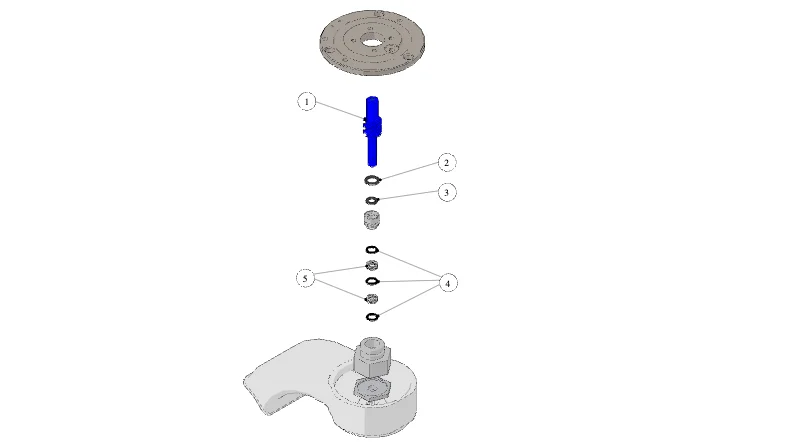

62 – Coffee Boiler – MP

Loading…

Loading parts…

• Pos. 1 – Shaft for Paddle (Part no. A.5.003)
• Pos. 2 – O-Ring 2,62x9,13 EPDM 70 ShA (Part no. H.1.018)
• Pos. 3 – O-Ring 2,62X10,77 EPDM 70 SH (Part no. H.1.019)
• Pos. 4 – O-Ring 1,78X9,25 Kalrez 6230 (Part no. H.1.024)
• Pos. 5 – Spacer 9,3X12X4 (Part no. B.2.014.03)

65 – Coffee Boiler – Retrof. Kit Conical

Loading…

Loading parts…

• Pos. 1 – Retrofit Kit Conical Paddle Linea / GB5 (Part no. 934)
• Pos. 2 – Screw M5X10 Socket Cap A2 (Part no. I.1.005)
• Pos. 3 – Washer 5,4X10X1 A2 (Part no. I.1.039)
• Pos. 4 – Lever S/S Conical Paddle Valve Linea PB (Part no. C.1.267)
• Pos. 5 – Screw M6X10 Socket Cap A2 (Part no. L120/2)
• Pos. 6 – Tooth Lock Washer 4X8X1 (Part no. RONDELLA6X12)
• Pos. 7 – Group Cap MP (Part no. A.5.026)
• Pos. 8 – La Marzocco O-Ring 1,78×6,07 VITON (H.1.006) (Part no. H.1.006)
• Pos. 9 – O-Ring 2,62x9,13 EPDM 70 ShA (Part no. H.1.018)
• Pos. 10 – Shaft Conical Paddle Valve (Part no. A.5.048)
• Pos. 11 – Lever Conical Paddle Valve (Part no. F.8.005)
• Pos. 12 – Socket Grub Screw M5X5 A2 (Part no. I.1.016)
• Pos. 13 – Nut M5 H4 WR8 S/S A2 (Part no. DADO5M_INOX)
• Pos. 14 – Pin D5X23 Thread M5X7,5 (Part no. A.5.005)
• Pos. 15 – Washer 14,1X30X2 PTFE (Part no. I.6.005)
• Pos. 16 – Washer 14,2X30X2 S/S (Part no. I.1.091)
• Pos. 17 – Belleville Spring 28X14,2X1,5 H2,15 (Part no. I.5.004)
• Pos. 18 – Bushing Flanged 14X23X9,8 PTFE (Part no. F.4.012)
• Pos. 19 – Gicleur 0,6 M5 Ruby (Part no. F.2.003)
• Pos. 20 – Tube Water Inlet MP Valve (Part no. T.1.187)
• Pos. 21 – Fitting G1/8M-G1/8F WR14 S/S (Part no. A.5.049)
• Pos. 22 – La Marzocco O-Ring 1,78 x 9,25 EPDM 70 ShA (H.1.011.01) (Part no. H.1.011.01)
• Pos. 23 – O-Ring 2,62x21,89 EPDM 70 ShA (Part no. H.1.010.01)
• Pos. 24 – Adaptor Group Conical V. (Part no. A.5.047)
• Pos. 25 – Body Conical Paddle Valve (Part no. A.6.003)
• Pos. 26 – Drain Tube MP Valve (Part no. T.1.188)

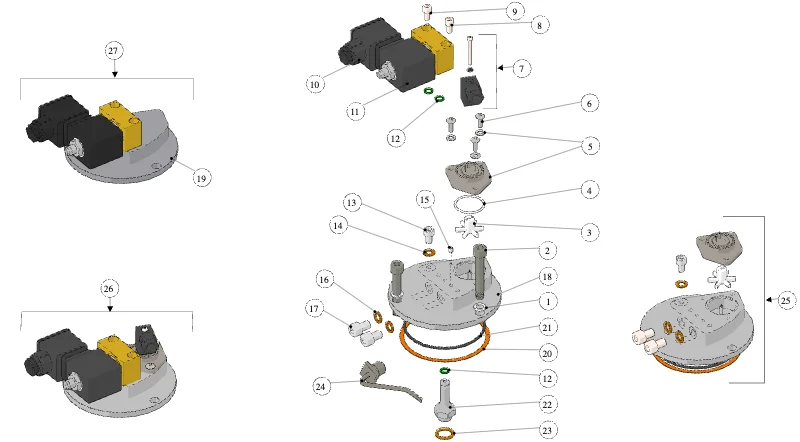

66 – Coffee Boiler – Group Cap AV & EE

Loading…

Loading parts…

• Pos. 1 – Washer 8,5X14X1,5 A2 (Part no. L1003)
• Pos. 2 – Screw M8X52 Socket Cap A2 70 (Part no. L110.01)
• Pos. 3 – La Marzocco Impeller Flowmeter (LAD070/V) (Part no. LAD070/V)
• Pos. 4 – La Marzocco Dichtung / O-Ring Flowmeter (LAD070/S1) (Part no. LAD070/S1)
• Pos. 5 – Kit Flowmeter Head (Part no. LAD070/GC.R)
• Pos. 6 – Screw M4X12 Phillips Button Head A2 (Part no. CL22/V)
• Pos. 7 – Connectors Flowmeter Kit (Part no. LAD070/CGC)
• Pos. 8 – Screw M5X14 Socket Cap A2 (Part no. I.1.011)
• Pos. 9 – Screw M5X10 Socket Cap A2 (Part no. I.1.005)
• Pos. 10 – Solenoid Valve Connector (Part no. L205)
• Pos. 11 – SV Coil 220-240V 8W UL Csa Vde (Part no. L100/G.01)
• Pos. 12 – La Marzocco O-Ring 1,78×6,07 VITON (H.1.006) (Part no. H.1.006)
• Pos. 13 – Screw M6X10 Socket Cap A2 (Part no. L120/2)
• Pos. 14 – La Marzocco Kupferscheibe 6,3 X 12 X 1 (L120/2A) (Part no. L120/2A)
• Pos. 15 – Gicleur 0,6 M4 CH2 Ruby (Part no. F.3.032.01)
• Pos. 15 – Gicleur 0,7 M4 CH2 Ruby (Part no. F.3.033.01)
• Pos. 15 – Gicleur 0,8 M4 CH2 Ruby (Part no. F.3.034.01)
• Pos. 16 – Washer 8,3X12X1,5 (Part no. I.4.002)
• Pos. 17 – Screw M8X8 Socket Cap A2 (Part no. I.1.019.01)
• Pos. 18 – Group Cap Flowmeter W/Gicleur (Part no. A.5.023)
• Pos. 19 – Group Cap EE (Part no. A.5.027)
• Pos. 20 – Dichtung 87 X 81 X 0,5 (L103/B) (Part no. L103/B)
• Pos. 21 – O-RING 75,87 X 2,62 FKM 70 SHA (L103/A) (Part no. L103/A)
• Pos. 22 – Group Adapter (Part no. A.2.009.01)
• Pos. 23 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 24 – Cap G1/4 Group Coffee Boiler TR. (Part no. B.1.003.02)
• Pos. 25 – Group Cap Assembly GB5 / PB (Part no. SA944)
• Pos. 26 – AV Group Cap Assembly (Part no. 940/AV.02)
• Pos. 27 – Group Cap Assy for Linea EE (Part no. 940/EE.01)

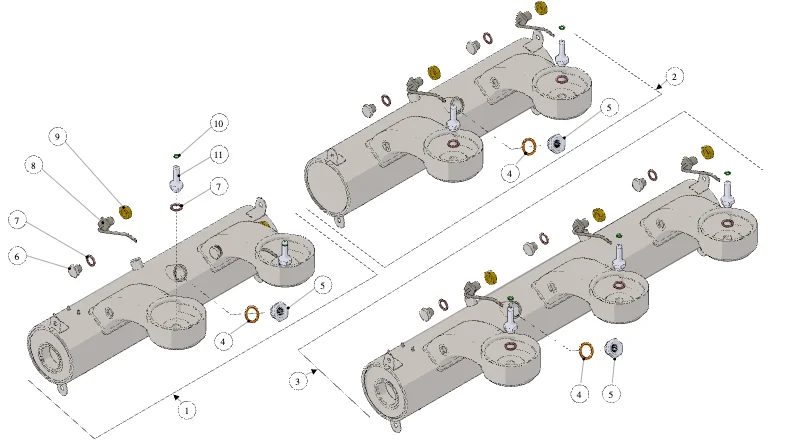

68 – Coffee Boiler Assembly

Loading…

Loading parts…

• Pos. 1 – Coffee Boiler Flat Side 2GR (Part no. L.1.005.2GB.R)
• Pos. 2 – Coffee Boiler Flat Side DX 2GR (Part no. L.1.005.2DGB.R)
• Pos. 3 – Coffee Boiler Flat Side 3GR (Part no. L.1.005.3GB.R)
• Pos. 4 – Washer 21X27X1,5 (Part no. L260/1A)
• Pos. 5 – PT1000 Probe Adaptor (Part no. A.2.007)
• Pos. 6 – Cap G1/4 H15,5 WR19 (Part no. A.5.022)
• Pos. 7 – La Marzocco copper washer 1/4 inch (L100/1A) (Part no. L100/1A)
• Pos. 8 – Cap G1/4 Group Coffee Boiler TR. (Part no. B.1.003.02)
• Pos. 9 – Nut G1/4 H8 WR20 (Part no. L100/5)
• Pos. 10 – La Marzocco O-Ring 1,78×6,07 VITON (H.1.006) (Part no. H.1.006)
• Pos. 11 – Group Adapter (Part no. A.2.009.01)

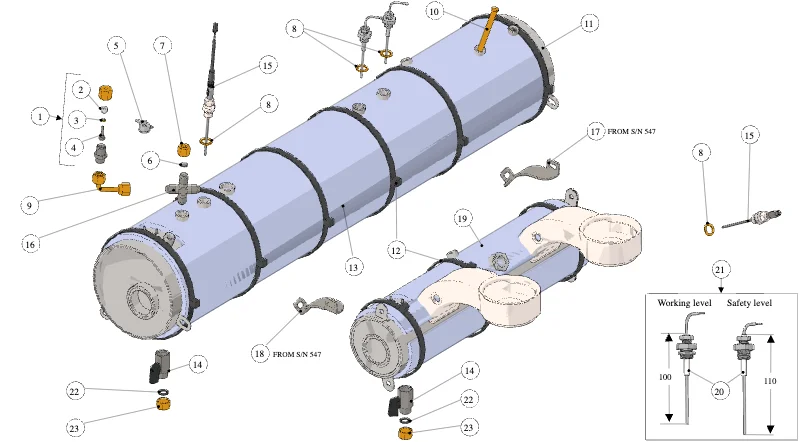

70 – Boiler Assembly

Loading…

Loading parts…

• Pos. 1 – Vacuum Breaker Valve (Part no. L190)
• Pos. 2 – Bushing Flanged 5X9X6,5 PTFE (Part no. B.3.001)
• Pos. 3 – O-Ring 1,78X3,69 FKM 70 SH (Part no. H.1.001)
• Pos. 4 – Anti-Suction Valve Shaft Treated (Part no. B.2.013.01)
• Pos. 6 – Ferrule Blind 11X3 Treated (Part no. L137/4)
• Pos. 7 – Fitting G1/4F H13 WR17 (Part no. L130/4)
• Pos. 8 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 9 – Tube Steam B. - Vacuum Breaker V. GB5 (Part no. T.1.060)
• Pos. 10 – Tube Water Suction Steam B. Treated (Part no. TL07/G.03)
• Pos. 11 – Steam Boiler Concave Side 2GR W/Preh. (Part no. L154/2VGB5.R)
• Pos. 11 – Steam Boiler Concave Side 3GR W/Preh. (Part no. L154/3VGB5.R)
• Pos. 11 – Steam Boiler Concave Side 4GR W/Preh. (Part no. L154/4VGB5.R)
• Pos. 12 – Kabelbinder Dampfboiler (A.5.016.01) (Part no. A.5.016.01)
• Pos. 13 – Insulation Panel 4GR Linea&GB5 Steam B. (Part no. F.7.008)
• Pos. 13 – Insulation Panel 420X515X15 Steam B. 2GR (Part no. F.7.012)
• Pos. 13 – Insulation Panel 650X515X15 Steam B. 3GR (Part no. F.7.013)
• Pos. 14 – La Marzocco Kugelhahn G3/8M auf G3/8F (L164.02) (Part no. L164.02)
• Pos. 15 – La Marzocco PT1000 Temperaturfühler 100mm (E.1.005) (Part no. E.1.005)
• Pos. 16 – Cross Fitting G1/4M WR13 Treated (Part no. L129.01)
• Pos. 18 – Bracket Coffee Boiler GB5 (Part no. C.1.527)
• Pos. 19 – Insulation Panel 2GR Coffee Boiler (Part no. F.7.004)
• Pos. 19 – Insulation Panel 3GR Coffee Boiler (Part no. F.7.005)
• Pos. 20 – Teflon Insulator Probe (Part no. LA052/1)
• Pos. 21 – La Marzocco Füllstandssonde Dampfboiler (LA052) (Part no. LA052)
• Pos. 22 – O-Ring 2,62X10,77 EPDM 70 ShA (Part no. H.1.004)
• Pos. 23 – Cap Nut G3/8 H11 WR19 (Part no. L030)

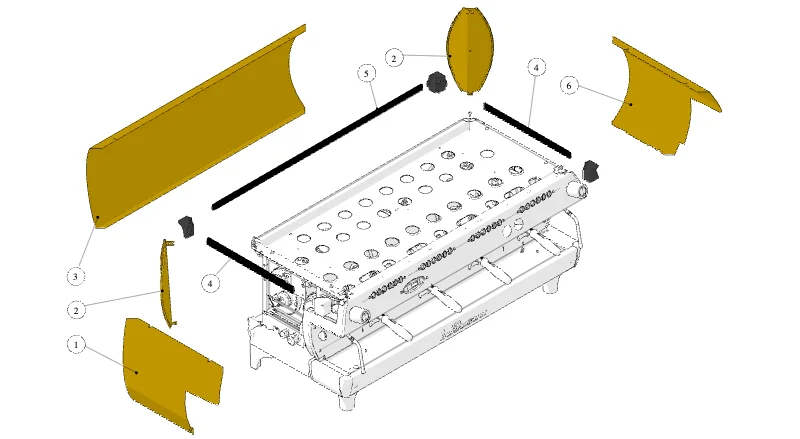

72 – GB5 – Brass Treatment

Loading…

Loading parts…

• Pos. 1 – Panel Left Side GB5 Brass Finish (Part no. C.1.013.55)
• Pos. 2 – GB5 Shield Brass Finishing (Part no. C.1.016.55)
• Pos. 3 – Panel Back GB5 2GR Brass Finish (Part no. C.1.015.2.55)
• Pos. 3 – Panel Back GB5 3GR Brass Finish (Part no. C.1.015.3.55)
• Pos. 4 – Railing Side GB5 Black (Part no. C.1.018.70)
• Pos. 5 – Railing Back GB5 2GR Black (Part no. C.1.017.2.70)
• Pos. 5 – Railing Back GB5 3GR Black (Part no. C.1.017.3.70)
• Pos. 5 – Railing Back GB5 4GR Black (Part no. C.1.017.4.70)
• Pos. 6 – Panel Right Side GB5 Brass Finish (Part no. C.1.014.55)
• Pos. 7 – LA Marzocco Logo for GB5 Brass Finish (Part no. D.1.001.55)

76 – GB5 – Custom Color Powder Coating

Loading…

Loading parts…

• Pos. 1 – Panel Left Side GB5 White (Part no. C.1.013.50)
• Pos. 1 – Panel Left Side GB5 Matte Black (Part no. C.1.013.60)
• Pos. 1 – Panel Left Side GB5 Custom Color (Part no. C.1.013.65)
• Pos. 2 – GB5 White Shield (Part no. C.1.016.50)
• Pos. 2 – GB5 Shield Matte Black (Part no. C.1.016.60)
• Pos. 2 – GB5 Shield Custom Color (Part no. C.1.016.65)
• Pos. 3 – Panel Back GB5 2GR White (Part no. C.1.015.2.50)
• Pos. 3 – Panel Back GB5 2GR Matte Black (Part no. C.1.015.2.60)
• Pos. 3 – Panel Back GB5 2GR Custom Color (Part no. C.1.015.2.65)
• Pos. 3 – Panel Back GB5 3GR White (Part no. C.1.015.3.50)
• Pos. 3 – Panel Back GB5 3GR Matte Black (Part no. C.1.015.3.60)
• Pos. 3 – Panel Back GB5 3GR Custom Color (Part no. C.1.015.3.65)
• Pos. 3 – Panel Back GB5 4GR White (Part no. C.1.015.4.50)
• Pos. 3 – Panel Back GB5 4GR Matte Black (Part no. C.1.015.4.60)
• Pos. 3 – Panel Back GB5 4GR Custom Color (Part no. C.1.015.4.65)
• Pos. 4 – Panel Right Side White GB5 (Part no. C.1.014.50)
• Pos. 4 – Panel Right Side GB5 Matte Black (Part no. C.1.014.60)
• Pos. 4 – Panel Right Side GB5 Custom Color (Part no. C.1.014.65)

76 – GB5 – Illuminated Logos

Loading…

Loading parts…

• Pos. 1 – Tray Drain GB5 2GR Lighted Logo (Part no. C.1.213.2)
• Pos. 1 – Tray Drain GB5 3GR Lighted Logo (Part no. C.1.213.3)
• Pos. 1 – Tray Drain GB5 4GR Lighted Logo (Part no. C.1.213.4)
• Pos. 2 – GB5 Right Drain Tray Corner Lit Logo (Part no. C.2.062)
• Pos. 3 – 2GR Drain Tray Front Cover W/Cut Logo (Part no. C.1.330.2)
• Pos. 3 – 3GR Drain Tray Front Cover W/Cut Logo (Part no. C.1.330.3)
• Pos. 3 – 4GR Drain Tray Front Cover W/Cut Logo (Part no. C.1.330.4)
• Pos. 4 – Lighted Logo Front GB5/FB80 (Part no. D.6.002)
• Pos. 5 – Screw M3X8 Socket Countersunk A2 (Part no. I.1.004)
• Pos. 6 – Supporto Contatti a Bottone (Part no. F.1.073)
• Pos. 7 – Nut M3 H2 WR5,5 S/S A2 (Part no. DADOINOXM3)
• Pos. 8 – Selftap. Screw 3,5X13 Phil.round-Pan S/S (Part no. I.1.062)
• Pos. 9 – Selftap.screw 2,2X6,5 Phil.round-Pan (Part no. I.1.086)
• Pos. 10 – Supporto Contatti Con Molla (Part no. F.1.074)
• Pos. 11 – Panel Back GB5 2GR (Part no. C.1.015.2.01)
• Pos. 11 – Panel Back GB5 3GR (Part no. C.1.015.3.01)
• Pos. 11 – Panel Back GB5 4GR (Part no. C.1.015.4.01)
• Pos. 12 – Lighted Logo Back GB5/FB80 (Part no. D.6.001)
• Pos. 13 – Power Supply 12VDC 1,3A Logo Leds (Part no. E.2.045)
• Pos. 14 – Fastener Adhesive Support (Part no. 5.V010)
• Pos. 15 – Cable Tie 120x2,5MM High Temperature (Part no. L338/L100.01)

78 – FB80 – Custom Color Painted Body

Loading…

Loading parts…

• Pos. 1 – Panel Back FB80 2GR Custom Color (Part no. C.2.013.2.55)
• Pos. 1 – Panel Back FB80 3GR Custom Color (Part no. C.2.013.3.55)
• Pos. 1 – Panel Back FB80 4GR Custom Color (Part no. C.2.013.4.55)
• Pos. 1 – 2GR FB80 Body Panel Kit Custom Color (Part no. C.2.014.2.55.R)
• Pos. 1 – Set FB80 2GR Panels Shiny Black W/Logo (Part no. C.2.014.2.58.R)
• Pos. 1 – 2GR FB80 Body Panel Kit Red (Part no. C.2.014.2.R)
• Pos. 1 – 3GR FB80 Body Panel Kit Custom Color (Part no. C.2.014.3.55.R)
• Pos. 1 – Set FB80 3GR Panels Shiny Black W/Logo (Part no. C.2.014.3.58.R)
• Pos. 1 – 3GR FB80 Body Panel Kit Red (Part no. C.2.014.3.R)
• Pos. 1 – 4GR FB80 Body Panel Kit Custom Color (Part no. C.2.014.4.55.R)
• Pos. 1 – Set FB80 4GR Panels Shiny Black W/Logo (Part no. C.2.014.4.58.R)
• Pos. 1 – 4GR FB80 Body Panel Kit Red (Part no. C.2.014.4.R)
• Pos. 2 – FB80 Left Side Panel Custom Color (Part no. C.2.011.55)
• Pos. 3 – Panel Right Side FB80 Custom Color (Part no. C.2.012.55)

80 – FB80 – Custom Color Painted Body

Loading…

Loading parts…

• Pos. 1 – Tray Drain GB5 2GR Lighted Logo (Part no. C.1.213.2)
• Pos. 1 – Tray Drain GB5 3GR Lighted Logo (Part no. C.1.213.3)
• Pos. 1 – Tray Drain GB5 4GR Lighted Logo (Part no. C.1.213.4)
• Pos. 2 – GB5 Right Drain Tray Corner Lit Logo (Part no. C.2.062)
• Pos. 3 – 2GR Drain Tray Front Cover W/Cut Logo (Part no. C.1.330.2)
• Pos. 3 – 3GR Drain Tray Front Cover W/Cut Logo (Part no. C.1.330.3)
• Pos. 3 – 4GR Drain Tray Front Cover W/Cut Logo (Part no. C.1.330.4)
• Pos. 4 – Lighted Logo Front GB5/FB80 (Part no. D.6.002)
• Pos. 5 – Screw M3X8 Socket Countersunk A2 (Part no. I.1.004)
• Pos. 6 – Supporto Contatti a Bottone (Part no. F.1.073)
• Pos. 7 – Nut M3 H2 WR5,5 S/S A2 (Part no. DADOINOXM3)
• Pos. 8 – Selftap. Screw 3,5X13 Phil.round-Pan S/S (Part no. I.1.062)
• Pos. 9 – Selftap.screw 2,2X6,5 Phil.round-Pan (Part no. I.1.086)
• Pos. 10 – Supporto Contatti Con Molla (Part no. F.1.074)
• Pos. 11 – Panel Back FB80 2GR Red (Part no. C.2.013.2)
• Pos. 11 – Panel Back FB80 3GR Red (Part no. C.2.013.3)
• Pos. 11 – Panel Back FB80 4GR Red (Part no. C.2.013.4)
• Pos. 12 – Lighted Logo Back GB5/FB80 (Part no. D.6.001)
• Pos. 13 – Power Supply 12VDC 1,3A Logo Leds (Part no. E.2.045)
• Pos. 14 – Fastener Adhesive Support (Part no. 5.V010)
• Pos. 15 – Cable Tie 120x2,5MM High Temperature (Part no. L338/L100.01)

82 – Heating Elements

Loading…

Loading parts…

• Pos. 1 – Retrofit Kit Cupwarmer 2GR GB5/Classic (Part no. 9/370.R)
• Pos. 1 – Retrofit Kit Cupwarmer 3GR GB5/Classic (Part no. 9/371.R)
• Pos. 1 – Retrofit Kit Cupwarmer 4GR (Part no. 9/372.R)
• Pos. 2 – GB5/Linea 234GR Cupwarmer Harness (Part no. E.4.040.01)
• Pos. 2 – UL Male Connector (Part no. L265/M_UL)
• Pos. 3 – Screw M3X16 Cheese (Part no. VITE3X16)
• Pos. 4 – Safety Thermostat 1P 90C 250V (Part no. L265)
• Pos. 5 – Screw M3X8 Phillips Round-Pan A2 (Part no. VITE3X8)
• Pos. 6 – Kit Cupwarmer 2GR GB5 Multiple Heat. EL. (Part no. SA945.2.R)
• Pos. 6 – Kit Cupwarmer 3GR GB5 Multiple Heat. EL. (Part no. SA945.3.R)
• Pos. 6 – Kit Cupwarmer 4GR GB5 Multiple Heat. EL. (Part no. SA945.4.R)

84 – Heating Elements

Loading…

Loading parts…

• Pos. 1 – Gasket Cylindrical Flat D55XD42X2 (Part no. LR360)
• Pos. 2 – Heat.elem W4000 V380 CM50 1-1/4 4POLE (Part no. E.6.008.03)
• Pos. 2 – Heat.elem W4000 V220 CM50 1-1/4 4POLE (Part no. E.6.009.03)
• Pos. 2 – Heat.elem W5000 V220 CM50 1-1/4 4POLE (Part no. E.6.010.03)
• Pos. 2 – Heat.elem W3000 V220 CM50 1-1/4 4POLE (Part no. E.6.019.01)
• Pos. 2 – Heat.elem W3800 V220 CM50 1-1/4 4POLE (Part no. E.6.020.01)
• Pos. 2 – Heat.elem W3000 V380 CM50 1-1/4 4POLE (Part no. E.6.021.01)
• Pos. 2 – Heat.elem W4000 V200 CM50 1-1/4 4POLE TR (Part no. E.6.023)
• Pos. 2 – Heat.elem W5000 V380 CM50 1-1/4 4POLE TR (Part no. E.6.025)
• Pos. 2 – Heat.elem W3000 V200 CM50 1-1/4 4POLE TR (Part no. E.6.027)
• Pos. 2 – Heat.elem W5000 V200 CM65 1-1/4 4POLE TR (Part no. E.6.028)
• Pos. 2 – Heat.elem W5000 V220 CM65 1-1/4 4POLE TR (Part no. E.6.029)
• Pos. 2 – Heating Element W2000 V220 CM29 1-1/4 (Part no. LR342/220B.04)
• Pos. 2 – Heating Element W3000 V200 CM39 1-1/4 (Part no. LR357/200B.04)
• Pos. 2 – Heating Element W3000 V220 CM39 1-1/4 (Part no. LR357/220B.04)
• Pos. 2 – Heating Element W3000 V380 CM39 1-1/4 (Part no. LR357/380B.04)
• Pos. 3 – Cupwarmer Heating Element 280W 220V (Part no. LR370)
• Pos. 3 – Cupwarmer Heating Element 400W 220V (Part no. LR371)
• Pos. 3 – Cupwarmer Heating Element 600W 220V (Part no. LR372)
• Pos. 4 – Heating Element W1600 V380 CM65 1-1/4 (Part no. LR364/380.04)
• Pos. 4 – Heating Element W1400 V220 CM43 1-1/4 (Part no. LR365/220.04)
• Pos. 4 – Heating Element W1400 V380 CM43 1-1/4 (Part no. LR365/380.04)
• Pos. 4 – Heating Element W1900 V220 CM66 1-1/4 (Part no. LR366/220.04)
• Pos. 4 – Heating Element W1900 V380 CM66 1-1/4 (Part no. LR366/380.04)

86 – Electrical System and Pump

Loading…

Loading parts…

• Pos. 1 – Pump 200 LT/H (Part no. L290/2.01)
• Pos. 2 – Motor Pump 150L/H 220V 50Hz (Part no. 900)
• Pos. 2 – Motor Pump 150L/H 200V 50-60Hz (Part no. 900/200)
• Pos. 2 – Motor Pump 150L/H 240V-415V 50-60HZ (Part no. 900/5UL)
• Pos. 2 – Motor Pump 200L/H 240V-415V 50-60HZ (Part no. 900/P)
• Pos. 2 – Motor Pump 200L/H 220V 50Hz (Part no. 900/P5)
• Pos. 2 – Motor Pump 200L/H 240V 50-60HZ Etl (Part no. 900/PUL)
• Pos. 2 – Motor Pump 150L/H 240V 50-60HZ Etl (Part no. 900/UL)
• Pos. 2 – UL Motor V.220-240 50/60 HZ (Part no. L290/8UL)
• Pos. 3 – Pump Clamp (Part no. L290/C)
• Pos. 4 – Check Valve G3/8M Treated (Part no. L032/P.02)
• Pos. 5 – Nipple G3/8-3/8 Compression TR. (Part no. L306/G.01)
• Pos. 6 – 10microF Capacitor (L290/8UL Motor) (Part no. L290/CUL)
• Pos. 7 – UL Fuse Holder (Part no. E.2.004)
• Pos. 8 – La Marzocco Sicherung 3,15 A (E.2.073) (Part no. E.2.073)
• Pos. 9 – Electronic Board Lily (Part no. E.1.001)
• Pos. 9 – GB5 MP Brain (Part no. E.1.001.GB5MP)
• Pos. 9 – Brain Lily EE Version (Part no. E.1.010.01)
• Pos. 10 – Triac - Brain Cable (Part no. E.4.004)
• Pos. 11 – 3D5 Button Box Cable CM110 (Part no. LAD3D5/C05)
• Pos. 12 – 3D5 Button Box Cable CM140 (Part no. LAD3D5/C06)
• Pos. 13 – Tea Cable GB5 EE (Part no. E.4.011)
• Pos. 14 – Filter Emc (Part no. L206.01)
• Pos. 15 – 2x22nF+0,1microF Filter (Part no. E.2.030)
• Pos. 16 – La Marzocco SSR 25A 240V Relais (E.4.010.01.R) (Part no. E.4.010.01.R)
• Pos. 16 – SSR 50A 240V W/Thermal Compound (Part no. E.4.029.R)
• Pos. 16 – SSR 25A 480V W/Thermal Compound (Part no. E.4.035.R)
• Pos. 17 – Lily Board Connectors (Part no. E.1.001.9/13)
• Pos. 18 – Fan Cover - Pump Motor UL (Part no. F.6.004)
• Pos. 19 – Plastic Fan Cover - Pump Motor (Part no. L290/6)
• Pos. 20 – CE Motor V.220-230 Hz.50 (Part no. L290/5)
• Pos. 20 – Motor Pump 200V 50/60HZ (Part no. L290/7)
• Pos. 21 – 6,3microF Capacitor (L290/5 Motor) (Part no. L290/5C)
• Pos. 21 – 8microF Capacitor (L290/7 Motor) (Part no. L290/7C)
• Pos. 22 – Pump 150 LT/H (Part no. L290/1.01)
• Pos. 23 – Nipple G3/8M-G3/8M WR20 H31 TR. (Part no. L305/N.01)
• Pos. 24 – Rapid IP67 Connector for Pump Cable (Part no. E.4.044)
• Pos. 25 – SSR - Brain Cable (Part no. E.4.004.01)
• Pos. 26 – Keypad with Aluminium Switch (Part no. E.1.009)
• Pos. 27 – La Marzocco Kupferscheibe 3/8 Zoll (L180/1) (Part no. L180/1)
• Pos. 28 – Electric Cover Box for L290/8UL (Part no. F.1.203)
• Pos. 29 – Electric Cover Box for L290/5 (Part no. F.1.202)
• Pos. 30 – Triac for GB/5 Boiler Includ. E.4.004 (Part no. E.1.006.R)

88 – Portafilters

Loading…

Loading parts…

• Pos. 1 – Portafilter Single Spout Brass (Part no. L111/1)
• Pos. 2 – Spout 1 Cup W/Treatment for Sanitation (Part no. L115.01)
• Pos. 3 – Cup Portafilter Brass with Handle (Part no. L111/LM12.01)
• Pos. 4 – Portafilter Double Spout Brass (Part no. L111/2N)
• Pos. 5 – Spout 2 Cups W/Treatment for Sanitation (Part no. L119.01)
• Pos. 6 – Screw for Double Spout (Part no. L119/V)
• Item 7 – La Marzocco stainless steel portafilter with double spout and rubberised handle (L111/2NAC) (Part no. L111/2NAC)
• Pos. 8 – La Marzocco Edelstahl Doppelauslauf (A.5.014.01) (Part no. A.5.014.01)
• Pos. 9 – La Marzocco O-RING für Siebträger Auslauf (H.1.017) (Part no. H.1.017)
• Pos. 9 – O-Ring 3,37X9,21 EPDM (Part no. H.1.017.02)
• Pos. 10 – Cup Portafilter with Handle (Part no. L111/SS.R)
• Item 11 – La Marzocco stainless steel portafilter with single spout and rubberised handle (L111/1AC) (Part no. L111/1AC)
• Pos. 12 – La Marzocco Edelstahl 1er Auslauf (A.5.013.01) (Part no. A.5.013.01)
• Pos. 13 – Portafilter Fixed Double Spout (Part no. A.5.079)
• Pos. 14 – Portafilter Fixed Double Spout Maple (Part no. A.5.127)
• Pos. 14 – Portafilter Fixed Double Spout Walnut (Part no. A.5.129)
• Item 15 – La Marzocco bottomless portafilter with rubberised handle (L111/X.01) (Part no. L111/X.01)
• Pos. 16 – Portafilter Naked Walnut (Part no. A.5.060)
• Pos. 16 – Portafilter Naked Maple (Part no. A.5.061)
• Pos. 17 – Portafilter Fixed Single Spout (Part no. A.5.078)
• Pos. 18 – Portafilter Fixed Single Spout Maple (Part no. A.5.126)
• Pos. 18 – Portafilter Fixed Single Spout Walnut (Part no. A.5.128)
• Pos. 19 – Portafilter Double Spout Maple (Part no. L111/2MW.R)
• Pos. 19 – Portafilter Double Spout Walnut (Part no. L111/2WW.R)
• Pos. 20 – Portafilter Single Spout Maple (Part no. L111/1MW.R)
• Pos. 20 – Portafilter Single Spout Walnut (Part no. L111/1WW.R)
• Item 21 – La Marzocco bottomless portafilter without handle (A.5.040) (Part no. A.5.040)
• Pos. 22 – Portafilter Handle Walnut (Part no. F.5.001)
• Pos. 22 – Portafilter Handle Maple (Part no. F.5.003)
• Pos. 23 – La Marzocco Edelstahl Siebträger ohne Griff (L111/SS.03) (Part no. L111/SS.03)
• Pos. 24 – Base Portafilter W/Double Sput Mach. (Part no. A.5.112)
• Pos. 25 – Base Portafilter W/Sinlge Spout Mach (Part no. A.5.111)
• Item 26 – La Marzocco portafilter handle, rubberised (F.2.042) (Part no. F.2.042)
• Pos. 27 – Cup Portafilter Brass (Part no. L111/M12.01)

90 – Filter

Loading…

Loading parts…

• Pos. 1 – Filter 1 Cup (Part no. L115/A)
• Pos. 2 – Single Filter (Part no. L115/A/S)
• Pos. 3 – 19mm Swift Filter Basket (Part no. 5.128)
• Pos. 4 – 22mm Swift Filter Basket (Part no. 5.127)
• Pos. 5 – Triple Swift Filter Basket (Part no. 5.133)
• Pos. 6 – Filter 7 GR Standard (Part no. F.3.029.GR)
• Pos. 7 – Filter 7 GR Standard Italy (Part no. F.3.053)
• Pos. 8 – Filter 8 GR Standard (Part no. F.3.150)
• Pos. 9 – Filter 9 GR Standard (Part no. F.3.134)
• Pos. 10 – Filter 14 GR Standard (Part no. F.3.028.01)
• Pos. 11 – Filter 17 GR Standard (Part no. F.3.027.01)
• Pos. 12 – Filter 19 GR Standard (Part no. F.3.135)
• Pos. 13 – Filter 21 GR Standard (Part no. F.3.026.01)
• Pos. 14 – La Marzocco randloses Sieb 14 Gramm (F.3.080) (Part no. F.3.080)
• Pos. 15 – La Marzocco randloses Sieb 17 Gramm (F.3.079) (Part no. F.3.079)
• Pos. 16 – La Marzocco randloses Sieb 21 Gramm (F.3.081) (Part no. F.3.081)
• Pos. 17 – Filter 7 GR X Italia (Part no. F.3.054.X)
• Pos. 18 – La Marzocco “X Filter” getestetes & zertifiziertes Sieb 7 Gramm (F.3.029.X) (Part no. F.3.029.X)
• Pos. 19 – La Marzocco “X Filter” getestetes & zertifiziertes Sieb 14 Gramm (F.3.028.X) (Part no. F.3.028.X)
• Pos. 20 – La Marzocco “X Filter” getestetes & zertifiziertes Sieb 17 Gramm (F.3.027.X) (Part no. F.3.027.X)
• Pos. 21 – La Marzocco “X Filter” getestetes & zertifiziertes Sieb 21 Gramm (F.3.026.X) (Part no. F.3.026.X)
• Pos. 22 – La Marzocco Haltefeder Siebträger (L113) (Part no. L113)
• Pos. 23 – La Marzocco Blindsieb (L115/C) (Part no. L115/C)
• Pos. 24 – Aluminum Single-Double Tamper (Part no. F.3.045)
• Pos. 25 – Anodized Double Tamper US Version (Part no. F.3.031.01)
• Pos. 26 – Filter 14/16 GR LA Marzocco by Ims (Part no. F.3.162)
• Pos. 26 – Filter 16/18 GR LA Marzocco by Ims (Part no. F.3.163)
• Pos. 26 – Filter 2 Cups (Part no. L116/A)

92 – Portafilter Assembly

Loading…

Loading parts…

• Pos. 1 – 2 Precision Portafilter Kit (Part no. 931-2)
• Pos. 2 – 3 Precision Portafilter Kit (Part no. 931-3)
• Pos. 2 – 4 Precision Portafilter Kit (Part no. 931-4)
• Pos. 3 – 4x 17g Precision Filter Basket Kit (Part no. 932)
• Pos. 3 – 4x 14g S/S Precision Filter Basket Kit (Part no. 947)
• Pos. 3 – 4x 21g Precision Filter Basket Kit (Part no. 948)

94 – Hose and Accessories

Loading…

Loading parts…

• Pos. 1 – Braided Hose G3/8F 50CM (Part no. L305/050.01)
• Pos. 1 – Braided Hose 3/8COMPR. 50CM Nsf (Part no. L306/050)
• Pos. 2 – Braided Hose G3/8F 120CM (Part no. L305/120.01)
• Pos. 2 – Braided Hose 3/8COMPR. 120CM Nsf (Part no. L306/120)
• Pos. 3 – Braided Hose G3/8F 210CM (Part no. L305/210.01)
• Pos. 3 – Braided Hose G3/8F 210CM Nsf (Part no. L306/210)
• Pos. 3 – Braided Hose G3/8F 90° 210CM Nsf (Part no. L306/210/C)
• Pos. 3 – Braided Hose 3/8COMPR. 210CM Nsf (Part no. T.5.003)
• Pos. 4 – Clear Armoured Drain Hose (Part no. L308)
• Pos. 5 – Hose Clamp 16/25 H9 W2 AISI430 (Part no. L312)
• Pos. 6 – Heating Element Tool 40/42 (Part no. UT360/42)
• Pos. 7 – La Marzocco Kaffeefettlöser / Puly Caff (F.9.021) (Part no. F.9.021)
• Pos. 8 – Bent Wrench WR14 for Group Tube (Part no. UT107)
• Pos. 9 – MP O-Ring Extractor (Part no. UT004)
• Pos. 10 – Paddle Cap Section (Part no. UT103)
• Pos. 11 – Chiave a Brugola 0.3 Brunita (Part no. UT002)
• Pos. 11 – Allen Key 5 with Ball End (Part no. UT005)
• Pos. 12 – Kit Avr Programmer - USB Complete (Part no. E.4.025.02)
• Pos. 13 – La Marzocco Wassertest Kit (F.9.000.02) (Part no. F.9.000.02)
• Pos. 14 – Digital Tds Meter (Part no. F.9.003)
• Pos. 15 – Htc Thermal Compound Syringe 2ML (Part no. F.1.065)
• Pos. 16 – Bent Wrench WR13 for Group Tube (Part no. UT108)
• Pos. 17 – Water Test Kit (Part no. 941)
• Pos. 18 – La Marzocco Dichtungswerkzeug (UT008) (Part no. UT008)
• Pos. 19 – Tool for Tightening Steam Wand Fitting (Part no. UT367)
• Pos. 20 – Food Grade Slicone Grease 111 KG 1 (Part no. V073)
• Pos. 20 – Grasso Parker Super Lube 55gr (Part no. V076)
• Pos. 20 – Vaseline Grease Lubritex 0.900KG (Part no. V078)
• Pos. 20 – Loxeal 58-11 Flüssigdichtmittel (Part no. V099)
