Spare parts

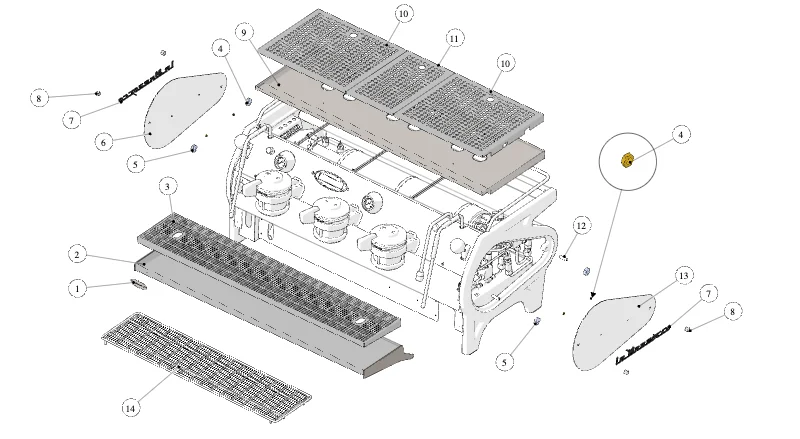

07 – Body Panel Assembly

Loading…

Loading parts…

• Pos. 1 – Oval LM Decal Strada (Part no. D.4.004)
• Pos. 2 – Tray Drain Strada 3GR (Part no. C.1.089.03)
• Pos. 2 – Tray Drain Strada 2GR (Part no. C.1.115.03)
• Pos. 3 – Grid Drain Strada 3GR (Part no. C.1.090.01)
• Pos. 3 – Grid Drain Strada 2GR (Part no. C.1.116.01)
• Pos. 4 – Nut M4 H3 WR7 (Part no. DADO4M)
• Pos. 5 – Spacer 8,4X25X6 AL (Part no. F.6.001.01)
• Pos. 6 – Panel Right Side Strada MP (Part no. C.1.098)
• Pos. 7 – Logo LA Marzocco Strada Black W/Studs M3 (Part no. D.4.011)
• Pos. 8 – Cap Nut M8 H12 WR 13 (Part no. I.1.036)
• Pos. 9 – Tray Cupwarmer Strada 3GR (Part no. C.1.092.01)
• Pos. 9 – Tray Cupwarmer Strada 2GR (Part no. C.1.112.01)
• Pos. 10 – Large Cup Tray Grid Strada (Part no. C.1.093.01)
• Pos. 11 – Grid Cupwarmer 197MM Strada 3GR (Part no. C.1.094)
• Pos. 12 – Socket Grub Screw M8X30 A2 (Part no. I.1.032)
• Pos. 13 – Panel Left Side Strada MP (Part no. C.1.097)
• Pos. 14 – Wire Grid Strada 2GR (Part no. C.1.269.2)
• Pos. 14 – Wire Grid Strada 3GR (Part no. C.1.269.3)

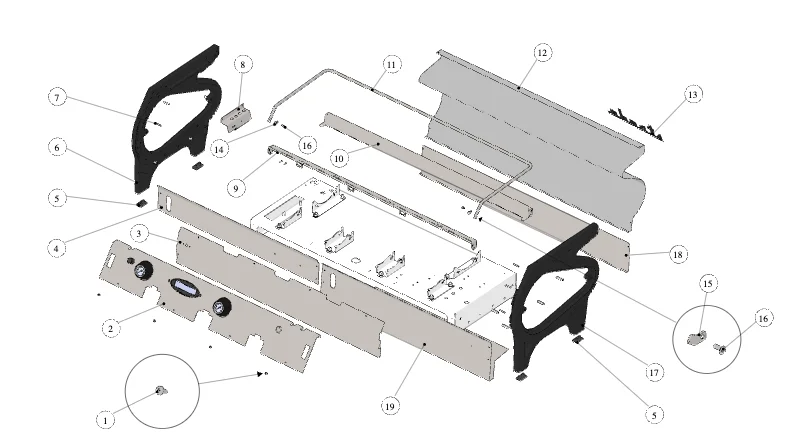

09 – Body Panel Assembly

Loading…

Loading parts…

• Pos. 1 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)
• Pos. 2 – Panel Upper Front Strada 3GR (Part no. C.1.081.01)
• Pos. 2 – Front Upper Pan. Strada 3GR MP Custom C. (Part no. C.1.081.55)
• Pos. 2 – Panel Upper Front Strada 2GR (Part no. C.1.109)
• Pos. 2 – Penel Upper Front Strada 2MP Custom Col. (Part no. C.1.109.55)
• Pos. 3 – Strada 3GR Front Middle Panel (Part no. C.1.082)
• Pos. 3 – Pann. Front Int. Strada 3 GR Custom Col. (Part no. C.1.082.55)
• Pos. 3 – Panel Middle Front Strada 2GR (Part no. C.1.110)
• Pos. 3 – Front Middle Panel Strada 2GR Custom Col (Part no. C.1.110.55)
• Pos. 4 – Strada 3GR Front Lower Panel (Part no. C.1.083.01)
• Pos. 5 – Rubber Foot (Part no. F.2.026)
• Pos. 6 – Strada Black Left Frame Panel W/Holes (Part no. C.3.005.SX.03)
• Pos. 7 – Socket Grub Screw M5X25 S/S A2 (Part no. I.1.052)
• Pos. 8 – Bracket Terminal Block Strada (Part no. C.1.086)
• Pos. 9 – Tie Rod Front 3GR (Part no. C.1.077.01)
• Pos. 9 – Tie Rod Front 2GR (Part no. C.1.106.01)
• Pos. 10 – Tie Rod Back Strada 3GR (Part no. C.1.078)
• Pos. 10 – Tie Rod Back Strada 2GR (Part no. C.1.107)
• Pos. 11 – Railing Strada 3GR (Part no. C.1.096)
• Pos. 11 – Railing Strada 2GR (Part no. C.1.113)
• Pos. 12 – Panel Back Strada 3GR (Part no. C.1.084)
• Pos. 12 – Panel Back Strada 2GR (Part no. C.1.114)
• Pos. 13 – Logo Strada Black for Panel Back (Part no. D.3.009)
• Pos. 14 – Bracket Left Railing Lock Strada (Part no. C.1.088.SX)
• Pos. 15 – Bracket Right Railing Lock Strada (Part no. C.1.088.DX)
• Pos. 16 – Screw M5X10 Phillips Countersunk S/S A2 (Part no. I.1.056)
• Pos. 17 – Strada Black Right Frame Panel W/Holes (Part no. C.3.005.DX.03)
• Pos. 18 – Panel Back Lower Strada 2GR Black (Part no. C.1.170.60)
• Pos. 18 – Panel Back Lower Strada 3GR Black (Part no. C.1.171.60)
• Pos. 19 – Strada 3GR Front Lower Panel (Part no. C.1.245)

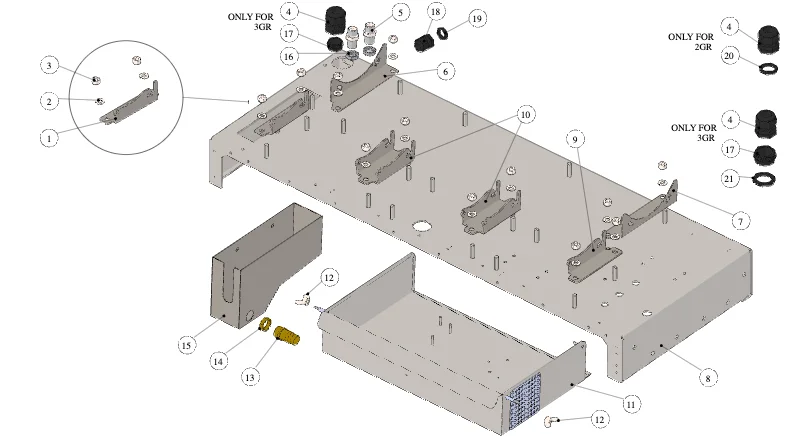

11 – Body Panel Assembly

Loading…

Loading parts…

• Pos. 1 – Bracket Left Coffee Boiler Strada (Part no. C.1.073)
• Pos. 2 – Washer 8,5X14X1,5 A2 (Part no. L1003)
• Pos. 3 – Nut M8 H8 WR13 S/S A2 (Part no. L1002)
• Pos. 4 – Cord Grips PG21 (Part no. L322/G)
• Pos. 6 – Bracket Left Steam Boiler Strada (Part no. C.1.071)
• Pos. 7 – Bracket Right Steam Boiler Strada (Part no. C.1.072)
• Pos. 8 – Frame Base Strada 3GR (Part no. C.1.070.03)
• Pos. 8 – Frame Base Strada 2GR (Part no. C.1.104.03)
• Pos. 9 – Bracket Right Coffee Boiler Strada (Part no. C.1.076)
• Pos. 10 – Bracket Central Coffee Boiler Strada (Part no. C.1.102)
• Pos. 11 – Electronic Box Strada 3GR (Part no. C.1.079.01)
• Pos. 11 – Electronic Box Strada 2GR (Part no. C.1.105.01)
• Pos. 12 – Wing Nut M6 H5 S/S A2 (Part no. I.1.003)
• Pos. 13 – Hose Fitting G1/2 WR22 D20 Di16 (Part no. L037/2PGR)
• Pos. 14 – Nut G1/2 H6 WR24 (Part no. A.1.006)
• Pos. 15 – Drain Box Strada (Part no. C.1.080)
• Pos. 16 – Nut G3/8 H6 WR21 Treated (Part no. L183/1.01)
• Pos. 17 – Reducer Cord Grips PG29 (Part no. F.1.097)
• Pos. 18 – Cord Grips PG13,5 (Part no. L322/P)
• Pos. 19 – Nut Cord Grips PG13,5 Black (Part no. I.6.010)
• Pos. 20 – Nut Cord Grips PG21 Black (Part no. I.6.009)
• Pos. 21 – Nut Cord Grips PG29 (Part no. I.6.008)

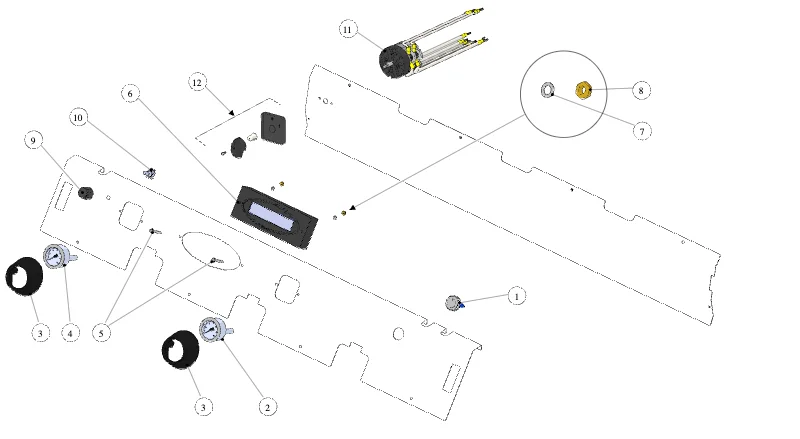

13 – Control Panel Assembly

Loading…

Loading parts…

• Pos. 1 – Switch Hot Water W/White LED with Riser (Part no. E.2.051.R)
• Pos. 2 – Press.gauge 0-18 Black W/LED + Capillary (Part no. E.3.014)
• Pos. 3 – Pressure Gauge Bracket Strada (Part no. F.1.024)
• Pos. 4 – Pressure Gauge 0-3 W/LED + Capillary (Part no. E.3.008)
• Pos. 4 – Press.gauge 0-3 Black W/LED + Capillary (Part no. E.3.015)
• Pos. 5 – Keypad Screw (Part no. I.2.001.01)
• Pos. 6 – Display Lcd White Strada EE W/Box (Part no. E.1.040)
• Pos. 7 – Tooth Lock Washer 8X14,7X2 A2 (Part no. ROND_DENT_4)
• Pos. 8 – Nut M4 H3 WR7 (Part no. DADO4M)
• Pos. 9 – Encoder Knob (Part no. E.2.020)
• Pos. 10 – Encoder W/Connectors (Part no. E.2.021.01)
• Pos. 11 – Switch Double-Pole 42A W/Wires Iec/UL (Part no. E.2.001.04)
• Pos. 11 – Switch Triple-Pole 20A W/Wires Iec/UL (Part no. E.2.002.04)
• Pos. 11 – Switch Triple-Pole 42A W/Wires Iec/UL (Part no. E.2.069.01)
• Pos. 12 – Kit Complete Main Switch Bremas (Part no. F.1.183)

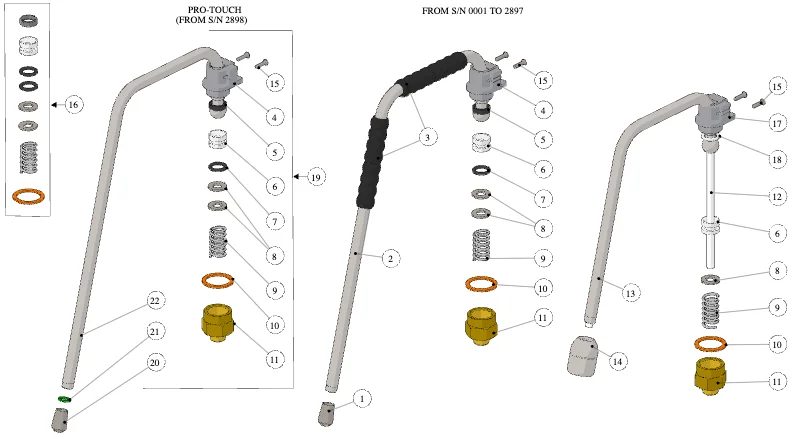

15 – Steam and Hot Water Assembly

Loading…

Loading parts…

• Pos. 1 – Steam Tip D1,6 (Part no. A.5.015)
• Pos. 2 – Steam Wand S/S Strada (Part no. T.2.122)
• Pos. 3 – La Marzocco Gummierung GS3 Dampflanze (F.2.017) (Part no. F.2.017)
• Pos. 4 – Dampflanzen Halterung Strada & GS3 (A.5.006.01) (Part no. A.5.006.01)
• Pos. 5 – Steam Wand Bushing (Part no. F.1.029)
• Pos. 6 – Gasket Ball Joint Wand D14,5MM Pom (Part no. H.2.003.01)
• Pos. 7 – O-Ring 2,62X10,77 EPDM 70 ShA (Part no. H.1.004)
• Pos. 8 – Washer 8,5X14X1,5 A2 (Part no. L1003)
• Pos. 9 – Spring Compres. WD 2,5 OD 15,5 L 18 S/S (Part no. F.3.156)
• Pos. 10 – Washer 21X27X1,5 (Part no. L260/1A)
• Pos. 11 – Fitting G1/4M-M20F WR24 H31 Treated (Part no. F.4.007.02)
• Pos. 12 – PTFE Tube 1/8-1/4 (Part no. T.3.001)
• Pos. 13 – Hot Water Wand Strada W/PTFE (Part no. T.2.121.R)
• Pos. 14 – La Marzocco Heißwasserauslauf (L160/3.02) (Part no. L160/3.02)
• Pos. 15 – Screw M3X12 Phillips Countersunk A2 (Part no. I.1.045)
• Pos. 16 – La Marzocco Verschleiß Kit Dampflanze (SA210.K) (Part no. SA210.K)
• Pos. 18 – O-Ring 2,62x12,37 PTFE (Part no. H.1.044)
• Pos. 19 – Retrofit Kit Pro Touch Strada (Part no. 918)
• Pos. 20 – La Marzocco Dampfdüse Pro Touch 1,5 mm (A.5.050) (Part no. A.5.050)
• Pos. 21 – O-RING 1,78 x 7,65 VITON 70 ShA (H.1.027) (Part no. H.1.027)
• Pos. 22 – Steam Wand Pro Touch Treated (Part no. T.2.005)

17 – Steam Valve Assembly

Loading…

Loading parts…

• Pos. 1 – Nut M10 H7,8 WR17 S/S A2 (Part no. I.1.034)
• Pos. 2 – Potentiometer + Support Assembly (Part no. E.2.033.R)
• Pos. 3 – Wiper X Potenziometro 2 - 6 N (Part no. E.2.033.SC)
• Pos. 4 – Wiper Support (Part no. A.1.023)
• Pos. 5 – Washer 5,4X10X1 A2 (Part no. I.1.039)
• Pos. 6 – Washer 10.7X30X1.8 A2 (Part no. I.1.033)
• Pos. 7 – Belleville Spring 10X20X1,3 (Part no. I.5.003)
• Pos. 8 – Washer 10X30X2 PTFE (Part no. F.1.032)
• Pos. 9 – Stud for Steam Valve Cam (Part no. I.1.037)
• Pos. 10 – Shaped Washer. Wiper Strada EP (Part no. I.1.050)
• Pos. 11 – Cam Steam Lever Strada (Part no. F.1.027)
• Pos. 12 – Lever Steam Valve Strada (Part no. A.5.012)
• Pos. 13 – Steam Lever Knob Strada (Part no. F.1.023)
• Pos. 14 – Cam Bushing PTFE Strada Steam (Part no. F.4.011.01)
• Pos. 15 – Strada Steam Lever Bracket (Part no. C.1.085.02)
• Pos. 16 – Strada Steam Assembly Right Side (Part no. 990-VDX)
• Pos. 16 – Strada Steam Assembly Left Side (Part no. 990-VSX)

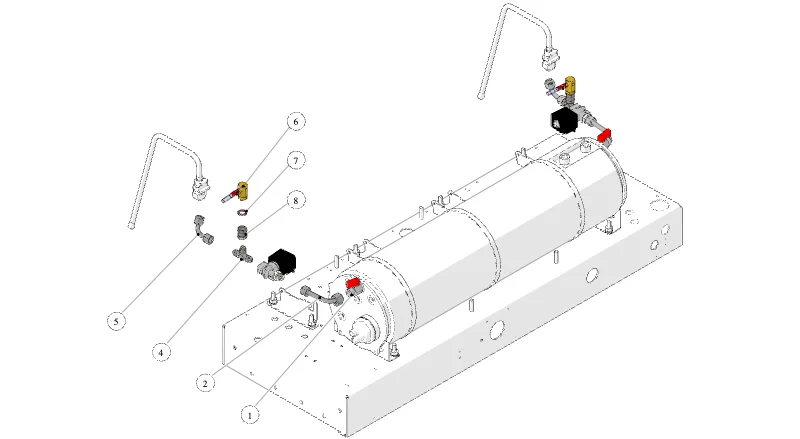

19 – Hydraulic Assembly

Loading…

Loading parts…

• Pos. 1 – Ball Valve G3/8M-G3/8M Treated (Part no. L164/MM.02)
• Pos. 2 – Tube S.b. - Prop. Solenoid V. Strada TR. (Part no. T.1.073.01)
• Pos. 3 – Solenoid Valve Prop. 2 Way D5,5 24V (Part no. B.2.020.01)
• Pos. 4 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
• Pos. 5 – Tube Prop.solenoid V.-Steam Wand TR. (Part no. T.1.128.01)
• Pos. 7 – La Marzocco copper washer 1/4 inch (L100/1A) (Part no. L100/1A)
• Pos. 8 – Fitting G1/4F-G1/8F WR17 H21,6 Treated (Part no. A.5.154)

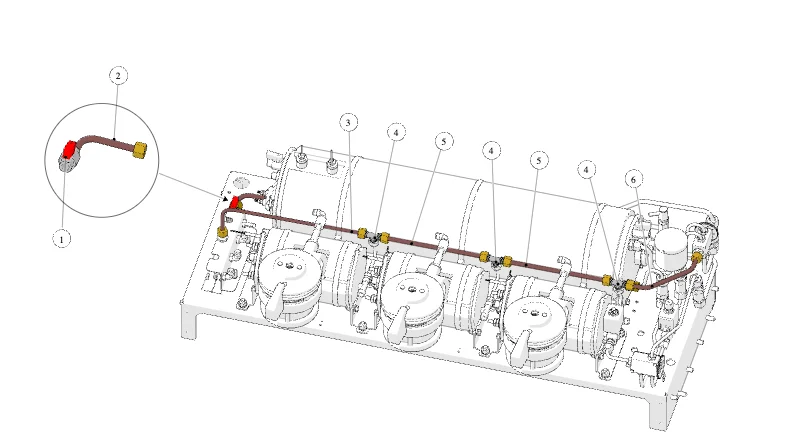

21 – Hydraulic Assembly

Loading…

Loading parts…

• Pos. 1 – Ball Valve G3/8M-G3/8M Treated (Part no. L164/MM.02)
• Pos. 2 – Drain Tube Steam Boiler Strada (Part no. T.1.123)
• Pos. 3 – Tube C.B.1 Tee - Exp.valve Strada 3MP (Part no. T.1.114)
• Pos. 3 – Tube Coffee B.1 - EXP.V.1 Strada EP (Part no. T.1.137)
• Pos. 4 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
• Pos. 5 – Tube Coffee B. Connection Strada MP (Part no. T.1.113)
• Pos. 6 – Tube Mix V. - Coffee B. Tee Strada (Part no. T.1.111)

23 – Hydraulic Assembly

Loading…

Loading parts…

• Pos. 1 – Gicleur 1,5 M5 CH5 Treated (Part no. B.2.011.01)
• Pos. 2 – Tube Pre-Heater - Mixing Valve Strada (Part no. T.1.107)
• Pos. 3 – Tube Mixing Valve - Pre-Heater Strada (Part no. T.1.106)
• Pos. 4 – Tube Inlet Manifold-Check V. Coffee 3GR (Part no. T.1.103)
• Pos. 4 – Tube Inlet Manifold - Check V.coffee 2GR (Part no. T.1.140)
• Pos. 5 – Tube Inlet Manifold - Check V. Steam 3GR (Part no. T.1.105)
• Pos. 5 – Tube Inlet Manifold - Check V. Steam 2GR (Part no. T.1.141)
• Pos. 6 – Check Valve G3/8M Treated (Part no. L032/P.02)
• Pos. 8 – Tube Check V. - Tea Mix V. Strada (Part no. T.1.115)
• Pos. 9 – Nipple G1/4M-G1/4M WR19 H21,5 (Part no. A.5.019)
• Pos. 10 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 11 – Mixing Valve Kit (Part no. 1058)
• Pos. 12 – Thermostatic Valve Adjustment Knob (Part no. F.1.016)
• Pos. 13 – Screw M4X6 Cheese Brass (Part no. VITE4X6)

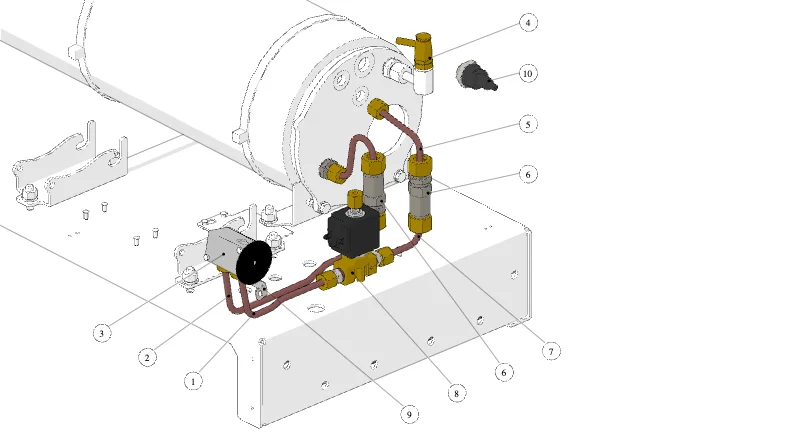

25 – Hydraulic Assembly

Loading…

Loading parts…

• Pos. 1 – Tube Mix V.-Autofill Solenoid V. Strada (Part no. T.1.116)
• Pos. 2 – Tube Check V. - Mix V. Hot Water Strada (Part no. T.1.120)
• Pos. 5 – Tube Check Valve - In. Steam B. Strada (Part no. T.1.118)
• Pos. 6 – Check Valve G3/8M Treated (Part no. L032/P.02)
• Pos. 7 – Tube Autofill Solenoid V. - Check Valve (Part no. T.1.117)
• Pos. 8 – La Marzocco 3-Wege Magnet Ventil 220 / 240V (L100/E.02) (Part no. L100/E.02)
• Pos. 8 – Solenoid Valve 3 Way 200V (Part no. L100/E200.01)
• Pos. 9 – Bracket Mixing Valve Hot Water Strada (Part no. C.1.087)
• Pos. 10 – La Marzocco Verschleißset Unterdruckventil SMA (1037) (Part no. 1037)
• Pos. 10 – La Marzocco Unterdruckventil SMA (neue Version) (B.2.029.01) (Part no. B.2.029.01)

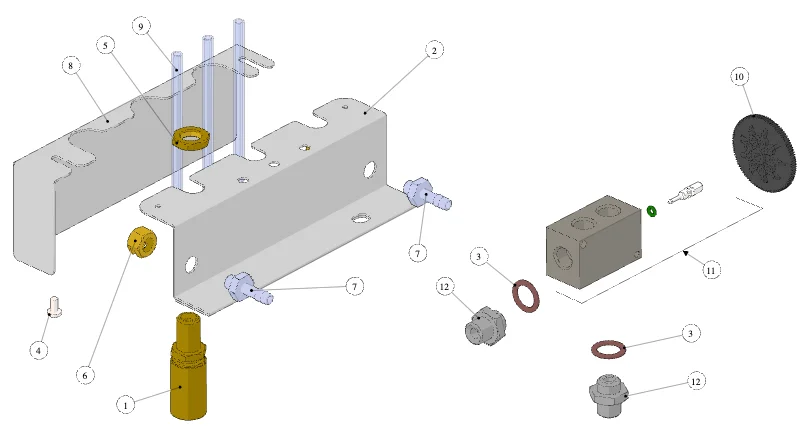

27 – Fitting and Valves

Loading…

Loading parts…

• Pos. 1 – La Marzocco Expansionsventil (L140_C) (Part no. L140_C)
• Pos. 2 – Bracket Drains Support Strada (Part no. C.1.095.01)
• Pos. 3 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 4 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)
• Pos. 5 – Nut G1/4 H4,5 WR19 (Part no. L146)
• Pos. 7 – GS/3 Tube Fitting (Part no. L292)
• Pos. 8 – Cover Drains Strada (Part no. C.1.118)
• Pos. 9 – PTFE Tube 6x4mm (Part no. T.3.006)
• Pos. 10 – Thermostatic Valve Adjustment Knob (Part no. F.1.016)
• Pos. 11 – Mixing Valve Kit (Part no. 1058)
• Pos. 12 – Nipple G1/4M-G1/4M WR19 H21,5 (Part no. A.5.019)

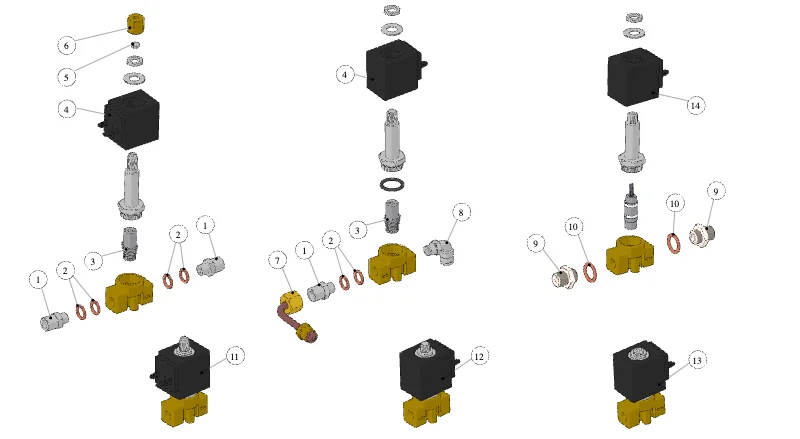

29 – Fitting and Valves

Loading…

Loading parts…

• Pos. 1 – Nipple G1/8M-G1/4M WR17 (Part no. A.5.156)
• Pos. 2 – La Marzocco Kupferscheibe 1/8 Zoll (L100/D) (Part no. L100/D)
• Pos. 3 – La Marzocco Anker / Plunger Magnetventil (L100/H) (Part no. L100/H)
• Pos. 4 – SV Coil 220-240V 8W UL Csa Vde (Part no. L100/G.01)
• Pos. 4 – Solenoid Coil 200V (Part no. L100/G200)
• Pos. 5 – La Marzocco Blind Ferrule 8X4 (L134/4) (Part no. L134/4)
• Pos. 6 – La Marzocco Fitting G1/8F H14 WR14 D4 (L134) (Part no. L134)
• Pos. 7 – Tube Mixing Valve-Tea Solenoid V.strada (Part no. T.1.121)
• Pos. 8 – Fitting Push-In 90° 1/4”-G1/8M Ppsu (Part no. A.2.101.02)
• Pos. 9 – Nipple G1/4M-G1/4M WR19 H21,5 (Part no. A.5.019)
• Pos. 10 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 11 – La Marzocco 3-Wege Magnet Ventil 220 / 240V (L100/E.02) (Part no. L100/E.02)
• Pos. 11 – Solenoid Valve 3 Way 200V (Part no. L100/E200.01)
• Pos. 12 – Solenoid Valve 2 Way 220/240V (Part no. L053.02)
• Pos. 12 – Solenoid Valve 2 Way 200V (Part no. L053/200.01)
• Pos. 13 – Solenoid Valve Prop. 2 Way D5,5 24V (Part no. B.2.020.01)
• Pos. 14 – Solenoid Valve Coil for B.2.020 (Part no. B.2.018)

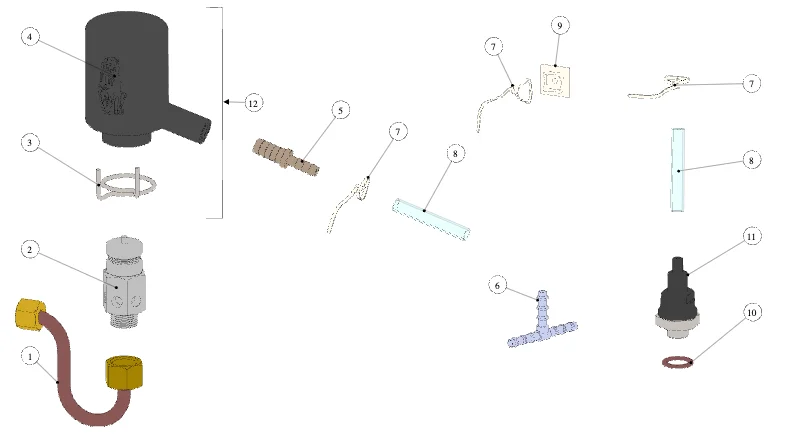

31 – Fitting and Valves

Loading…

Loading parts…

• Pos. 2 – Safety Valve G3/8 1,8 Bar No Tea (Part no. B.2.024.01)
• Pos. 3 – La Marzocco Haltefeder 2,5X32 Sicherheitsventil Gehäuse (I.8.003) (Part no. I.8.003)
• Pos. 4 – La Marzocco Sicherheitsventil Gehäuse (F.2.062) (Part no. F.2.062)
• Pos. 5 – La Marzocco Schlauchanschluss D10 auf D6 (F.8.021) (Part no. F.8.021)
• Pos. 6 – Hose Connector Tee-Shape D6,3 Di4 Pvdf (Part no. A.7.001.01)
• Pos. 7 – Cable Tie 120x2,5MM High Temperature (Part no. L338/L100.01)
• Pos. 8 – Antisuction Valve Silicone Tube (Part no. T.4.001)
• Pos. 9 – Fastener Adhesive Support (Part no. 5.V010)
• Pos. 10 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 11 – La Marzocco Verschleißset Unterdruckventil SMA (1037) (Part no. 1037)
• Pos. 11 – La Marzocco Unterdruckventil SMA (neue Version) (B.2.029.01) (Part no. B.2.029.01)
• Pos. 12 – La Marzocco Sicherheitsventil Gehäuse Set (F.2.062.R) (Part no. F.2.062.R)

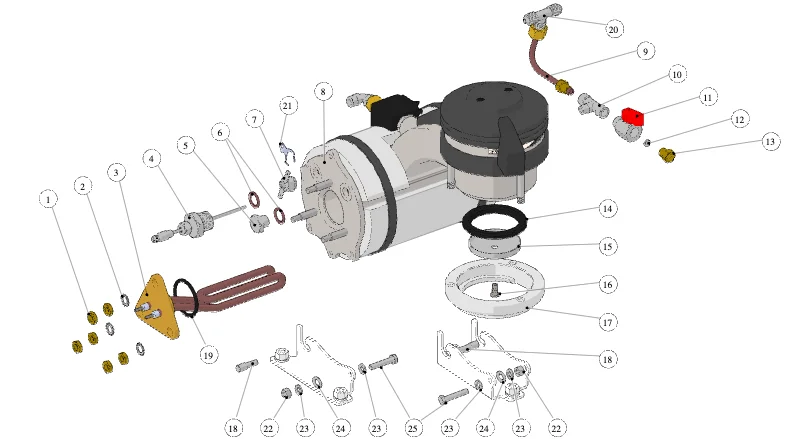

33 – Coffee Boiler

Loading…

Loading parts…

• Pos. 1 – La Marzocco Mutter M8 H5 WR13 (I.1.025) (Part no. I.1.025)
• Pos. 2 – Washer 3X6X0,5 A2 (Part no. ROND_DENT_8)
• Pos. 3 – La Marzocco Heizung 800W, 220V (E.6.004.03) (Part no. E.6.004.03)
• Pos. 3 – Heating Element W500 V200 Triang. Flange (Part no. E.6.006.03)
• Pos. 4 – La Marzocco PT1000 Temperaturfühler 100mm (E.1.005) (Part no. E.1.005)
• Pos. 5 – Cap G1/4 H15,5 WR19 (Part no. A.5.022)
• Pos. 6 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 8 – Coffee Boiler Flat Side 1GR (Part no. L.1.001.01.R)
• Pos. 9 – Tube Coffee Boiler - Tee Fitting Strada (Part no. T.1.112)
• Pos. 10 – Tee Fitting R1/8M-G1/8F-G1/8F WR10 TR (Part no. A.2.012.01)
• Pos. 11 – La Marzocco Kugelhahn G1/8M auf G1/8F (B.2.016.01) (Part no. B.2.016.01)
• Pos. 12 – La Marzocco Blind Ferrule 8X4 (L134/4) (Part no. L134/4)
• Pos. 13 – Fitting G1/8M H16 WR13 (Part no. L133)
• Pos. 14 – Group Gasket NBR 72/63x55x8 (Part no. H.3.001)
• Pos. 14 – Group Gasket NBR 72/63x55x9 (Part no. H.3.002)
• Pos. 14 – La Marzocco Silikon Siebträger Dichtung (H.3.007) (Part no. H.3.007)
• Pos. 14 – Portafilter Gasket 6MM (Part no. L105/B6)
• Pos. 14 – Portafilter Gasket 7MM (Part no. L105/B7)
• Pos. 15 – La Marzocco Duschsieb (F.3.040.01) (Part no. F.3.040.01)
• Pos. 16 – La Marzocco Verteilerschraube / Diffusor (A.5.110) (Part no. A.5.110)
• Pos. 17 – Bayonet Ring Bar Machine (Part no. L109.02)
• Pos. 18 – Coffee Boiler Pin Strada S/S (Part no. A.5.011)
• Pos. 19 – La Marzocco O-Ring Heizung Dampf- / Brühboiler (F.2.014.01) (Part no. F.2.014.01)
• Pos. 20 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
• Pos. 21 – L276.01 Bracket (Part no. L276.01S)
• Pos. 22 – Nut M6 H5 WR10 A2 (Part no. I.1.049)
• Pos. 23 – Tooth Lock Washer 4X8X1 (Part no. RONDELLA6X12)
• Pos. 24 – Split Washer 6X11X1,5 S/S A2 (Part no. I.1.087)
• Pos. 25 – Screw M6X20 Hex Head (Part no. I.1.058)

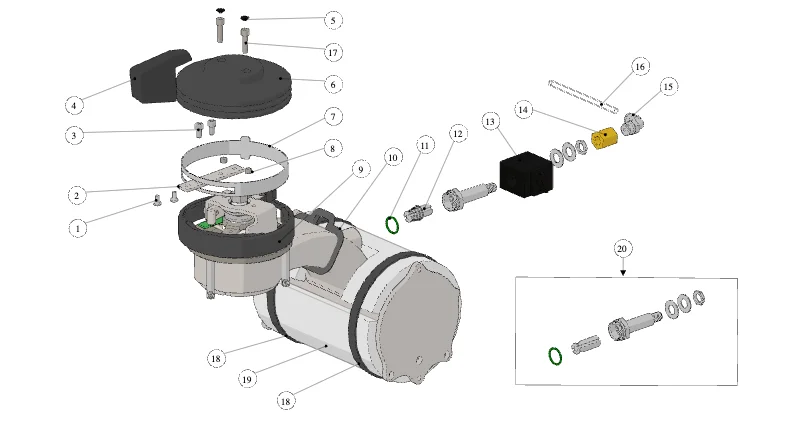

35 – Coffee Boiler

Loading…

Loading parts…

• Pos. 1 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)
• Pos. 2 – Extension Lever Group EP (Part no. C.1.125.01)
• Pos. 3 – Screw M5X10 Socket Cap A2 (Part no. I.1.005)
• Pos. 4 – Handle Paddle Linea (Part no. C.2.020)
• Pos. 5 – Cap D9 for Socket Head M5 ES4 Ldpe Black (Part no. F.1.022)
• Pos. 6 – Exposed Group Cover (Part no. F.1.020)
• Pos. 7 – Ring W/Slot Exposed Group (Part no. C.1.068.02)
• Pos. 8 – Spacer 4X6X4 (Part no. I.1.029)
• Pos. 9 – Exposed Group Cover Ring Strada (Part no. F.1.021.S)
• Pos. 10 – Strada Group Neck Silicone Gasket (Part no. F.1.025)
• Pos. 11 – O-RING 1,78 X 15,6 Viton 70 SHA (H.1.022) (Part no. H.1.022)
• Pos. 12 – La Marzocco Anker / Plunger Magnetventil (L100/H) (Part no. L100/H)
• Pos. 13 – SV Coil 220-240V 8W UL Csa Vde (Part no. L100/G.01)
• Pos. 13 – Solenoid Coil 200V (Part no. L100/G200)
• Pos. 14 – Fitting G1/4F-G1/8F WR17 (Part no. A.1.019)
• Pos. 15 – Fitting Push-In 90° 6-R1/4M TR. (Part no. A.2.103)
• Pos. 16 – PTFE Tube 6x4mm (Part no. T.3.006)
• Pos. 17 – Screw M5X25 Socket Cap S/S (Part no. I.1.186)
• Pos. 18 – Kabelbinder Dampfboiler (A.5.016.01) (Part no. A.5.016.01)
• Pos. 19 – Insulation Panel Strada Coffee Boiler (Part no. F.7.001)
• Pos. 20 – La Marzocco 3-Wege Ventil (ohne Spule) (B.2.006.02) (Part no. B.2.006.02)

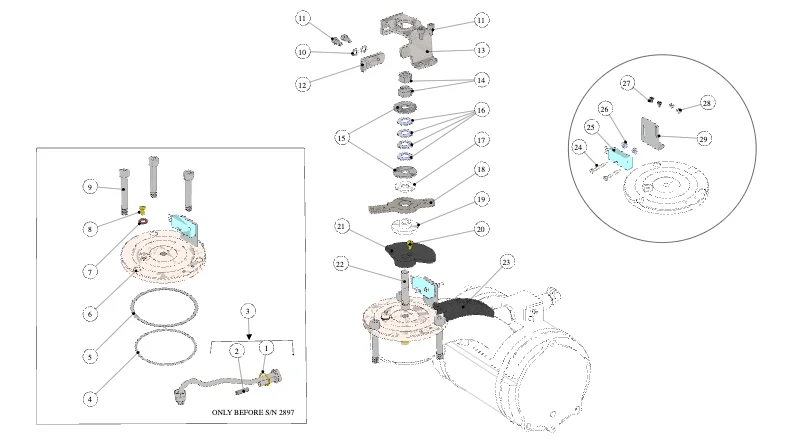

37 – Electronic Paddle and Group

Loading…

Loading parts…

• Pos. 1 – O-RING 1,78 X 15,6 FKM 70 SHA (H.1.009) (Part no. H.1.009)
• Pos. 2 – Gicleur 0,6 M5 Ruby (Part no. F.2.003)
• Pos. 3 – Gicleur 0,8 M5 Ruby And (Part no. F.2.003.08)
• Pos. 3 – Internal Tube GS3 Group Assembly (Part no. TL30.R)
• Pos. 4 – O-RING 75,87 X 2,62 FKM 70 SHA (L103/A) (Part no. L103/A)
• Pos. 5 – Dichtung 87 X 81 X 0,5 (L103/B) (Part no. L103/B)
• Pos. 6 – Group Cap Strada EP in Aisi 316L Retrofi (Part no. A.5.025.R)
• Pos. 7 – La Marzocco Kupferscheibe 6,3 X 12 X 1 (L120/2A) (Part no. L120/2A)
• Pos. 8 – Screw M6X10 Socket Cap A2 (Part no. L120/2)
• Pos. 9 – Screw M8X52 Socket Cap A2 70 (Part no. L110.01)
• Pos. 10 – Washer 5,4X10X1 A2 (Part no. I.1.039)
• Pos. 11 – Screw M5X10 Socket Cap A2 (Part no. I.1.005)
• Pos. 12 – Mechanical Stop Group EP (Part no. C.1.128)
• Pos. 13 – Bracket Group EP (Part no. C.1.123.02)
• Pos. 14 – Nut M10 H7,8 WR17 S/S A2 (Part no. I.1.034)
• Pos. 15 – Washer 10.7X30X1.8 A2 (Part no. I.1.033)
• Pos. 16 – Belleville Spring 10X20X1,3 (Part no. I.5.003)
• Pos. 17 – Washer 10X30X2 PTFE (Part no. F.1.032)
• Pos. 18 – Lever Group EP (Part no. C.1.124.02)
• Pos. 19 – Teflon Group Bushing EP (Part no. F.1.031)
• Pos. 20 – Screw M4X8 Cheese (Part no. VITE4X8)
• Pos. 22 – M10 Pin for Paddle Strada EP (Part no. A.5.017)
• Pos. 23 – Group Wire Protection Strada (Part no. F.1.026)
• Pos. 24 – Screw M3X20 Hex Head A2 (Part no. I.1.055)
• Pos. 25 – Microswitch Kit with Lugs (Part no. E.2.039)
• Pos. 26 – Spacer 3,5X8X2,5 AL (Part no. I.3.004)
• Pos. 27 – Screw M3X10 Phillips Round-Pan A2 (Part no. VITE3X10)
• Pos. 28 – Nut M3 H3 WR5,5 (Part no. DADO3M)
• Pos. 29 – Microswitch Bracket W/Holes (Part no. C.1.328)

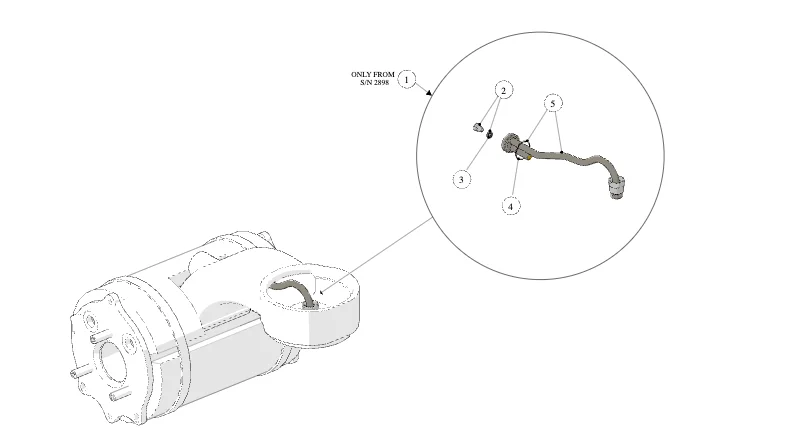

39 – Electronic Paddle and Group

Loading…

Loading parts…

• Pos. 1 – Retrofit Kit Gicleur 0.6 Remov. W/O-Ring (Part no. 933)
• Pos. 2 – La Marzocco Gicleur 0,6 mm (F.3.052.R) (Part no. F.3.052.R)
• Pos. 2 – Gicleur Removable 0,7 W/ Oring (Part no. F.3.060.R)
• Pos. 2 – Gicleur Removable 0,8 W/ Oring (Part no. F.3.061.R)
• Pos. 3 – La Marzocco O-Ring 1,78 x 2,9 FKM 70 ShA (H.1.007.01) (Part no. H.1.007.01)
• Pos. 4 – O-RING 1,78 X 15,6 FKM 70 SHA (H.1.009) (Part no. H.1.009)
• Pos. 5 – Internal Tube for Removalbe Gicler W/Or (Part no. T.1.186.R)

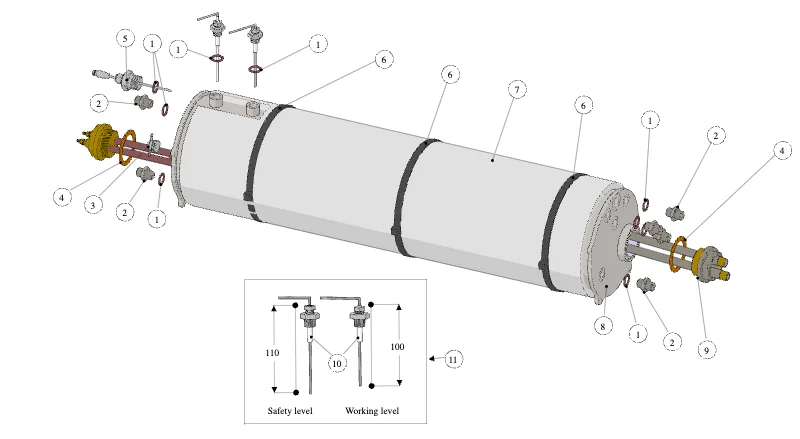

41 – Steam Boiler

Loading…

Loading parts…

• Pos. 1 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
• Pos. 2 – Nipple G1/4M-G1/4M WR19 H25.5 TR. (Part no. L037/3.01)
• Pos. 4 – Gasket Cylindrical Flat D55XD42X2 (Part no. LR360)
• Pos. 5 – La Marzocco PT1000 Temperaturfühler 100mm (E.1.005) (Part no. E.1.005)
• Pos. 6 – Kabelbinder Dampfboiler (A.5.016.01) (Part no. A.5.016.01)
• Pos. 7 – Insulation Panel 2GR Strada Steam B. (Part no. F.7.002.01)
• Pos. 7 – Insulation Panel 3GR Strada Steam B. (Part no. F.7.003.01)
• Pos. 8 – Steam Boiler Flat Side 2GR (Part no. L.1.003.2.R)
• Pos. 8 – Steam Boiler Flat Side 3GR (Part no. L.1.003.3.R)
• Pos. 9 – Preheater 2GR L384 MM W/Y Junction (Part no. T.1.015.02)
• Pos. 9 – Preheater 3/4GR L584 MM W/Y Junction (Part no. T.1.019.02)
• Pos. 10 – Teflon Insulator Probe (Part no. LA052/1)
• Pos. 11 – La Marzocco Füllstandssonde Dampfboiler (LA052) (Part no. LA052)
• Pos. 12 – Safety Thermostat 2P Trip Free 130C 600V (Part no. E.5.005)

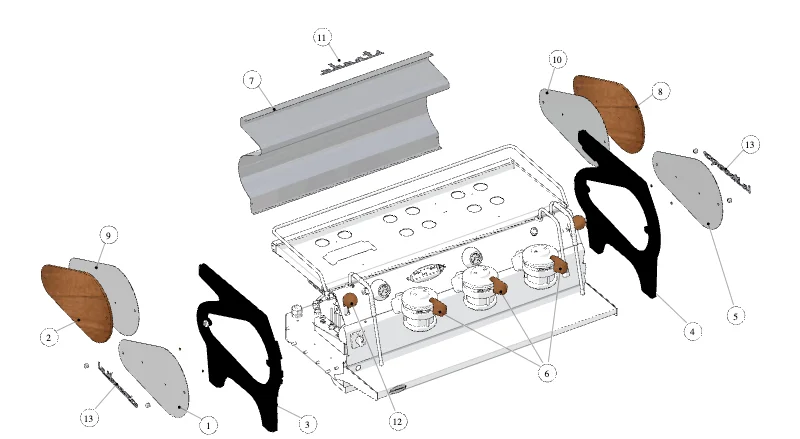

43 – Strada – Customization

Loading…

Loading parts…

• Pos. 1 – Panel Left Side Strada MP Custom Color (Part no. C.1.097.55)
• Pos. 1 – Panel Right Clear Glass 4 Holes Strada (Part no. C.5.018.DX)
• Pos. 2 – Panel Side SX Strada Maple Wood (Part no. F.5.007.SX.MW)
• Pos. 2 – Panel Side SX Strada Walnut Wood (Part no. F.5.007.SX.WW)
• Pos. 3 – Strada Left Frame Panel Custom Color (Part no. C.3.005.SX.55)
• Pos. 4 – Strada Right Frame Panel Custom Color (Part no. C.3.005.DX.55)
• Pos. 5 – Panel Right Side Strada MP Custom Color (Part no. C.1.098.55)
• Pos. 5 – Panel Left Clear Glass 4 Holes Strada (Part no. C.5.018.SX)
• Pos. 6 – Maple Paddle Handle (Part no. C.2.020.MW)
• Pos. 6 – Walnut Paddle Handle (Part no. C.2.020.WW)
• Pos. 7 – Panel Back Strada 3GR Custom Color (Part no. C.1.084.55)
• Pos. 7 – Panel Back Strada 3GR Black (Part no. C.1.084.60)
• Pos. 7 – Panel Back Strada 2GR Custom Color (Part no. C.1.114.55)
• Pos. 7 – Panel Back Strada 2GR Matte Black (Part no. C.1.114.60)
• Pos. 7 – Panel Back Strada 1GR Custom Color (Part no. C.1.258.55)
• Pos. 7 – Pannello Posteriore Strada 1GR Black (Part no. C.1.258.60)
• Pos. 8 – Panel Side DX Strada Maple Wood (Part no. F.5.007.DX.MW)
• Pos. 8 – Panel Side DX Strada Walnut Wood (Part no. F.5.007.DX.WW)
• Pos. 9 – Panel Left Side Strada MP (Part no. C.1.097)
• Pos. 10 – Panel Right Side Strada MP (Part no. C.1.098)
• Pos. 11 – Logo Strada Yellow for Panel Back (Part no. D.3.003)
• Pos. 11 – Logo Strada Red for Panel Back (Part no. D.3.004)
• Pos. 11 – Logo Strada Black for Panel Back (Part no. D.3.009)
• Pos. 11 – Logo Strada White for Panel Back (Part no. D.3.014)
• Pos. 12 – Steam Knob Maple Strada (Part no. F.5.008.MW)
• Pos. 12 – Steam Knob Walnut Strada (Part no. F.5.008.WW)
• Pos. 13 – Logo LA Marzocco Strada Yellow W/Studs (Part no. D.4.001)
• Pos. 13 – Logo LA Marzocco Strada Red (Part no. D.4.002)
• Pos. 13 – Logo LA Marzocco Strada Black W/Studs M3 (Part no. D.4.011)
• Pos. 13 – Logo LA Marzocco Strada White W/Studs M3 (Part no. D.4.012)
• Pos. 13 – Logo LA Marzocco Strada Red W/Studs M3 (Part no. D.4.013)

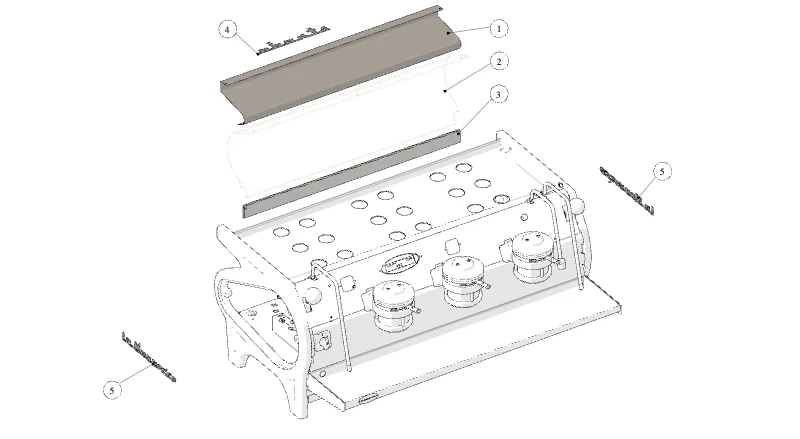

45 – Strada – Transparent Glass Panels

Loading…

Loading parts…

• Pos. 1 – 2GR Strada Rear Panel for Glass (Part no. C.1.240.2)
• Pos. 1 – 3GR Strada Rear Panel for Glass (Part no. C.1.240.3)
• Pos. 3 – Glass Back Housing 2GR (Part no. C.1.241.2)
• Pos. 3 – Glass Back Housing 3GR (Part no. C.1.241.3)
• Pos. 4 – Logo Strada Yellow for Panel Back (Part no. D.3.003)
• Pos. 4 – Logo Strada Red for Panel Back (Part no. D.3.004)
• Pos. 4 – Logo Strada Black for Panel Back (Part no. D.3.009)
• Pos. 4 – Logo Strada White for Panel Back (Part no. D.3.014)
• Pos. 5 – Logo LA Marzocco Strada Red (Part no. D.4.002)

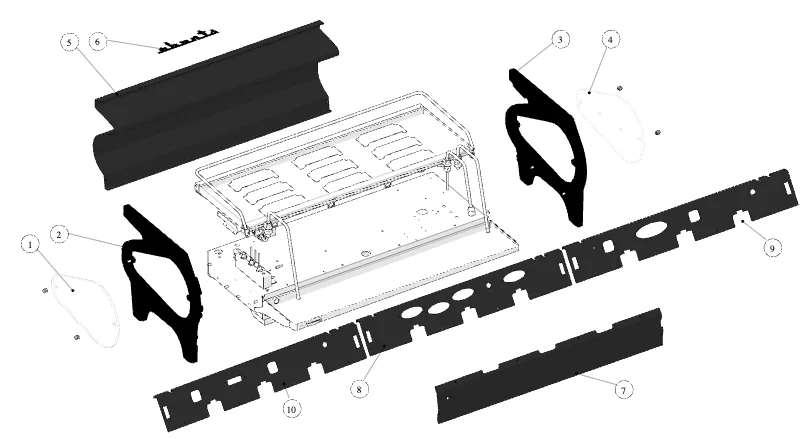

47 – Strada – Flat Black Edition

Loading…

Loading parts…

• Pos. 1 – Panel Left Side Glass W/Lion Strada (Part no. C.5.006)
• Pos. 2 – Strada Black Left Frame Panel W/Holes (Part no. C.3.005.SX.03)
• Pos. 3 – Strada Black Right Frame Panel W/Holes (Part no. C.3.005.DX.03)
• Pos. 4 – Panel Right Side Glass W/Lion Strada (Part no. C.5.005)
• Pos. 5 – Panel Back Strada 3GR Black (Part no. C.1.084.60)
• Pos. 5 – Panel Back Strada 2GR Matte Black (Part no. C.1.114.60)
• Pos. 5 – Pannello Posteriore Strada 1GR Black (Part no. C.1.258.60)
• Pos. 6 – Logo Strada Black for Panel Back (Part no. D.3.009)
• Pos. 7 – Pannello Front Int. Strada 3 GR Nero (Part no. C.1.082.60)
• Pos. 7 – Front Middle Panel Strada 2GR Black (Part no. C.1.110.60)
• Pos. 7 – 1GR Front Middle Panel Strada Black (Part no. C.1.248.60)
• Pos. 8 – Panel Upper Front Strada 3EP Black (Part no. C.1.101.60)
• Pos. 8 – Panel Upper Front Strada 2EP Matte Black (Part no. C.1.108.60)
• Pos. 8 – Panel Upper Front Strada 1EP Matte Black (Part no. C.1.247.60)
• Pos. 9 – Panel Upper Front Strada 3GR Black (Part no. C.1.081.60)
• Pos. 9 – Panel Upper Front Strada 2GR Black (Part no. C.1.109.60)
• Pos. 10 – Panel Upper Front Strada 2AV Black (Part no. C.1.235.60)
• Pos. 10 – Panel Upper Front Strada 3AV Black (Part no. C.1.236.60)
• Pos. 10 – Panel Upper Front Strada 2AV W/Cupwarmer (Part no. C.1.238.60)
• Pos. 10 – Panel Upper Front Strada 3AV W/Cupwarmer (Part no. C.1.239.60)

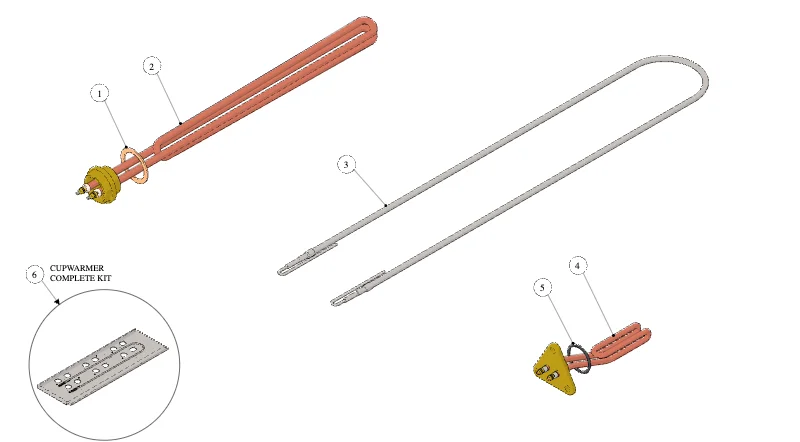

49 – Heating Elements

Loading…

Loading parts…

• Pos. 1 – Gasket Cylindrical Flat D55XD42X2 (Part no. LR360)
• Pos. 2 – Heat.elem W4000 V380 CM50 1-1/4 4POLE (Part no. E.6.008.03)
• Pos. 2 – Heat.elem W4000 V220 CM50 1-1/4 4POLE (Part no. E.6.009.03)
• Pos. 2 – Heat.elem W4000 V200 CM50 1-1/4 4POLE TR (Part no. E.6.023)
• Pos. 2 – Heating Element W3000 V200 CM39 1-1/4 (Part no. LR357/200B.04)
• Pos. 2 – Heating Element W3000 V220 CM39 1-1/4 (Part no. LR357/220B.04)
• Pos. 2 – Heating Element W3000 V380 CM39 1-1/4 (Part no. LR357/380B.04)
• Pos. 3 – Cupwarmer Heating Element 280W 220V (Part no. LR370)
• Pos. 3 – Cupwarmer Heating Element 400W 220V (Part no. LR371)
• Pos. 3 – Cupwarmer Heating Element 600W 220V (Part no. LR372)
• Pos. 4 – La Marzocco Heizung 800W, 220V (E.6.004.03) (Part no. E.6.004.03)
• Pos. 4 – Heating Element W500 V200 Triang. Flange (Part no. E.6.006.03)
• Pos. 5 – La Marzocco O-Ring Heizung Dampf- / Brühboiler (F.2.014.01) (Part no. F.2.014.01)
• Pos. 6 – Kit Cupwarmer Strada 2GR (Part no. 9.370.STR.R)
• Pos. 6 – Kit Cupwarmer Strada 3GR (Part no. 9.371.STR.R)

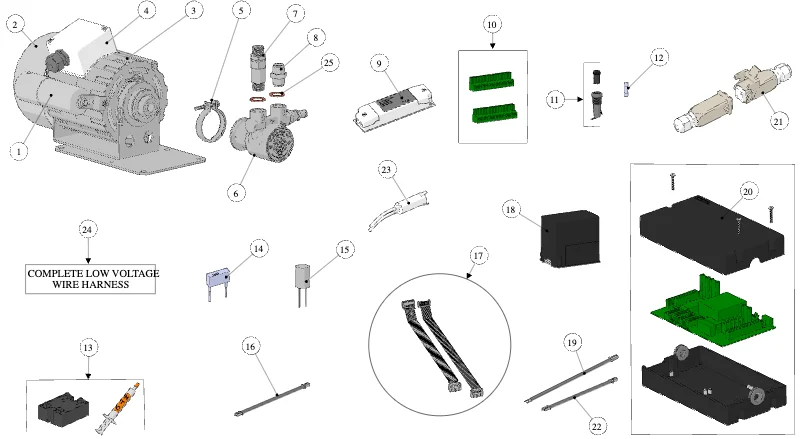

51 – Electrical System and Pump

Loading…

Loading parts…

• Pos. 1 – 10microF Capacitor (L290/8UL Motor) (Part no. L290/CUL)
• Pos. 2 – Fan Cover - Pump Motor UL (Part no. F.6.004)
• Pos. 3 – UL Motor V.220-240 50/60 HZ (Part no. L290/8UL)
• Pos. 4 – Electric Cover Box for L290/5 (Part no. F.1.202)
• Pos. 5 – Pump Clamp (Part no. L290/C)
• Pos. 6 – Pump 150 LT/H (Part no. L290/1.01)
• Pos. 6 – Pump 200 LT/H (Part no. L290/2.01)
• Pos. 7 – Check Valve G3/8M Treated (Part no. L032/P.02)
• Pos. 8 – Nipple G3/8M-G3/8M WR20 H31 TR. (Part no. L305/N.01)
• Pos. 8 – Nipple G3/8-3/8 Compression TR. (Part no. L306/G.01)
• Pos. 9 – Electric Cover Box for L290/8UL (Part no. F.1.203)
• Pos. 9 – Kit Barista Lights Etl Power S. W/Wiring (Part no. E.4.024.01.R)
• Pos. 10 – Lily Board Connectors (Part no. E.1.001.9/13)
• Pos. 11 – UL Fuse Holder (Part no. E.2.004)
• Pos. 12 – La Marzocco Sicherung 3,15 A (E.2.073) (Part no. E.2.073)
• Pos. 13 – La Marzocco SSR 25A 240V Relais (E.4.010.01.R) (Part no. E.4.010.01.R)
• Pos. 13 – SSR 50A 240V W/Thermal Compound (Part no. E.4.029.R)
• Pos. 13 – SSR 25A 480V W/Thermal Compound (Part no. E.4.035.R)
• Pos. 14 – Filter Emc (Part no. L206.01)
• Pos. 15 – 2x22nF+0,1microF Filter (Part no. E.2.030)
• Pos. 16 – Tea Cable Strada (Part no. E.4.054)
• Pos. 17 – 3D5 Button Box Cable CM110 (Part no. LAD3D5/C05)
• Pos. 18 – Steam Proportional SV Electronic Board (Part no. E.1.026)
• Pos. 19 – SSR - Brain Cable (Part no. E.4.004.01)
• Pos. 20 – Brain Strada EE (Part no. E.1.001.S.EE)
• Pos. 21 – Rapid IP67 Connector for Pump Cable (Part no. E.4.044)
• Pos. 22 – Triac - Brain Cable (Part no. E.4.004)
• Pos. 23 – LED Kit for Strada Manometer (Part no. E.4.122.R)
• Pos. 24 – Wiring Harness Strada 3EE Low Voltage (Part no. E.4.144.01)
• Pos. 24 – Wiring Harness Strada 2EE Low Voltage (Part no. E.4.152.01)
• Pos. 25 – La Marzocco Kupferscheibe 3/8 Zoll (L180/1) (Part no. L180/1)

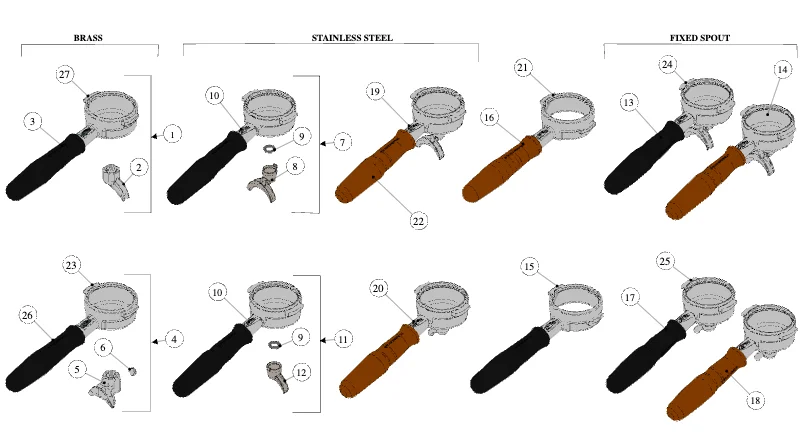

53 – Portafilters

Loading…

Loading parts…

• Pos. 1 – Portafilter Single Spout Brass (Part no. L111/1)
• Pos. 2 – Spout 1 Cup W/Treatment for Sanitation (Part no. L115.01)
• Pos. 3 – Cup Portafilter Brass with Handle (Part no. L111/LM12.01)
• Pos. 4 – Portafilter Double Spout Brass (Part no. L111/2N)
• Pos. 5 – Spout 2 Cups W/Treatment for Sanitation (Part no. L119.01)
• Pos. 6 – Screw for Double Spout (Part no. L119/V)
• Item 7 – La Marzocco stainless steel portafilter with double spout and rubberised handle (L111/2NAC) (Part no. L111/2NAC)
• Pos. 8 – La Marzocco Edelstahl Doppelauslauf (A.5.014.01) (Part no. A.5.014.01)
• Pos. 9 – La Marzocco O-RING für Siebträger Auslauf (H.1.017) (Part no. H.1.017)
• Pos. 9 – O-Ring 3,37X9,21 EPDM (Part no. H.1.017.02)
• Pos. 10 – Cup Portafilter with Handle (Part no. L111/SS.R)
• Item 11 – La Marzocco stainless steel portafilter with single spout and rubberised handle (L111/1AC) (Part no. L111/1AC)
• Pos. 12 – La Marzocco Edelstahl 1er Auslauf (A.5.013.01) (Part no. A.5.013.01)
• Pos. 13 – Portafilter Fixed Double Spout (Part no. A.5.079)
• Pos. 14 – Portafilter Fixed Double Spout Maple (Part no. A.5.127)
• Pos. 14 – Portafilter Fixed Double Spout Walnut (Part no. A.5.129)
• Item 15 – La Marzocco bottomless portafilter with rubberised handle (L111/X.01) (Part no. L111/X.01)
• Pos. 16 – Portafilter Naked Walnut (Part no. A.5.060)
• Pos. 16 – Portafilter Naked Maple (Part no. A.5.061)
• Pos. 17 – Portafilter Fixed Single Spout (Part no. A.5.078)
• Pos. 18 – Portafilter Fixed Single Spout Maple (Part no. A.5.126)
• Pos. 18 – Portafilter Fixed Single Spout Walnut (Part no. A.5.128)
• Pos. 19 – Portafilter Double Spout Maple (Part no. L111/2MW.R)
• Pos. 19 – Portafilter Double Spout Walnut (Part no. L111/2WW.R)
• Pos. 20 – Portafilter Single Spout Maple (Part no. L111/1MW.R)
• Pos. 20 – Portafilter Single Spout Walnut (Part no. L111/1WW.R)
• Item 21 – La Marzocco bottomless portafilter without handle (A.5.040) (Part no. A.5.040)
• Pos. 22 – Portafilter Handle Walnut (Part no. F.5.001)
• Pos. 22 – Portafilter Handle Maple (Part no. F.5.003)
• Pos. 23 – La Marzocco Edelstahl Siebträger ohne Griff (L111/SS.03) (Part no. L111/SS.03)
• Pos. 24 – Base Portafilter W/Double Sput Mach. (Part no. A.5.112)
• Pos. 25 – Base Portafilter W/Sinlge Spout Mach (Part no. A.5.111)
• Item 26 – La Marzocco portafilter handle, rubberised (F.2.042) (Part no. F.2.042)
• Pos. 27 – Cup Portafilter Brass (Part no. L111/M12.01)

55 – Filter

Loading…

Loading parts…

• Pos. 1 – Filter 1 Cup (Part no. L115/A)
• Pos. 2 – Single Filter (Part no. L115/A/S)
• Pos. 3 – 19mm Swift Filter Basket (Part no. 5.128)
• Pos. 4 – 22mm Swift Filter Basket (Part no. 5.127)
• Pos. 5 – Triple Swift Filter Basket (Part no. 5.133)
• Pos. 6 – Filter 7 GR Standard (Part no. F.3.029.GR)
• Pos. 7 – Filter 7 GR Standard Italy (Part no. F.3.053)
• Pos. 8 – Filter 8 GR Standard (Part no. F.3.150)
• Pos. 9 – Filter 9 GR Standard (Part no. F.3.134)
• Pos. 10 – Filter 14 GR Standard (Part no. F.3.028.01)
• Pos. 11 – Filter 17 GR Standard (Part no. F.3.027.01)
• Pos. 12 – Filter 19 GR Standard (Part no. F.3.135)
• Pos. 13 – Filter 21 GR Standard (Part no. F.3.026.01)
• Pos. 14 – La Marzocco randloses Sieb 14 Gramm (F.3.080) (Part no. F.3.080)
• Pos. 15 – La Marzocco randloses Sieb 17 Gramm (F.3.079) (Part no. F.3.079)
• Pos. 16 – La Marzocco randloses Sieb 21 Gramm (F.3.081) (Part no. F.3.081)
• Pos. 17 – Filter 7 GR X Italia (Part no. F.3.054.X)
• Pos. 18 – La Marzocco “X Filter” getestetes & zertifiziertes Sieb 7 Gramm (F.3.029.X) (Part no. F.3.029.X)
• Pos. 19 – La Marzocco “X Filter” getestetes & zertifiziertes Sieb 14 Gramm (F.3.028.X) (Part no. F.3.028.X)
• Pos. 20 – La Marzocco “X Filter” getestetes & zertifiziertes Sieb 17 Gramm (F.3.027.X) (Part no. F.3.027.X)
• Pos. 21 – La Marzocco “X Filter” getestetes & zertifiziertes Sieb 21 Gramm (F.3.026.X) (Part no. F.3.026.X)
• Pos. 22 – La Marzocco Haltefeder Siebträger (L113) (Part no. L113)
• Pos. 23 – La Marzocco Blindsieb (L115/C) (Part no. L115/C)
• Pos. 24 – Aluminum Single-Double Tamper (Part no. F.3.045)
• Pos. 25 – Anodized Double Tamper US Version (Part no. F.3.031.01)
• Pos. 26 – Filter 14/16 GR LA Marzocco by Ims (Part no. F.3.162)
• Pos. 26 – Filter 16/18 GR LA Marzocco by Ims (Part no. F.3.163)
• Pos. 26 – Filter 2 Cups (Part no. L116/A)

57 – Portafilter Assembly

Loading…

Loading parts…

• Pos. 1 – 2 Precision Portafilter Kit (Part no. 931-2)
• Pos. 2 – 3 Precision Portafilter Kit (Part no. 931-3)
• Pos. 2 – 4 Precision Portafilter Kit (Part no. 931-4)
• Pos. 3 – 4x 17g Precision Filter Basket Kit (Part no. 932)
• Pos. 3 – 4x 14g S/S Precision Filter Basket Kit (Part no. 947)
• Pos. 3 – 4x 21g Precision Filter Basket Kit (Part no. 948)

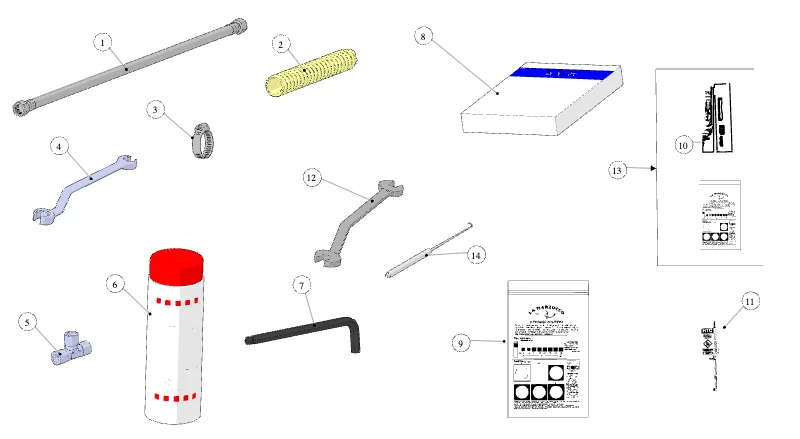

59 – Hose and Accessories

Loading…

Loading parts…

• Pos. 1 – Braided Hose G3/8F 50CM (Part no. L305/050.01)
• Pos. 1 – Braided Hose G3/8F 120CM (Part no. L305/120.01)
• Pos. 1 – Braided Hose G3/8F 210CM (Part no. L305/210.01)
• Pos. 1 – Braided Hose 3/8COMPR. 50CM Nsf (Part no. L306/050)
• Pos. 1 – Braided Hose 3/8COMPR. 120CM Nsf (Part no. L306/120)
• Pos. 1 – Braided Hose G3/8F 210CM Nsf (Part no. L306/210)
• Pos. 1 – Braided Hose G3/8F 90° 210CM Nsf (Part no. L306/210/C)
• Pos. 1 – Braided Hose 3/8COMPR. 210CM Nsf (Part no. T.5.003)
• Pos. 2 – Clear Armoured Drain Hose (Part no. L308)
• Pos. 3 – Hose Clamp 16/25 H9 W2 AISI430 (Part no. L312)
• Pos. 4 – Bent Wrench WR14 for Group Tube (Part no. UT107)
• Pos. 5 – Tee Fitting R3/8M WR17 Treated (Part no. A.2.022.01)
• Pos. 6 – La Marzocco Kaffeefettlöser / Puly Caff (F.9.021) (Part no. F.9.021)
• Pos. 7 – Allen Key 5 with Ball End (Part no. UT005)
• Pos. 8 – Kit Avr Programmer - USB Complete (Part no. E.4.025.02)
• Pos. 9 – La Marzocco Wassertest Kit (F.9.000.02) (Part no. F.9.000.02)
• Pos. 10 – Digital Tds Meter (Part no. F.9.003)
• Pos. 11 – Htc Thermal Compound Syringe 2ML (Part no. F.1.065)
• Pos. 12 – Bent Wrench WR13 for Group Tube (Part no. UT108)
• Pos. 13 – Water Test Kit (Part no. 941)
• Pos. 14 – La Marzocco Dichtungswerkzeug (UT008) (Part no. UT008)
