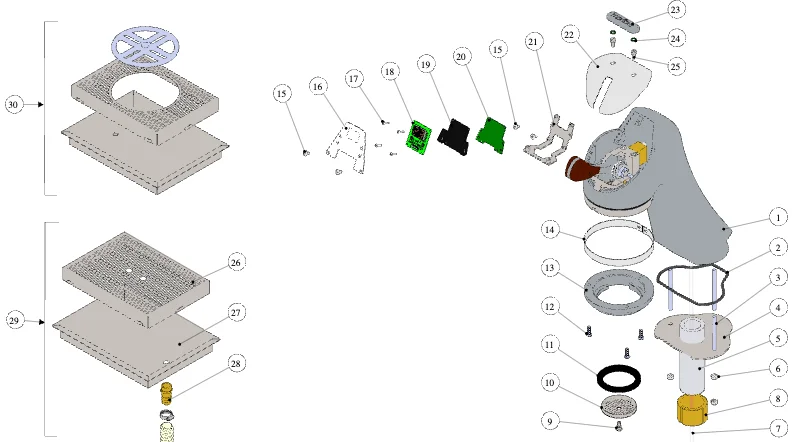

07 – Espresso Tap System

Loading…
Loading parts…La Marzocco Modbar AV 1GR – 07 – Espresso Tap System (exploded view)
  • Pos. 1 – Casting Espresso Tap Rpm (Part no. A.3.008)
  • Pos. 1 – Casting Espresso Tap Rpm White (Part no. A.3.008.50)
  • Pos. 2 – O-Ring Shaped Tap Modbar AV (Part no. H.1.035)
  • Pos. 3 – Socket Grub Screw M6X80 A2 (Part no. I.1.116)
  • Pos. 4 – Modbar Espresso Washer Template (Part no. F.3.094)
  • Pos. 5 – Tube Threaded 1 1/2 12UNF H127 (Part no. M-0074-01)
  • Pos. 6 – Self Lock Nut M6 H5 WR10 A2 (Part no. I.1.046)
  • Pos. 7 – Pfa Tube 6mm - 4mm (Part no. T.3.007)
  • Pos. 8 – Ring Nut Desk Unf 1 1/2-12 (Part no. M-5002-01)
  • Pos. 9 – La Marzocco Verteilerschraube / Diffusor (A.5.110) (Part no. A.5.110)
  • Pos. 10 – La Marzocco Duschsieb (F.3.040.01) (Part no. F.3.040.01)
  • Pos. 11 – La Marzocco Siebträger Dichtung (H.3.004) (Part no. H.3.004)
  • Pos. 13 – Modbar Bayonet Ring (Part no. M-6000-02)
  • Pos. 14 – Aesthetic Ring Tap Espresso AV (Part no. C.1.390)
  • Pos. 15 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)
  • Pos. 16 – Glass Hmi Modbar Rpm (Part no. C.5.017)
  • Pos. 17 – Screw M2,5X12 Phillips Round-Pan S/S A2 (Part no. I.1.120)
  • Pos. 18 – Timer 2 Digit Red (Part no. E.1.029)
  • Pos. 19 – LED Grid Modbar Rpm (Part no. F.1.115)
  • Pos. 20 – LED Board Modbar Rpm (Part no. E.1.049.01)
  • Pos. 21 – Bracket Display Tap Modbar Espresso (Part no. C.1.391)
  • Pos. 22 – Cover Modbar Tap (Part no. C.1.397)
  • Pos. 23 – Aestetich Plate Casting Modbar AV (Part no. D.3.018)
  • Pos. 24 – La Marzocco O-Ring 1,78×6,07 VITON (H.1.006) (Part no. H.1.006)
  • Pos. 25 – Screw M5X10 Socket Cap S/S Modbar (Part no. I.1.119)
  • Pos. 28 – Hose Fitting G1/2 WR22 D20 Di16 (Part no. L037/2PGR)
  • Pos. 30 – Tray Drain MB 30x18 Recessed W/Rinser (Part no. C.1.572.R)
  • Pos. 30 – Tray Drain MB 80x22 Recessed W/Rinser (Part no. C.1.573.R)

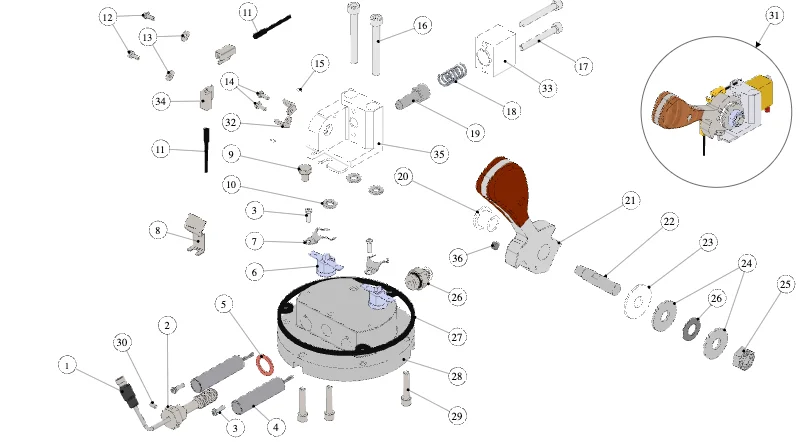

09 – Espresso Tap System

Loading…
Loading parts…La Marzocco Modbar AV 1GR – 09 – Espresso Tap System (exploded view)
  • Item 1 – La Marzocco PT1000 temperature sensor 100mm (E.1.005) (Part no. E.1.005)
  • Pos. 2 – Brewing Water Screw Modbar (Part no. A.5.091)
  • Pos. 3 – Screw M3X10 Phillips Round-Pan A2 (Part no. VITE3X10)
  • Pos. 4 – Cartridge Heater W300 V240 12,5X50,5 (Part no. E.6.033)
  • Pos. 4 – Cartridge Heater 300W 200V (Part no. E.6.034)
  • Pos. 4 – Cartridge Heater W200 V110 12,5X50,5 (Part no. E.6.038)
  • Pos. 5 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
  • Pos. 6 – Safety Thermostat 1P Trip Free 140C 240V (Part no. E.5.006)
  • Pos. 7 – L276.01 Bracket (Part no. L276.01S)
  • Pos. 9 – Screw M6X8 Hex Head S/S A2 (Part no. I.1.061)
  • Pos. 10 – Washer 6,4X12X1,6 Plastic (Part no. I.6.014)
  • Pos. 11 – Wired Reed Switch (Part no. E.2.137)
  • Pos. 13 – Washer 3,2X9X0,8 S/S A2 (Part no. I.1.149)
  • Pos. 14 – Screw M3X8 Phillips Round-Pan A2 (Part no. VITE3X8)
  • Pos. 15 – Magnet 4X1 Modbar Steam Tap (Part no. F.9.013)
  • Pos. 16 – Screw M6X50 Socket Cup S/S (Part no. I.1.100)
  • Pos. 17 – Screw M5X40 Socket Cap A2 (Part no. I.1.007)
  • Pos. 18 – Steam Valve Spring (Part no. M-6019-01)
  • Pos. 19 – Plumber Rpm Tap Handle (Part no. F.1.114)
  • Pos. 20 – Cam Bushing PTFE Modbar Lever (Part no. F.4.014)
  • Pos. 22 – Pivot for Activation Lever Modbar (Part no. F.3.097)
  • Pos. 23 – Washer 10X30X2 PTFE (Part no. F.1.032)
  • Pos. 24 – Washer 10.7X30X1.8 A2 (Part no. I.1.033)
  • Pos. 25 – Belleville Spring 10X20X1,3 (Part no. I.5.003)
  • Pos. 26 – Fitting Push-In Straight 6-G1/4M (Part no. A.5.092)
  • Pos. 27 – Insulation D113 H3 Espresso Tap AV (Part no. F.1.123.01)
  • Pos. 28 – Brew Head Modbar AV (Part no. A.2.109)
  • Pos. 29 – Screw M5X25 Socket Cap (Part no. I.1.117)
  • Pos. 30 – Socket Grub Screw M3X6 S/S (Part no. I.1.102)
  • Pos. 31 – Retrofit Assembly Modbar AV Walnut Lever (Part no. 1072)
  • Pos. 31 – Retrofit Assembly Modbar AV Mapple Lever (Part no. 1073)
  • Pos. 36 – Magnet Lever Activation Modbar AV (Part no. F.9.012)

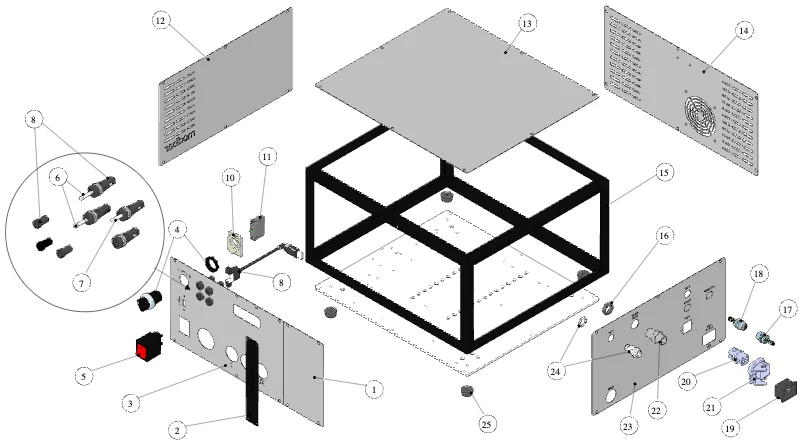

11 – Espresso Module – Body Panel Assem.

Loading…
Loading parts…La Marzocco Modbar AV 1GR – 11 – Espresso Module – Body Panel Assem. (exploded view)
  • Pos. 1 – Panel Frontal Right Module Espresso (Part no. C.1.385)
  • Pos. 2 – Panel Front Logo Modbar Espresso (Part no. C.1.386)
  • Pos. 3 – Panel Frontal Left Module Espresso (Part no. C.1.384.01)
  • Pos. 4 – Selector 2 Position (Part no. E-5011-01)
  • Pos. 5 – Switch I-O (Part no. E.2.065)
  • Pos. 6 – La Marzocco Sicherung 3,15 A (E.2.073) (Part no. E.2.073)
  • Pos. 7 – Fuse 160 mA Fast-Blow (Part no. E.2.074)
  • Pos. 8 – UL Fuse Holder (Part no. E.2.004)
  • Pos. 9 – USB Cable Linea PB / Strada EP (Part no. E.2.040)
  • Pos. 10 – Contacts Support (Part no. E-5012-01)
  • Pos. 11 – Contact Block (Part no. E-0130-01)
  • Pos. 12 – Panel Left Side Espresso Module (Part no. C.1.383.SX.01)
  • Pos. 13 – Panel, Top (Part no. M-5014-01)
  • Pos. 14 – Back Panel Espresso Module 1GR (Part no. C.1.447)
  • Pos. 15 – Frame Espresso Modbar AV (Part no. C.1.380)
  • Pos. 16 – Nut G3/8 H6 WR21 Treated (Part no. L183/1.01)
  • Pos. 17 – Connection Cable Module-Tap Modbar AV (Part no. E.4.163.01)
  • Pos. 18 – Wiring Harness Module Modbar AV 220 L.v. (Part no. E.4.161)
  • Pos. 19 – Power Inlet Adaptor (Part no. E-0108-01)
  • Pos. 20 – Connector Female 10A 230/400V 5 Pin (Part no. E.4.179)
  • Pos. 21 – Support Harting Female (Part no. E.4.178)
  • Pos. 23 – Panel Right Side Espresso Module AV 1GR (Part no. C.1.445)
  • Pos. 24 – Fitting Push-In Straight 6-6 WR17 Pvdf (Part no. A.7.011)
  • Pos. 25 – Foot. 3/4 Dia Rubber (Part no. 5.120)

13 – Espresso Module – Electrical System

Loading…

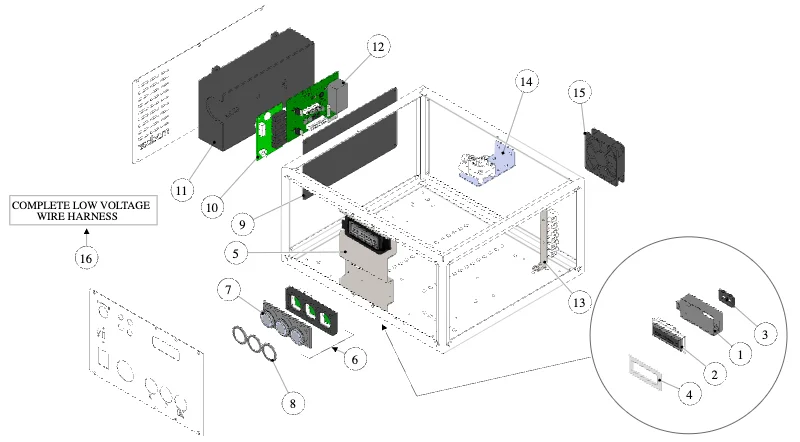

Loading parts…La Marzocco Modbar AV 1GR – 13 – Espresso Module – Electrical System (exploded view)
  • Pos. 1 – Box Display O-LED Flat (Part no. F.1.200.01)
  • Pos. 2 – Display Oled Red Linea PB (Part no. E.1.024)
  • Pos. 3 – Sealing Rear Cover Display (Part no. H.3.016)
  • Pos. 4 – Glass Diplay Oled Flat SP3 Opaque (Part no. F.1.216)
  • Pos. 5 – Bracket for Espresso Modbar AV Frame (Part no. C.1.382)
  • Pos. 6 – Keypad 3 Buttons Red Linea PB (Part no. E.2.038)
  • Pos. 7 – Membrane Keypad W/Buttons for E.2.038 (Part no. E.2.072)
  • Pos. 8 – Linea PB Push Button Way (Part no. F.1.048)
  • Pos. 9 – Linea PB Electronic Board Box Cover (Part no. F.1.044)
  • Pos. 10 – Linea PB Board (Part no. E.1.025.03)
  • Pos. 11 – Linea PB Electronic Board Box (Part no. F.1.043)
  • Pos. 12 – Universal Board 110V-220V (Part no. E.1.057)
  • Pos. 13 – Bracket for Terminal Modbar AV Espresso (Part no. C.1.388)
  • Pos. 14 – Bracket Flowmeter Modbar AV 1GR (Part no. C.1.449)
  • Pos. 15 – Fan Modbar AV 1 Group 1 Boiler (Part no. F.1.146)
  • Pos. 16 – Calbe Modbar AV 1GR 110-220V Low T. (Part no. E.4.219)

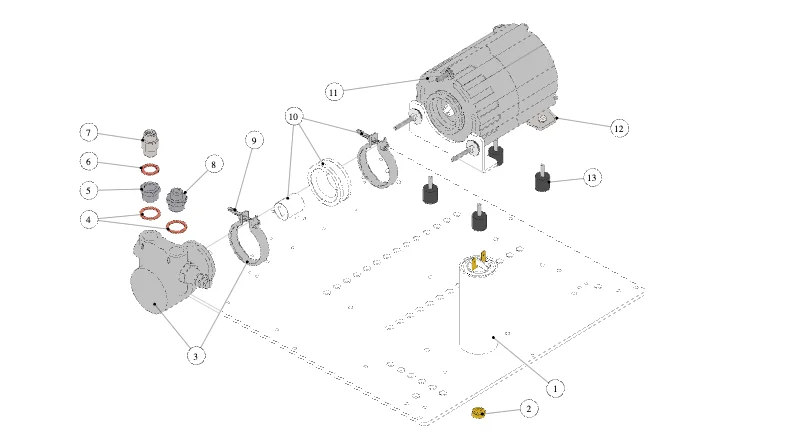

15 – Espresso Module – Water Motor Sys.

Loading…
Loading parts…La Marzocco Modbar AV 1GR – 15 – Espresso Module – Water Motor Sys. (exploded view)

17 – Espresso Module – Hydraulic Assem.

Loading…

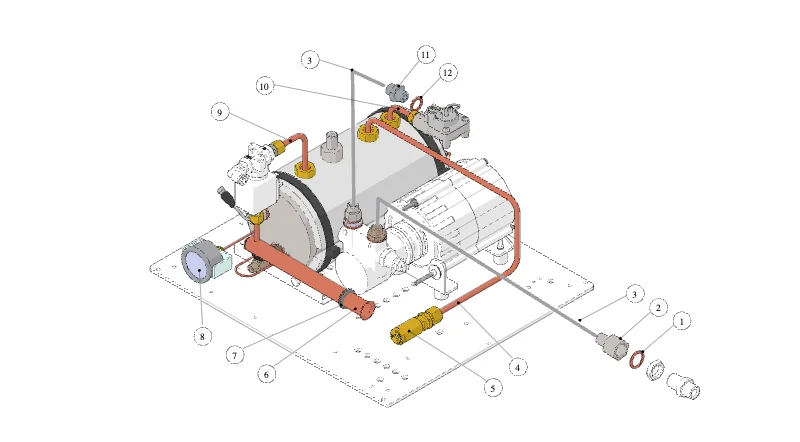

Loading parts…La Marzocco Modbar AV 1GR – 17 – Espresso Module – Hydraulic Assem. (exploded view)

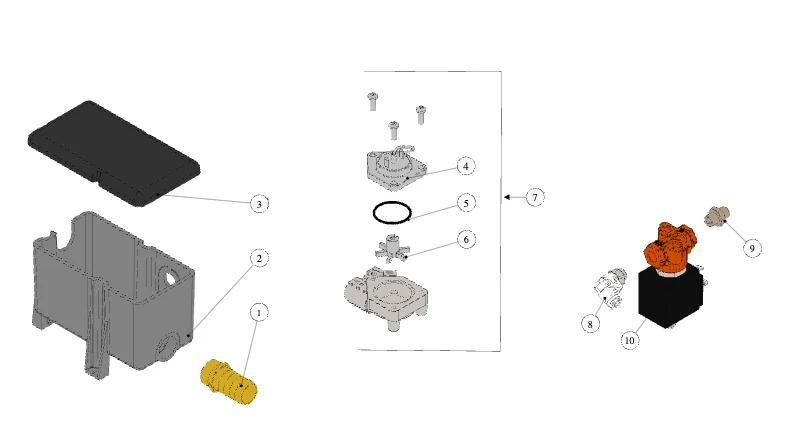

19 – Espresso Module – Fitting and Valve

Loading…
Loading parts…La Marzocco Modbar AV 1GR – 19 – Espresso Module – Fitting and Valve (exploded view)

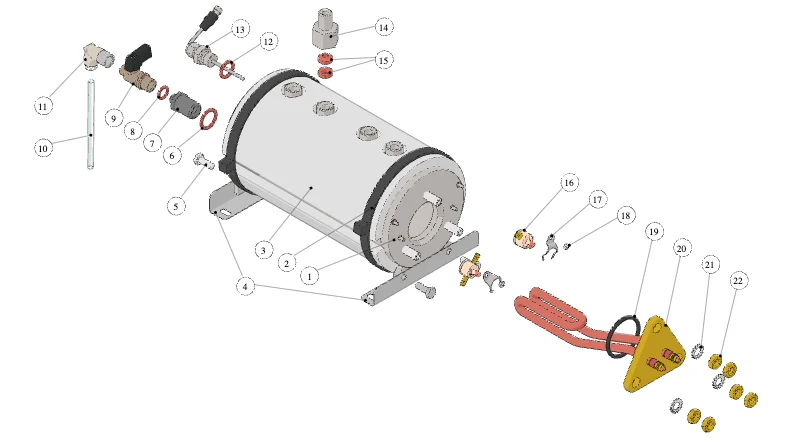

21 – Espresso Module – Coffee Boiler

Loading…
Loading parts…La Marzocco Modbar AV 1GR – 21 – Espresso Module – Coffee Boiler (exploded view)

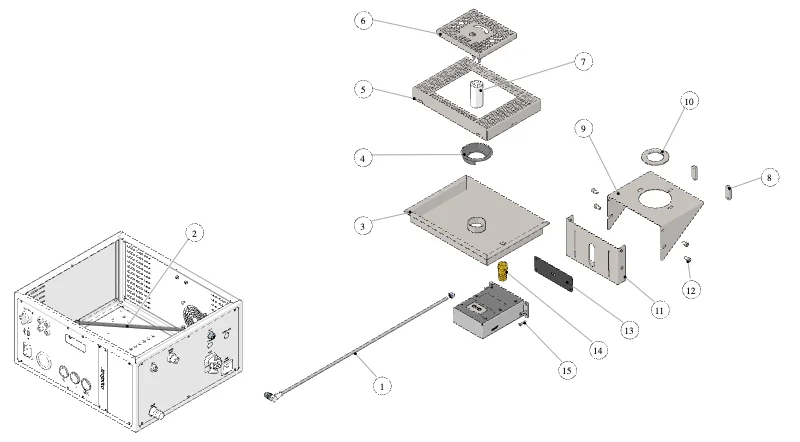

23 – Espresso Module – Scales Version

Loading…
Loading parts…La Marzocco Modbar AV 1GR – 23 – Espresso Module – Scales Version (exploded view)
  • Pos. 1 – Cable Low Tension C.a. W/Conn. IP67 Male (Part no. E.4.168)
  • Pos. 2 – Cable Low T. C.a. W/Conn. IP67 Female (Part no. E.4.123)
  • Pos. 4 – Protect.water Tray Drain Strada W/Scales (Part no. F.1.089)
  • Pos. 5 – Grid Drain Modbar W/Scale (Part no. C.1.394)
  • Pos. 6 – High Grid Scale Complete Modbar (Part no. 984)
  • Pos. 6 – Low Grid Scale Complete Modbar (Part no. 985)
  • Pos. 7 – Assembled Low Support with Magnets (Part no. F.1.118.R)
  • Pos. 7 – Assembled High Support with Magnets (Part no. F.1.119.R)
  • Pos. 8 – Plate Scrolling Scale Box (Part no. F.3.096)
  • Pos. 9 – Bracket Upper for Scale Modbar (Part no. C.1.451)
  • Pos. 10 – Washer to Fix Tap on the Counter (Part no. F.3.115)
  • Pos. 11 – Bracket Lower for Scale Modbar (Part no. C.1.452)
  • Pos. 12 – Screw M6X10 Socket Cap A2 (Part no. L120/2)
  • Pos. 13 – Scale Gasket 2 (Part no. F.2.039)
  • Pos. 14 – Hose Fitting G1/2 WR22 D20 Di16 (Part no. L037/2PGR)
  • Pos. 15 – Screw M4X20 Phillips Countersunk A2 (Part no. I.1.076)

25 – Espresso Module – Scales Version

Loading…
Loading parts…La Marzocco Modbar AV 1GR – 25 – Espresso Module – Scales Version (exploded view)
  • Pos. 1 – Screw M3X6 Phillips Countersunk A2 (Part no. I.1.060)
  • Pos. 2 – Protection Load Cell (Part no. F.3.057)
  • Pos. 3 – Cover Scale Strada (Part no. F.1.081)
  • Pos. 4 – Screw M3X8 Socket Countersunk A2 (Part no. I.1.004)
  • Pos. 5 – Load Cell Mounting Bracket Plastic (Part no. F.1.198)
  • Pos. 6 – Cantilever for Socket (Part no. F.3.055)
  • Pos. 7 – Screw M3X12 Phillips Countersunk A2 (Part no. I.1.045)
  • Pos. 8 – Spacer Square 20X12X5 (Part no. I.8.001)
  • Pos. 9 – Load Cell Kit (Part no. E.1.030.R)
  • Pos. 10 – Box Scale Modbar (Part no. C.1.396)
  • Pos. 11 – Nut M4 H3 WR7 A2 (Part no. DADOINOXM4)
  • Pos. 12 – Washer 4X9X0,8 Brass (Part no. RONDELLA4X9)
  • Pos. 13 – Screw M4X8 Cheese (Part no. VITE4X8)
  • Pos. 14 – Load Cell Support (Part no. F.6.005.01)
  • Pos. 15 – Screw M4X20 Phillips Countersunk A2 (Part no. I.1.076)
  • Pos. 16 – Screw M3X5 Phillips Round Pan A2 (Part no. I.1.054)
  • Pos. 17 – Load Cell Electronic Board (Part no. E.1.031.02)
  • Pos. 18 – Standoff Hex Threaded (Part no. I.6.012)
  • Pos. 19 – Base Scale Board Strada (Part no. F.3.056)
  • Pos. 20 – Screw M4X14 Phillips Countersunk A2 (Part no. I.1.093)
  • Pos. 21 – Washer M4 Plastic (Part no. I.6.013)
  • Pos. 22 – Bushing Flanged 4,2X6X7 PTFE (Part no. F.1.117)
  • Pos. 23 – Load Cell Electronic Board Box Cover (Part no. F.1.066)

27 – Portafilters

Loading…

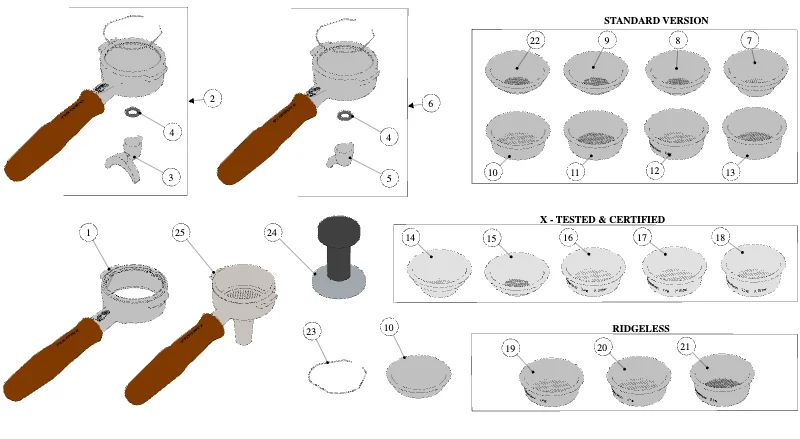

Loading parts…La Marzocco Modbar AV 1GR – 27 – Portafilters (exploded view)

29 – Scales Version – Portafilter Assem.

Loading…

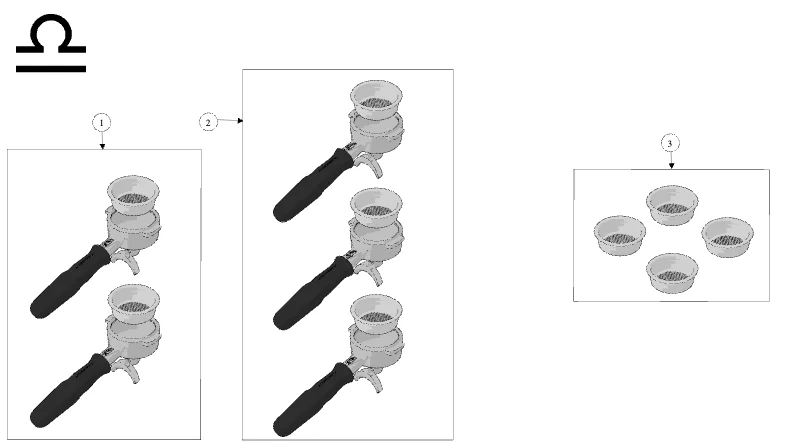

Loading parts…La Marzocco Modbar AV 1GR – 29 – Scales Version – Portafilter Assem. (exploded view)
  • Pos. 1 – 2 Precision Portafilter Kit (Part no. 931-2)
  • Pos. 2 – 3 Precision Portafilter Kit (Part no. 931-3)
  • Pos. 2 – 4 Precision Portafilter Kit (Part no. 931-4)
  • Pos. 3 – 4x 17g Precision Filter Basket Kit (Part no. 932)
  • Pos. 3 – 4x 14g S/S Precision Filter Basket Kit (Part no. 947)
  • Pos. 3 – 4x 21g Precision Filter Basket Kit (Part no. 948)

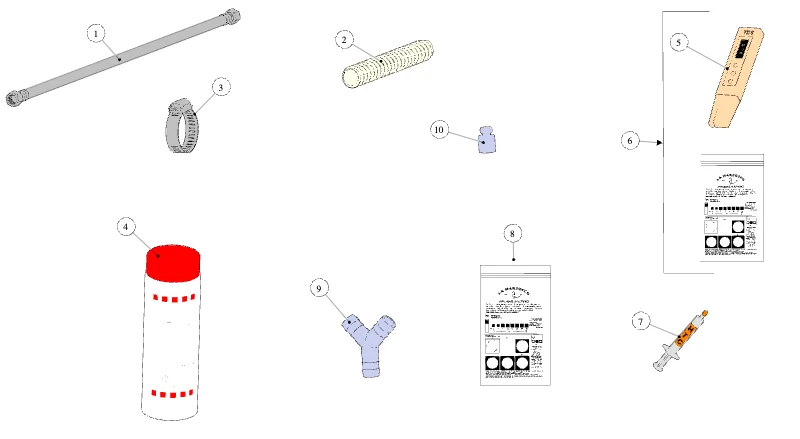

31 – Hose and Accessories

Loading…
Loading parts…La Marzocco Modbar AV 1GR – 31 – Hose and Accessories (exploded view)
  • Pos. 1 – Braided Hose G3/8F 50CM (Part no. L305/050.01)
  • Pos. 1 – Braided Hose G3/8F 120CM (Part no. L305/120.01)
  • Pos. 1 – Braided Hose G3/8F 210CM (Part no. L305/210.01)
  • Pos. 1 – Braided Hose 3/8COMPR. 50CM Nsf (Part no. L306/050)
  • Pos. 1 – Braided Hose 3/8COMPR. 120CM Nsf (Part no. L306/120)
  • Pos. 1 – Braided Hose G3/8F 210CM Nsf (Part no. L306/210)
  • Pos. 1 – Braided Hose G3/8F 90° 210CM Nsf (Part no. L306/210/C)
  • Pos. 1 – Braided Hose 3/8COMPR. 210CM Nsf (Part no. T.5.003)
  • Pos. 2 – Drain Hose Waved ID19 EPDM (Part no. T.3.010)
  • Pos. 3 – Hose Clamp 16/25 H9 W2 AISI430 (Part no. L312)
  • Pos. 4 – La Marzocco Kaffeefettlöser / Puly Caff (F.9.021) (Part no. F.9.021)
  • Pos. 5 – Digital Tds Meter (Part no. F.9.003)
  • Pos. 6 – Water Test Kit (Part no. 941)
  • Pos. 7 – Htc Thermal Compound Syringe 2ML (Part no. F.1.065)
  • Pos. 8 – La Marzocco Wassertest Kit (F.9.000.02) (Part no. F.9.000.02)
  • Pos. 9 – Y Manifold for Drain (Part no. F.1.121)
  • Pos. 10 – Load 100g to Calibrate Scales (Part no. F.3.050)
  • Shop categories
Menu
Back to Top
Product has been added to your cart
