07 – Body Panel Assembly

Loading…
Loading parts…La Marzocco Linea PB – 07 – Body Panel Assembly (exploded view)
  • Pos. 2 – Panel Upper Side Right Linea PB Mix V. (Part no. C.1.143.01)
  • Pos. 2 – Panel Up.side Right PB White Mix V Matte (Part no. C.1.143.01.50)
  • Pos. 2 – Panel Up.side Right PB Balck Mix V Matte (Part no. C.1.143.01.60)
  • Pos. 3 – Panel Middle Side Right Linea PB (Part no. C.1.147)
  • Pos. 3 – Panel Mid. Side Right PB White Matte (Part no. C.1.147.50)
  • Pos. 4 – Panel Lower Side Linea PB (Part no. C.1.141)
  • Pos. 4 – Panel Lower Side Linea PB White Matte (Part no. C.1.141.50)
  • Pos. 4 – Panel Lower Side Linea PB Black Matte (Part no. C.1.141.60)
  • Pos. 5 – Corner Right Front Linea PB (Part no. C.2.032)
  • Pos. 6 – Corner Left Front Linea PB (Part no. C.2.033)
  • Pos. 7 – Screw M4X12 Phillips Button Head A2 (Part no. CL22/V)
  • Pos. 8 – Screw M4X30 Phillips Button Head S/S A2 (Part no. I.1.059)
  • Pos. 9 – Corner Back Linea PB (Part no. C.2.034)
  • Pos. 10 – Panel Mid. Side Right PB Balck Matte (Part no. C.1.147.60)
  • Pos. 10 – Panel Middle Side Left Linea PB (Part no. C.1.149)
  • Pos. 10 – Panel Mid. Side Left PB Black Matte (Part no. C.1.149.60)
  • Pos. 11 – Panel Upper Side Left Linea PB (Part no. C.1.144)
  • Pos. 11 – Panel Up. Side Left Linea PB White Matte (Part no. C.1.144.50)
  • Pos. 11 – Panel Up. Side Left Linea PB Black Matte (Part no. C.1.144.60)
  • Pos. 12 – Panel Back Linea PB Shiny 2GR Antenna (Part no. C.1.145.2.03)
  • Pos. 12 – Panel Back Linea PB 2GR White Matte (Part no. C.1.145.2.50)
  • Pos. 12 – Panel Back Linea PB 2GR Black Matte (Part no. C.1.145.2.60)
  • Pos. 12 – Panel Back Linea PB 3GR No Holes (Part no. C.1.145.3.01)
  • Pos. 12 – Panel Back Linea PB Shiny 3GR Antenna (Part no. C.1.145.3.03)
  • Pos. 12 – Panel Back Linea PB 3GR White Matte (Part no. C.1.145.3.50)
  • Pos. 12 – Panel Back Linea PB 3GR Black Matte (Part no. C.1.145.3.60)
  • Pos. 12 – Panel Back Linea PB 4GR No Holes (Part no. C.1.145.4.01)
  • Pos. 12 – Panel Back Linea PB Shiny 4GR Antenna (Part no. C.1.145.4.03)
  • Pos. 12 – Panel Back Linea PB 4GR White Matte (Part no. C.1.145.4.50)
  • Pos. 12 – Panel Back Linea PB 4GR Black Matte (Part no. C.1.145.4.60)
  • Pos. 13 – Panel Back Linea PB 3GR (Part no. C.1.145.3.02)
  • Pos. 13 – Panel Back Linea PB 4GR (Part no. C.1.145.4.02)
  • Pos. 14 – Nut M2 H1,6 WR4 (Part no. I.1.111)
  • Pos. 15 – Logo LA Marzocco Inox White Large (Part no. D.4.031)
  • Pos. 16 – Logo LA Marzocco Back Linea PB Red (Part no. D.2.007)
  • Pos. 17 – Bracket Panel Front Linea PB (Part no. C.1.181)

08 – Body Panel Brushed

Loading…

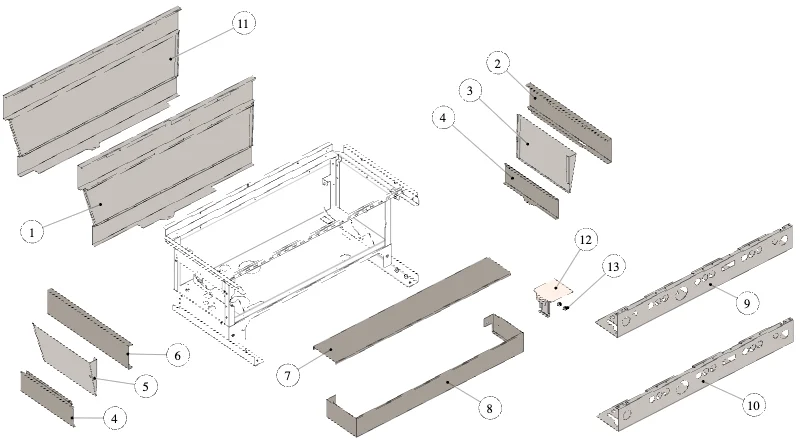

Loading parts…La Marzocco Linea PB – 08 – Body Pannel Brushed (exploded view)
  • Pos. 1 – Panel Back Linea Brushed PB 2GR Antenna (Part no. C.1.805.2)
  • Pos. 1 – Panel Back Linea Brushed PB 3GR Antenna (Part no. C.1.805.3)
  • Pos. 1 – Panel Back Linea Brushed PB 4GR Antenna (Part no. C.1.805.4)
  • Pos. 11 – Panel Back Linea Brushed PB 2GR (Part no. C.1.805.2.01)
  • Pos. 11 – Panel Back Linea Brushed PB 3GR (Part no. C.1.805.3.01)
  • Pos. 11 – Panel Back Linea Brushed PB 4GR (Part no. C.1.805.4.01)
  • Pos. 12 – Brackets Kit Smart Steam Pitcher (Part no. 1078)

09 – Body Panel Assembly

Loading…

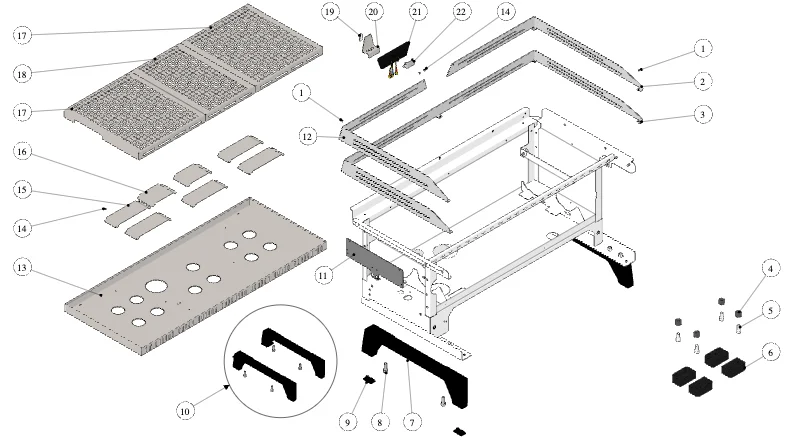

Loading parts…La Marzocco Linea PB – 09 – Body Panel Assembly (exploded view)
  • Pos. 1 – Screw M3X6 Phillips Countersunk A2 (Part no. I.1.060)
  • Pos. 2 – Railing Right Side Linea PB 2GR W/Pem (Part no. C.1.626.2.DX)
  • Pos. 2 – Railing Right Side Linea PB 3GR W/Pem (Part no. C.1.626.3.DX)
  • Pos. 2 – Railing Right Side Linea PB 4GR W/Pem (Part no. C.1.626.4.DX)
  • Pos. 3 – Railing Cups Linea PB 3GR (Part no. C.1.161.3)
  • Pos. 3 – Railing Cups Linea PB 4GR (Part no. C.1.161.4)
  • Pos. 4 – Pvc Foot Supports DM.21 GB5 (Part no. F.1.005)
  • Pos. 5 – La Marzocco Schraube M10 X 20 S/S A2 (I.1.090) (Part no. I.1.090)
  • Pos. 6 – Rubber Foot Left/Right (Part no. CL001.01)
  • Pos. 7 – High Leg Linea PB (Part no. C.3.007)
  • Pos. 8 – Screw M10X25 Socket Cap A2 (Part no. I.1.073)
  • Pos. 9 – Rubber Foot (Part no. F.2.026)
  • Pos. 10 – High Legs Linea PB/KB90 Complete Set (Part no. C.3.007.R)
  • Pos. 11 – Bracket Terminal Block Linea PB (Part no. C.1.180)
  • Pos. 12 – Railing Left Side Linea PB 2GR W/Pem (Part no. C.1.626.2.SX)
  • Pos. 12 – Railing Left Side Linea PB 3GR W/Pem (Part no. C.1.626.3.SX)
  • Pos. 12 – Railing Left Side Linea PB 4GR W/Pem (Part no. C.1.626.4.SX)
  • Pos. 13 – Tray Cupwarmer Linea PB 2GR (Part no. C.1.146.2.02)
  • Pos. 14 – Cap Nut M3 H6,5 CH5,5 (Part no. I.1.108)
  • Pos. 15 – Protection Cupwarmer Hole 170 MM (Part no. C.1.100.01)
  • Pos. 16 – Protection Cupwarmer Hole 116MM (Part no. C.1.030.02)
  • Pos. 17 – Grid Cupwarmer 323MM Linea PB (Part no. C.1.164)
  • Pos. 18 – Grid Cupwarmer 239MM Linea PB (Part no. C.1.165)
  • Pos. 19 – Logo Lion Adhesive (Part no. D.3.036)
  • Pos. 20 – Central Bracket Rail Linea PB (Part no. C.1.621)
  • Pos. 21 – WiFi / Bluetooth Antenna (Part no. 1024)
  • Pos. 22 – Cover Antenna Cable Linea PB (Part no. C.1.628)

11 – Body Panel Assembly

Loading…

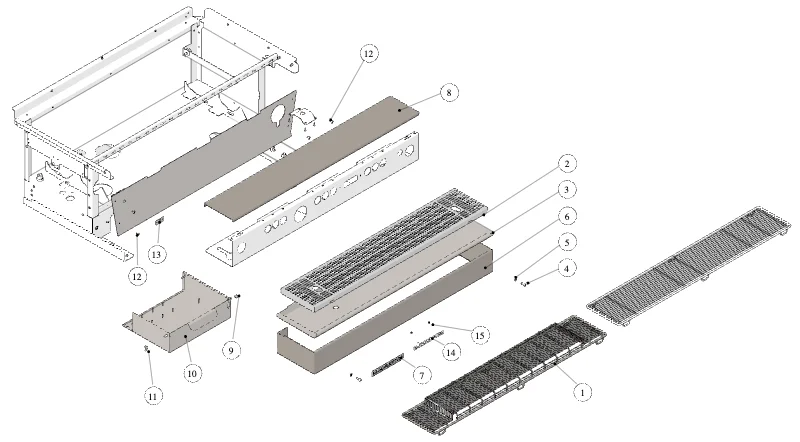

Loading parts…La Marzocco Linea PB – 11 – Body Panel Assembly (exploded view)
  • Pos. 1 – Wire Grid Low Cups Linea PB 2GR (Part no. C.1.178.2)
  • Pos. 1 – Wire Grid Low Cups Linea PB 3GR (Part no. C.1.178.3)
  • Pos. 1 – Wire Grid Low Cups Linea PB 4GR (Part no. C.1.178.4)
  • Pos. 2 – Grid Drain Linea PB 2GR (Part no. C.1.157.2)
  • Pos. 2 – Grid Drain Linea PB 3GR (Part no. C.1.157.3)
  • Pos. 2 – Grid Drain Linea PB 4GR (Part no. C.1.157.4)
  • Pos. 3 – Tray Drain Linea PB 2GR (Part no. C.1.152.2)
  • Pos. 3 – Tray Drain Linea PB 3GR (Part no. C.1.152.3)
  • Pos. 3 – Tray Drain Linea PB 4GR (Part no. C.1.152.4)
  • Pos. 4 – Screw M5X14 Socket Cap A2 (Part no. I.1.011)
  • Pos. 5 – Washer 5,4X10X1 A2 (Part no. I.1.039)
  • Pos. 6 – Cover Drain Tray Linea PB 2GR (Part no. C.1.151.2.02)
  • Pos. 6 – Cover Drain Tray Linea PB 3GR (Part no. C.1.151.3.02)
  • Pos. 6 – Cover Drain Tray Linea PB 4GR (Part no. C.1.151.4.02)
  • Pos. 7 – Red Enamel “LA Marzocco” Logo (Part no. D.4.008)
  • Pos. 8 – Cover Group Linea PB 2GR (Part no. C.1.142.2)
  • Pos. 8 – Cover Group Linea PB 3GR (Part no. C.1.142.3)
  • Pos. 8 – Cover Group Linea PB 4GR (Part no. C.1.142.4)
  • Pos. 9 – Nut M6 H5 WR10 A2 (Part no. I.1.049)
  • Pos. 11 – Wing Nut M6 H5 S/S A2 (Part no. I.1.003)
  • Pos. 13 – Linea PB Switch Metal Plate (Part no. C.1.162)
  • Pos. 14 – Logo LA Marzocco Inox White Small (Part no. D.4.030)
  • Pos. 15 – Nut M2 H1,6 WR4 (Part no. I.1.111)

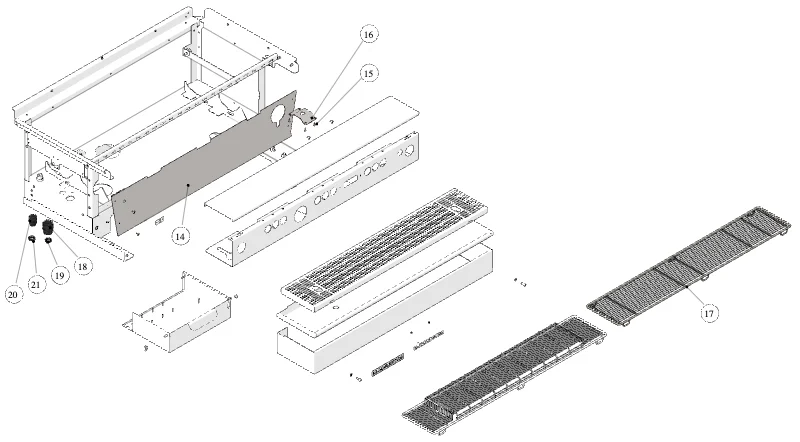

13 – Control Panel Assembly

Loading…
Loading parts…La Marzocco Linea PB – 13 – Control Panel Assembly (exploded view)
  • Pos. 14 – Panel Main Switch Linea PB 2GR (Part no. C.1.156.2)
  • Pos. 14 – Panel Main Switch Linea PB 3GR (Part no. C.1.156.3)
  • Pos. 14 – Panel Main Switch Linea PB 4GR (Part no. C.1.156.4)
  • Pos. 14 – Panel Main Switch Linea PB 2GR W/Scales (Part no. C.1.215.2)
  • Pos. 14 – Panel Main Switch Linea PB 3GR W/Scales (Part no. C.1.215.3)
  • Pos. 14 – Panel Main Switch Linea PB 4GR W/Scales (Part no. C.1.215.4)
  • Pos. 14 – Panel Switch Linea PB 2GR No Sight Glass (Part no. C.1.218.2)
  • Pos. 14 – Panel Switch Linea PB 3GR No Sight Glass (Part no. C.1.218.3)
  • Pos. 14 – Panel Switch Linea PB 4GR No Sight Glass (Part no. C.1.218.4)
  • Pos. 14 – Panel Switch Linea PB 2GR Scale/No Glass (Part no. C.1.219.2)
  • Pos. 14 – Panel Switch Linea PB 3GR Scale/No Glass (Part no. C.1.219.3)
  • Pos. 14 – Panel Switch Linea PB 4GR Scale/No Glass (Part no. C.1.219.4)
  • Pos. 15 – Screw M3X12 Phillips Countersunk A2 (Part no. I.1.045)
  • Pos. 17 – Wire Grid Linea PB 2GR (Part no. C.1.237.2)
  • Pos. 17 – Wire Grid Linea PB 3GR (Part no. C.1.237.3)
  • Pos. 17 – Wire Grid Linea PB 4GR (Part no. C.1.237.4)
  • Pos. 18 – Cord Grips PG21 (Part no. L322/G)
  • Pos. 19 – Nut Cord Grips PG21 Black (Part no. I.6.009)
  • Pos. 20 – Cord Grips PG13,5 (Part no. L322/P)
  • Pos. 21 – Nut Cord Grips PG13,5 Black (Part no. I.6.010)

15 – Control Panel Assembly

Loading…
Loading parts…La Marzocco Linea PB – 15 – Control Panel Assembly (exploded view)
  • Pos. 1 – Bipolar Switch 42A W/Faston Iec/UL (Part no. E.2.049.01)
  • Pos. 1 – Tripolar Switch 20A W/Faston Iec/UL (Part no. E.2.050.02)
  • Pos. 1 – Tripolar Switch 42A W/Faston Iec/UL (Part no. E.2.067.01)
  • Pos. 2 – Kit Handle Label 01 Main Switch Bremas (Part no. F.1.184)
  • Pos. 3 – Coffee Doses Label (Part no. D.4.007)
  • Pos. 3 – White Coffee Doses Label (Part no. D.4.029)
  • Pos. 4 – Pressure Gauge 0-3 0-18 Red W/Lion (Part no. E.3.010)
  • Pos. 4 – Pressure Gauge 0-3 0-18 White W/Lion (Part no. E.3.021)
  • Pos. 5 – Panel Switch Display Flat PB 2AV (Part no. C.1.153.2.02)
  • Pos. 5 – Panel Switch Display Flat PB 3AV (Part no. C.1.153.3.02)
  • Pos. 5 – Panel Switch Display Flat PB 4AV (Part no. C.1.153.4.02)
  • Pos. 5 – Panel Switch D/Flat W/Cupw. PB 2AV (Part no. C.1.229.2.01)
  • Pos. 5 – Panel Switch D/Flat W/Cupw. PB 3AV (Part no. C.1.229.3.01)
  • Pos. 5 – Panel Switch D/Flat W/Cupw. PB 4AV (Part no. C.1.229.4.01)
  • Pos. 6 – Keypad 3 Buttons Red Linea PB (Part no. E.2.038)
  • Pos. 6 – Keypad 3 Buttons White (Part no. E.2.068)
  • Pos. 7 – Linea PB Push Button Way (Part no. F.1.048)
  • Pos. 8 – Screw M3X6 Phillips Countersunk A2 (Part no. I.1.060)
  • Pos. 9 – Membrane Keypad W/Buttons for E.2.038 (Part no. E.2.072)
  • Pos. 10 – Bracket Display Flat PB 2GR (Part no. C.1.630)
  • Pos. 10 – Bracket Display Flat KB90 2-4GR (Part no. C.1.632)
  • Pos. 11 – Selftap.screw 2,2X6,5 Phil.round-Pan (Part no. I.1.086)
  • Pos. 12 – Bracket Display Flat PB 3-4GR KB90 3GR (Part no. C.1.631)
  • Pos. 13 – Box Display O-LED Flat (Part no. F.1.200.01)
  • Pos. 14 – Display Oled Red Linea PB (Part no. E.1.024)
  • Pos. 14 – Display Oled White Strada AV (Part no. E.1.035)
  • Pos. 15 – Glass Diplay Oled Flat SP3 Opaque (Part no. F.1.216)
  • Pos. 15 – Glass Diplay Oled Flat SP.3 Trasp (Part no. F.1.217)
  • Pos. 16 – Switch Hot Water W/Red LED with Riser (Part no. E.2.041.R)
  • Pos. 16 – Switch Hot Water W/White LED with Riser (Part no. E.2.051.R)
  • Pos. 17 – Spacer Button Hot Water (Part no. F.1.132)
  • Pos. 18 – Case Keypad 3 Buttons Linea PB (Part no. F.1.301)

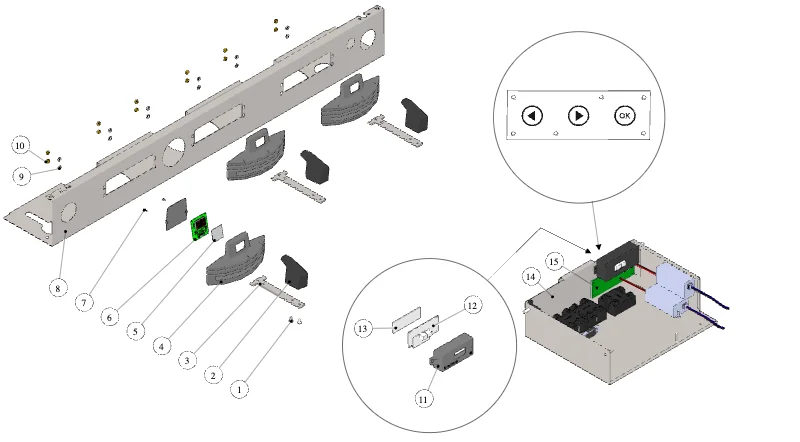

17 – Control Panel Assembly – MP

Loading…
Loading parts…La Marzocco Linea PB – 17 – Control Panel Assembly – MP (exploded view)
  • Pos. 1 – Screw M4X8 Phillips Button Head A2 (Part no. I.1.006)
  • Pos. 2 – Handle Paddle Linea (Part no. C.2.020)
  • Pos. 2 – Maple Paddle Handle (Part no. C.2.020.MW)
  • Pos. 2 – Walnut Paddle Handle (Part no. C.2.020.WW)
  • Pos. 3 – Lever S/S Conical Paddle Valve Linea PB (Part no. C.1.267)
  • Pos. 4 – Linea PB Paddle Cover W/Lid (Part no. C.2.022)
  • Pos. 5 – Glass Timer Linea PB MP (Part no. F.1.075)
  • Pos. 6 – Timer 2 Digit Red (Part no. E.1.029)
  • Pos. 7 – Selftap.screw 2,2X6,5 Phil.round-Pan (Part no. I.1.086)
  • Pos. 8 – Panel Control Linea PB 2MP (Part no. C.1.154.2)
  • Pos. 8 – Panel Control Linea PB 3MP (Part no. C.1.154.3)
  • Pos. 8 – Panel Control Linea PB 4MP (Part no. C.1.154.4)
  • Pos. 9 – Tooth Lock Washer 8X14,7X2 A2 (Part no. ROND_DENT_4)
  • Pos. 10 – Nut M4 H3 WR7 (Part no. DADO4M)
  • Pos. 11 – Box Display O-LED Flat (Part no. F.1.200.01)
  • Pos. 12 – Display Oled Red Linea PB (Part no. E.1.024)
  • Pos. 13 – Glass Diplay Oled Flat SP.3 Trasp (Part no. F.1.217)
  • Pos. 14 – Electronic Box Linea PB MP (Part no. C.1.139)
  • Pos. 15 – Keypad Linea PB MP (Part no. E.2.053)

19 – Control Panel Assembly – Barista Light

Loading…

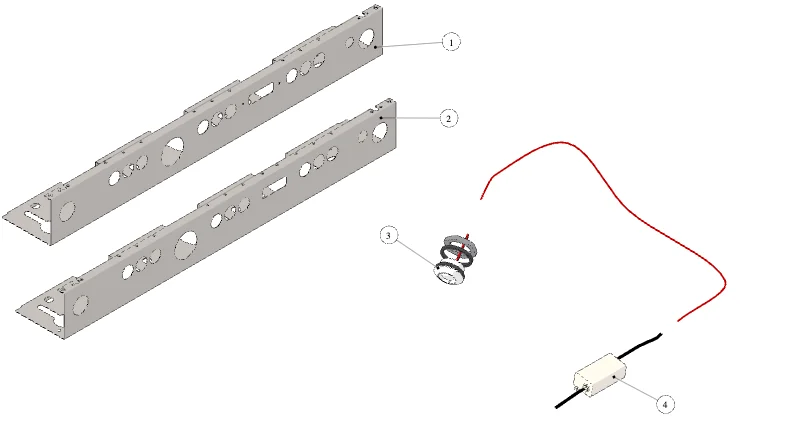

Loading parts…La Marzocco Linea PB – 19 – Control Panel Assem.- Barista Light (exploded view)
  • Pos. 1 – Panel Switch W/Lights D/Flat PB 2AV (Part no. C.1.153.2.L.02)
  • Pos. 1 – Panel Switch PB 3AV (Part no. C.1.153.3.L.02)
  • Pos. 1 – Panel Switch PB 4AV (Part no. C.1.153.4.L.02)
  • Pos. 2 – Panel Control Linea PB 2MP W/Lights (Part no. C.1.154.2.L)
  • Pos. 2 – Panel Control Linea PB 3MP W/Lights (Part no. C.1.154.3.L)
  • Pos. 2 – Panel Control Linea PB 4MP W/Lights (Part no. C.1.154.4.L)
  • Pos. 2 – Panel Switch W/Cupw PB 2AV (Part no. C.1.229.2.L.01)
  • Pos. 2 – Panel Switch W/Lights/Cupw D/Flat PB 3AV (Part no. C.1.229.3.L.01)
  • Pos. 2 – Panel Switch W/Lights/Cupw D/Flat PB 4AV (Part no. C.1.229.4.L.01)
  • Pos. 3 – White LED 16MM W/Connector + Kit Washer (Part no. E.4.023.02.R)
  • Pos. 4 – Kit Barista Lights Etl Power S. W/Wiring (Part no. E.4.024.01.R)
  • Pos. 4 – Kit Barista Lights CE Power S. W/Wiring (Part no. E.4.254.R)
  • Pos. 5 – 2 GR C/Faston/ Wiring for Barista Light (Part no. E.4.020.02)
  • Pos. 5 – 3 GR C/Faston/ Wiring for Barista Light (Part no. E.4.021.02)

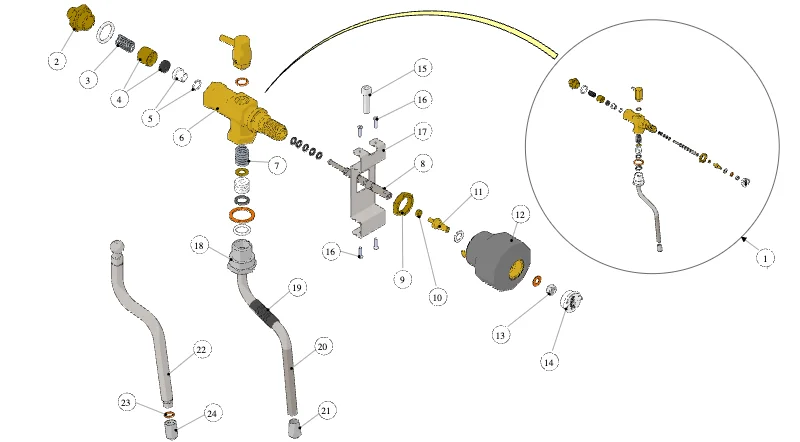

21 – Steam and Hot Water Assembly

Loading…
Loading parts…La Marzocco Linea PB – 21 – Steam and Hot Water Assembly (exploded view)
  • Pos. 1 – Linea PB Steam Valve Compl. (Part no. B.1.008.R)
  • Pos. 2 – Fitting G1/4M-W19M WR26 TR. (Part no. A.2.027)
  • Pos. 4 – Steam Valve Seal Assembly (Part no. B.2.010)
  • Pos. 5 – Steam Valve Seat W/ Gasket (Part no. F.3.007.R)
  • Pos. 6 – Linea PB Steam Valve Body (Part no. A.1.024)
  • Pos. 7 – Spring Compression 2X14,6X26,5 (Part no. F.3.004)
  • Pos. 8 – Linea PB Steam Valve Shaft (Part no. A.5.018)
  • Pos. 9 – Nut G1/2 H6 WR24 (Part no. A.1.006)
  • Pos. 10 – Nut M4 H3 WR7 (Part no. DADO4M)
  • Pos. 11 – Steam Valve Shaft Extension (Part no. A.1.022)
  • Pos. 12 – Linea PB Steam Valve Knob (Part no. F.1.034.01)
  • Pos. 13 – Self Lock Nut M6 H5 WR10 A2 (Part no. I.1.046)
  • Pos. 14 – Cap M20X1 Knob Steam Valve Linea PB (Part no. F.1.035)
  • Pos. 15 – Screw M6X26 Socket Cap A2 (Part no. I.1.074)
  • Pos. 16 – Screw M3X12 Phillips Countersunk A2 (Part no. I.1.045)
  • Pos. 17 – Bracket Steam Valve Linea PB (Part no. C.1.158)
  • Pos. 18 – Steam Wand Adaptor (Part no. A.1.005)
  • Pos. 19 – La Marzocco Gummierung Linea Mini Dampflanze (L171/G) (Part no. L171/G)
  • Pos. 20 – Steam Wand (Part no. T.2.001)
  • Pos. 21 – Steam Tip D1,5 (Part no. L173)
  • Pos. 22 – Steam Wand S Shape Pro Touch TR. (Part no. T.2.013)
  • Pos. 23 – O-RING 1,78 x 7,65 VITON 70 ShA (H.1.027) (Part no. H.1.027)
  • Pos. 24 – La Marzocco steam nozzle Pro Touch 1.5 mm (A.5.050) (Part no. A.5.050)

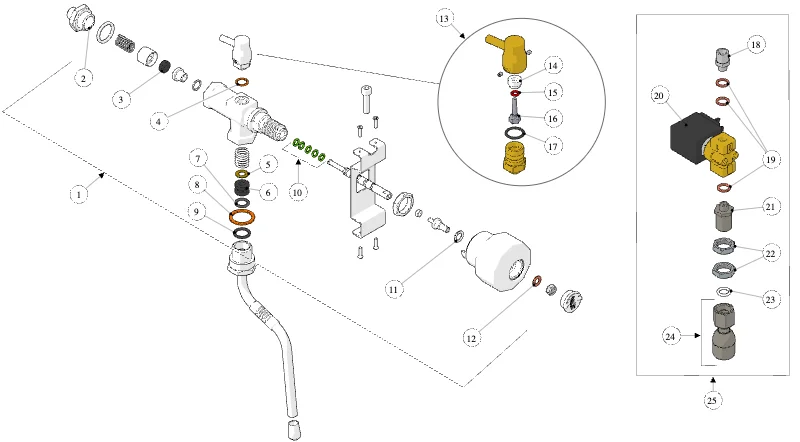

23 – Steam and Hot Water Assembly

Loading…
Loading parts…La Marzocco Linea PB – 23 – Steam and Hot Water Assembly (exploded view)

24 – Smartsteam Assembly

Loading…

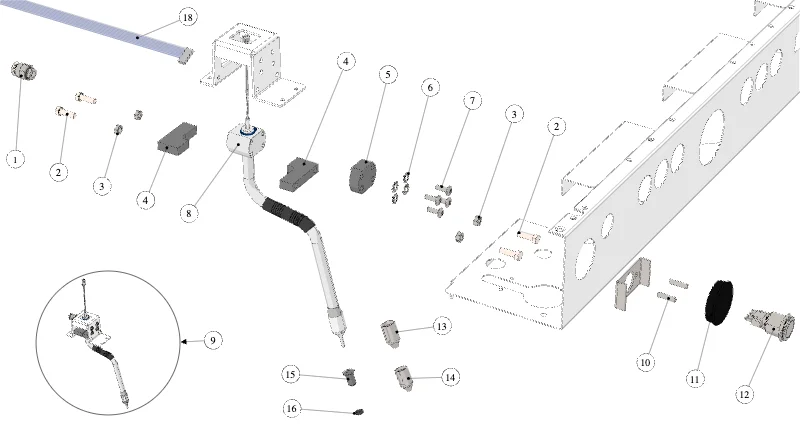

Loading parts…La Marzocco Linea PB – 24 – Smartsteam Assembly (exploded view)
  • Pos. 3 – Nut M5 H4 WR8 S/S A2 (Part no. DADO5M_INOX)
  • Pos. 6 – 10 External Tooth Lock Washer (Part no. 5.V003)
  • Pos. 7 – Screw M4X12 Phillips Button Head A2 (Part no. CL22/V)
  • Pos. 10 – Grano M4x16 UNI5923 Inox (Part no. I.1.173)
  • Pos. 16 – O-Ring 1,78x4,47 EPDM 70 ShA (Part no. H.1.021)

25 – Hydraulic Assembly

Loading…

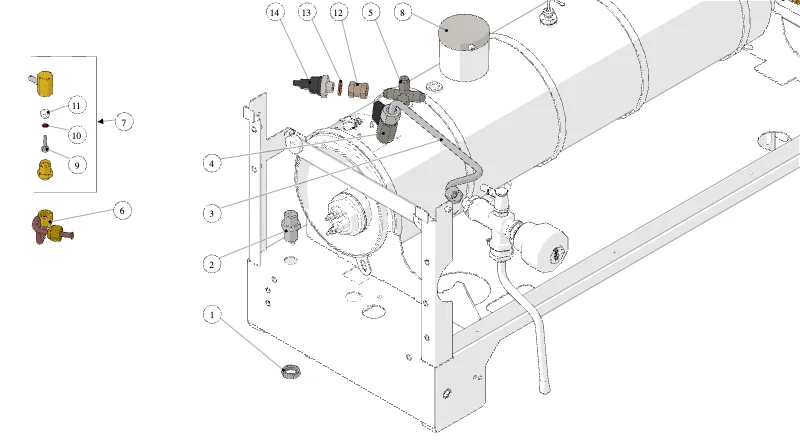

Loading parts…La Marzocco Linea PB – 25 – Hydraulic Assembly (exploded view)

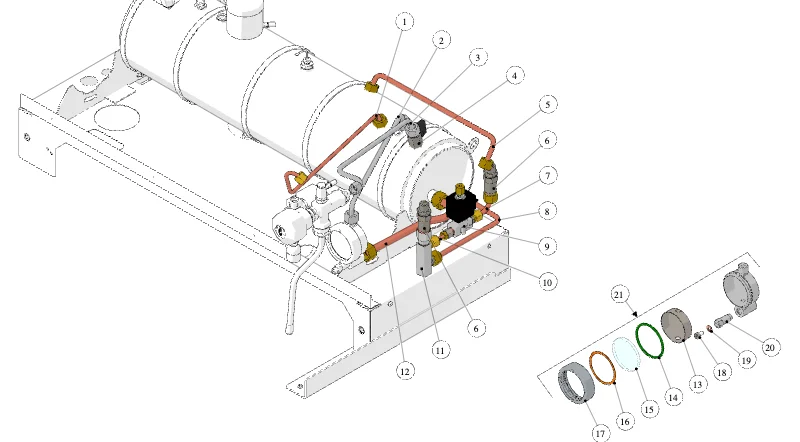

27 – Hydraulic Assembly

Loading…
Loading parts…La Marzocco Linea PB – 27 – Hydraulic Assembly (exploded view)
  • Pos. 1 – Tube Steam Boiler - Hot Water S.v. (Part no. TL08/234)
  • Pos. 2 – Tube Upper Level Sight Glass Treated (Part no. TL01.01)
  • Pos. 3 – Tube Ball V. S.b.-Right Steam Valve TR. (Part no. T.1.156.01)
  • Pos. 4 – La Marzocco Kugelhahn G3/8M auf G3/8F (L164.02) (Part no. L164.02)
  • Pos. 5 – Tube Check Valve - Steam Boiler 2-3-4 GR (Part no. TL05/234)
  • Pos. 6 – Check Valve G3/8M Treated (Part no. L032/P.02)
  • Pos. 7 – Tube Check V.-Autofill Solenoid V. (Part no. T.1.157)
  • Pos. 8 – Tube Water Inlet Linea PB 2GR (Part no. T.1.158.2)
  • Pos. 8 – Tube Water Inlet Linea PB 3GR (Part no. T.1.158.3)
  • Pos. 8 – Tube Water Inlet Linea PB 4GR (Part no. T.1.158.4)
  • Pos. 9 – La Marzocco 3-Wege Magnet Ventil 220 / 240V (L100/E.02) (Part no. L100/E.02)
  • Pos. 9 – Solenoid Valve 3 Way 200V (Part no. L100/E200.01)
  • Pos. 10 – Solenoid Valve T Tube (Part no. T.1.002)
  • Pos. 11 – Water Manifold (Part no. L025/C.01)
  • Pos. 12 – Tube Sight Glass Lower Linea PB 2-3GR (Part no. T.1.061)
  • Pos. 12 – Tube Sight Glass Lower Linea PB 4GR (Part no. T.1.062)
  • Pos. 13 – Sight Glass Inside Cap (Part no. L120/3)
  • Pos. 14 – Sight Glass Viton O-Ring 8-162 (Part no. L122/A)
  • Pos. 15 – Sight Glass, Glass D 61,5 Thk 5 (Part no. L122.01)
  • Pos. 16 – Sight Glass Gasket 62x55x0,5 (Part no. L122/B)
  • Pos. 17 – Sight Glass Chrome Bezel (Part no. L121)
  • Pos. 18 – Screw M6X10 Socket Cap A2 (Part no. L120/2)
  • Pos. 19 – La Marzocco Kupferscheibe 6,3 X 12 X 1 (L120/2A) (Part no. L120/2A)
  • Pos. 20 – Sight Glass Drain Fitting (Part no. L120/1CR)
  • Pos. 21 – Complete Sight Glass (Part no. L120_C.03)

29 – Hydraulic Assembly

Loading…

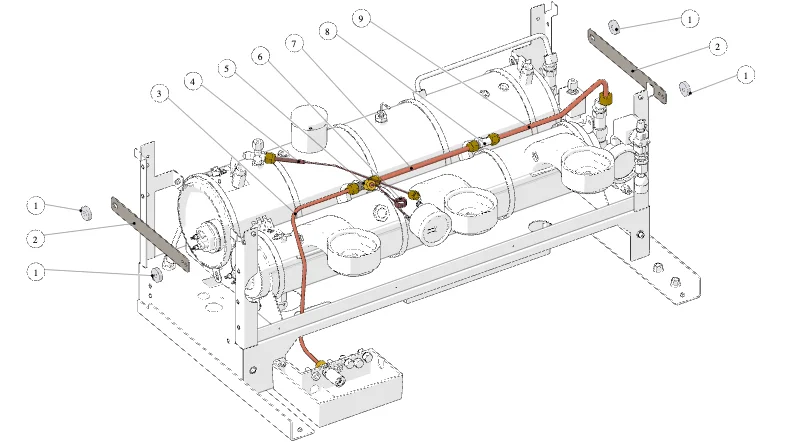

Loading parts…La Marzocco Linea PB – 29 – Hydraulic Assembly (exploded view)
  • Pos. 1 – Spacer 8,4X25X6 AL (Part no. F.6.001.01)
  • Pos. 2 – Bracket Boilers 245MM (Part no. CL10L)
  • Pos. 3 – Tube Coffee Boiler - Expansion Valve (Part no. T.1.154)
  • Pos. 3 – Tube Expansion Valve Linea PB W/Scales (Part no. T.1.173)
  • Pos. 3 – Tube Exp.v. Linea PB Multiple B./Scales (Part no. T.1.174)
  • Pos. 4 – Tube Pressure Gauge - Steam Boiler (Part no. TL10)
  • Pos. 5 – Cross Fitting G1/4M WR13 Treated (Part no. L129.01)
  • Pos. 6 – Tube Pressure Gauge - Coffee B. 2-3-4GR (Part no. TL11/234)
  • Pos. 7 – Tube Cross Fitting Connection 3GR (Part no. TL05/3)
  • Pos. 7 – Tube Cross Fitting Connection 4GR (Part no. TL05/4)
  • Pos. 8 – Tee Fitting G1/4M WR13 Treated (Part no. L128.01)
  • Pos. 9 – Tube Check Valve - Coffee B. Tee Fitting (Part no. T.1.153)

31 – Hydraulic Assembly

Loading…
Loading parts…La Marzocco Linea PB – 31 – Hydraulic Assembly (exploded view)
  • Pos. 1 – Drain Box Linea PB MP (Part no. F.1.078)
  • Pos. 2 – Drain Tube Linea PB 2MP (Part no. T.1.189.2)
  • Pos. 2 – Drain Tube Linea PB 3MP (Part no. T.1.189.3)
  • Pos. 2 – Drain Tube Linea PB 4MP (Part no. T.1.189.4)
  • Pos. 3 – Break-Drain for Solenoid Valve (Part no. L037/3R)
  • Pos. 4 – La Marzocco copper washer 1/4 inch (L100/1A) (Part no. L100/1A)
  • Pos. 5 – Nipple G1/4M-G1/4M WR19 H25.5 TR. (Part no. L037/3.01)

32 – Hydraulic Assembly Smartsteam

Loading…

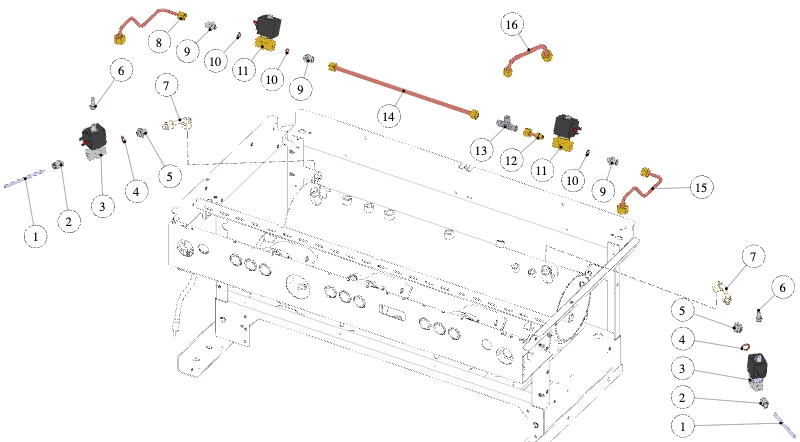

Loading parts…La Marzocco Linea PB – 32 – Hydraulic Assembly Smartsteam (exploded view)

33 – Fittings and Valves

Loading…

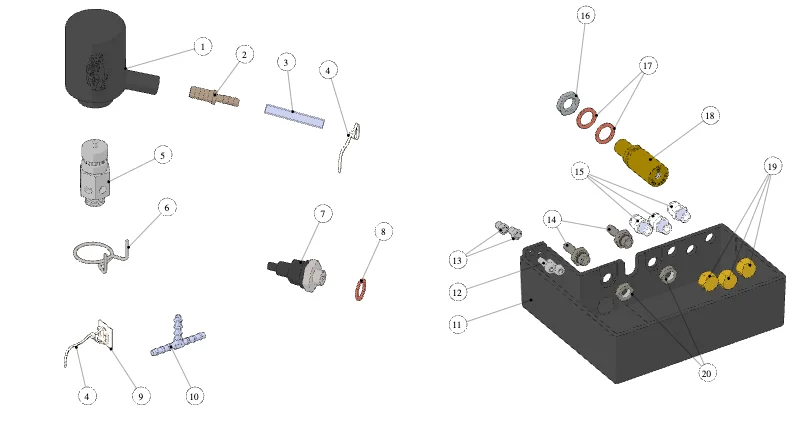

Loading parts…La Marzocco Linea PB – 33 – Fittings and Valves (exploded view)

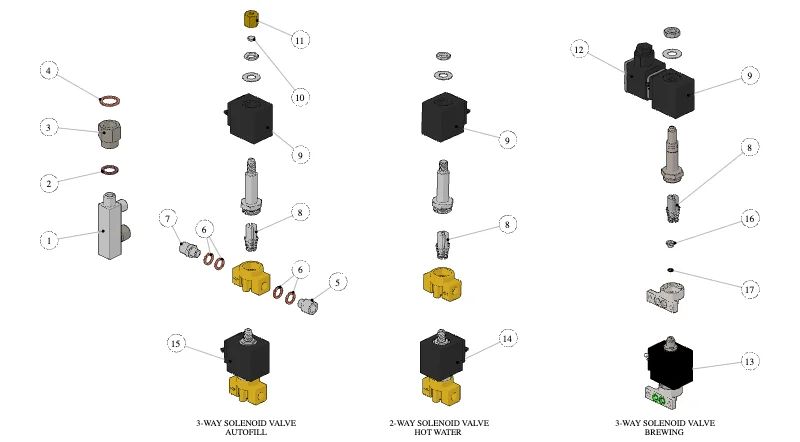

35 – Fittings and Valves

Loading…
Loading parts…La Marzocco Linea PB – 35 – Fittings and Valves (exploded view)

37 – Coffee Boiler – Group

Loading…
Loading parts…La Marzocco Linea PB – 37 – Coffee Boiler – Group (exploded view)

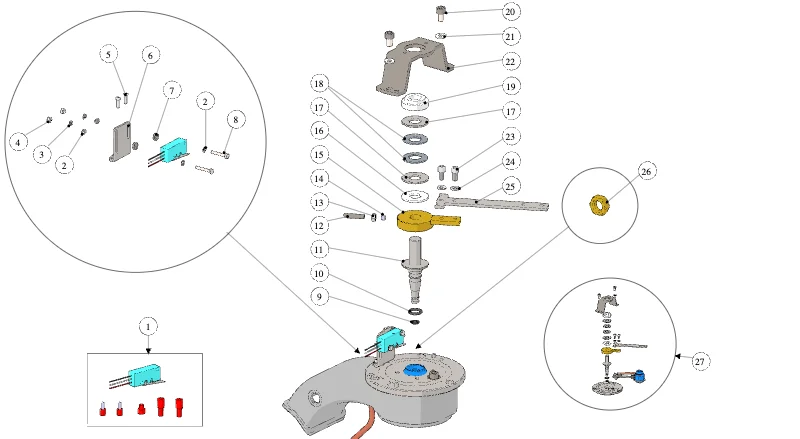

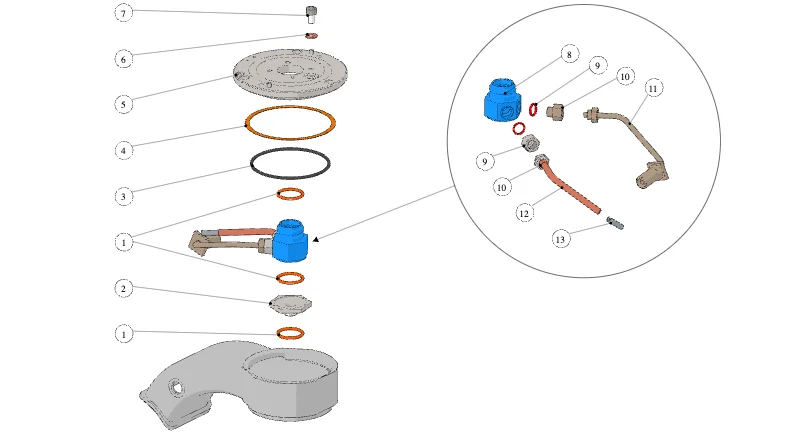

39 – Coffee Boiler – MP

Loading…
Loading parts…La Marzocco Linea PB – 39 – Coffee Boiler – MP (exploded view)
  • Pos. 1 – Microswitch Kit with Lugs (Part no. E.2.039)
  • Pos. 2 – Tooth Lock Washer 6X10,5X1,5 (Part no. RONDINOXGS/3)
  • Pos. 4 – Nut M3 H3 WR5,5 (Part no. DADO3M)
  • Pos. 5 – Screw M3X10 Phillips Round-Pan A2 (Part no. VITE3X10)
  • Pos. 6 – Bracket Microswitch GS3 (Part no. C.1.067)
  • Pos. 7 – Spacer 3,5X8X2,5 AL (Part no. I.3.004)
  • Pos. 8 – Screw M3X20 Hex Head A2 (Part no. I.1.055)
  • Pos. 9 – La Marzocco O-Ring 1,78×6,07 VITON (H.1.006) (Part no. H.1.006)
  • Pos. 10 – O-Ring 2,62x9,13 EPDM 70 ShA (Part no. H.1.018)
  • Pos. 11 – Shaft Conical Paddle Valve (Part no. A.5.048)
  • Pos. 12 – Pin D5X23 Thread M5X7,5 (Part no. A.5.005)
  • Pos. 13 – Nut M5 H4 WR8 S/S A2 (Part no. DADO5M_INOX)
  • Pos. 14 – Socket Grub Screw M5X5 A2 (Part no. I.1.016)
  • Pos. 15 – Lever Conical Paddle Valve (Part no. F.8.005)
  • Pos. 16 – Washer 14,1X30X2 PTFE (Part no. I.6.005)
  • Pos. 17 – Washer 14,2X30X2 S/S (Part no. I.1.091)
  • Pos. 18 – Belleville Spring 28X14,2X1,5 H2,15 (Part no. I.5.004)
  • Pos. 19 – Bushing Flanged 14X23X9,8 PTFE (Part no. F.4.012)
  • Pos. 20 – Screw M6X10 Socket Cap A2 (Part no. L120/2)
  • Pos. 21 – Tooth Lock Washer 4X8X1 (Part no. RONDELLA6X12)
  • Pos. 22 – Bracket Group MP (Part no. F.3.020)
  • Pos. 23 – Screw M5X10 Socket Cap A2 (Part no. I.1.005)
  • Pos. 24 – Washer 5,4X10X1 A2 (Part no. I.1.039)
  • Pos. 25 – Lever S/S Conical Paddle Valve Linea PB (Part no. C.1.267)
  • Pos. 26 – Nut G1/4 H8 WR20 (Part no. L100/5)
  • Pos. 27 – Retrofit Kit Conical Paddle Linea / GB5 (Part no. 934)

41 – Coffee Boiler – MP

Loading…
Loading parts…La Marzocco Linea PB – 41 – Coffee Boiler – MP (exploded view)

43 – Coffee Boiler – Group Cap AV

Loading…
Loading parts…La Marzocco Linea PB – 43 – Coffee Boiler – Group Cap AV (exploded view)

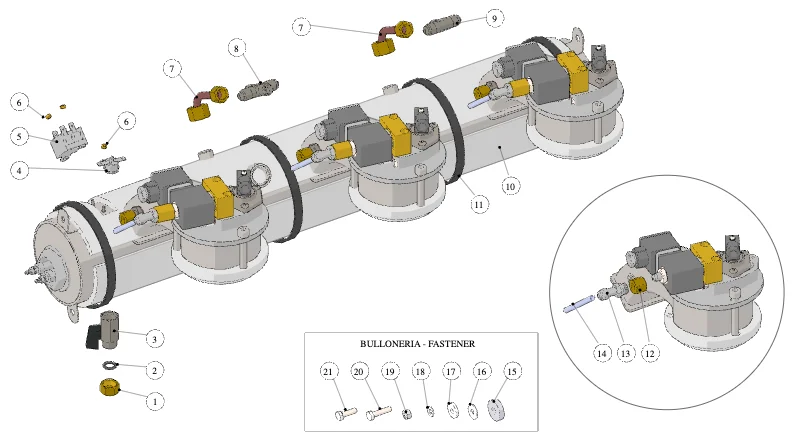

45 – Coffee Boiler Assembly

Loading…
Loading parts…La Marzocco Linea PB – 45 – Coffee Boiler Assembly (exploded view)
  • Pos. 1 – Cap Nut G3/8 H11 WR19 (Part no. L030)
  • Pos. 2 – O-Ring 2,62X10,77 EPDM 70 ShA (Part no. H.1.004)
  • Pos. 3 – La Marzocco Kugelhahn G3/8M auf G3/8F (L164.02) (Part no. L164.02)
  • Pos. 5 – Safety Thermostat 2P 130C 250V (Part no. L276/B)
  • Pos. 6 – Nut M3 H3 WR5,5 (Part no. DADO3M)
  • Pos. 7 – Tube Cross Fitting - Coffee Boiler (Part no. TL06)
  • Pos. 8 – Cross Fitting G1/4M WR13 Treated (Part no. L129.01)
  • Pos. 9 – Tee Fitting G1/4M WR13 Treated (Part no. L128.01)
  • Pos. 10 – Insulation Panel 2GR Coffee Boiler (Part no. F.7.004)
  • Pos. 10 – Insulation Panel 3GR Coffee Boiler (Part no. F.7.005)
  • Pos. 11 – Kabelbinder Dampfboiler (A.5.016.01) (Part no. A.5.016.01)
  • Pos. 12 – Fitting G1/4F-G1/8F WR17 (Part no. A.1.019)
  • Pos. 13 – Fitting Push-In 90° 6-R1/4M TR. (Part no. A.2.103)
  • Pos. 14 – PTFE Tube 6x4mm (Part no. T.3.006)
  • Pos. 15 – Spacer 8,4X25X6 AL (Part no. F.6.001.01)
  • Pos. 16 – Washer 6,5X18X1,5 (Part no. L165/9)
  • Pos. 17 – Washer 6,5x18x3 (Part no. I.1.043)
  • Pos. 18 – Tooth Lock Washer 4X8X1 (Part no. RONDELLA6X12)
  • Pos. 19 – Nut M6 H5 WR10 A2 (Part no. I.1.049)
  • Pos. 20 – Screw M6X25 Hex Head A2 (Part no. I.1.067)
  • Pos. 21 – Screw M6X20 Hex Head (Part no. I.1.058)

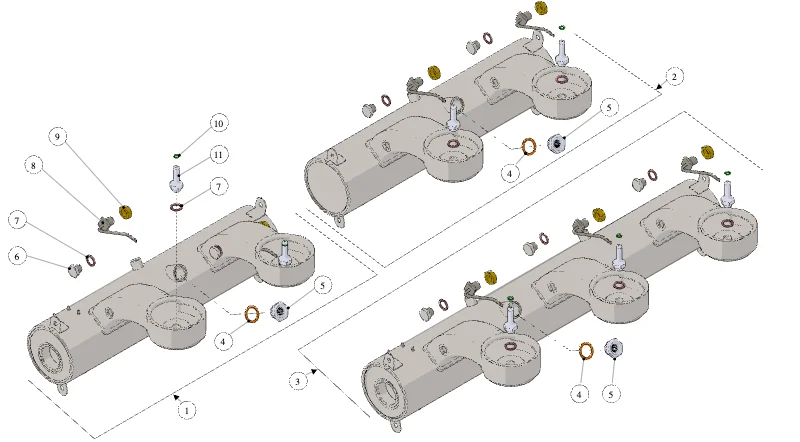

47 – Coffee Boiler Assembly

Loading…
Loading parts…La Marzocco Linea PB – 47 – Coffee Boiler Assembly (exploded view)

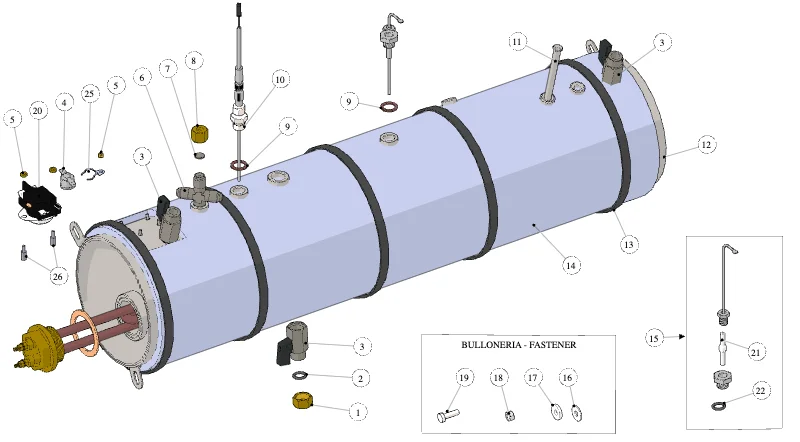

49 – Steam Boiler

Loading…
Loading parts…La Marzocco Linea PB – 49 – Steam Boiler (exploded view)

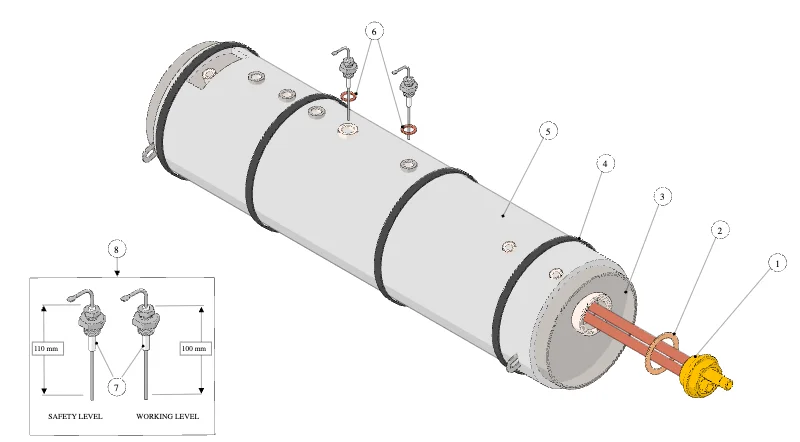

51 – X Version – Steam Boiler Assembly

Loading…
Loading parts…La Marzocco Linea PB – 51 – X Version – Steam Boiler Assembly (exploded view)

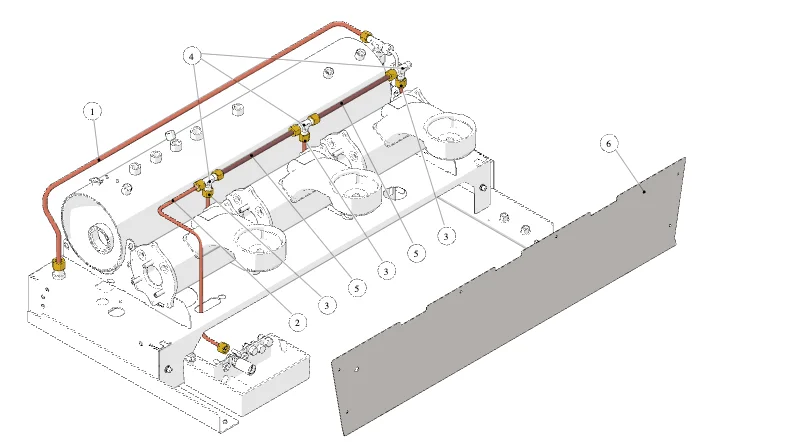

53 – X Version – Hydraulic Assembly

Loading…
Loading parts…La Marzocco Linea PB – 53 – X Version – Hydraulic Assembly (exploded view)
  • Pos. 1 – Tube Water In. - Check V. Linea PB 2GR (Part no. T.1.091.2)
  • Pos. 1 – Tube Water In. - Check V. Linea PB 3GR (Part no. T.1.091.3)
  • Pos. 1 – Tube Water In. - Check V. Linea PB 4GR (Part no. T.1.091.4)
  • Pos. 2 – Tube Coffee Boiler - Expansion Valve (Part no. T.1.081)
  • Pos. 3 – Tube Check Valve -Auofill Solenoid V.GS3 (Part no. T.2.113)
  • Pos. 4 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
  • Pos. 5 – Tube Coffee B. Connection Strada MP (Part no. T.1.113)
  • Pos. 6 – Panel Switch Linea PB 2GR No Sight Glass (Part no. C.1.218.2)
  • Pos. 6 – Panel Switch Linea PB 3GR No Sight Glass (Part no. C.1.218.3)
  • Pos. 6 – Panel Switch Linea PB 4GR No Sight Glass (Part no. C.1.218.4)

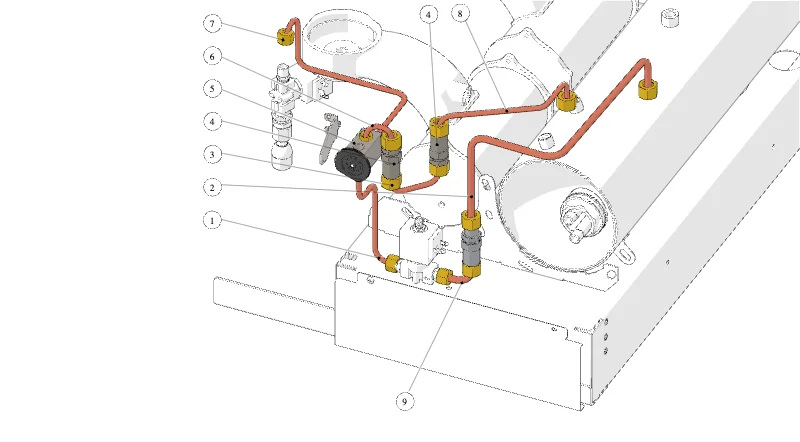

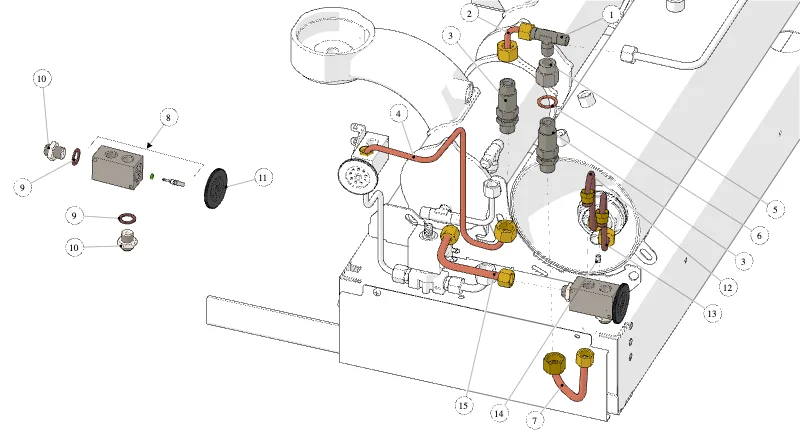

55 – X Version – Hydraulic Assembly

Loading…
Loading parts…La Marzocco Linea PB – 55 – X Version – Hydraulic Assembly (exploded view)
  • Pos. 1 – Tee Fitting R1/4M WR13 Treated (Part no. A.2.002.01)
  • Pos. 2 – Tube Check Valve - Tee Fitting GB5 (Part no. T.1.005)
  • Pos. 3 – Check Valve G3/8M Treated (Part no. L032/P.02)
  • Pos. 4 – Tube Check Valve - Mixing Valve Linea PB (Part no. T.1.082)
  • Pos. 5 – Fitting G1/4F-G3/8F WR22 Treated (Part no. A.2.004.01)
  • Pos. 6 – La Marzocco Kupferscheibe 3/8 Zoll (L180/1) (Part no. L180/1)
  • Pos. 8 – Mixing Valve Kit (Part no. 1058)
  • Pos. 9 – La Marzocco Kupferscheibe 1/4 Zoll (L100/1A) (Part no. L100/1A)
  • Pos. 10 – Nipple G1/4M-G1/4M WR19 H21,5 (Part no. A.5.019)
  • Pos. 11 – Thermostatic Valve Adjustment Knob (Part no. F.1.016)
  • Pos. 12 – Tube Mixing Valve - Pre-Heater Strada (Part no. T.1.106)
  • Pos. 13 – Tube Pre-Heater - Mixing Valve Strada (Part no. T.1.107)
  • Pos. 14 – Gicleur 1,5 M5 CH5 Treated (Part no. B.2.011.01)
  • Pos. 15 – Tube Mix V. - Coffee B. Tee Linea PB (Part no. T.1.080)

57 – X Version – Hydraulic Assembly

Loading…
Loading parts…La Marzocco Linea PB – 57 – X Version – Hydraulic Assembly (exploded view)
  • Pos. 1 – Tube Tea Mix V. - Autofill Solenoid V. (Part no. T.1.083)
  • Pos. 2 – Tube Check Valve - Steam Boiler Inlet (Part no. T.1.084)
  • Pos. 3 – Tube S.b. Check V. - Tea Mix V. Check V. (Part no. T.1.086)
  • Pos. 4 – Check Valve G3/8M Treated (Part no. L032/P.02)
  • Pos. 6 – Tube Check V. - Tea Mix V. Linea PB (Part no. T.1.093)
  • Pos. 7 – Tube Tea Mix V.-Tea Solenoid V. Inlet (Part no. T.1.087)
  • Pos. 8 – Tube Steam B. - Hot Water Check Valve (Part no. T.1.085)
  • Pos. 9 – Tube Autofill Solenoid V. - Check Valve (Part no. T.1.117)

59 – X Version – Coffee Boiler Assembly

Loading…

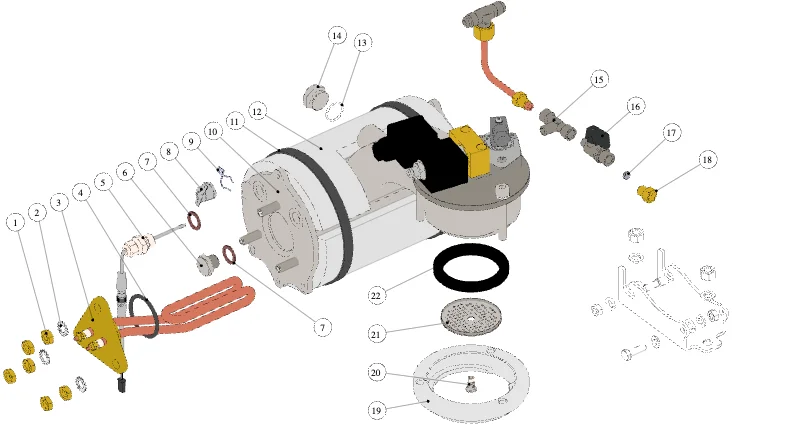

Loading parts…La Marzocco Linea PB – 59 – X Version – Coffee Boiler Assembly (exploded view)

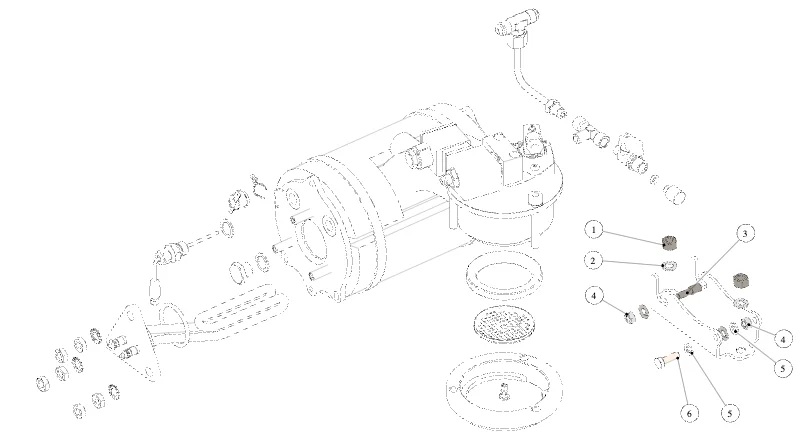

61 – X Version – Coffee Boiler Assembly

Loading…
Loading parts…La Marzocco Linea PB – 61 – X Version – Coffee Boiler Assembly (exploded view)
  • Pos. 1 – Nut M8 H8 WR13 S/S A2 (Part no. L1002)
  • Pos. 2 – Washer 8,5X14X1,5 A2 (Part no. L1003)
  • Pos. 3 – Coffee Boiler Pin Strada S/S (Part no. A.5.011)
  • Pos. 4 – Nut M6 H5 WR10 A2 (Part no. I.1.049)
  • Pos. 5 – Tooth Lock Washer 4X8X1 (Part no. RONDELLA6X12)
  • Pos. 6 – Screw M6X20 Hex Head (Part no. I.1.058)

63 – X Version – Coffee Boiler Assembly

Loading…

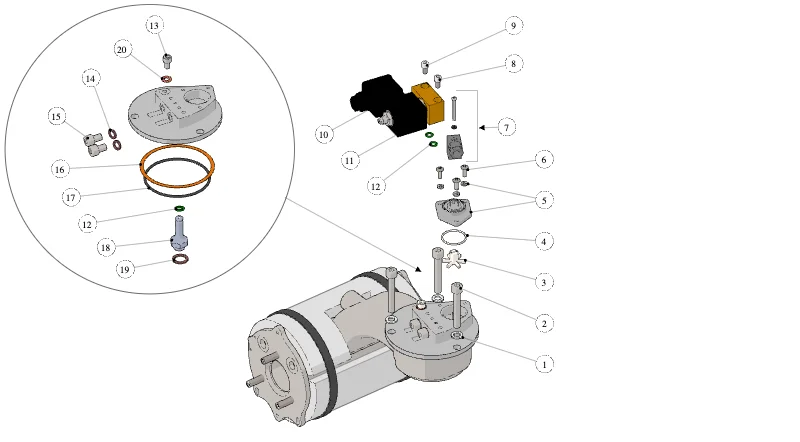

Loading parts…La Marzocco Linea PB – 63 – X Version – Coffee Boiler Assembly (exploded view)

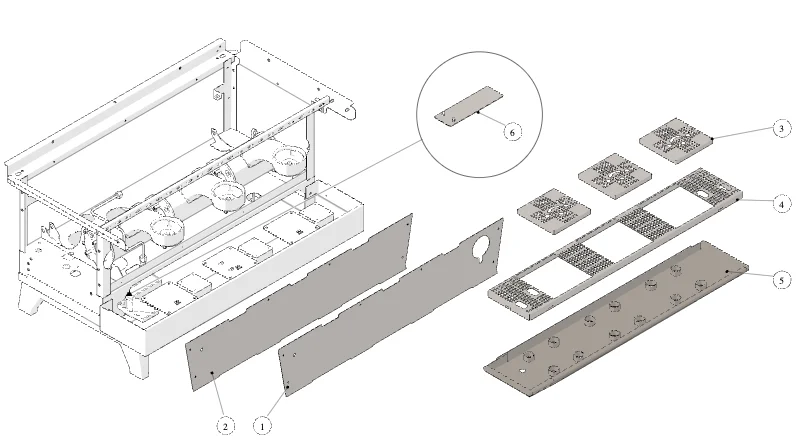

65 – Scales Version – Body Panel Assem.

Loading…
Loading parts…La Marzocco Linea PB – 65 – Scales Version – Body Panel Assem. (exploded view)
  • Pos. 1 – Panel Main Switch Linea PB 2GR W/Scales (Part no. C.1.215.2)
  • Pos. 1 – Panel Main Switch Linea PB 3GR W/Scales (Part no. C.1.215.3)
  • Pos. 1 – Panel Main Switch Linea PB 4GR W/Scales (Part no. C.1.215.4)
  • Pos. 2 – Panel Switch Linea PB 2GR Scale/No Glass (Part no. C.1.219.2)
  • Pos. 2 – Panel Switch Linea PB 3GR Scale/No Glass (Part no. C.1.219.3)
  • Pos. 2 – Panel Switch Linea PB 4GR Scale/No Glass (Part no. C.1.219.4)
  • Pos. 3 – Grid Scale Complete Linea PB (Part no. C.1.207.R)
  • Pos. 4 – Linea PB Drain Grid 2GR W/Scales (Part no. C.1.331.2)
  • Pos. 4 – Linea PB Drain Grid 3GR W/Scales (Part no. C.1.331.3)
  • Pos. 4 – Linea PB Drain Grid 4GR W/Scales (Part no. C.1.331.4)
  • Pos. 5 – Tray Drain Linea PB 2GR W/Scales (Part no. C.1.206.2)
  • Pos. 5 – Tray Drain Linea PB 3GR W/Scales (Part no. C.1.206.3)
  • Pos. 5 – Tray Drain Linea PB 4GR W/Scales (Part no. C.1.206.4)
  • Pos. 6 – Staffa Pozzetto Bilance (Part no. C.1.224)

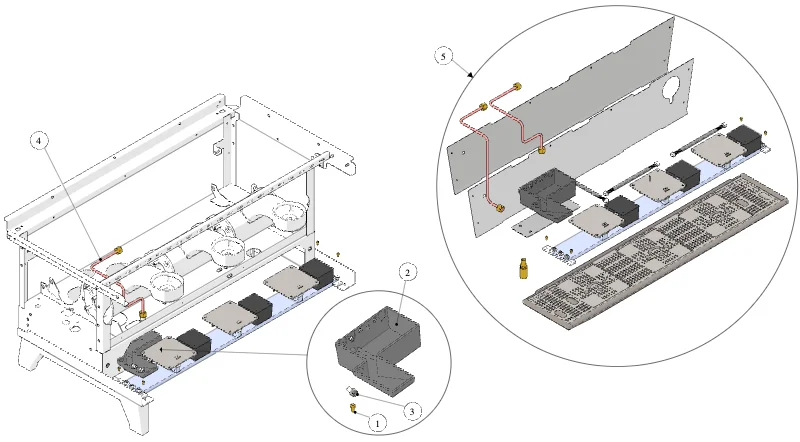

67 – Scales Version – Hydraulic Assembly

Loading…
Loading parts…La Marzocco Linea PB – 67 – Scales Version – Hydraulic Assembly (exploded view)
  • Pos. 1 – Screw M4X8 Cheese (Part no. VITE4X8)
  • Pos. 2 – Drain Box Linea PB W/Scales (Part no. F.1.056.01)
  • Pos. 3 – Screw M5X14 Socket Cap A2 (Part no. I.1.011)
  • Pos. 4 – Tube Expansion Valve Linea PB W/Scales (Part no. T.1.173)
  • Pos. 4 – Tube Exp.v. Linea PB Multiple B./Scales (Part no. T.1.174)
  • Pos. 5 – Retrofit Kit Scales PB 2GR (Part no. 915-2)
  • Pos. 5 – Retrofit Kit Scales PB 3GR (Part no. 915-3)
  • Pos. 5 – Retrofit Kit Scales PB 4GR (Part no. 915-4)

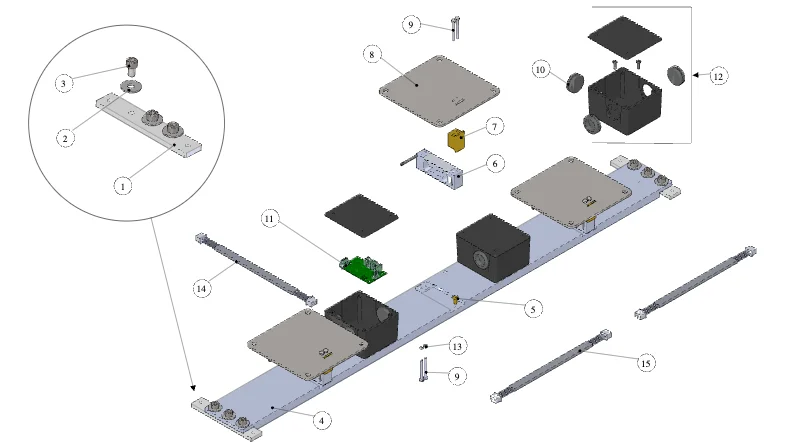

69 – Scales Version – Scales Assembly

Loading…
Loading parts…La Marzocco Linea PB – 69 – Scales Version – Scales Assembly (exploded view)
  • Pos. 1 – Fixing for Cross Bar Scales (Part no. F.1.069)
  • Pos. 2 – Washer 6,5X18X1,5 (Part no. L165/9)
  • Pos. 3 – Screw M6X10 Socket Cap A2 (Part no. L120/2)
  • Pos. 4 – Beam Scales 2GR (Part no. C.1.225.2)
  • Pos. 4 – Beam Scales 3GR (Part no. C.1.225.3)
  • Pos. 4 – Beam Scales 4GR (Part no. C.1.225.4)
  • Pos. 5 – Screw M4X8 Cheese (Part no. VITE4X8)
  • Pos. 6 – Load Cell Kit (Part no. E.1.030.R)
  • Pos. 7 – Spacer for Scales (Part no. I.4.003)
  • Pos. 8 – Weight Plate for Scales (Part no. F.3.042)
  • Pos. 9 – Screw M3X30 Hex Head S/S A2 (Part no. I.1.083)
  • Pos. 10 – Membrane Grommet Tpe D25.5 H8 (Part no. F.2.033)
  • Pos. 11 – Load Cell Electronic Board (Part no. E.1.031.02)
  • Pos. 13 – Split Washer 3X6X0,5 S/S A2 (Part no. RONDELLAM3)
  • Pos. 14 – Cable C.a. Conn. Board-Display/Scales (Part no. E.4.076)
  • Pos. 15 – Cable Conn. Scales Board 33CM (Part no. E.4.058)

71 – Custom Color Powder Coating – Matte

Loading…
Loading parts…La Marzocco Linea PB – 71 – Custom Color Powder Coating – Matte (exploded view)
  • Pos. 1 – Panel Lower Side Linea PB Custom Color (Part no. C.1.141.55)
  • Pos. 2 – Panel Mid. Side Left PB White Matte (Part no. C.1.149.50)
  • Pos. 2 – Panel Mid. Side Left Linea PB Cust. Col. (Part no. C.1.149.55)
  • Pos. 3 – Panel Up. Side Left Linea PB Cust.col. (Part no. C.1.144.55)
  • Pos. 4 – Panel Back Linea PB 2GR Custom Color (Part no. C.1.145.2.55)
  • Pos. 4 – Panel Back Linea PB 3GR Custom Color (Part no. C.1.145.3.55)
  • Pos. 4 – Panel Back Linea PB 4GR Custom Color (Part no. C.1.145.4.55)
  • Pos. 6 – Panel Up.side Right L. PB Cust.col.mix V (Part no. C.1.143.01.55)
  • Pos. 7 – Panel Mid. Side Right Linea PB Cust.col. (Part no. C.1.147.55)
  • Pos. 8 – Maple Paddle Handle (Part no. C.2.020.MW)
  • Pos. 8 – Walnut Paddle Handle (Part no. C.2.020.WW)
  • Pos. 9 – Portafilter Single Spout Maple (Part no. L111/1MW.R)
  • Pos. 9 – Portafilter Single Spout Walnut (Part no. L111/1WW.R)
  • Pos. 9 – Portafilter Double Spout Maple (Part no. L111/2MW.R)
  • Pos. 9 – Portafilter Double Spout Walnut (Part no. L111/2WW.R)

73 – Cupwarmer Heating Elements

Loading…

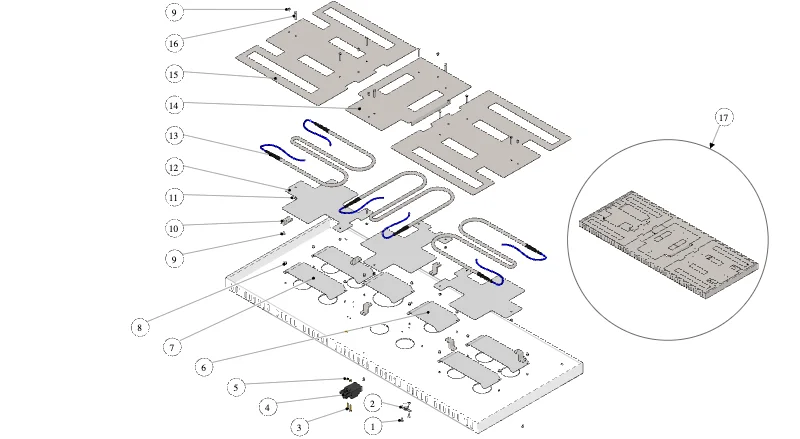

Loading parts…La Marzocco Linea PB – 73 – Cupwarmer Heating Elements (exploded view)
  • Pos. 1 – Screw M3X8 Phillips Round-Pan A2 (Part no. VITE3X8)
  • Pos. 2 – Safety Thermostat 1P 90C 250V (Part no. L265)
  • Pos. 3 – Screw M3X16 Cheese (Part no. VITE3X16)
  • Pos. 4 – UL Male Connector (Part no. L265/M_UL)
  • Pos. 5 – Nut M3 H3 WR5,5 (Part no. DADO3M)
  • Pos. 6 – Protection Cupwarmer Hole 116MM (Part no. C.1.030.02)
  • Pos. 7 – Protection Cupwarmer Hole 170 MM (Part no. C.1.100.01)
  • Pos. 8 – Cap Nut M3 H6,5 CH5,5 (Part no. I.1.108)
  • Pos. 9 – Screw M3X5 Phillips Round Pan A2 (Part no. I.1.054)
  • Pos. 10 – Bracket Heat-Conducting Plate Cupwarmer (Part no. C.1.283)
  • Pos. 11 – Nut M3 H2 WR5,5 S/S A2 (Part no. DADOINOXM3)
  • Pos. 12 – Plate Slot Resistance (Part no. C.1.282)
  • Pos. 16 – Screw M3X20 Hex Head A2 (Part no. I.1.055)
  • Pos. 17 – Kit Cupwarmer Multi Plates PB/KB 2GR (Part no. SA170.2.R)
  • Pos. 17 – Kit Cupwarmer Multi Plates PB/KB 3GR (Part no. SA170.3.R)
  • Pos. 17 – Kit Cupwarmer Multi Plates PB/KB 4GR (Part no. SA170.4.R)

75 – Heating Elements

Loading…

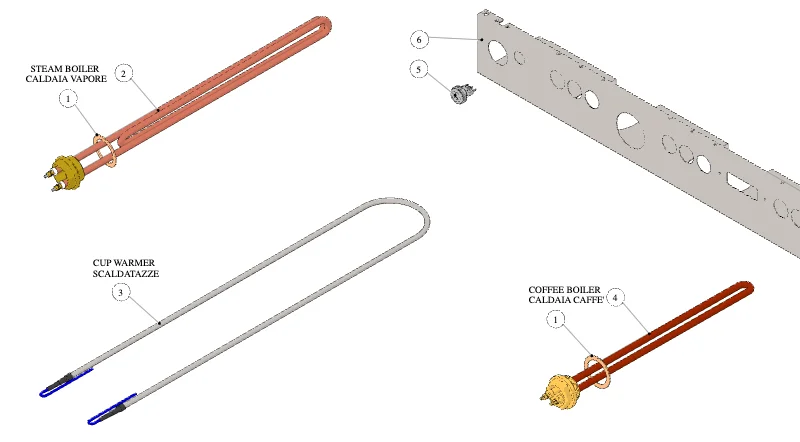

Loading parts…La Marzocco Linea PB – 75 – Heating Elements (exploded view)
  • Pos. 1 – Gasket Cylindrical Flat D55XD42X2 (Part no. LR360)
  • Pos. 2 – Heating Element W2000 V220 CM29 1-1/4 (Part no. LR342/220B.04)
  • Pos. 2 – Heating Element W3000 V200 CM39 1-1/4 (Part no. LR357/200B.04)
  • Pos. 2 – Heating Element W3000 V220 CM39 1-1/4 (Part no. LR357/220B.04)
  • Pos. 2 – Heating Element W3000 V380 CM39 1-1/4 (Part no. LR357/380B.04)
  • Pos. 3 – Cupwarmer Heating Element 280W 220V (Part no. LR370)
  • Pos. 4 – Heating Element W1400 V220 CM43 1-1/4 (Part no. LR365/220.04)
  • Pos. 4 – Heating Element W1400 V380 CM43 1-1/4 (Part no. LR365/380.04)
  • Pos. 5 – Switch Cupwarmer W/White LED with Riser (Part no. E.2.052.R)
  • Pos. 6 – Panel Control Linea PB 2MP W/Cupwarmer (Part no. C.1.230.2)
  • Pos. 6 – Control Panel Linea PB 2MP W/LED/Cupw. (Part no. C.1.230.2.L)
  • Pos. 6 – Panel Control Linea PB 3MP W/Cupwarmer (Part no. C.1.230.3)
  • Pos. 6 – Control Panel Linea PB 3MP W/LED/Cupw. (Part no. C.1.230.3.L)
  • Pos. 6 – Panel Control Linea PB 4MP W/Cupwarmer (Part no. C.1.230.4)
  • Pos. 6 – Control Panel Linea PB 4MP W/LED/Cupw. (Part no. C.1.230.4.L)

76 – Heating Elements

Loading…
Loading parts…La Marzocco Linea PB – 76 – Heating Elements (exploded view)
  • Pos. 1 – Gasket Cylindrical Flat D55XD42X2 (Part no. LR360)
  • Pos. 2 – Heat.elem W4000 V380 CM50 1-1/4 4POLE (Part no. E.6.008.03)
  • Pos. 2 – Heat.elem W4000 V220 CM50 1-1/4 4POLE (Part no. E.6.009.03)
  • Pos. 2 – Heat.elem W3000 V220 CM50 1-1/4 4POLE (Part no. E.6.019.01)
  • Pos. 2 – Heat.elem W4000 V200 CM50 1-1/4 4POLE TR (Part no. E.6.023)
  • Pos. 2 – Heat.elem W3000 V200 CM50 1-1/4 4POLE TR (Part no. E.6.027)
  • Pos. 3 – Cupwarmer Heating Element 400W 220V (Part no. LR371)
  • Pos. 4 – Heating Element W1600 V380 CM65 1-1/4 (Part no. LR364/380.04)
  • Pos. 4 – Heating Element W1900 V220 CM66 1-1/4 (Part no. LR366/220.04)
  • Pos. 4 – Heating Element W1900 V380 CM66 1-1/4 (Part no. LR366/380.04)

77 – Heating Elements

Loading…
Loading parts…La Marzocco Linea PB – 77 – Heating Elements (exploded view)
  • Pos. 1 – Gasket Cylindrical Flat D55XD42X2 (Part no. LR360)
  • Pos. 2 – Heat.elem W5000 V200 CM65 1-1/4 4POLE TR (Part no. E.6.028)
  • Pos. 2 – Heat.elem W5000 V220 CM65 1-1/4 4POLE TR (Part no. E.6.029)
  • Pos. 3 – Cupwarmer Heating Element 600W 220V (Part no. LR372)
  • Pos. 4 – Heating Element W1400 V220 CM43 1-1/4 (Part no. LR365/220.04)
  • Pos. 4 – Heating Element W1400 V380 CM43 1-1/4 (Part no. LR365/380.04)

79 – Electrical System and Pump

Loading…

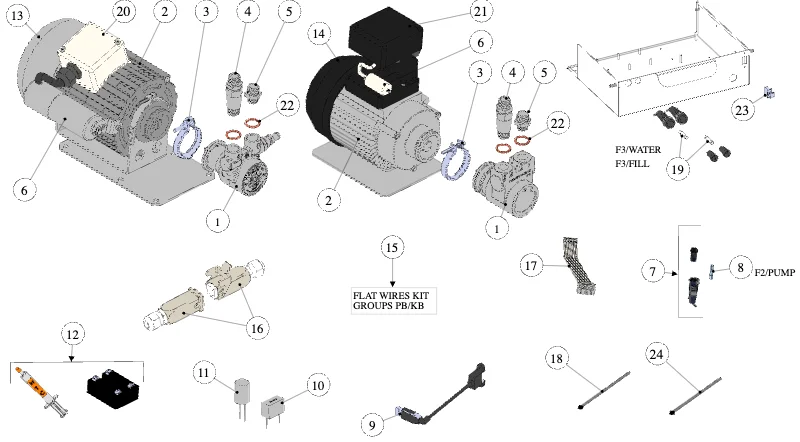

Loading parts…La Marzocco Linea PB – 79 – Electrical System and Pump (exploded view)
  • Pos. 1 – Pump 150 LT/H (Part no. L290/1.01)
  • Pos. 1 – Pump 200 LT/H (Part no. L290/2.01)
  • Pos. 2 – Motor Pump 150L/H 220V 50Hz (Part no. 900)
  • Pos. 2 – Motor Pump 150L/H 200V 50-60Hz (Part no. 900/200)
  • Pos. 2 – Motor Pump 150L/H 240V-415V 50-60HZ (Part no. 900/5UL)
  • Pos. 2 – Motor Pump 200L/H 240V-415V 50-60HZ (Part no. 900/P)
  • Pos. 2 – Motor Pump 200L/H 220V 50Hz (Part no. 900/P5)
  • Pos. 2 – Motor Pump 200L/H 240V 50-60HZ Etl (Part no. 900/PUL)
  • Pos. 2 – Motor Pump 150L/H 240V 50-60HZ Etl (Part no. 900/UL)
  • Pos. 2 – CE Motor V.220-230 Hz.50 (Part no. L290/5)
  • Pos. 2 – Motor Pump 200V 50/60HZ (Part no. L290/7)
  • Pos. 2 – UL Motor V.220-240 50/60 HZ (Part no. L290/8UL)
  • Pos. 3 – Pump Clamp (Part no. L290/C)
  • Pos. 4 – Check Valve G3/8M Treated (Part no. L032/P.02)
  • Pos. 5 – Nipple G3/8M-G3/8M WR20 H31 TR. (Part no. L305/N.01)
  • Pos. 5 – Nipple G3/8-3/8 Compression TR. (Part no. L306/G.01)
  • Pos. 6 – 6,3microF Capacitor (L290/5 Motor) (Part no. L290/5C)
  • Pos. 6 – 8microF Capacitor (L290/7 Motor) (Part no. L290/7C)
  • Pos. 6 – 10microF Capacitor (L290/8UL Motor) (Part no. L290/CUL)
  • Pos. 7 – UL Fuse Holder (Part no. E.2.004)
  • Pos. 8 – La Marzocco Sicherung 3,15 A (E.2.073) (Part no. E.2.073)
  • Pos. 9 – USB Cable Linea PB / Strada EP (Part no. E.2.040)
  • Pos. 10 – Filter Emc (Part no. L206.01)
  • Pos. 11 – 2x22nF+0,1microF Filter (Part no. E.2.030)
  • Pos. 12 – La Marzocco SSR 25A 240V Relais (E.4.010.01.R) (Part no. E.4.010.01.R)
  • Pos. 12 – SSR 50A 240V W/Thermal Compound (Part no. E.4.029.R)
  • Pos. 12 – SSR 25A 480V W/Thermal Compound (Part no. E.4.035.R)
  • Pos. 13 – Fan Cover - Pump Motor UL (Part no. F.6.004)
  • Pos. 14 – Plastic Fan Cover - Pump Motor (Part no. L290/6)
  • Pos. 15 – 3D5 Button Box Cable CM140 (Part no. LAD3D5/C06)
  • Pos. 16 – Rapid IP67 Connector for Pump Cable (Part no. E.4.044)
  • Pos. 18 – Timer Display Cable Linea PB MP (Part no. E.4.126)
  • Pos. 19 – Fuse 160 mA Fast-Blow (Part no. E.2.074)
  • Pos. 20 – Electric Cover Box for L290/8UL (Part no. F.1.203)
  • Pos. 21 – Electric Cover Box for L290/5 (Part no. F.1.202)
  • Pos. 22 – La Marzocco Kupferscheibe 3/8 Zoll (L180/1) (Part no. L180/1)
  • Pos. 23 – USB Connector Cover (Part no. F.1.219)
  • Pos. 24 – Cable Conn. SSR / Universal Board (Part no. E.4.375)

81 – Electrical System

Loading…

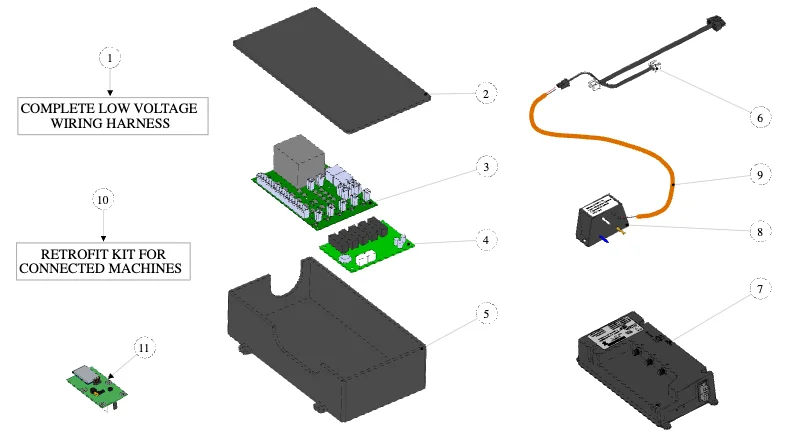

Loading parts…La Marzocco Linea PB – 81 – Electrical System (exploded view)
  • Pos. 1 – Wiring Harness Linea PB 2AV Low Voltage (Part no. E.4.155)
  • Pos. 1 – Wiring Harness Linea PB 3AV Low Voltage (Part no. E.4.157)
  • Pos. 1 – Wiring Harness Linea PB 2MP Low Voltage (Part no. E.4.170)
  • Pos. 1 – Wiring Harness Linea PB 3MP Low Voltage (Part no. E.4.172)
  • Pos. 1 – Wiring Harness Linea PB 4AV Low Voltage (Part no. E.4.176)
  • Pos. 2 – Linea PB Electronic Board Box Cover (Part no. F.1.044)
  • Pos. 3 – Universal Board (Part no. E.1.023.05)
  • Pos. 4 – Linea PB Board (Part no. E.1.025.03)
  • Pos. 5 – Linea PB Electronic Board Box (Part no. F.1.043)
  • Pos. 6 – Gateway Connection Wiring 1250MM (Part no. E.4.298)
  • Pos. 8 – Power Supply 24V 15W 100-240V (Part no. E.2.108)
  • Pos. 9 – Gateway Power Cable for Retrofit (Part no. E.4.334)
  • Pos. 10 – Retrofit Kit Connected Bar Machine CN (Part no. 1026)
  • Pos. 10 – Retrofit Kit Connected Bar Machine EU (Part no. 1027)
  • Pos. 10 – Retrofit Kit Connected Bar Machine Usa (Part no. 1028)
  • Pos. 10 – Retrofit Kit Connected Bar Machine UK (Part no. 1029)
  • Pos. 10 – Retrofit Kit Connected Bar Machine Aus (Part no. 1030)
  • Pos. 10 – Retrofit Kit Connected Bar Machine KR (Part no. 1031)

83 – Portafilters

Loading…

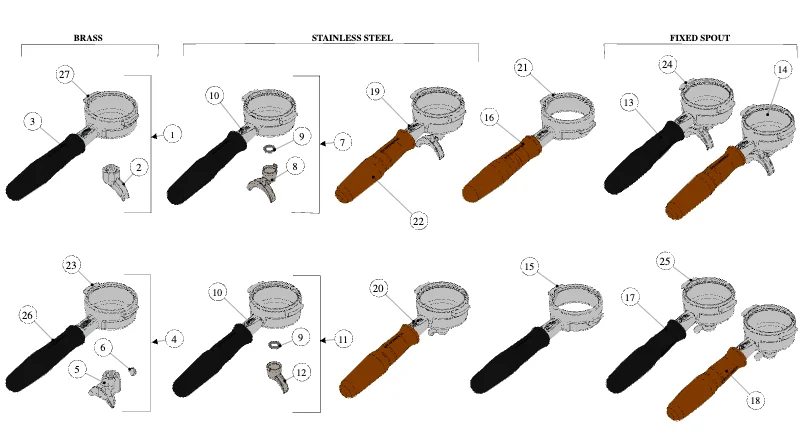

Loading parts…La Marzocco Linea PB – 83 – Portafilters (exploded view)

85 – Filter

Loading…

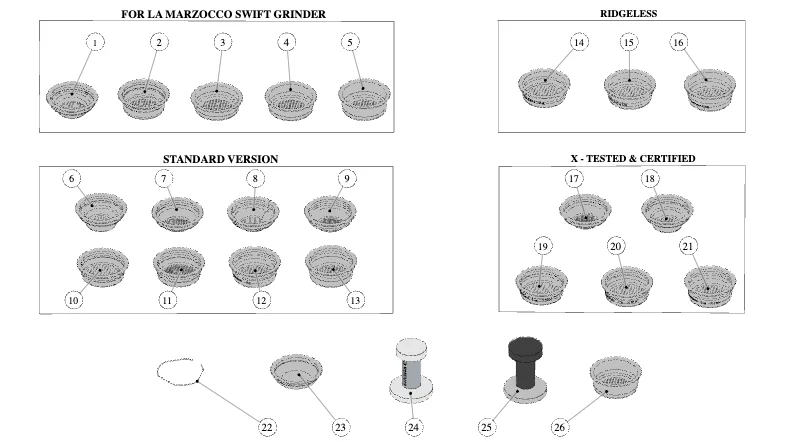

Loading parts…La Marzocco Linea PB – 85 – Filter (exploded view)

87 – Scales Version – Portafilter Assem.

Loading…
Loading parts…La Marzocco Linea PB – 87 – Scales Version – Portafilter Assem. (exploded view)
  • Pos. 1 – 2 Precision Portafilter Kit (Part no. 931-2)
  • Pos. 2 – 3 Precision Portafilter Kit (Part no. 931-3)
  • Pos. 2 – 4 Precision Portafilter Kit (Part no. 931-4)
  • Pos. 3 – 4x 17g Precision Filter Basket Kit (Part no. 932)
  • Pos. 3 – 4x 14g S/S Precision Filter Basket Kit (Part no. 947)
  • Pos. 3 – 4x 21g Precision Filter Basket Kit (Part no. 948)

89 – Hose and Accessories

Loading…

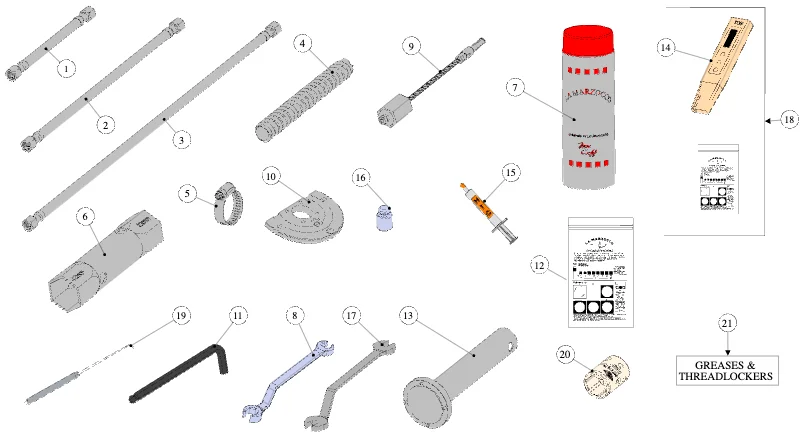

Loading parts…La Marzocco Linea PB – 89 – Hose and Accessories (exploded view)
  • Pos. 1 – Braided Hose G3/8F 50CM (Part no. L305/050.01)
  • Pos. 1 – Braided Hose 3/8COMPR. 50CM Nsf (Part no. L306/050)
  • Pos. 2 – Braided Hose G3/8F 120CM (Part no. L305/120.01)
  • Pos. 2 – Braided Hose 3/8COMPR. 120CM Nsf (Part no. L306/120)
  • Pos. 3 – Braided Hose G3/8F 210CM (Part no. L305/210.01)
  • Pos. 3 – Braided Hose G3/8F 210CM Nsf (Part no. L306/210)
  • Pos. 3 – Braided Hose G3/8F 90° 210CM Nsf (Part no. L306/210/C)
  • Pos. 3 – Braided Hose 3/8COMPR. 210CM Nsf (Part no. T.5.003)
  • Pos. 4 – Clear Armoured Drain Hose (Part no. L308)
  • Pos. 5 – Hose Clamp 16/25 H9 W2 AISI430 (Part no. L312)
  • Pos. 6 – Heating Element Tool 40/42 (Part no. UT360/42)
  • Pos. 7 – La Marzocco Kaffeefettlöser / Puly Caff (F.9.021) (Part no. F.9.021)
  • Pos. 8 – Bent Wrench WR14 for Group Tube (Part no. UT107)
  • Pos. 9 – MP O-Ring Extractor (Part no. UT004)
  • Pos. 10 – Paddle Cap Section (Part no. UT103)
  • Pos. 11 – Allen Key 5 with Ball End (Part no. UT005)
  • Pos. 12 – La Marzocco Wassertest Kit (F.9.000.02) (Part no. F.9.000.02)
  • Pos. 13 – Sight Glass Tool (Part no. UT120)
  • Pos. 14 – Digital Tds Meter (Part no. F.9.003)
  • Pos. 15 – Htc Thermal Compound Syringe 2ML (Part no. F.1.065)
  • Pos. 16 – Load 100g to Calibrate Scales (Part no. F.3.050)
  • Pos. 17 – Bent Wrench WR13 for Group Tube (Part no. UT108)
  • Pos. 18 – Water Test Kit (Part no. 941)
  • Pos. 19 – La Marzocco Dichtungswerkzeug (UT008) (Part no. UT008)
  • Pos. 20 – Tool for Tightening Steam Wand Fitting (Part no. UT367)
  • Pos. 21 – Food Grade Slicone Grease 111 KG 1 (Part no. V073)
  • Pos. 21 – Grasso Parker Super Lube 55gr (Part no. V076)
  • Pos. 21 – Vaseline Grease Lubritex 0.900KG (Part no. V078)
  • Pos. 21 – Loxeal 58-11 Flüssigdichtmittel (Part no. V099)
  • Pos. 21 – Grease PTFE Silicone Loxeal Nsf H1 (Part no. V104)
  • Pos. 1000 – Kit Retrofit Pro Touch Linea PB/LCS (Part no. 968)
  • Pos. 1000 – Internal Box Gateway Iot W/Cloud (Part no. E.8.020)
  • Shop categories
Menu
Back to Top
Product has been added to your cart
