La Marzocco Linea Mini maintenance kit major service “budget version”

La Marzocco maintenance kit for the “budget version” of the major service on a Linea Mini

Next to the complete maintenance kit for major service on a Linea Mini I also offer this “budget version”. It is less expensive because not all wear parts are replaced. In addition, a maintenance kit for the minor service is available in the shop.

This maintenance kit is for the "old" version of the Linea Mini. This can be identified by the serial number on the nameplate, which begins with "LM." This version also lacks a display on the front.

The “budget version” covers the most important maintenance components while still keeping the machine running reliably. It is particularly suitable for users who want to service their machine regularly without having to invest in the complete maintenance kit right away. Depending on how and how intensively the machine is used, the major service should be carried out after about 1 year with commercial use and after 3 to 5 years with private use.

Over time, the components installed in machines have changed slightly. Therefore, different maintenance kit options are available, which must be selected according to the machine's configuration. Before purchasing, it's important to check which version is required.

Cool Touch steam wand:

Since 2021, all machines have been equipped with a Cool-Touch steam lance. Whether a Cool-Touch steam lance or the older version without Cool-Touch is installed can be identified by the rubber coating on the older version.

If an old steam lance without Cool-Touch is installed, this can be switched to the latest version from the Linea Mini R. The replacement is very simple, as only a cotter pin needs to be removed and then the lance can be replaced.

Portafilter seal:
– La Marzocco portafilter seal "reduced force" (H.3.018) -> Scope of delivery Linea Micra & Linea Mini R in conjunction with the combo portafilter (A.5.186) and bottomless portafilter (L111/X.01)
– La Marzocco portafilter seal (H.3.004) -> Scope of delivery Linea Mini & GS3 in conjunction with the Stainless steel portafilter with 2 spouts (L111/2NAC) and Stainless steel portafilter with 1 spout (L111/1AC)
– La Marzocco Silicone portafilter seal (H.3.007) -> Scope of delivery Linea Mini & GS3 in conjunction with the Stainless steel portafilter with 2 spouts (L111/2NAC) and Stainless steel portafilter with 1 spout (L111/1AC)

Vacuum valve on the steam boiler:
There are also different versions of the vacuum valve on the steam boiler. Since model year 2021, only the new SMA vacuum valve (B.2.029.01) If the old Vacuum valve” (L192.03) is mounted, this can either be overhauled analogously with the corresponding wear set, or with the new SMA vacuum valve (B.2.029.01) should also be replaced.

All parts included are original La Marzocco spare parts.

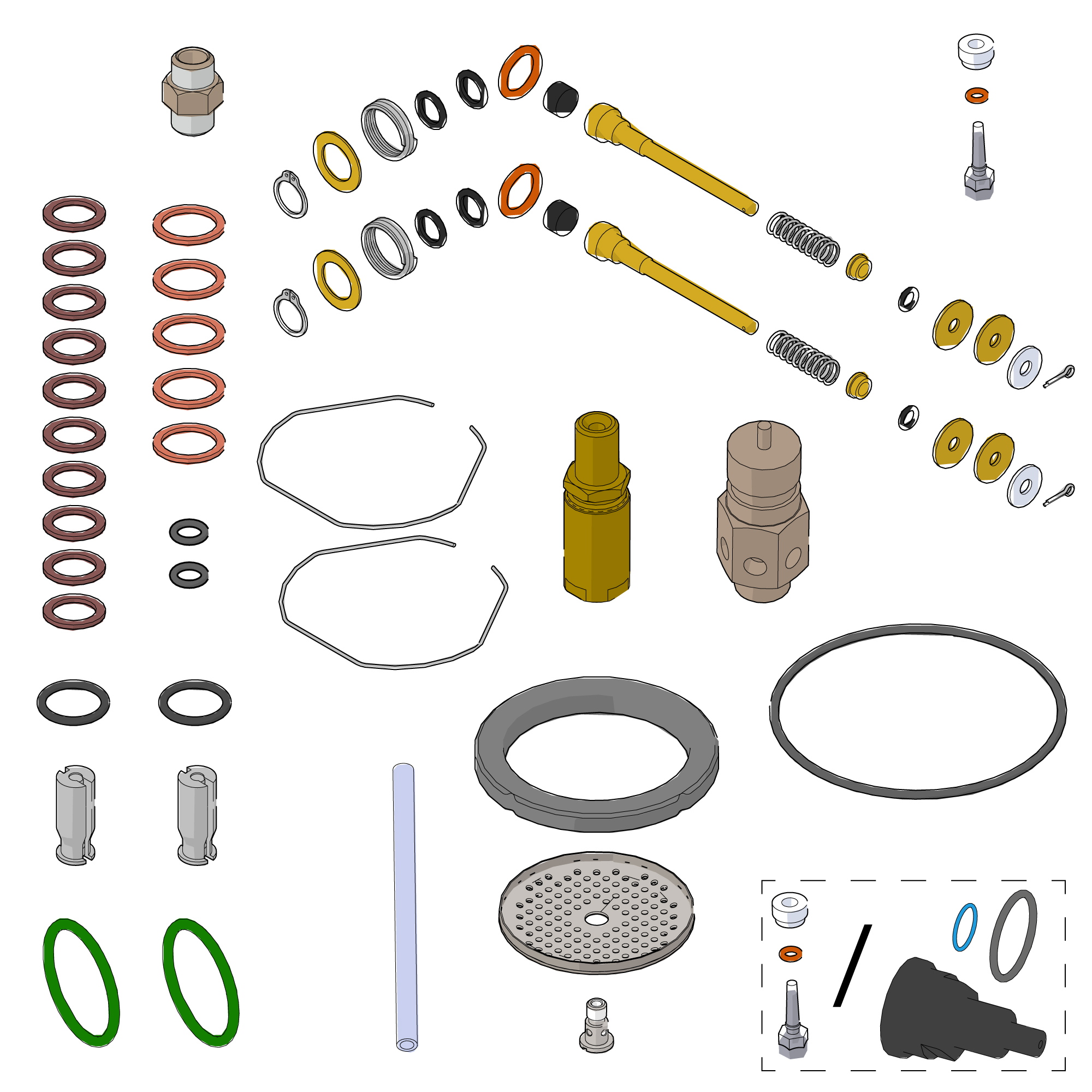

Scope of delivery:
1x selected portafilter gasket
1x La Marzocco wear set vacuum valve (GC-LM-004) or La Marzocco wear set vacuum valve SMA (1037) -> depending on the type of vacuum valve fitted
2x La Marzocco O-RING for portafilter spout (H.1.017)
2x La Marzocco portafilter retaining spring (L113)
1x La Marzocco expansion valve (L140_C)
1x La Marzocco safety valve 2.5 bar, 3/8 inch (B.2.025)
10x La Marzocco copper washer 1/4 inch (L100/1A)
5x La Marzocco copper washer 3/8 inch (L180/1)
2x maintenance kit / rebuild kit steam / hot water valve (L165/K)
1x La Marzocco wear set vacuum valve (GC-LM-004)
2x La Marzocco O-ring heating element steam / brew boiler (F.2.014.01)
2x La Marzocco solenoid valve plunger (L100/H)
2x O-RING 1.78 X 15.6 Viton 70 SHA (H.1.022)
1x La Marzocco O-RING f\u00fcr Siebtr\u00e4ger Auslauf (H.1.017)\r\n2x La Marzocco Haltefeder Siebtr\u00e4ger (L113)\r\n1x La Marzocco Expansionsventil (L140_C)\r\n1x La Marzocco Sicherheitsventil 2,5 Bar, 3/8 Zoll (B.2.025)\r\n10x La Marzocco Kupferscheibe 1/4 Zoll (L100/1A)\r\n5x La Marzocco Kupferscheibe 3/8 Zoll (L180/1)\r\n2x Wartungskit / rebuild kit Dampf- / Hei\u00dfwasserventil (L165/K)\r\n1x La Marzocco Verschlei\u00dfset Unterdruckventil (GC-LM-004)\r\n2x La Marzocco O-Ring Heizung Dampf- / Br\u00fchboiler (F.2.014.01)\r\n2x La Marzocco Anker / Plunger Magnetventil (L100/H)\r\n2x O-RING 1,78 X 15,6 Viton 70 SHA (H.1.022)\r\n1x La Marzocco R\u00fcckschlagventil H27,5 1/4\u2033 (B.2.027)
1x La Marzocco O-ring brew boiler (H.1.023) Linea Mini (R) & Linea Micra
1x PVC hose water tank Linea Mini (GC-LM-002)
